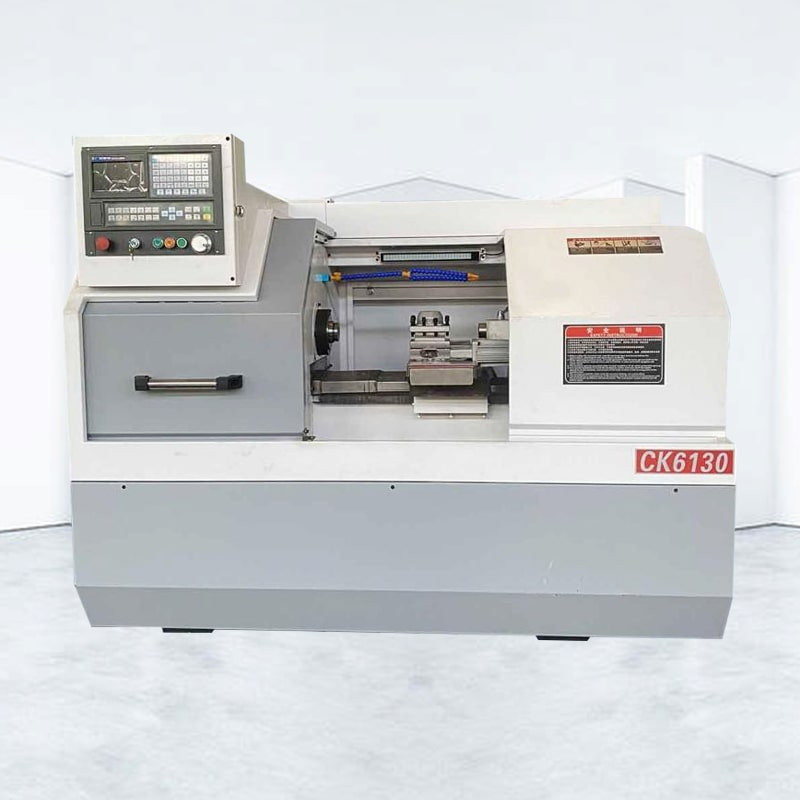

ALCK6130 Small CNC lathe
ALMAZAKL CNC CNC lathe is an economical CNC lathe that can automatically process the inner and outer cylindrical surfaces, end surfaces, grooves, spherical surfaces and conical surfaces of small parts.
Automatic CNC lathe Machine Features:
1. The spindle system of CNC lathe machine has high speed, high precision, high rigidity and stable temperature rise.
2. Mini CNC lathe spindle bearings are lubricated with high-temperature grease and have a long service life.
3.High-rigidity rectangular guide rail, anti-vibration and impact resistance, suitable for large cutting, also suitable for fine and rough machining.
4. Fully enclosed internal and external protection.
5. ALMAZAKL CNC can be equipped with hydraulic, pneumatic and manual clamping devices
ALMAZAKL CNC ALCK6130 CNC lathe is an economical, practical and powerful CNC machining equipment with the following advantages:
1. High precision: ALCK6130 CNC lathe adopts digital control technology, which can realize high-precision processing and improve the precision and quality of products.
2. High efficiency: Compared with traditional lathes, ALCK6130 CNC lathes have faster processing speed and higher production efficiency, which can greatly shorten the production cycle and improve production efficiency.
3. Simple operation: ALCK6130 CNC lathe adopts man-machine interface operating system, which is easy to operate and maintain, so that the operator can get started quickly and improve production efficiency.
4. Strong adaptability: ALCK6130 CNC lathe can adapt to the processing of parts with different shapes and materials, and has strong adaptability.
5. High reliability: ALCK6130 CNC lathe adopts high-quality materials and advanced manufacturing technology to ensure the reliability and long life of the equipment.
In short,ALCK6130 CNC lathe has the advantages of high precision, high efficiency, simple operation, strong adaptability, and high reliability. It is very suitable for the processing and production of various parts, especially the production and processing needs of small and medium-sized enterprises.

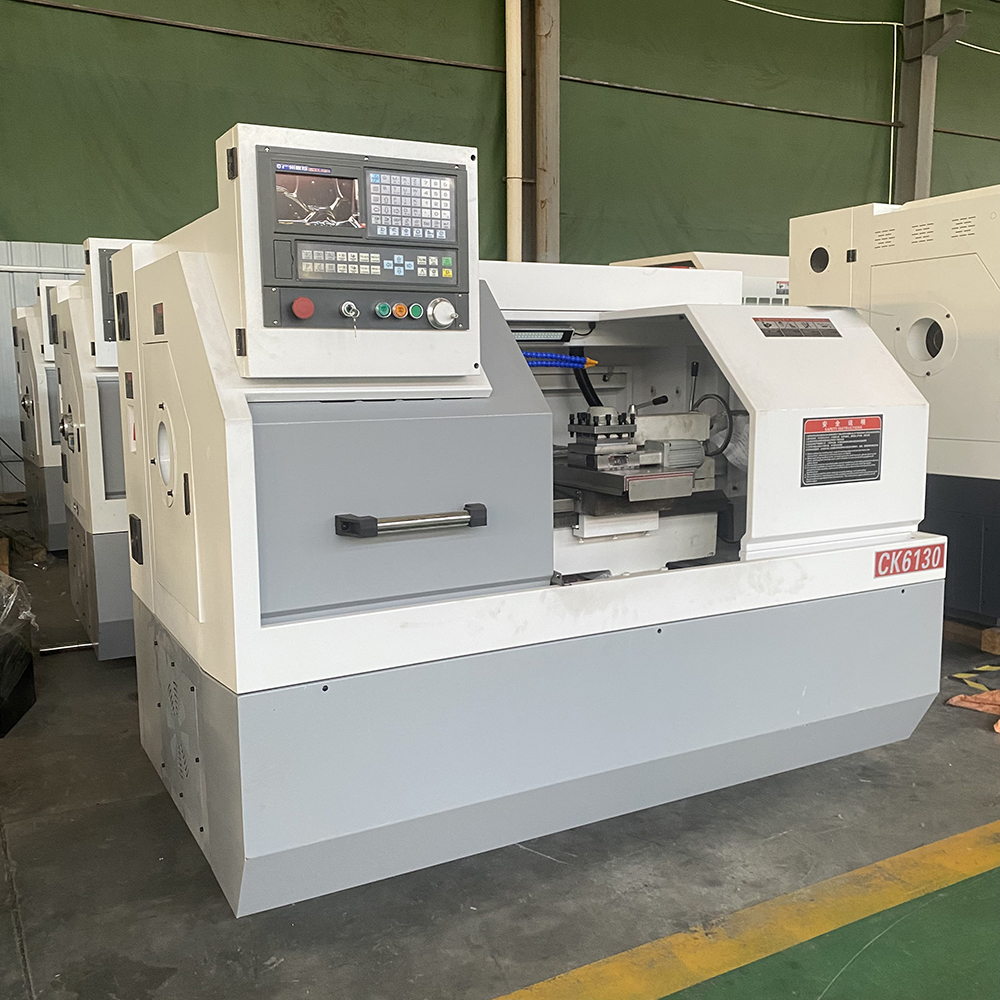

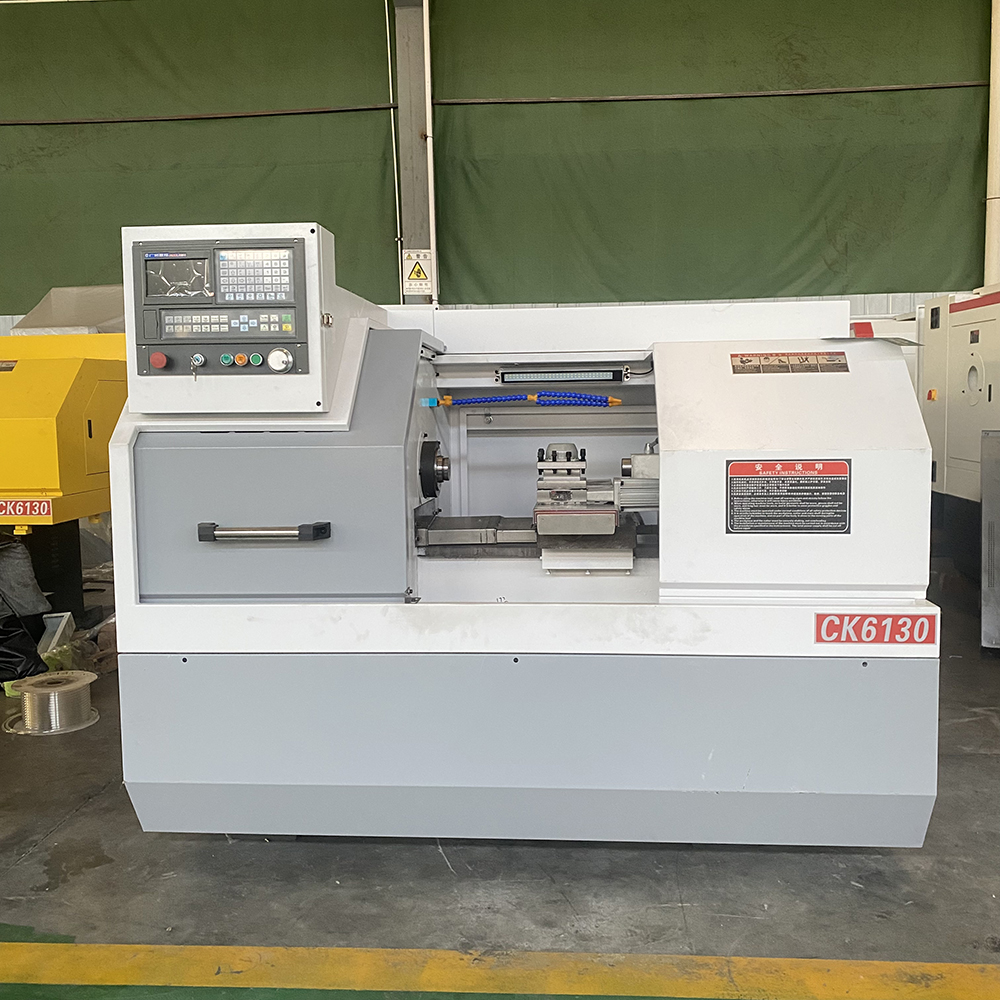

ALMAZAKL CNC ALCK6130 Flat Bed CNC Lathe
Equipment configuration and parameters
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| X-axis motor torque | mm | 4Nm |
| Z-axis motor torque | mm | 4Nm |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | F48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| Knife square size | mm | 20×20 |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 950 |
| Dimensions (length × width × height) | mm | 1600×1100×1650mm |
