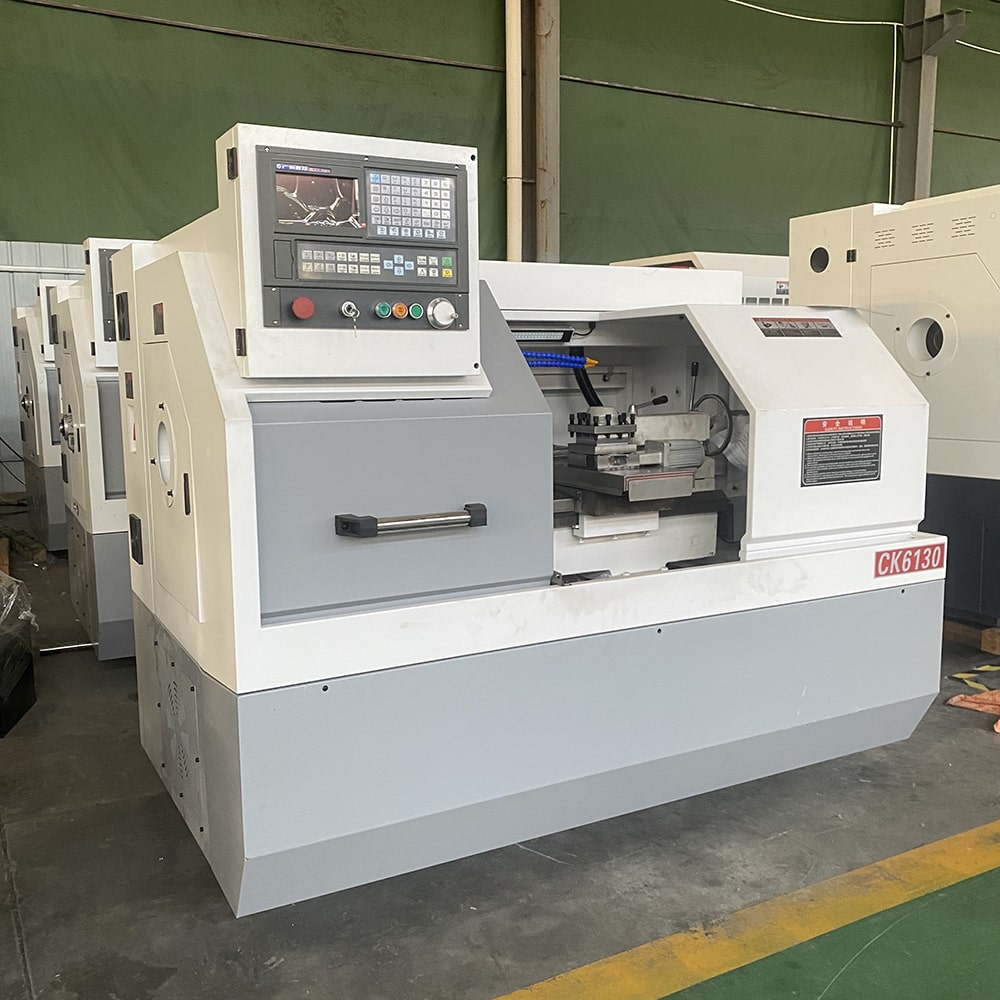

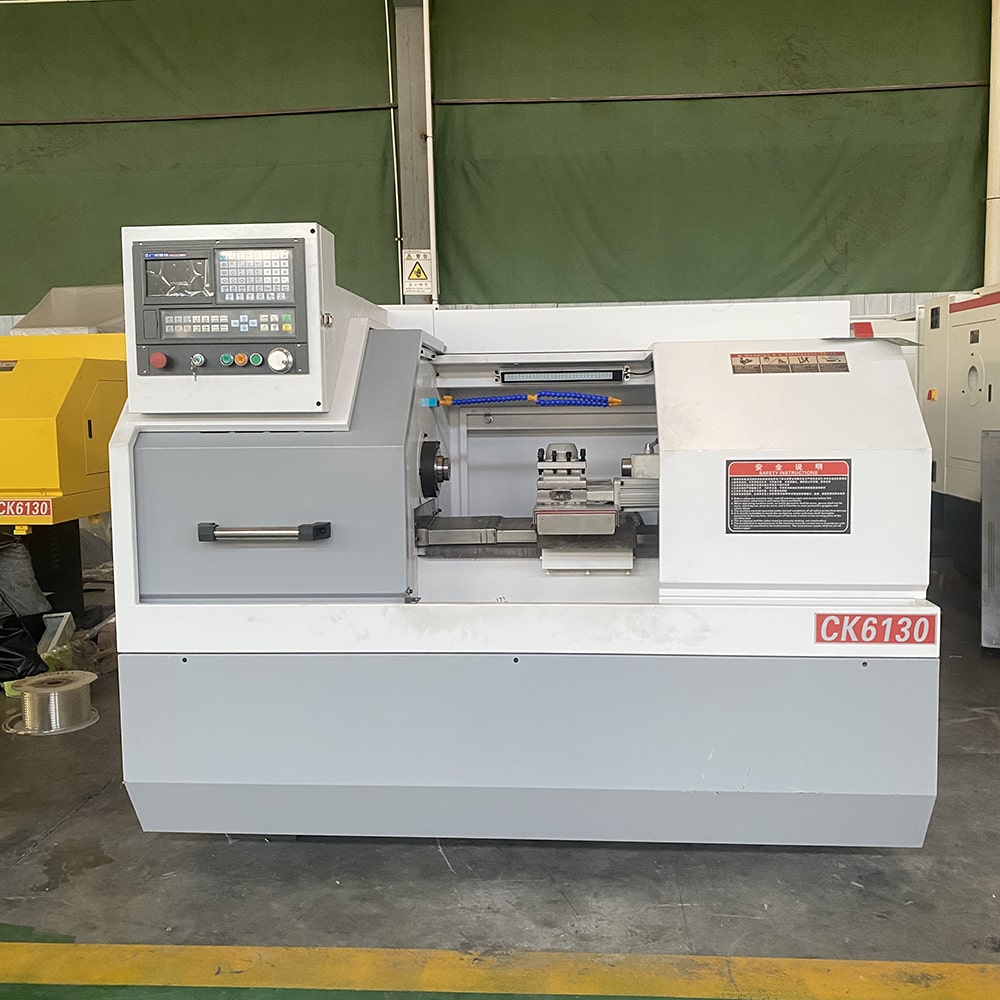

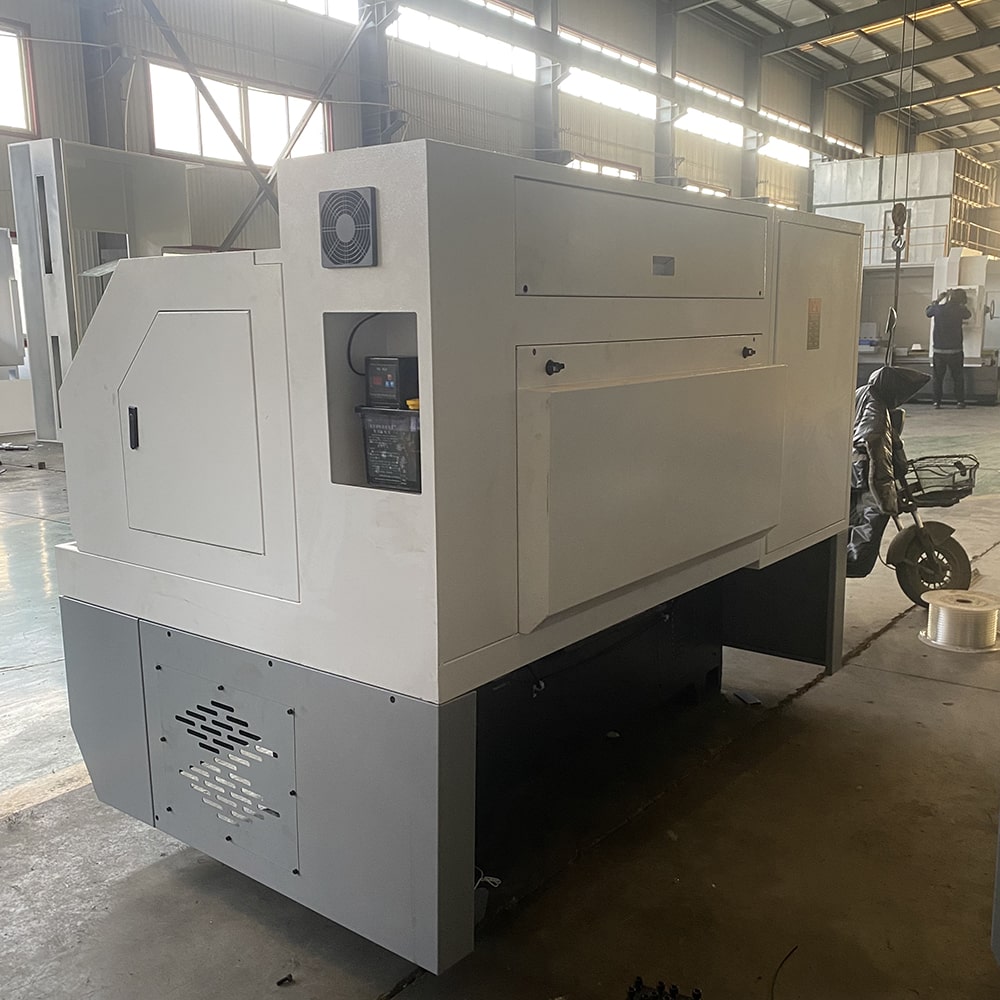

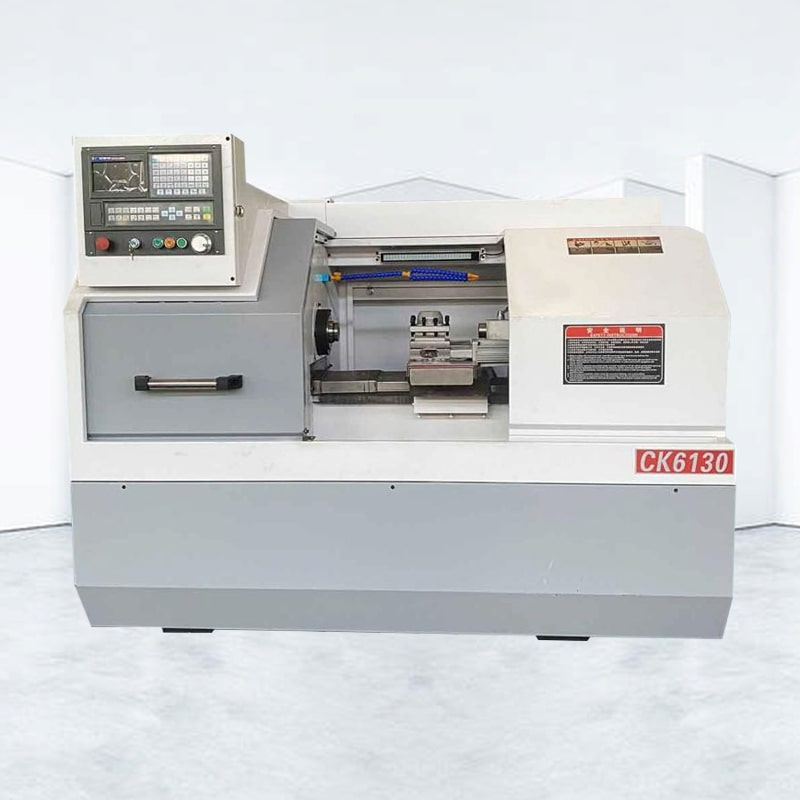

ALCK6130 CNC Lathe: Improve Productivity And Achieve Excellent Competitiveness
ALCK6130 CNC lathe realizes high-efficiency production. It has automatic feeding, tool changing and measuring functions, which can realize automatic continuous processing, greatly improve production efficiency, and reduce manual intervention and processing time.
Optional Configuration Of ALCK6130 CNC Lathe For Your Reference:
1. Numerical control system: ALCK6130 CNC lathe can be equipped with various numerical control systems, such as GSK, Siemens, Fanuc, etc. You can choose a suitable CNC system according to your needs.
2. Spindle: Optional high-speed spindle is used to improve processing efficiency and quality. High-speed spindles usually have a higher speed range and higher cutting capacity.
3. Turret: The turret of the CNC lathe usually has multiple tool positions, and it can be configured with multiple turrets or turret deformation to increase the processing flexibility and diversity of the workpiece.
4. Automatic tool change system: This system can realize automatic tool change, improve processing efficiency and reduce manual intervention.
5. Cooling system: The CNC lathe can be equipped with a cooling system, which is used to cool the workpiece and cutting fluid to improve cutting efficiency and prolong tool life.
6. Feeding device: Optional automatic feeding device is used to realize automatic feeding of workpieces and improve processing efficiency.
7. High-precision measuring device: Optional high-precision measuring device is used to measure the size and shape of the workpiece in real time to ensure the processing quality.
8. Programming software: CNC lathes can be equipped with programming software, which is used to write and edit processing programs, which is convenient for operation and management.
Note that the above are some common optional configurations, and specific configuration options may vary by different vendors and models. When choosing a configuration, it is recommended to choose according to your specific needs, the characteristics of the workpiece to be processed and the budget. It is best to consult a professional CNC lathe supplier or manufacturer to obtain more detailed and accurate configuration information.
Processing Advantages Of ALCK6130 CNC Lathe:
1. Stable structure: CK6130 CNC lathe adopts solid bed structure and high-precision guide rail system, which ensures the stability and rigidity of the machine tool and provides reliable machining accuracy.
2. Numerical control system: It is equipped with advanced numerical control systems, such as GSK, Siemens, Fanuc, etc., which can realize high-precision and high-efficiency automatic processing. The operator can control various functions of the lathe through programming.
3. High-precision processing: CK6130 CNC lathe has high-precision position control and rotation control capabilities, and can realize fine turning, boring, thread processing and other operations to meet the high-precision requirements of the workpiece.
4. Multifunctional turret: CK6130 CNC lathe is usually equipped with a multifunctional turret, which can accommodate many different types of tools, realize multi-process and multi-face processing, and improve the flexibility and efficiency of processing.
ALMAZAKL CNC CK6130 lathe machine mechanical
Equipment configuration and parameters
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| X-axis motor torque | mm | 4Nm |
| Z-axis motor torque | mm | 4Nm |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | F48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| Knife square size | mm | □20×20 |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 950 |
| Dimensions (length × width × height) | mm | 1600×1100×1650mm |
