CNC lathes are used in the machinery industry

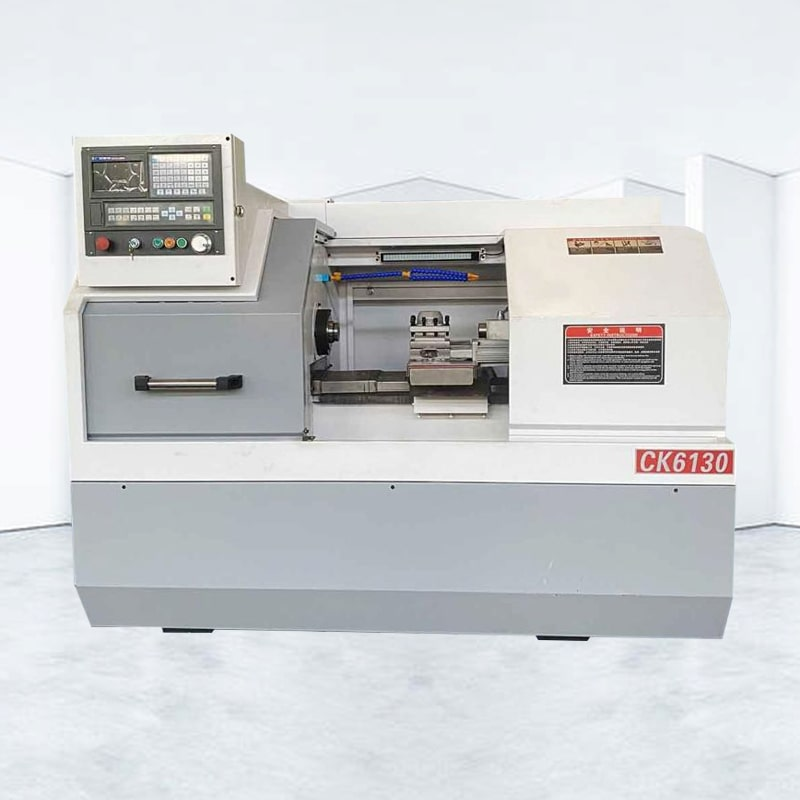

Automatic CNC lathe CNC lathe is a high-precision and high-efficiency automatic machine tool. Equipped with a multi-station turret or a dynamic turret, the machine tool has a wide range of processing performance, which can process linear cylinders, oblique cylinders, arcs and various threads, grooves, worms and other complex work pieces, with linear interpolation, arc Interpolate various compensation functions, and play a good economical effect in the mass production of complex parts.
Equipment configuration and parameters
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| X-axis motor torque | 4Nm | |
| Z-axis motor torque | 4Nm | |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | F48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| Knife square size | mm | □20×20 |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 950 |
| Dimensions (length × width × height) | mm | 1600×1100×1650mm |
CNC lathe processing Features:
1.High machining precision and stable machining quality;
2.Multi-coordinate linkage can be carried out, and parts with complex shapes can be processed;
3.When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
The CNC lathe itself has high precision and rigidity, and can choose favorable processing amount, and the productivity is high (generally 3~5 times of ordinary machine tools);
4. CNC turning has a high degree of automation, which can reduce labor intensity;
5.Higher quality requirements for operators and higher technical requirements for maintenance personnel.
Advantages Of CNC Lathe Processing
1.The CNC lathe guide rails and saddle guide rails use hard guide rails made of special materials. After high frequency quenching
Super hard and wear-resistant, durable and good machining accuracy.
2.The automatic CNC lathe machine adopts domestic famous brand ball screw and high precision screw bearing.
CNC lathe application
CNC lathe for metal has a wide range of applications: aviation industry, aerospace industry, shipbuilding industry, automobile manufacturing, weapon manufacturing, power generation equipment manufacturing, metallurgical equipment manufacturing, engineering machinery manufacturing, mold manufacturing, electronic information equipment manufacturing, etc.
