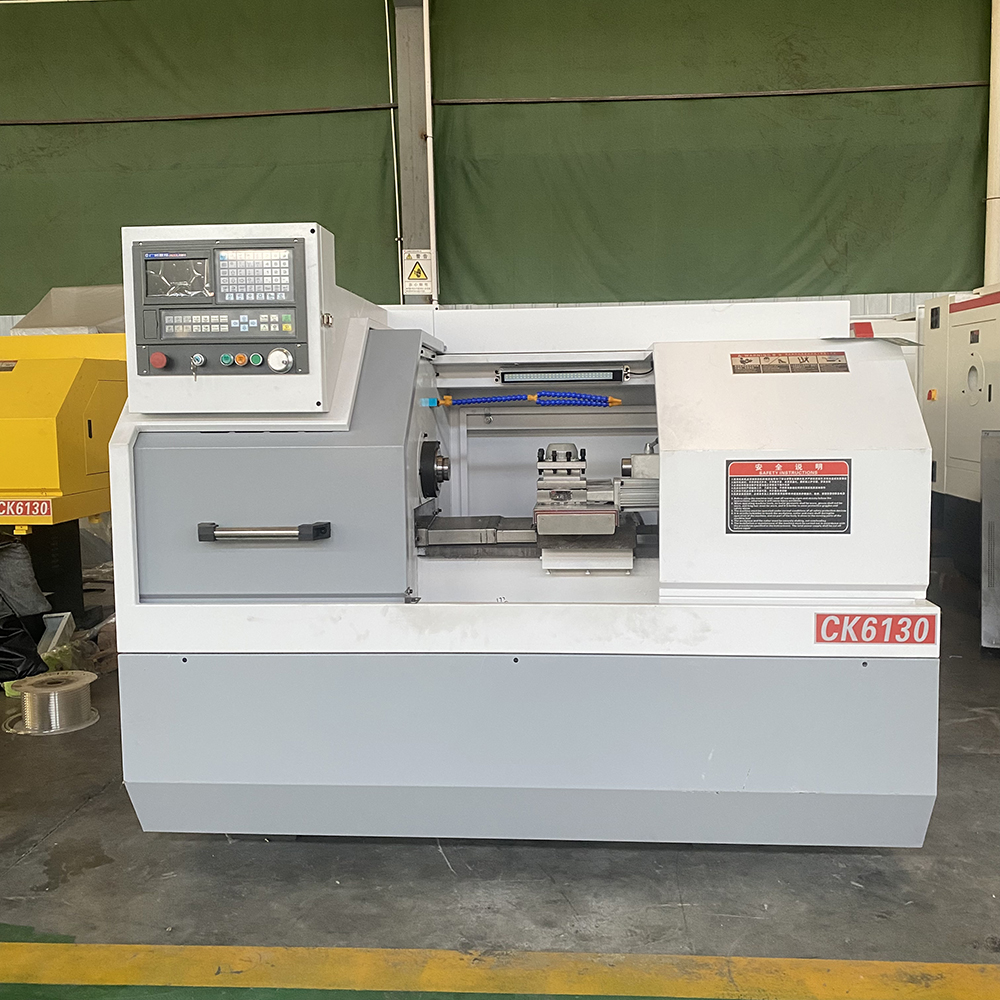

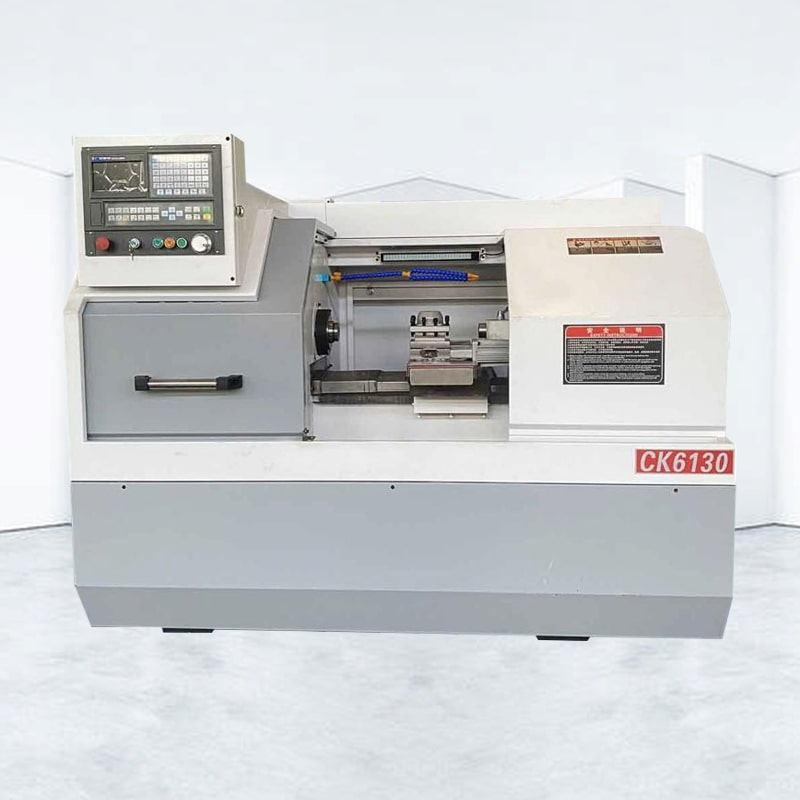

ALCK6130 CNC Lathe Processing Mechanical Parts
ALCK6130 CNC lathe is a high-precision and high-efficiency CNC machine tool with excellent processing ability and precision. It adopts advanced numerical control technology, which can realize precision machining and automatic production of complex parts.
Product Description
ALCK6130ssing control and motion control. The high-precision spindle and stable speed of the CNC lathe ensure excellent processing quality and cutting ability. The tool post design of the CNC lathe facilitates quick replacement of cutting tools and improves work efficiency.
STANDARD CONFIGURATION
1.CNC system:GSK, FANUC, Siemens, etc.
2.Chuck: Pneumatic collets.
3.Tool： Gang Type Tool.
4.Cooling system.
5.Lighten system.
6.Automatic lubrication system.
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.Turret :
(1.) 4 station electric tool post.
(2.) 6 station electric tool post.
(3.) 8 station electric tool post.
5.Feeder:Automatic bar feeder.
Features Of ALCK6130 CNC Lathe:
1. High-precision processing capability: ALCK6130 CNC lathe is equipped with precise guide rails and ball screws to ensure the stability and precision of the workpiece during processing. It can achieve micron-level processing accuracy and is suitable for the processing requirements of high-precision parts.
2. High efficiency and productivity: CNC system enables ALCK6130 to realize automatic processing, reducing the need for manual operation. It is highly programmable, allowing operators to easily adjust machining parameters and machining paths to increase productivity and throughput.
3. Flexibility and multifunctionality: ALCK6130 CNC lathe has flexible operation interface and multifunctional processing ability. It can perform various processing operations such as turning, boring, tapping, drilling, etc., and is suitable for processing workpieces of different types and shapes.
4. High stability and reliability: The lathe adopts a stable machine structure and high-quality core components, which ensures the stability and long-term reliable operation of the machine tool. It has high rigidity and anti-vibration performance, and can handle complex machining tasks.
5. Advanced CNC system: ALCK6130 CNC lathe adopts advanced CNC system with friendly user interface and powerful functions. The operator can set the processing parameters, monitor the processing process and detect the quality of the workpiece through the numerical control system to realize intelligent production management.
ALCK6130 CNC lathe has a wide range of applications in the field of mechanical processing, especially for the processing needs of high-precision parts in the fields of aerospace, automobile manufacturing, and electronic equipment. Its high precision, high efficiency and reliability make it an indispensable important equipment in modern manufacturing.
ALMAZAKL CNC CNC lathe machine
Equipment configuration and parameters
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | F48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| X/Z direction fast moving speed | m/min | 6/8 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 950 |
| Dimensions (length × width × height) | mm | 1600×1100×1650mm |
