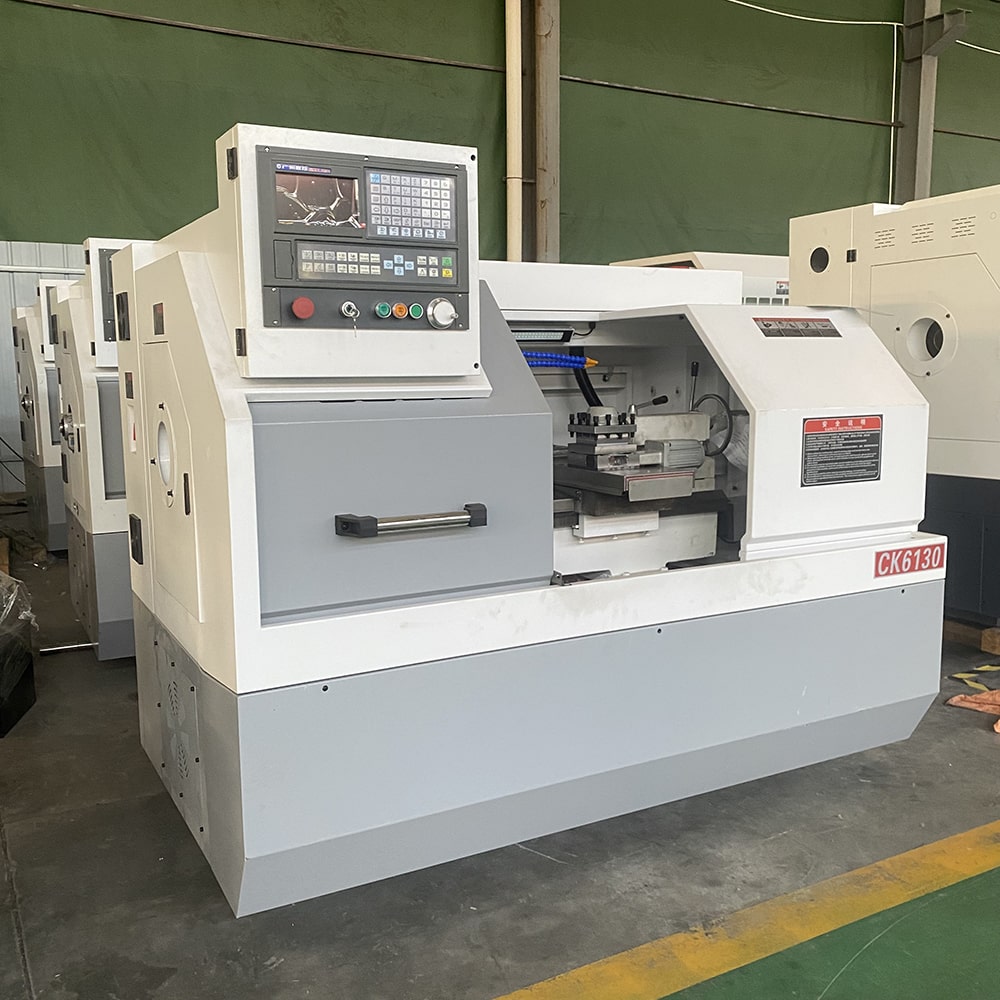

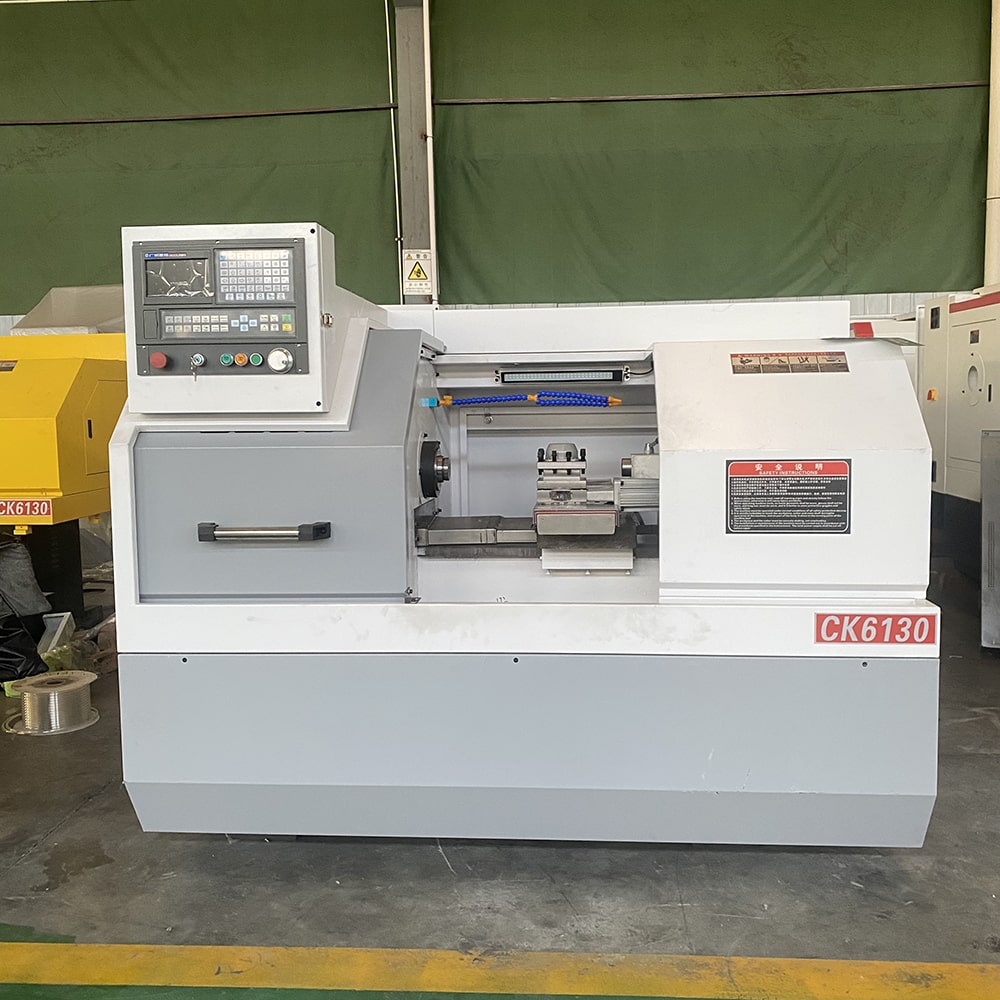

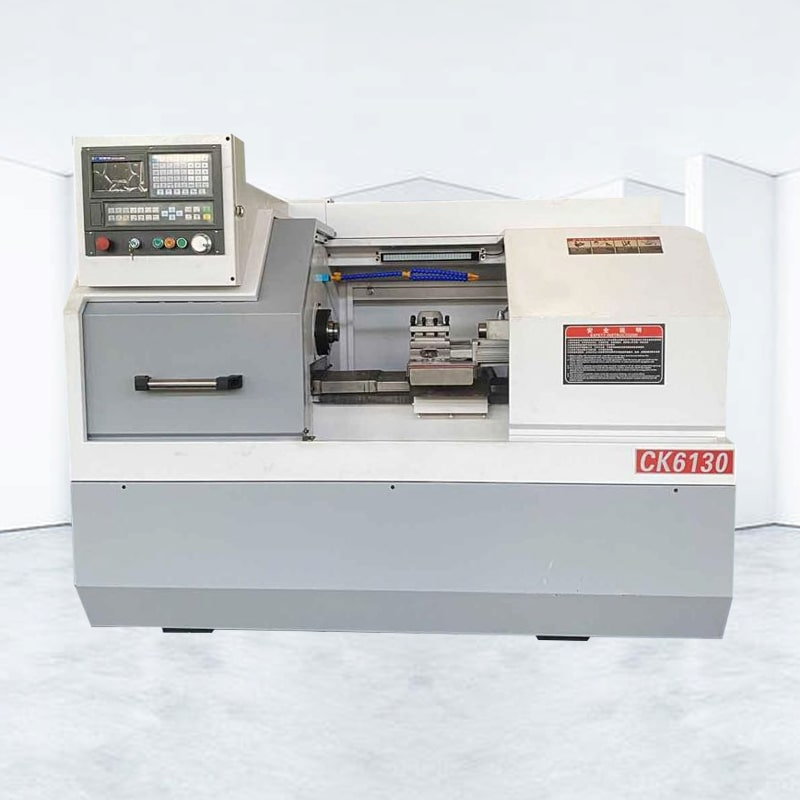

CNC Lathe ALCK6130 Machining Camshaft
ALCK6130 is widely used in the automobile manufacturing industry. It can meet the processing needs of complex parts, improve production efficiency and product quality, and promote the development of the automobile manufacturing industry.
Product Description
ALCK6130ssing control and motion control. The high-precision spindle and stable speed of the CNC lathe ensure excellent processing quality and cutting ability. The tool post design of the CNC lathe facilitates quick replacement of cutting tools and improves work efficiency.
STANDARD CONFIGURATION
1.CNC system:GSKTB3, servo motor and drive.
2.Chuck: Pneumatic collets.
3.Tool： Gang Type Tool.
4.Cooling system.
5.Lighten system.
6.Automatic lubrication system.
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.Turret :
(1.) 4 station electric tool post.
(2.) 6 station electric tool post.
(3.) 8 station electric tool post.
5.Feeder:Automatic bar feeder.
Features Of ALCK6130 CNC Lathe:
1. High-precision processing: CNC lathe 6130 adopts advanced numerical control system and precise servo drive technology, which can realize high-precision processing operations and ensure the size and surface quality of processed parts.
2. Multifunctional processing: CNC lathe 6130 has a variety of processing functions, and can perform different types of processing operations such as outer circle, inner circle, end face and thread, and is suitable for the processing needs of various complex parts.
3. Efficient production: CNC lathe 6130 has fast tool replacement and automatic operation functions, which can realize efficient production process and improve production efficiency and processing quality.
4. Flexibility and programmability: CNC lathe 6130 adopts G code control, has flexible programming ability, can quickly adjust and change according to processing requirements, and adapt to the production requirements of different products.
In The Automobile Manufacturing Industry, CNC Lathe ALCK6130 Has A Wide Range Of Applications:
1. Engine parts processing: CNC lathe ALCK6130 can be used to process various parts of automobile engines, such as crankshafts, camshafts, cylinder heads, etc., to ensure its accuracy and quality.
2. Processing of steering system parts: CNC lathe ALCK6130 can be used to process key parts of automobile steering systems, such as steering gears, steering rods, etc., to ensure their accurate dimensions and surface quality.
3. Braking system parts processing: CNC lathe ALCK6130 can be used to process parts of the automobile braking system, such as brake discs, brake cylinders, etc., to meet the braking performance and safety requirements.
4. Chassis structure parts processing: CNC lathe ALCK6130 is suitable for processing various parts of automobile chassis structure, such as suspension system, transmission system, etc., to ensure its accuracy and reliability.
In short, the CNC lathe ALCK6130 is widely used in the automobile manufacturing industry, which can meet the processing needs of complex parts, improve production efficiency and product quality, and promote the development of the automobile manufacturing industry.
ALMAZAKL CNC CNC lathe machine
Equipment configuration and parameters
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | F48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| X/Z direction fast moving speed | m/min | 6/8 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 950 |
| Dimensions (length × width × height) | mm | 1600×1100×1650mm |
