CNC Lathe Automatic Drilling And Turning
CNC lathe machine bar fedeer Special technology in solid casting, automatic lubrication system, detailed work in processing long parts.
The CNC lathe machine is equipped with a basic set of tools. horizontal CNC lathe machine scope of application: automatic drilling and turning. CNC lathe helps to make work not only fast, but high quality.
ALMAZAKL CNC CNC lathe machine

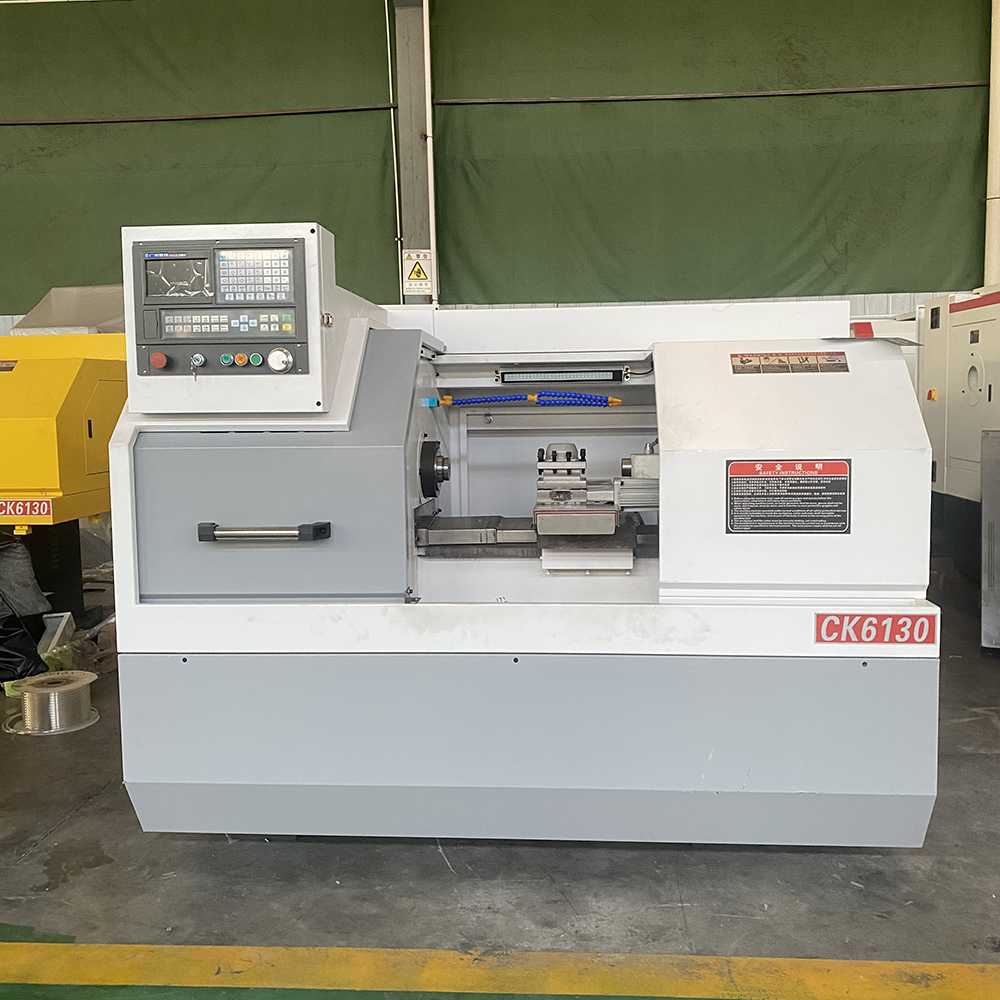

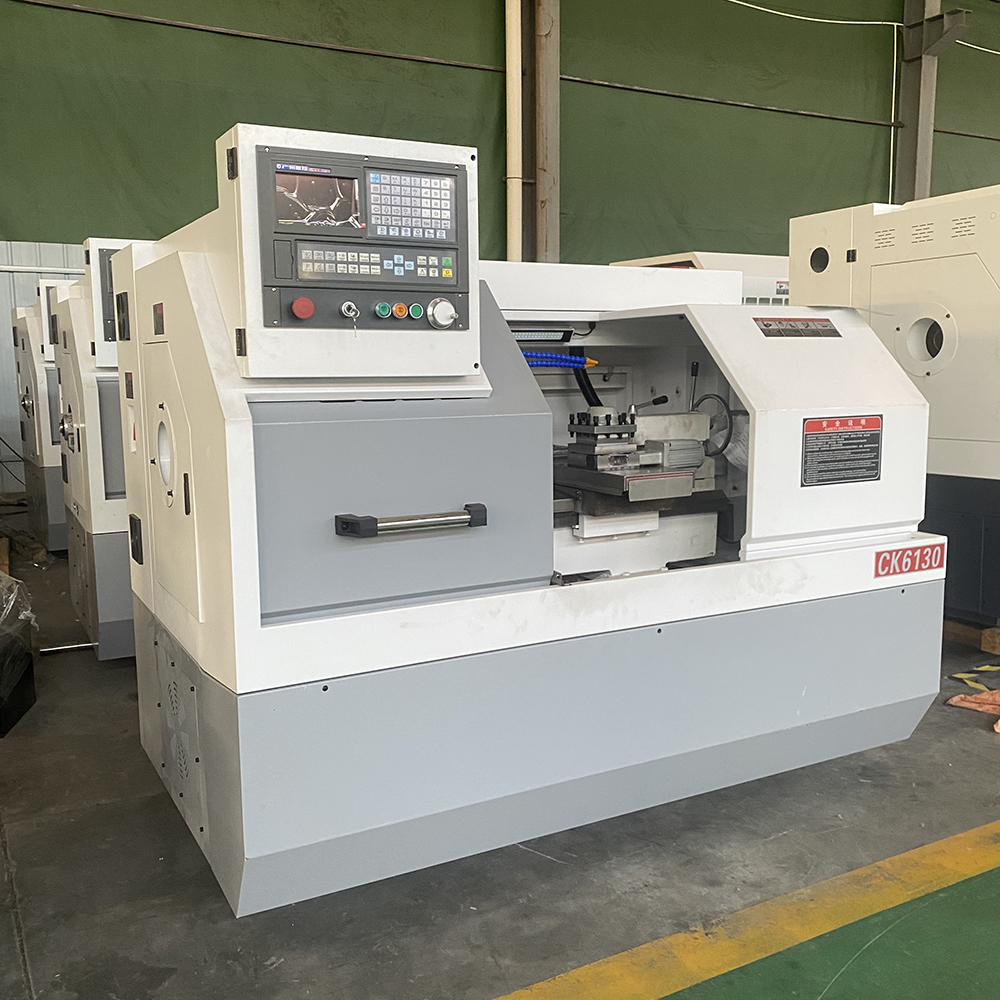

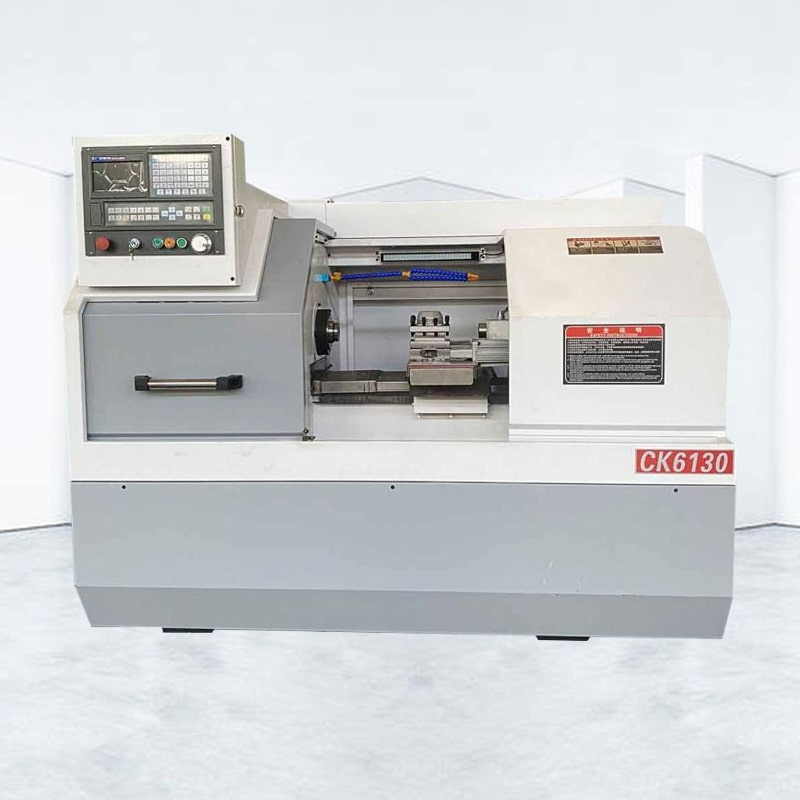

CK6130 is an economical CNC lathe, which can automatically process inner and outer cylindrical surfaces, end surfaces, grooves, spherical surfaces, and conical surfaces of small parts.
1. The CNC lathe spindle system has high speed, high precision, high rigidity and stable temperature rise.
2. The spindle bearing of CNC lathe machine is lubricated with high-temperature grease and has a long service life.
3. Mini CNC lathe Shuangshan high-rigidity rectangular guide rail, anti-vibration and impact resistance, suitable for large cutting, also suitable for fine and rough machining.
4. CNC lathe machine price fully enclosed internal and external protection.
5. The horizontal CNC lathe machine can be equipped with hydraulic, pneumatic and manual clamping devices according to customer requirements.
6. Line rail machine tools can be customized
Equipment configuration and parameters
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| X-axis motor torque | mm | 4Nm |
| Z-axis motor torque | mm | 4Nm |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | F48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| Knife square size | mm | □20×20 |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 950 |
| Dimensions (length × width × height) | mm | 1600×1100×1650mm |
