CNC Lathe Machines Metal Lathe

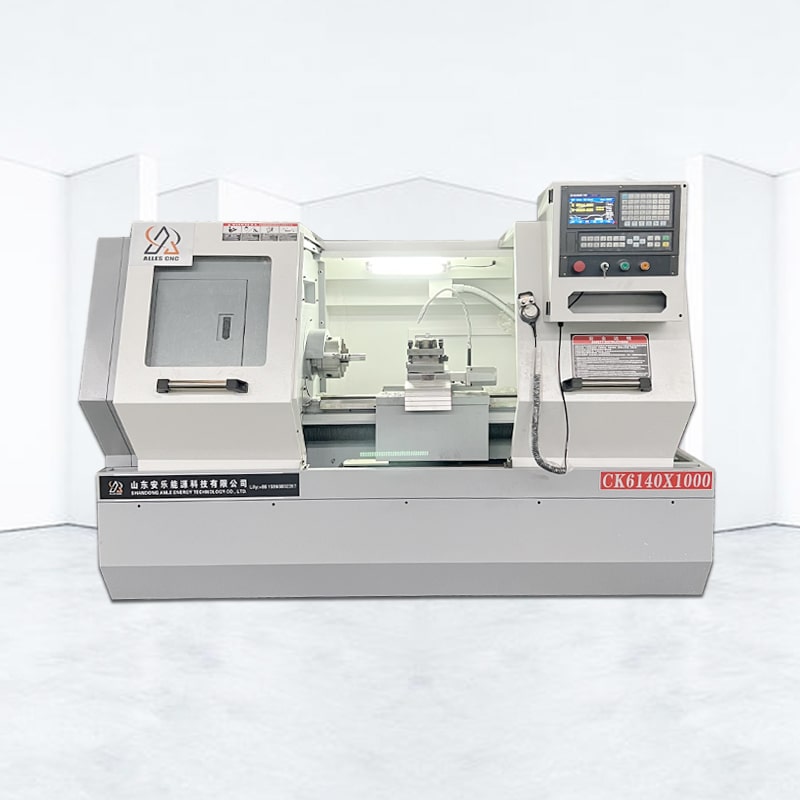

ALCK6140X1000 Flat bed CNC lathe This machine can automatically process internal and external cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, etc., as well. It can process single thread and multiple threads of metric, imperial and other standards.
CNC Lathe Processing Characteristics:
1.CK6140x1000 CNC lathe China CNC lathe machines metal lathe CNC adaptable to various control system such as GSK, ,Siemens, FANUC, etc.
2.Mini CNC lathe Different appearance shapes such as square, circular arc and so on.
3.CNC lathe 3 axis Optimized guide rail structure by double triangles.
4.CNC lathe for sale Steel guide rail as optional.
5.Steady integral cast iron foot.

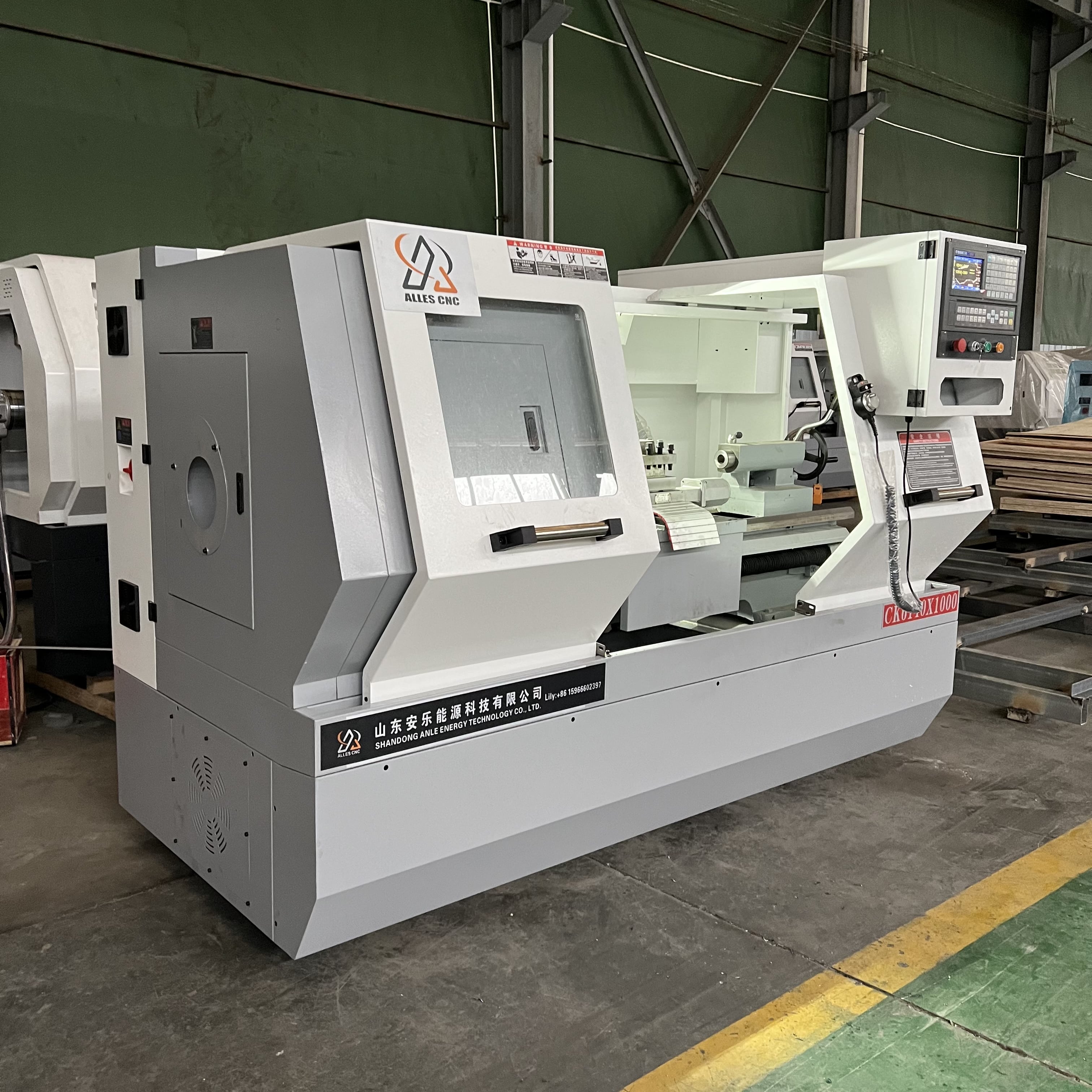

ALCK6140x750 CNC Lathe Inspection ALMAZAKLCNC CNC lathes will be inspected
Advantage：
The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn ex circle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinks processes. This machine is suitable to process small work piece in a high efficient.
Device parameters
| Item | Unit | ALCK6140X1000 |
| Maximum turning diameter on the bed | mm | Φ400 |
| top distance | mm | 750 |
| Maximum turning diameter | mm | Φ400 |
| Maximum turning diameter on the skateboard | mm | f220 |
| Spindle hole diameter | mm | F52 |
| Spindle speed range | rpm | 80-2200 |
| Spindle maximum output torque | Nm | 480 |
| Main motor output power | kw | 5.5 |
| Z-axis rapid traverse speed | m/min | 8 |
| X-axis travel | mm | 220 |
| Z-axis travel | mm | 750 |
| Tailstock sleeve diameter | mm | F65 |
| Tailstock sleeve stroke | mm | 130 |
| Boring bar diameter | mm | ф20 |
| Machine size | mm | 2250×1400×1500 |
| Machine weight | kg | 1500 |
