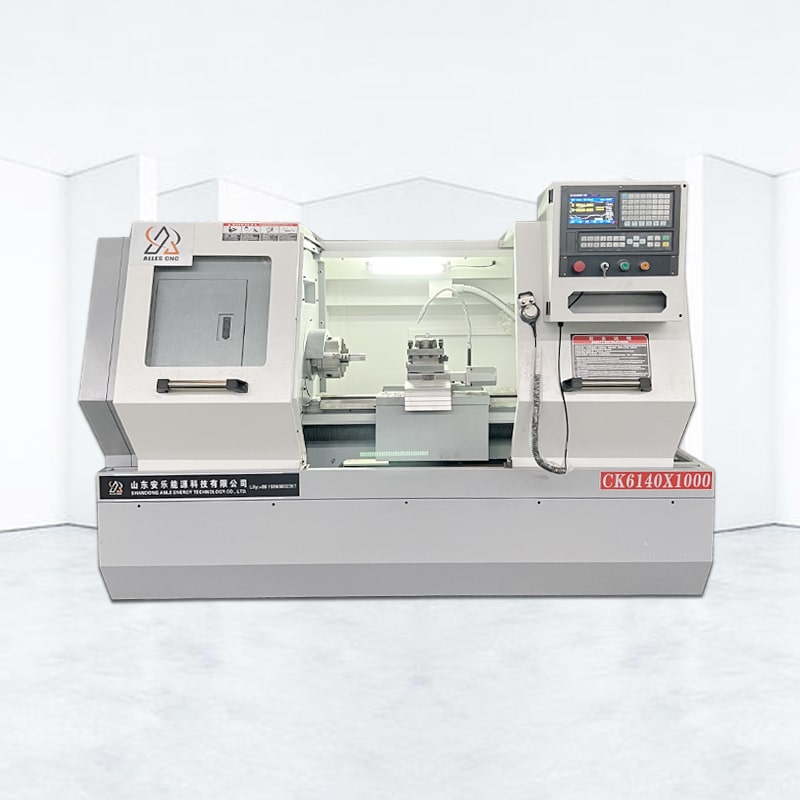

ALCK6140X1000 CNC lathe adopts a powerful spindle drive system with high speed and high torque, which can realize high-efficiency cutting. At the same time, the CNC lathe is also equipped with high-quality components such as high-precision servo motors and precision ball screws to ensure the high-precision machining capabilities of the machine tool.
ALCK6140X1000 CNC Lathe Can Be Used To Process Shaft Workpieces, And Has the Following Characteristics:
1. High precision: ALCK6140X1000 CNC lathe adopts high-precision positioning system and control system, which can ensure the machining accuracy and surface quality of shaft workpieces.
2. High efficiency: This lathe has the advantages of high degree of automation and fast processing speed, which can greatly improve processing efficiency, shorten processing cycle, and meet customer requirements.
3. High reliability: ALCK6140X1000 CNC lathe adopts high-quality materials and advanced processing technology, has strong stability and reliability, and can guarantee stable processing for a long time.
4. Strong adaptability: the lathe can adapt to the processing requirements of various shaft workpieces, and can process shaft workpieces of different materials and shapes, such as cylindrical shafts, tapered shafts, crankshafts, etc.
5. Multifunctional: CK6140X1000 CNC lathe has multiple functions, such as turning, drilling, tapping, boring, etc., which can meet various processing needs of shaft workpieces.
6. Fine processing: The lathe has a high-speed, high-precision positioning and control system, which can realize micron-level fine processing of shaft workpieces, ensuring the accuracy and surface quality of parts.
In short, ALCK6140X1000 CNC lathe has the characteristics of high precision, high efficiency, high reliability, strong adaptability, multi-function and fine processing in machining shaft workpieces, and is an important processing equipment in the field of mechanical processing.
Advantages Of ALCK6140X1000 In Processing Threaded Workpieces
2. Various thread processing methods: CK6140X1000 CNC lathe can process threads through different processing methods, such as single-tool processing, multi-tool processing, straight thread processing, oblique thread processing, etc., which can meet different thread processing needs.
2. High flexibility: CK6140X1000 CNC lathe can be adjusted according to different processing requirements, including thread diameter, pitch, helix angle and other parameters, and can adapt to different thread processing requirements.
ALCK6140x1000 CNC Lathe Inspection ALMAZAKLCNC CNC lathes will be inspected
Item | Unit | ALCK6140X1000 |
Maximum turning diameter on the bed | mm | Φ400 |
top distance | mm | 750 |
Maximum turning diameter | mm | Φ400 |
Maximum turning diameter on the skateboard | mm | f220 |
Spindle hole diameter | mm | F52 |
Spindle speed range | rpm | 80-2200 |
Spindle maximum output torque | Nm | 480 |
Main motor output power | kw | 5.5 |
Z-axis rapid traverse speed | m/min | 8 |
X-axis travel | mm | 220 |
Z-axis travel | mm | 750 |
Tailstock sleeve diameter | mm | F65 |
Tailstock sleeve stroke | mm | 130 |
Boring bar diameter | mm | ф20 |
Machine size | mm | 2250×1400×1500 |
Machine weight | kg | 1500 |
