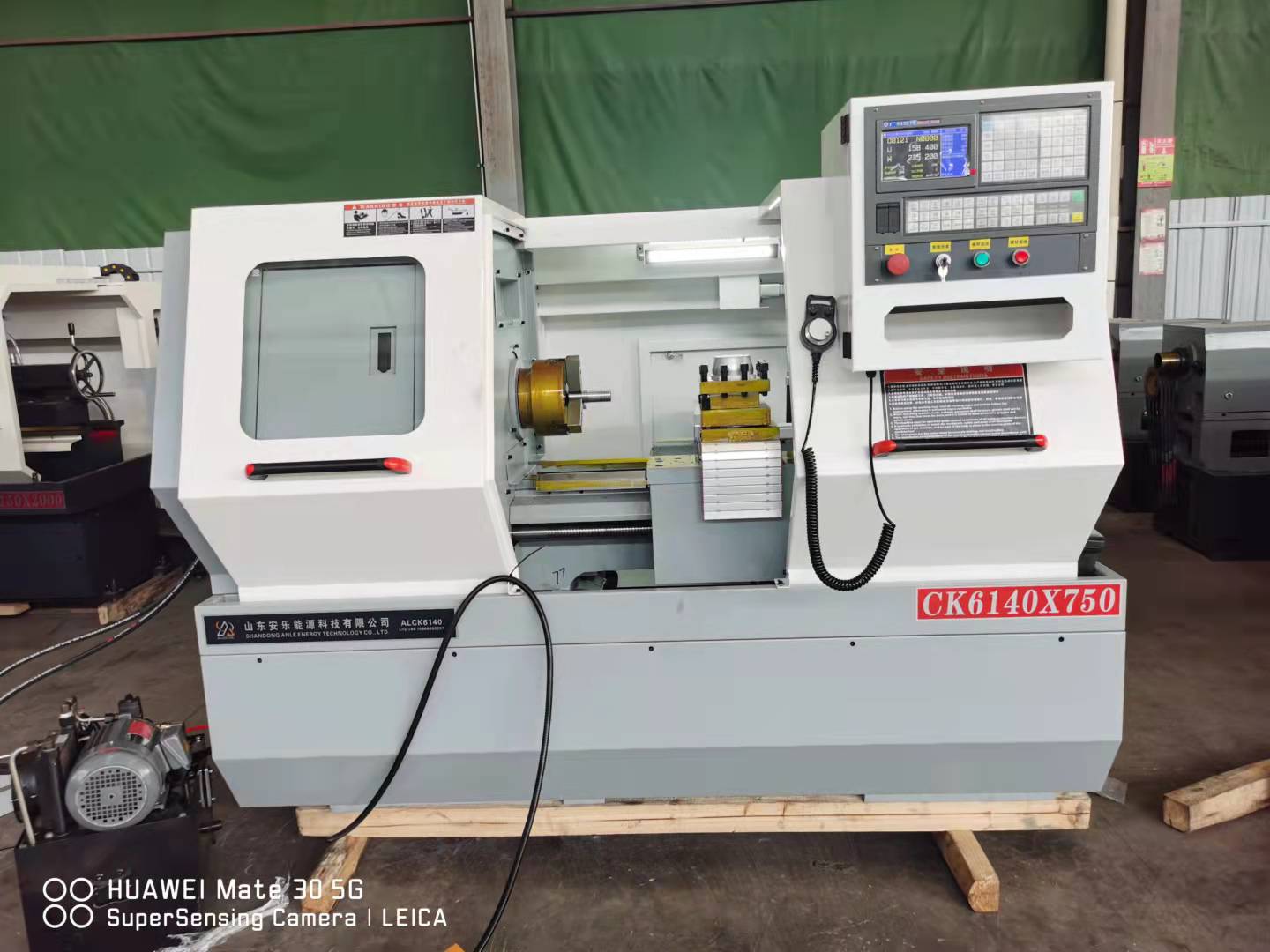

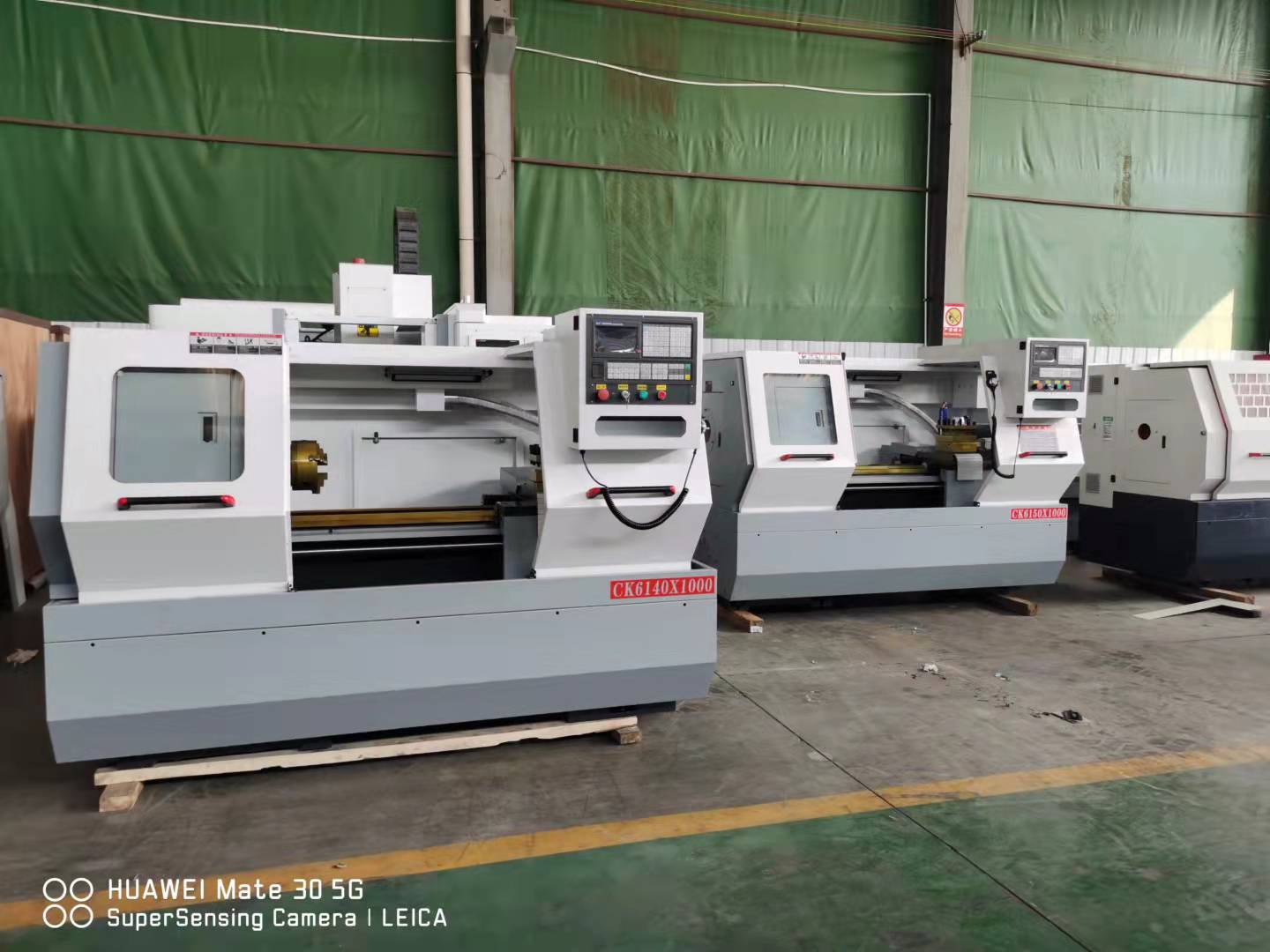

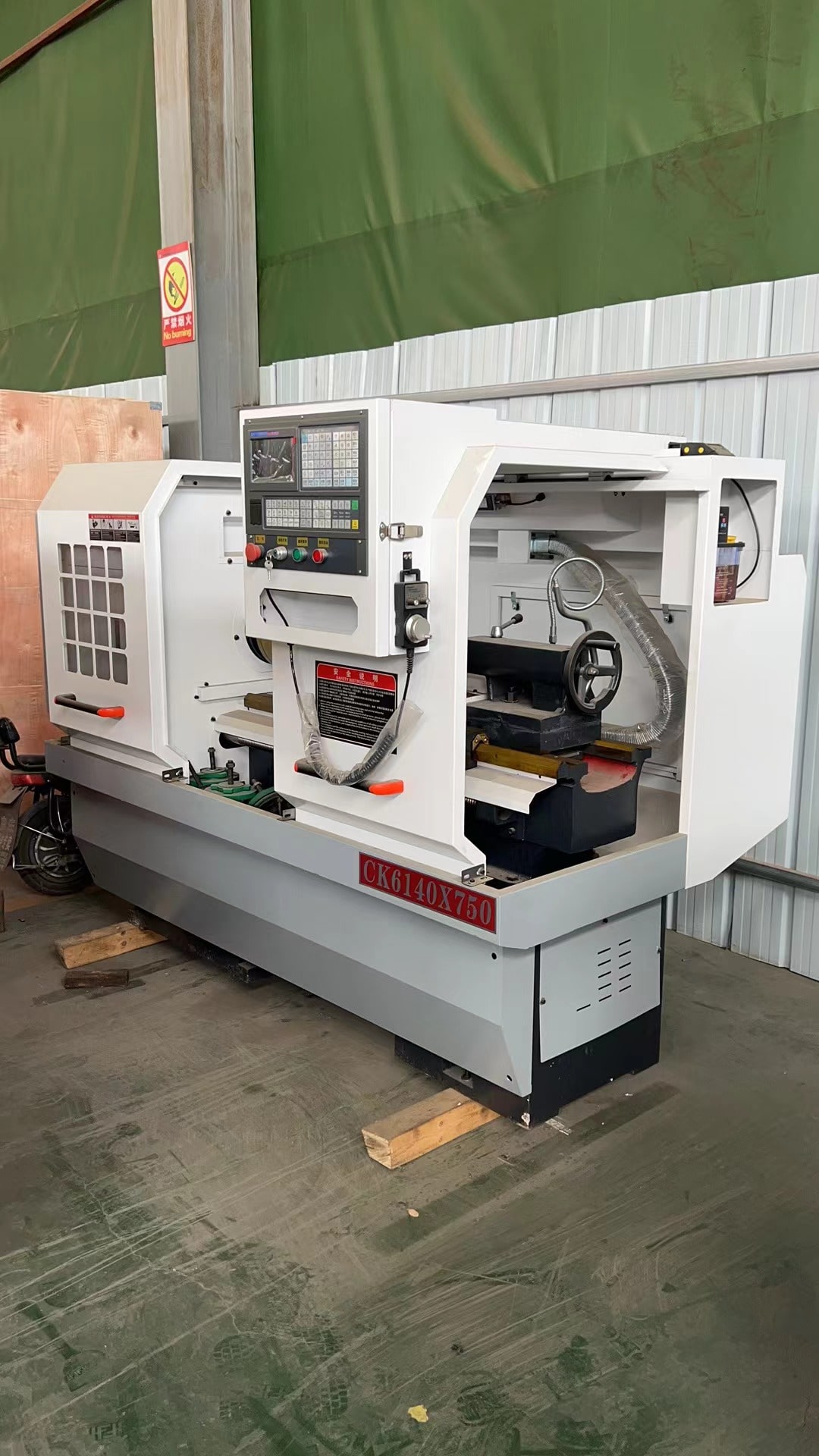

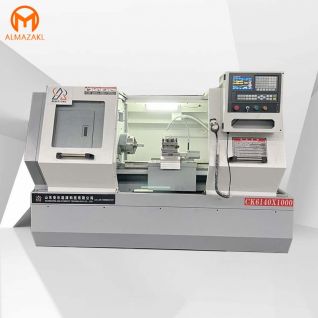

CNC Lathe Used In Construction Machinery
Flat bed CNC lathe can automatically process inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, etc., as well as standard single and multiple threads such as metric and inch systems.
Equipment configuration and parameters

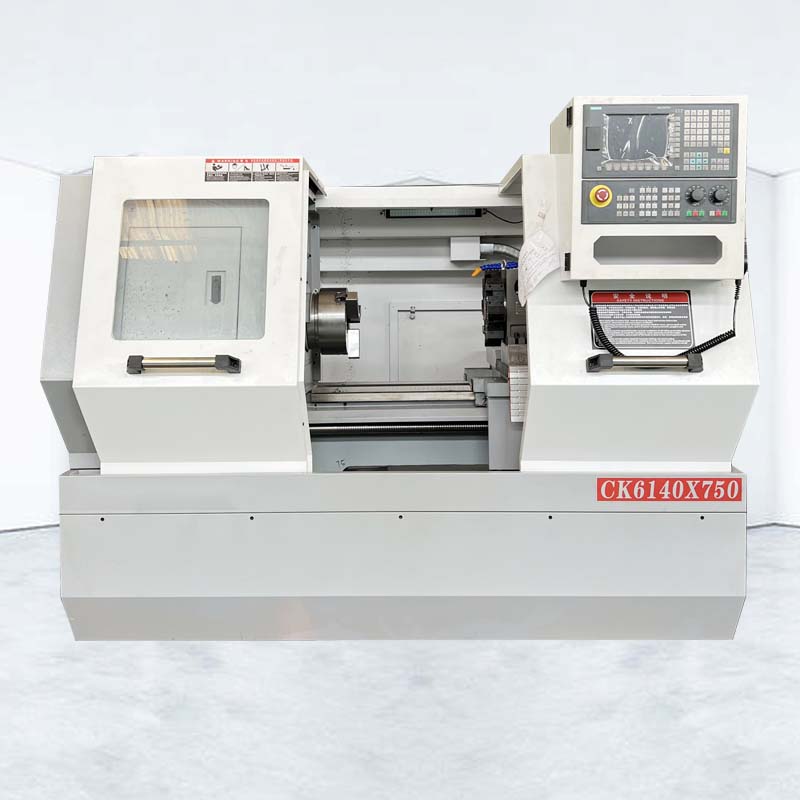

| Model | ALCK6140x750 | |
| Processing capacity | Maximum turning diameter of bed | 400mm |
| Maximum turning diameter on the tool post | 220mm | |
| Center distance | 750mm | |
| Rail width | 360mm | |
| X stroke | 250mm | |
| Z-stroke | 900mm | |
| Spindle hole diameter | 52mm | |
| Headstock | Number of tools | 4 |
| Diameter of tailstock sleeve | 65mm | |
| Tailstock | Maximum stroke of tailstock sleeve | 120mm |
| PACKING(L*W*H) WEIGHT(N.W/G.W) |
2350*1400*1800mm | |
| 1550/1650kg | ||
Horizontal CNC Lathe Machine Features:
1.CNC lathe four-station electric turret
2.Mini CNC lathe variable frequency step less speed regulation
3.Flat bed CNC lathe standard configuration: manual chuck
4. Optional options: spring chuck, hydraulic chuck, automatic feeding and loading, row tool
Automatic CNC Lathe Machine Advantages
1.CNC lathe 3 axis has high machining accuracy and stable machining quality;
2.Multi-coordinate linkage can be performed, and parts with complex shapes can be processed;
3.When the automatic CNC lathe processing parts are replaced, generally only the CNC program needs to be changed, which can save production preparation time;
4.Horizontal CNC Lathe itself has high precision and good rigidity, and can choose favorable processing volume, and its productivity is high
automatic CNC lathe has a high degree of automation and can reduce labor intensity;
5.Conducive to the modernization of production management.
CNC Lathe Application Industry
CNC lathe machine Application industry: plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, bearings and other industries.
