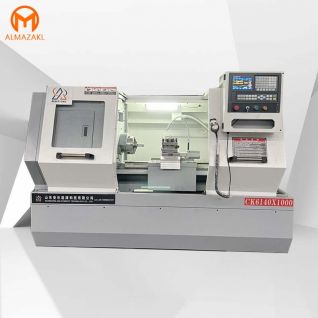

ALMAZAL CNC Horizontal CMC lathe machine and milling compound machine equipped with multi-station turret or dynamic turret has a wide range of processing performance.

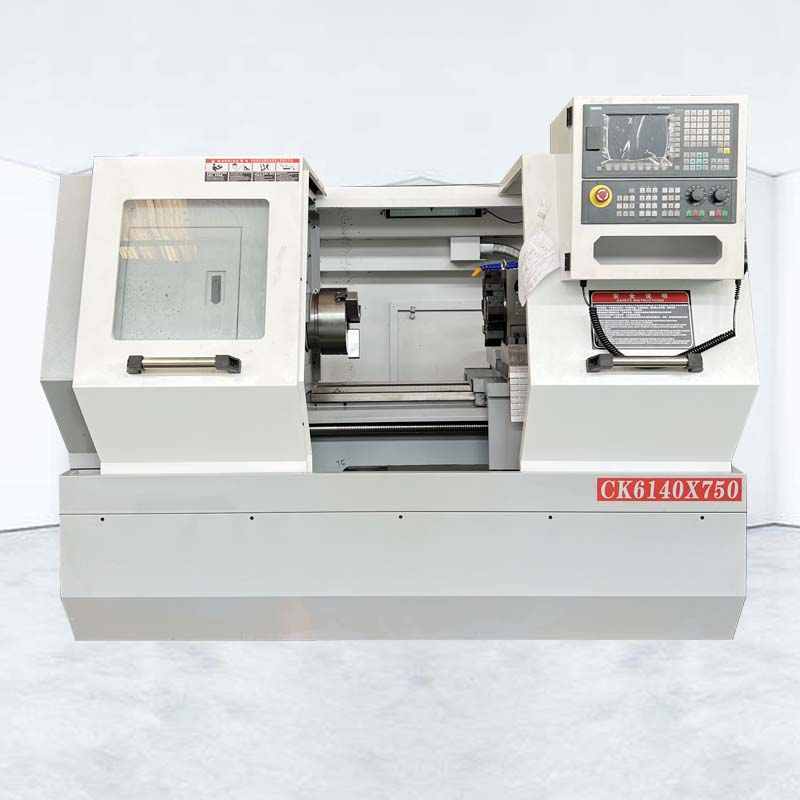

ALCK6140x750 CNC Lathe Inspection
Equipment configuration and parameters
Model | ALCK6140x750 | |
Processing capacity | Maximum turning diameter of bed | 400mm |
Maximum turning diameter on the tool post | 220mm | |
Center distance | 750mm | |
Rail width | 360mm | |
X stroke | 250mm | |
Z-stroke | 900mm | |
Headstock | Spindle hole diameter | 52mm |
Number of tools | 4 | |
Tailstock | Diameter of tailstock sleeve | 65mm |
Maximum stroke of tailstock sleeve | 120mm | |
PACKING(L*W*H) WEIGHT(N.W/G.W) |
2350*1400*1800mm | |
1550/1650kg |
1. El torno cnc está completamente cerrado y completo, y la operación es segura y conveniente.
2. Cama de fundición de alta rigidez ALMAZAL CNC.
3. Torno cnc Cojinete de husillo de alta precisión de 3 ejes.
4. Los sistemas GSK, FANUC, Siemens son opcionales.
5. Los rieles del torno CNC de bancada plana están endurecidos industrialmente.
1. The processing quality of the CNC lathe machine is stable and the precision is high.
2. The mini CNC lathe can be linked with multiple coordinates and can process parts with complex shapes.
3. The horizontal CNC lathe machine is processed according to the programmed program. If the design of the part changes, it is only necessary to modify the program, which saves time and effort.
CNC turning machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.
4. The mini lathe CNC has a high degree of automation and reduces the manual labor.
