ALMAZAKL CNC As one of the trusted companies in the industry, we are highly committed to offering the unique CK6130 automatic CNC lathe series.
ALMAZAKL CNC CNC lathe machine
Equipment configuration and parameters
Item | Unit | ALCK6130 |
Max swing over bed | mm | Φ300 |
X-axis motor torque | 4Nm | |
Z-axis motor torque | 4Nm | |
Maximum swing over slide | mm | Φ130 |
Spindle hole diameter | mm | Φ48 |
With hollow chuck pull rod through hole | mm | Φ40 |
Spindle speed limit | rpm | 2200 |
Knife square size | mm | □20×20 |
X/Z direction fast moving speed | m/min | 6/8 |
X stroke | mm | 280 |
Z stroke | mm | 500 |
Main motor power | KW | 3 |
X axis repeat positioning accuracy | mm | 0.01 |
Z axis repeat positioning accuracy | mm | 0.01 |
Machine weight | Kg | 950 |
Dimensions (length × width × height) | mm | 1600×1100×1650mm |
1. The machining quality of the CNC lathe is stable and the precision is high.
2. The CNC machine tool can be multi-coordinate linkage, and can process parts with complex shapes.
3. The CNC machine tool is processed according to the programmed program. If the design of the part changes, it is only necessary to modify the program, which saves time and effort.
4. High degree of automation, reducing manual labor
Used in automobiles, electrical appliances, hardware processing and other industries, processing motorcycle parts, bearings, threads and other work pieces.

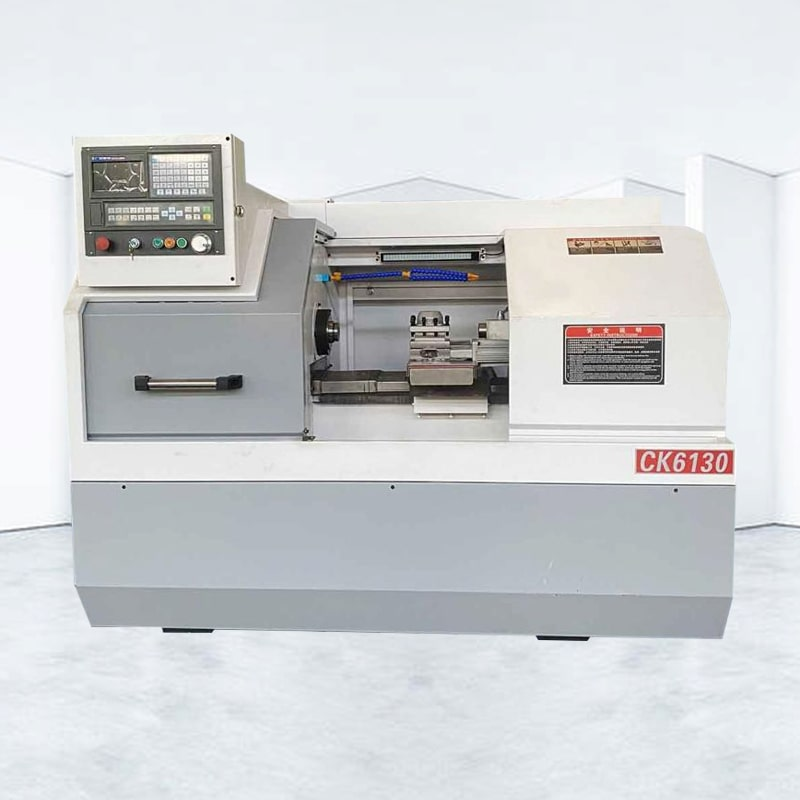

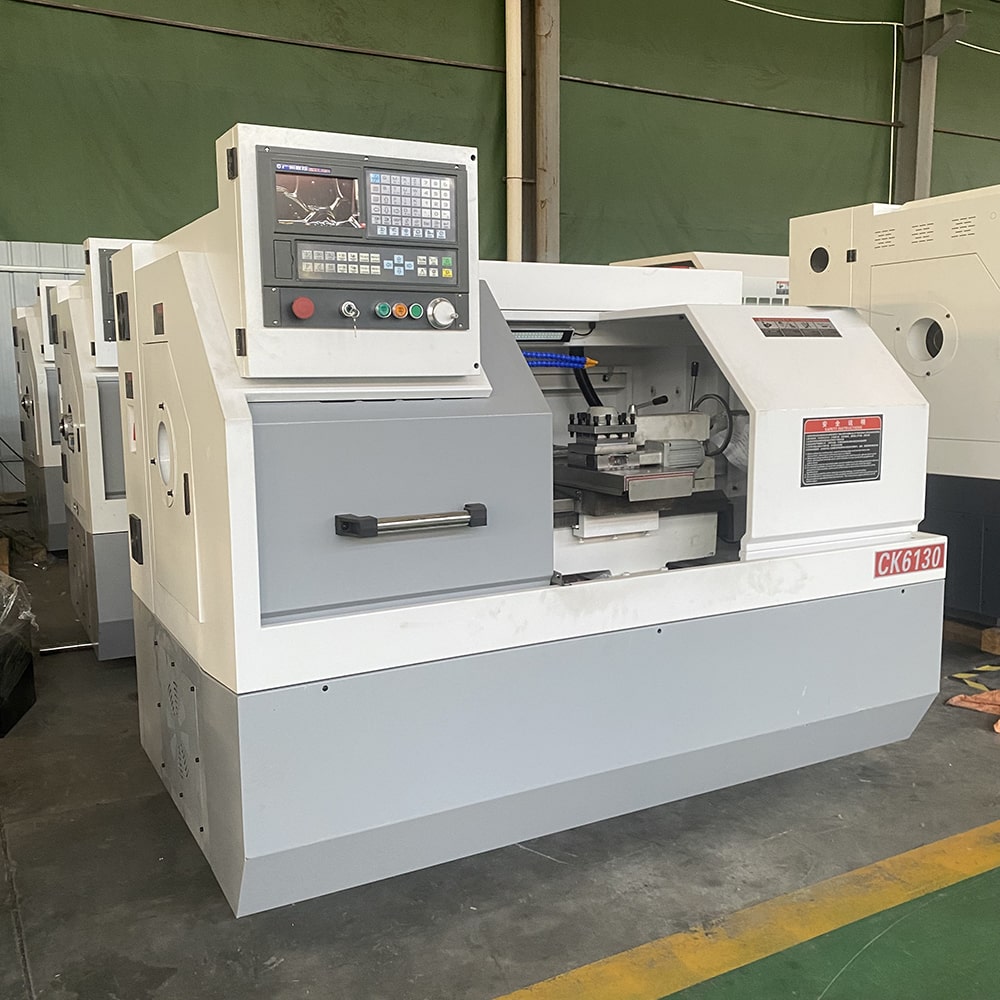

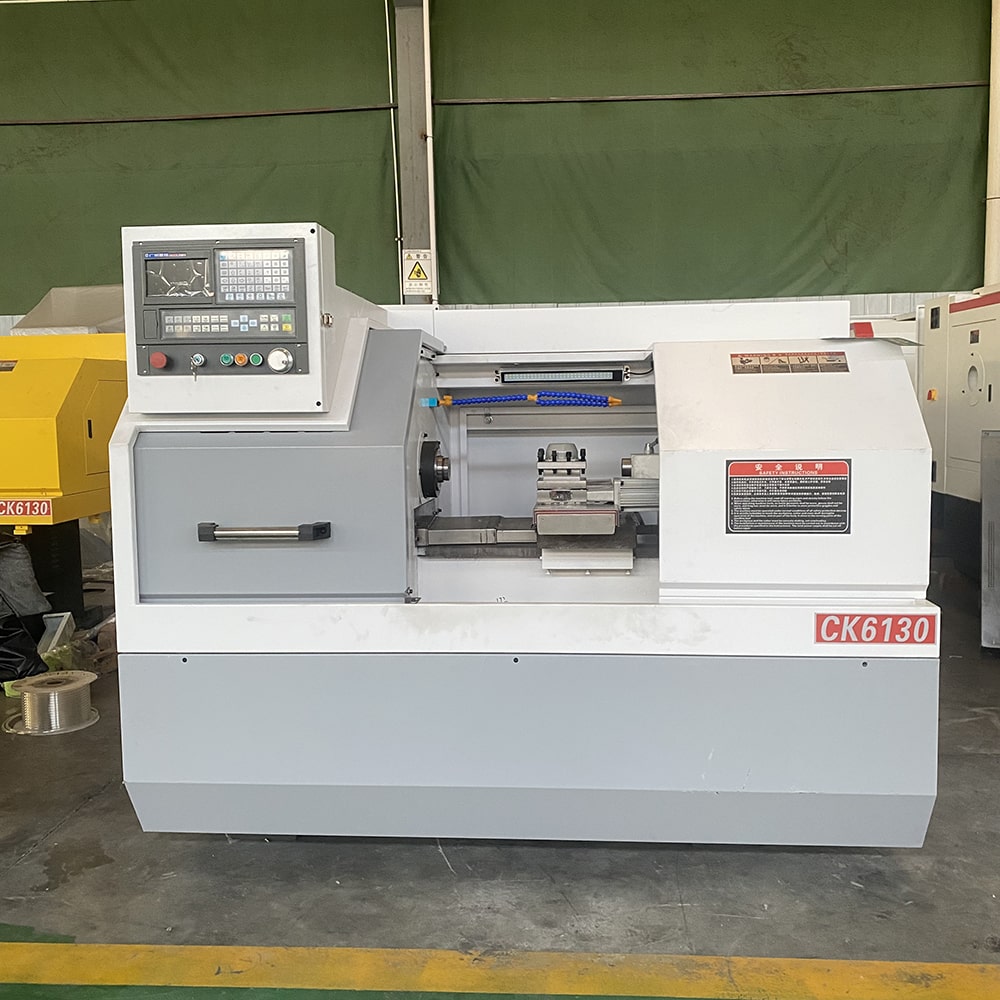

ALMAZAKL CNC High Quality CK6130 Mini CNC Lathe Flat Small Lathe from China, China's leading metal lathe product, with strict quality control automatic lathe factory, producing high quality automatic lathe products.

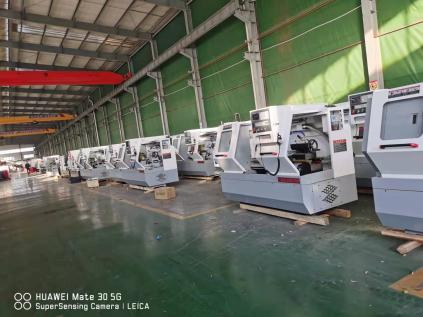

We are CNC machine tool manufacturer
ALMAZAKL CNC is dedicated to CNC lathe machining center for more than 30 years.
We have E.g ALCK6130 Flat bed CNC lathe,It is used in automobile, electrical appliances, hardware processing and other industries, and has covered Russia, Spain, Colombia, Brazil, Arabia, and India and other countries for customers to process motorcycle parts, bearings, threads and other work pieces.
