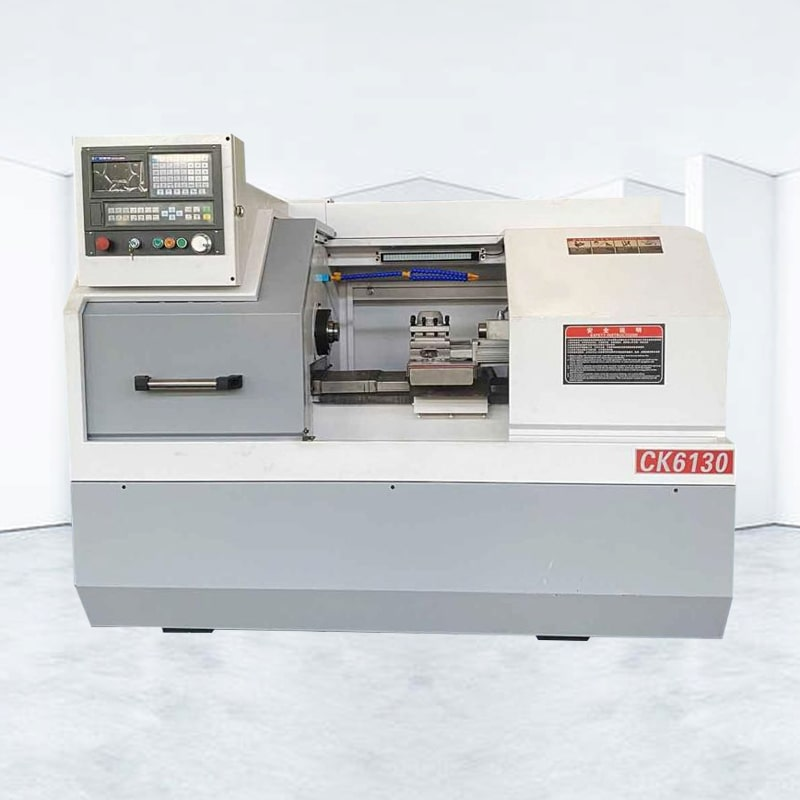

ALCK6130 CNC Lathe Machine
CNC lathe can process and manufacture auto parts, such as engine parts, transmission system parts, etc., which can meet the production needs of automobile manufacturers.
Automatic CNC lathe Machine Features:
1. The spindle system of CNC lathe machine has high speed, high precision, high rigidity and stable temperature rise.
2. Mini CNC lathe spindle bearings are lubricated with high-temperature grease and have a long service life.
3.High-rigidity rectangular guide rail, anti-vibration and impact resistance, suitable for large cutting, also suitable for fine and rough machining.
4. Fully enclosed internal and external protection.
5. ALMAZAKL CNC can be equipped with hydraulic, pneumatic and manual clamping devices
Advantages Of Flat Bed CNC lathe:
1. High production efficiency: CK6130 small CNC lathe has a quick tool change system and high-speed feed speed, which can quickly process multiple processes and improve production efficiency.
2. Simple operation: CK6130 small CNC lathe adopts a simple CNC system, with a friendly operation interface, easy operation and maintenance, and reduces the training cost of technicians.
3. Favorable price: The price of CK6130 small CNC lathe is relatively low, which is an economical and practical choice for small businesses and start-ups.
Small CNC lathes have the advantages of small size, high machining accuracy, high production efficiency, simple operation and favorable price, and are ideal for lathe processing in the auto parts industry and other small enterprises

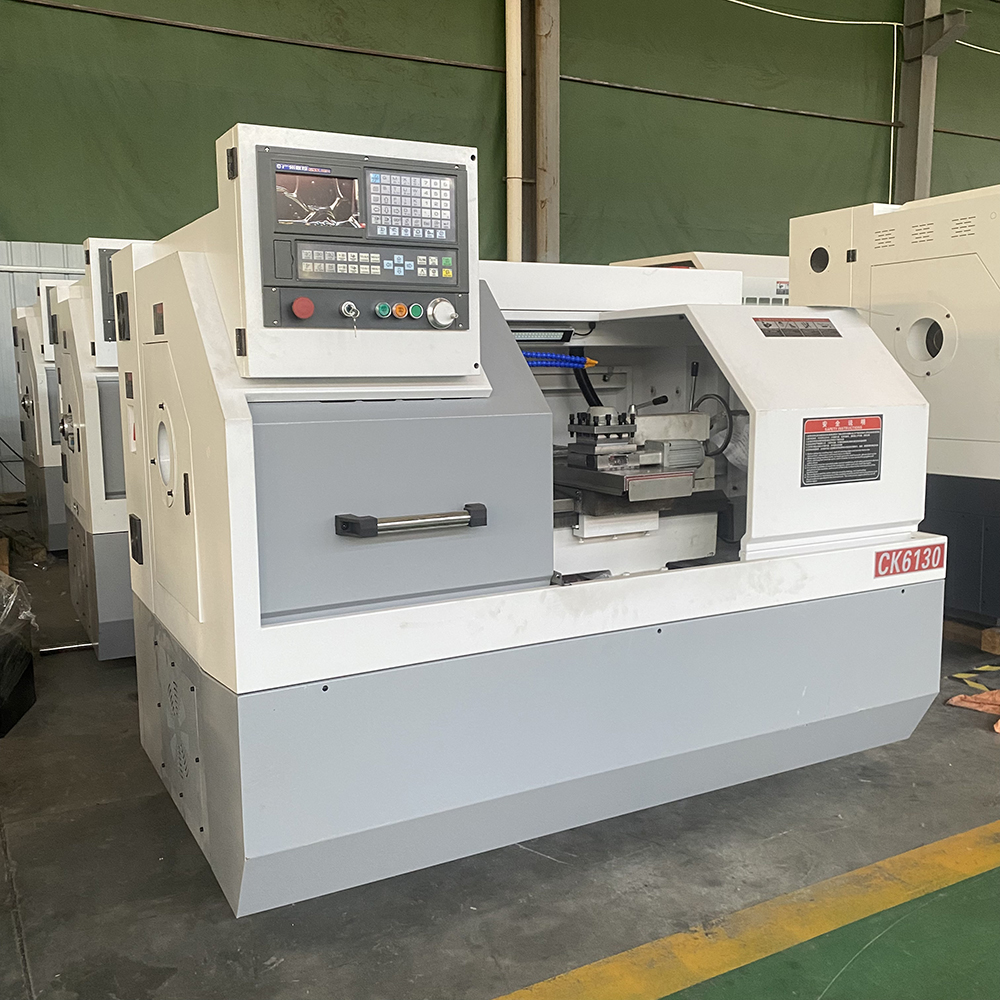

ALMAZAKL CNC ALCK6130 Flat Bed CNC Lathe
CNC lathe configuration and parameters
| Item | Unit | ALCK6130 |
| Max swing over bed | mm | Φ300 |
| X-axis motor torque | mm | 4Nm |
| Z-axis motor torque | mm | 4Nm |
| Maximum swing over slide | mm | Φ130 |
| Spindle hole diameter | mm | F48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 2200 |
| Knife square size | mm | 20×20 |
| X/Z direction fast moving speed | m/min | 6/8 |
| X stroke | mm | 280 |
| Z stroke | mm | 500 |
| Main motor power | KW | 3 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Machine weight | Kg | 950 |
| Dimensions (length × width × height) | mm | 1600×1100×1650mm |
