ALMAZAKL CNC adopts Fanuc, Siemens, KND and other systems, which have the characteristics of low noise, high precision and excellent performance.

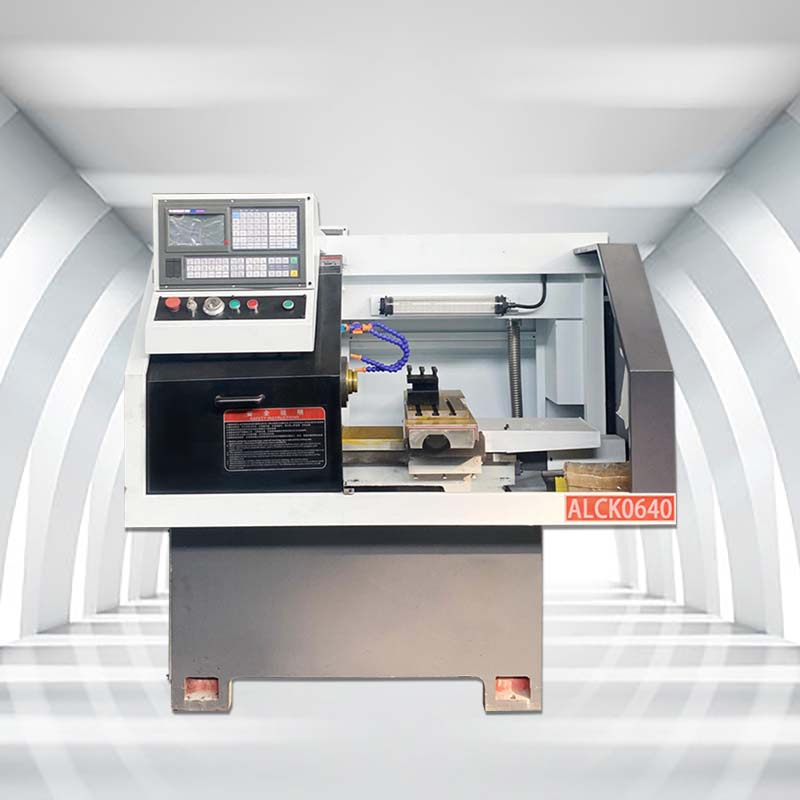

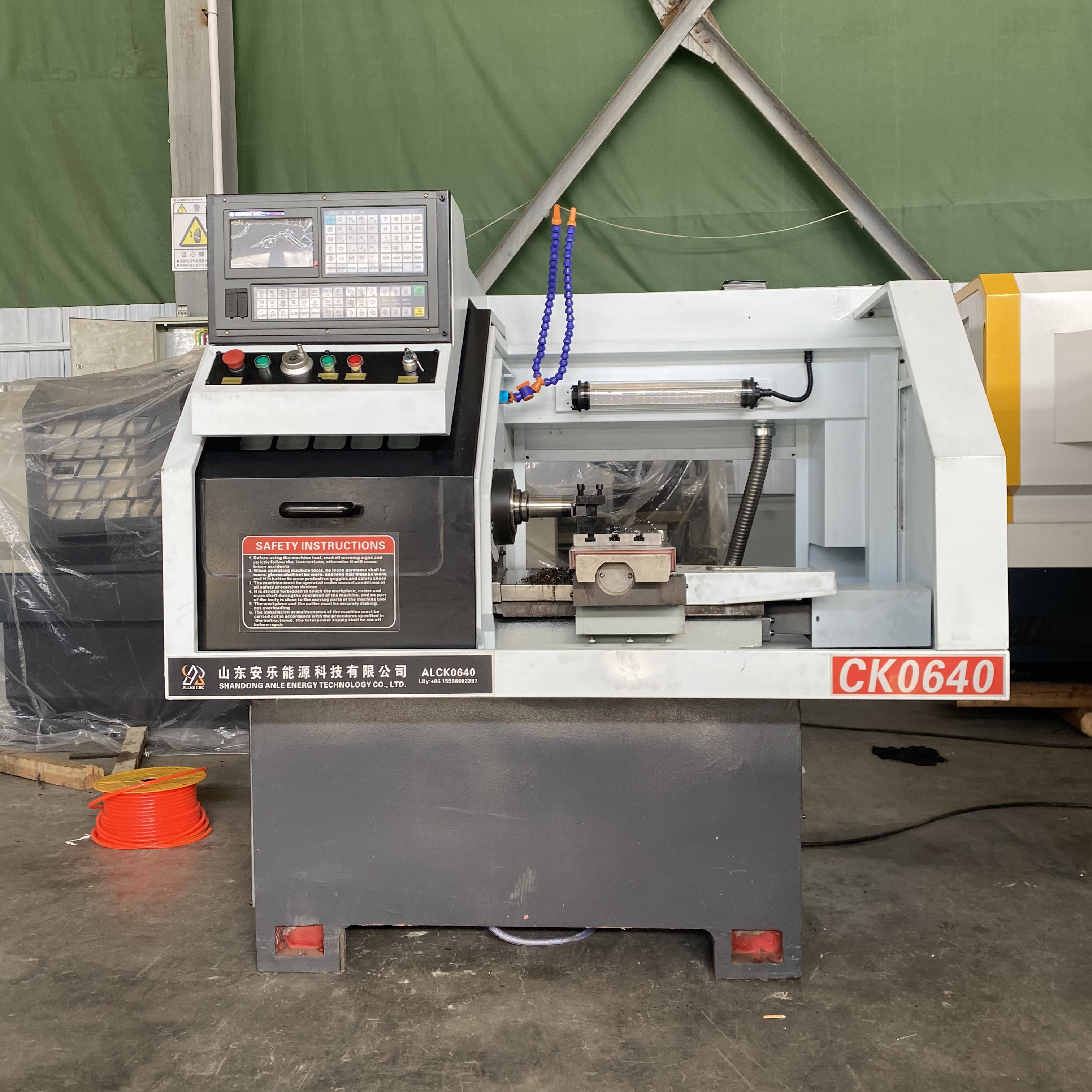

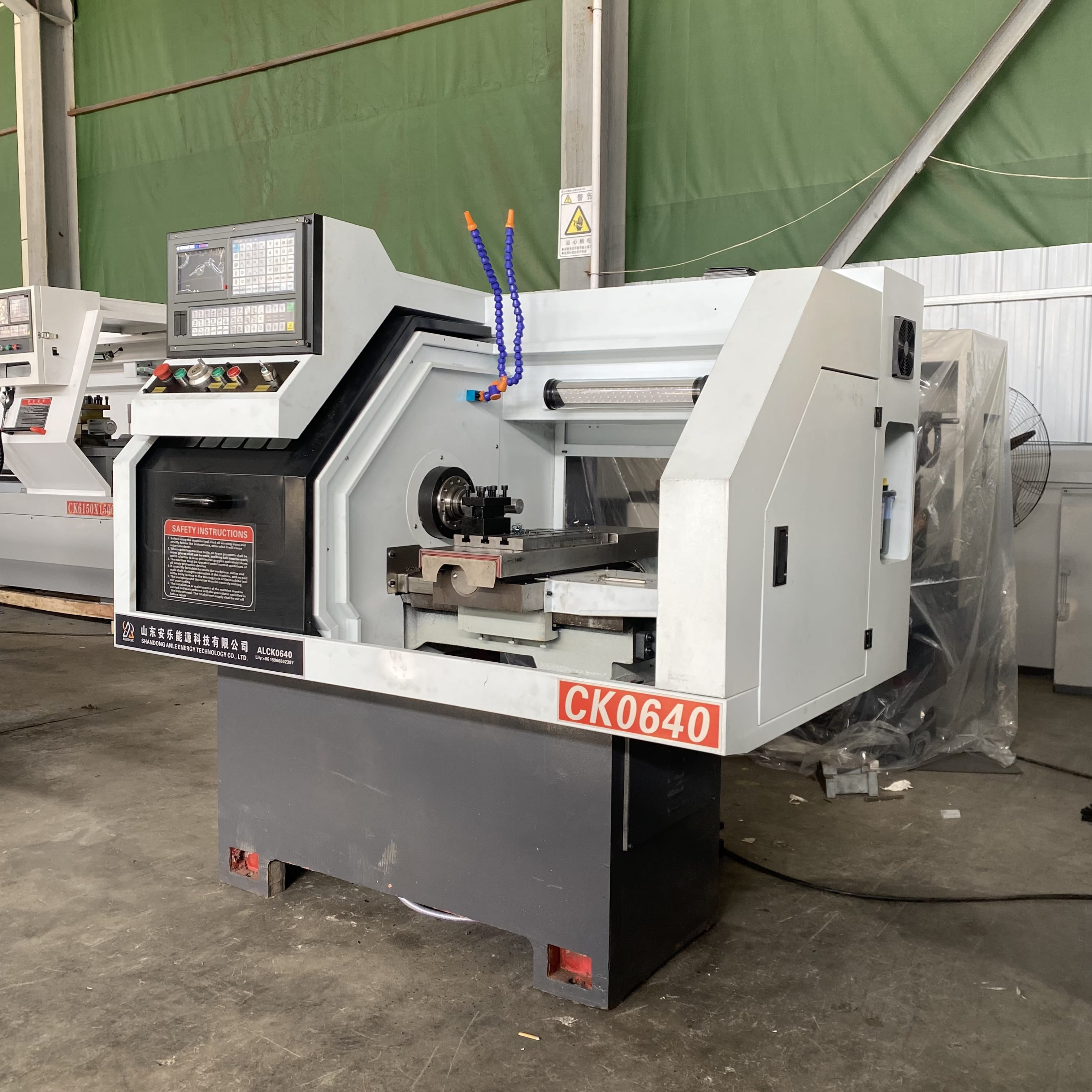

ALCK0640 CNC Lathe
Equipment configuration and parameters
Item | Unit | ALCK0640 |
Max swing over bed | mm | Φ250c |
Maximum swing over slide | mm | Φ250 |
Spindle hole diameter | mm | Φ48 |
With hollow chuck pull rod through hole | mm | Φ40 |
Spindle speed limit | rpm | 3000 |
Z stroke | mm | 220 |
X axis repeat positioning accuracy | mm | 0.01 |
Z axis repeat positioning accuracy | mm | 0.01 |
Dimensions (length × width × height) | mm | 1620×1340×1680mm |
Control system | GSKTB3 |
1.Automatic CNC lathe machine Flat bed CNC lathe has good working stability and strong bearing capacity.
2.The CNC lathe guide rail is cast with wear-resistant cast iron and finished with supersonic quenching and tempering to ensure long-term stable machining accuracy and service life.
Flat bed CNC lathe can be automatically controlled and can automatically process the head circle, end, groove, arbitrary cone, spherical surface of various parts, as well as various inch and inch cylinders, taper threads
