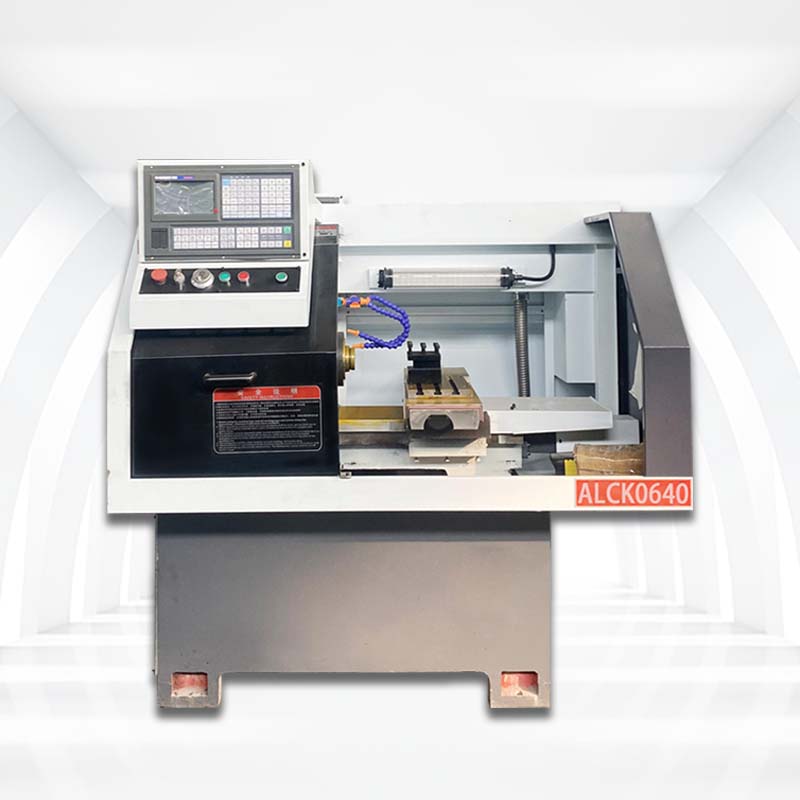

Horizontal CNC Lathe Machine For Machining Mechanical Metal
Flat bed CNC lathe Machining work pieces: suitable for rough and finishing machining of small and medium-sized shafts and disc parts. It is suitable for machining various steel, cast iron and non-ferrous metal large and medium parts.
CNC Lathe Processing Features
1. The spindle adopts high-precision rolling bearings, and the high-precision turntable adopts high-precision ball screw drive, which has good dynamic performance and accurate positioning.
2. The guide rail of the CNC lathe machine is made of wear-resistant cast iron, which has been quenched by audio frequency and has a hardness of above HRC45, which can ensure long-term stability of machining accuracy.
Equipment configuration and parameters
| Item | Unit | ALCK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| Z stroke | mm | 220 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Dimensions (length × width × height) | mm | 1620×1340×1680mm |
| Control system | GSKTB3 |

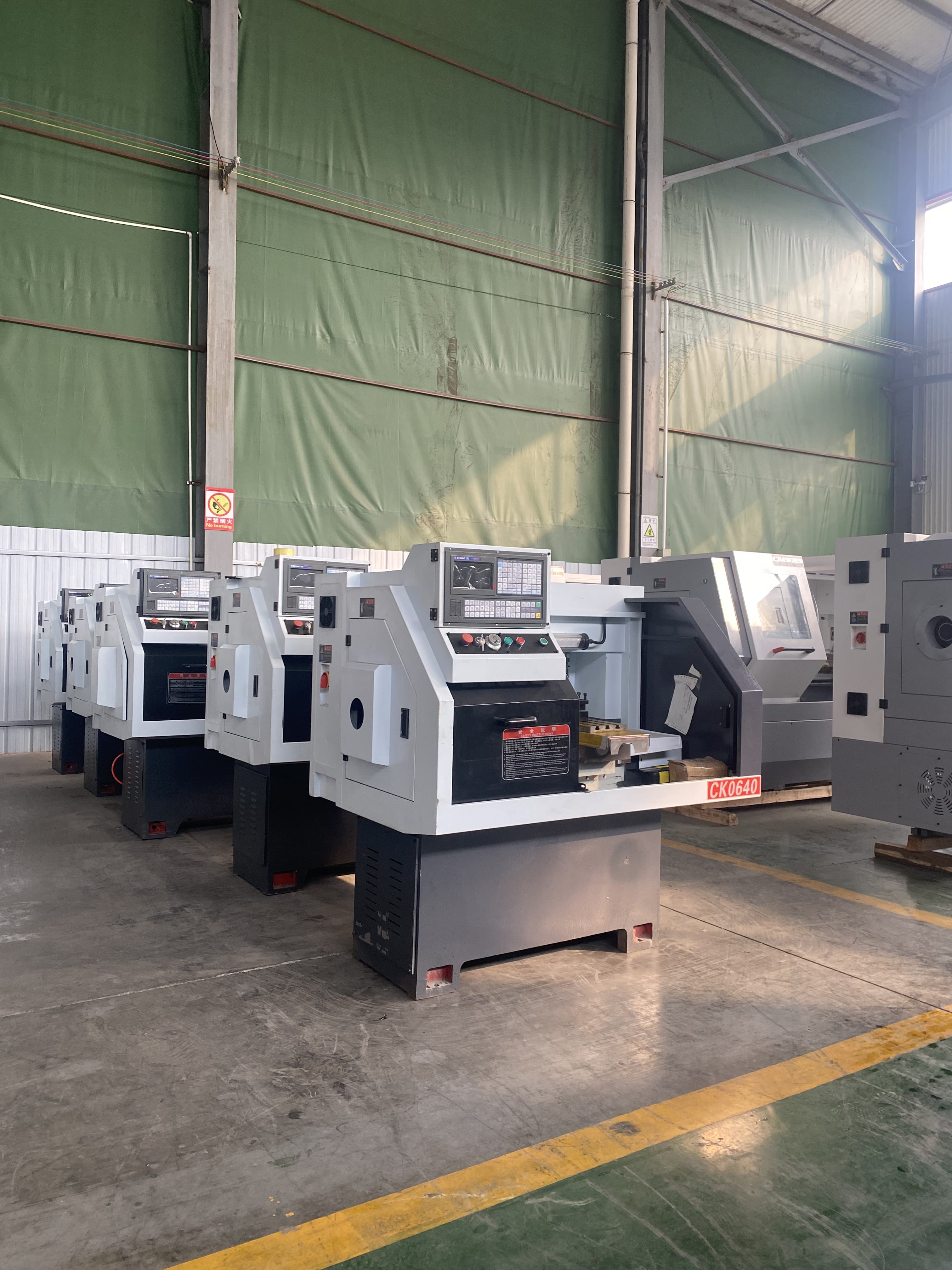

CNC lathe Assembly workshop
We have Flat bed CNC lathe，slant bed CNC lathe.
Horizontal CNC Lathe Machine Advantage
1.Automatic CNC lathe machine Flat bed CNC lathe has good working stability and strong bearing capacity.
2.The CNC lathe guide rail is cast with wear-resistant cast iron and finished with supersonic quenching and tempering to ensure long-term stable machining accuracy and service life.
3.Flat bed CNC lathe X-axis adopts four-point line/Z-axis screw center three-point line structure design to ensure smoother track without lateral impact during work.
Horizontal CNC Lathe Application
Application areas of CNC technology: The major of CNC technology is mainly for machinery, mold, electronics, electrical, light industry and other industries.
