CNC Lathes for Small Batch Production
The host of ALCK0640 CNC lathe machine is supported by high-precision moving bearings with high rotation accuracy. The guide rail of the machine tool is made of wear-resistant cast iron, which has been subjected to ultra-high frequency quenching and artificial vibration aging treatment to ensure the geometric accuracy of the machine tool for a long time.
The CK0640 CNC lathe is a compact piece of metal cutting equipment widely used in low-volume production Despite its compact size, it is as capable as many full-size machines.
The horizontal CNC lathe machine ALCK0640 lathe is suitable for various production conditions and undergoes strict quality control to meet high safety and production quality requirements.
CNC lathe processing is a machine that processes workpieces made of metal and other hard metals by sharpening. They are used in medium and large industries. Their type depends on the following parameters: quality (of the device itself), purpose, precision of work performed by the device, maximum length and diameter of the part that can be machined by the CNC lathe.

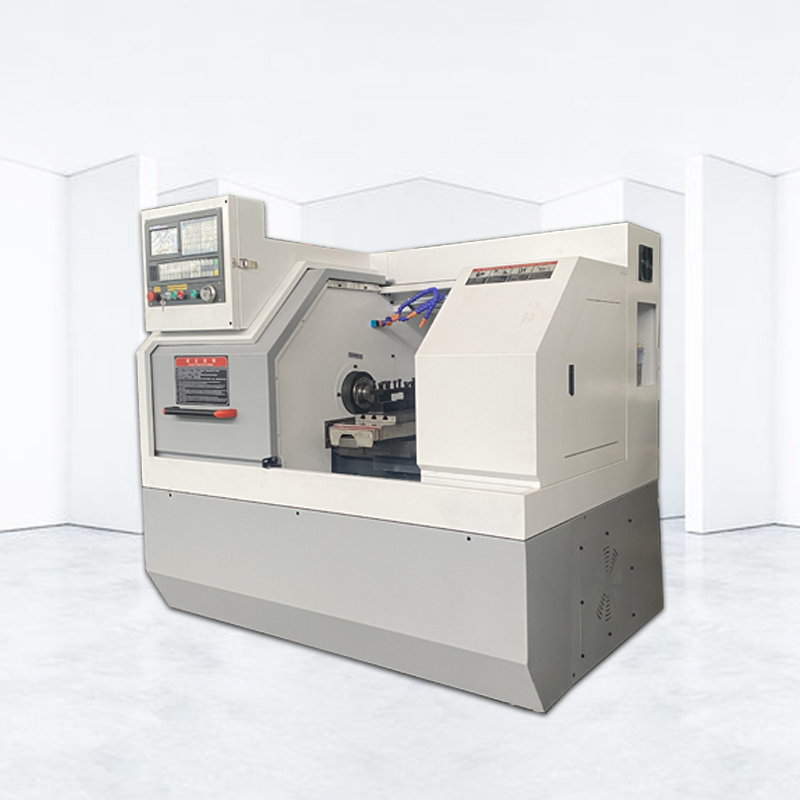

ALCK0640 CNC Lathe
ALCK0640 CNC Lathe
Selection Of CNC Lathe Chuck
The selection of CNC lathe chuck needs to be carried out according to the requirements of specific processing tasks and the shape, size, material and other characteristics of the workpiece.
1 piece material: choose a suitable chuck according to the material characteristics of the workpiece, such as for pieces with higher hardness, you can choose to use
Hard jaw chuck, for brittle workpieces, you can choose to use soft jaw chuck,
2. Machining accuracy: Select the chuck according to the requirements of machining accuracy. For example, for high-precision machining requirements, you can choose a chuck with a higher
precision chuck.
Machining precision and efficiency. At the same time, it is also necessary to consider the brand and quality of the chuck, choose a reliable brand and high-quality chuck,
To ensure production efficiency and product quality,
Equipment configuration and parameters
| Item | Unit | ALCK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| Spindle hole diameter | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| Z stroke | mm | 220 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Dimensions (length × width × height) | mm | 1620×1340×1680mm |
| Control system | GSKTB3 |
