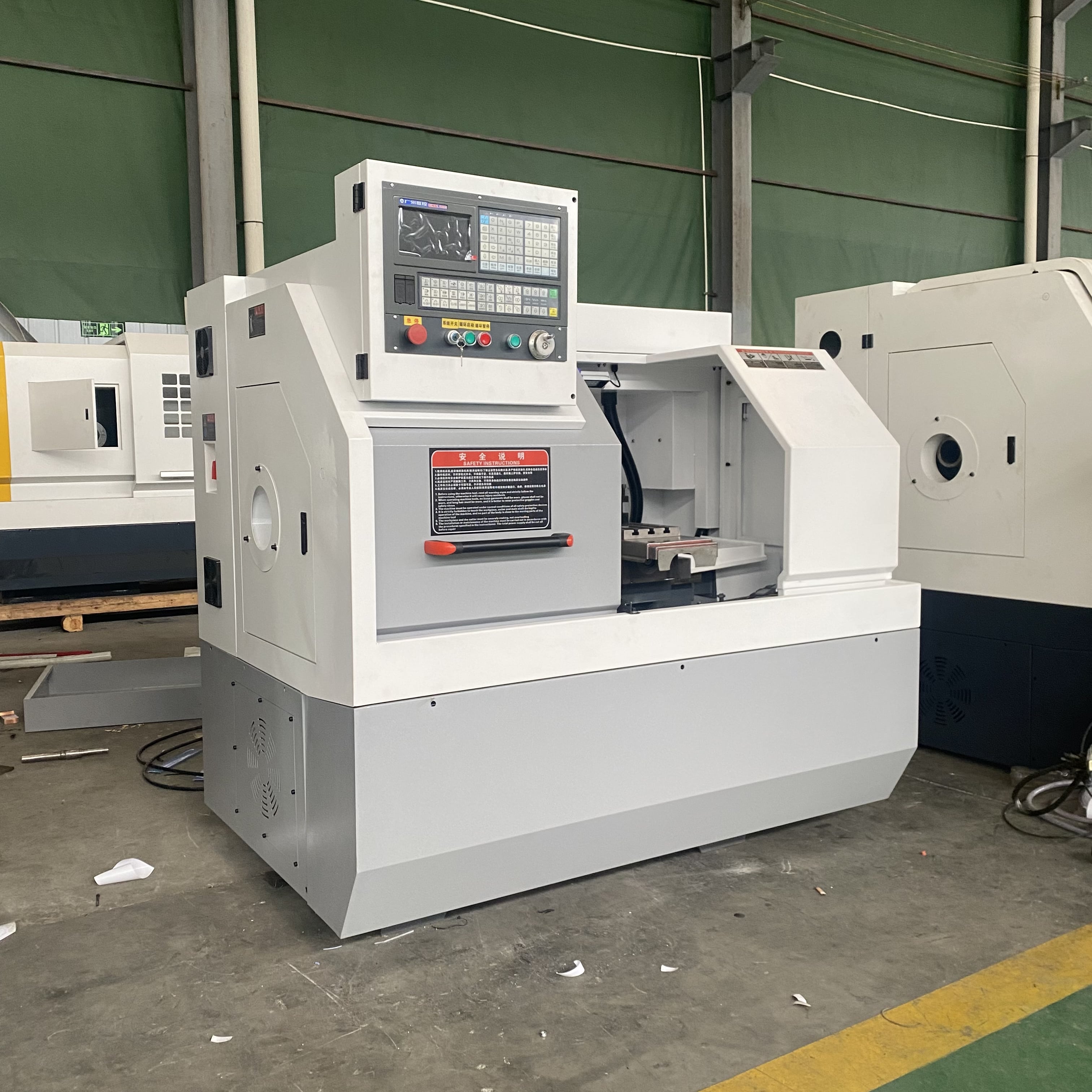

ALCK0640 CNC Lathe Is Suitable For Small Batch Production
ALCK0640 CNC lathe machine has reinforced guideways, wide spindle bore and high torque. High-efficiency lathes are used for series and small-batch production. CNC lathe has the function of turning outer surface, inner surface, spherical surface and thread. Canned cycle control for conventional and cross turning, tapered turning and threading. The CNC system greatly simplifies the programming of the machine and reduces machining time.
The CK0640 CNC lathe is a compact piece of metal cutting equipment widely used in low-volume production Despite its compact size, it is as capable as many full-size machines.
The horizontal CNC lathe machine ALCK0640 lathe is suitable for various production conditions and undergoes strict quality control to meet high safety and production quality requirements.
CNC lathe processing is a machine that processes workpieces made of metal and other hard metals by sharpening. They are used in medium and large industries. Their type depends on the following parameters: quality (of the device itself), purpose, precision of work performed by the device, maximum length and diameter of the part that can be machined by the CNC lathe.
The standard configuration and optional configuration of CNC lathe ALCK0640 can be configured according to the needs of customers. Here are some possible standard and optional options:
Standard options:
1. Numerical control system: It is usually equipped with an advanced numerical control system, such as Fanuc, Siemens, etc., to precisely control the movement and processing of the machine tool.
2. Spindle: ALCK0640 is usually equipped with a high-precision spindle, which provides stable speed and cutting ability.
3. Tool holder: Standard equipment may include a tool holder for fast changing of fastening and cutting tools.
Electrical system: The standard configuration usually includes electrical control cabinets and related electrical components to ensure the normal operation and safety performance of the machine tool.
Optional options:
4. Automatic tool magazine: An automatic tool magazine can be selected to provide more tool storage and automatic switching functions to improve production efficiency.
5. Cooling system: Optional cooling system is used to cool the cutting area to improve the processing quality and tool life.
6. Automatic feeder: optional automatic feeder to realize automatic feeding and positioning of workpieces and improve processing efficiency.
7. Tail waste collection device: The tail waste collection device is optional, which is convenient for waste collection and treatment, and keeps the working area clean.
These are some common standard and optional options, and specific configurations will vary according to customer needs and machine tool builder specifications. It is recommended to contact the machine tool builder for a detailed list of standard and optional options, as well as for custom configurations to meet your specific needs.

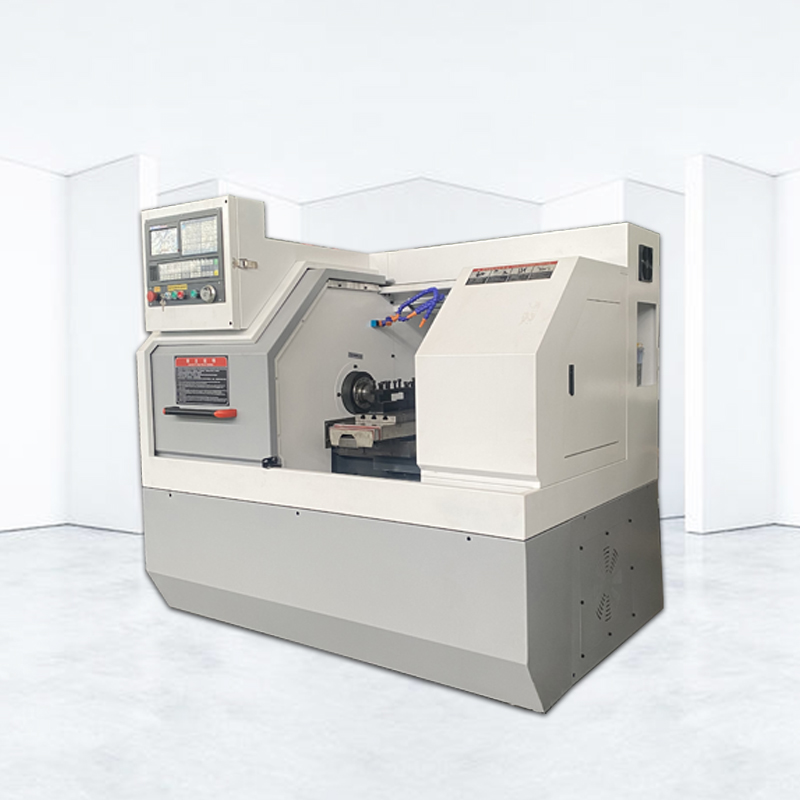

ALCK0640 CNC Lathe
Equipment configuration and parameters
| Item | Unit | ALCK0640 |
| Max swing over bed | mm | Φ250 |
| Maximum swing over slide | mm | Φ120 |
| Spindle hole diameter | mm | Φ48 |
| With hollow chuck pull rod through hole | mm | Φ40 |
| Spindle speed limit | rpm | 3000 |
| Z stroke | mm | 220 |
| X axis repeat positioning accuracy | mm | 0.01 |
| Z axis repeat positioning accuracy | mm | 0.01 |
| Dimensions (length × width × height) | mm | 1620×1340×1680mm |
| Control system | GSKTB3 |
