ALMAZAKL CNC In the machinery manufacturing industry, the ALCK0640 CNC lathe can be used to process various mechanical parts, such as shafts, gears, threads, etc.
1.System:GSK
2.Gang type tool.
3.Penumatic collet.
4.Without tailstock.
5.Cooling system.
6.Lighting system.
7.Automatic lubrication system.
CNC lathe machine Optional configuration:
1.CNC system: GSK, Siemens, Fanuc, KND, etc.
2.3-jaw manual chuck,Hydraulic chuck, pneumatic chuck .
3.Manual tailstock,Hydraulic tailstock, pneumatic tailstock.
4. 4-station electric tool post,6-station electric tool post, 8- station electric tool post
5. Automatic bar feeder.
1. Small size: CK0640 small CNC lathe is small in size and occupies a small area. It is suitable for placing in small workshops and places with limited working space, which is convenient for enterprises to carry out lathe processing.
2.High machining precision: CK0640 small CNC lathe adopts CNC system to control tool cutting, with a high degree of automation, and can accurately control the size and shape of the workpiece to ensure machining accuracy.

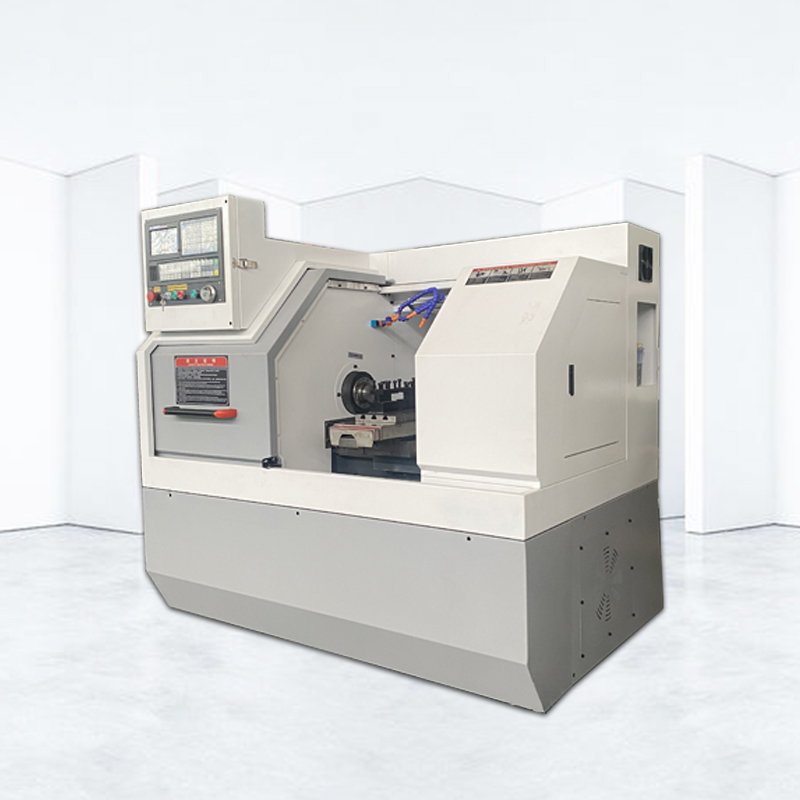

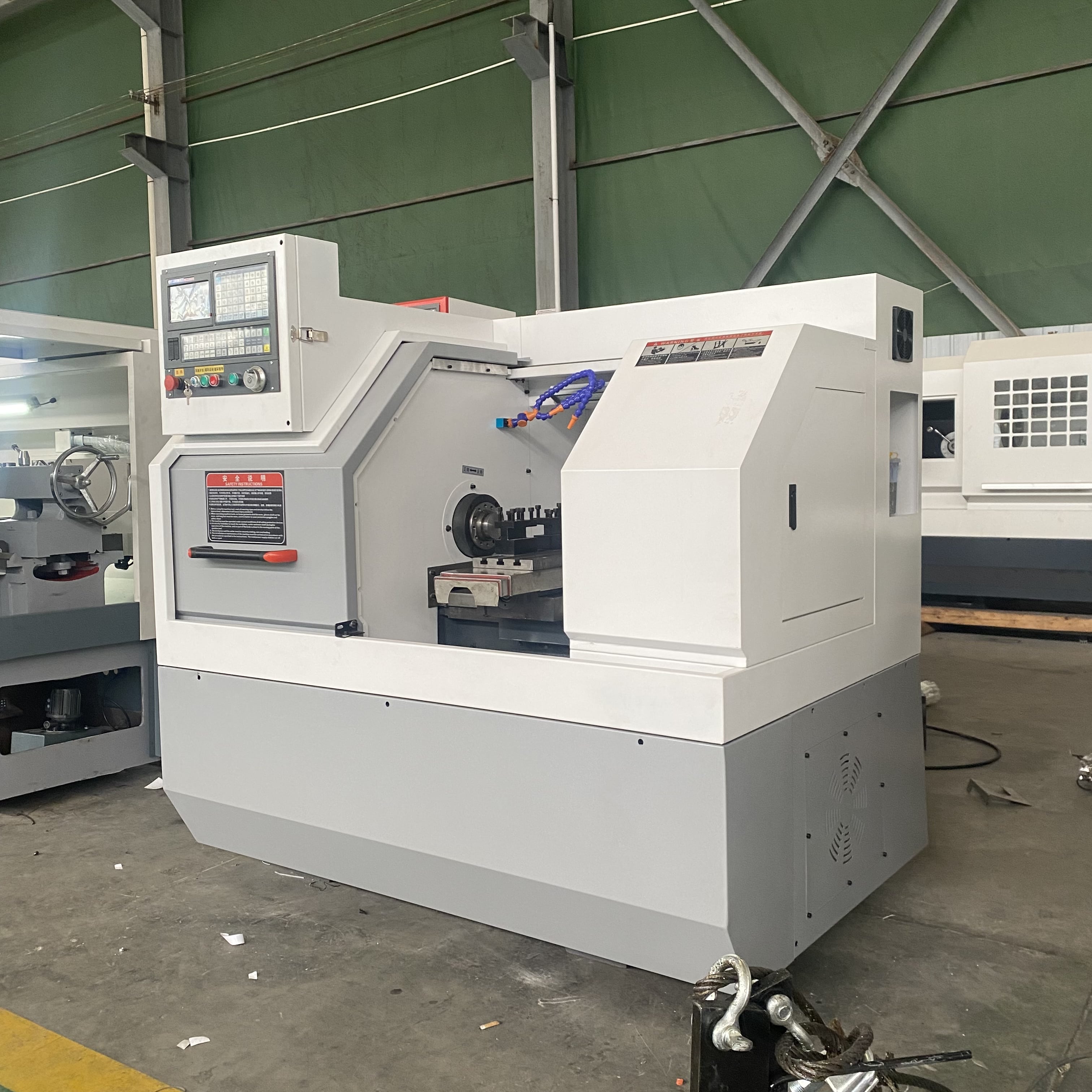

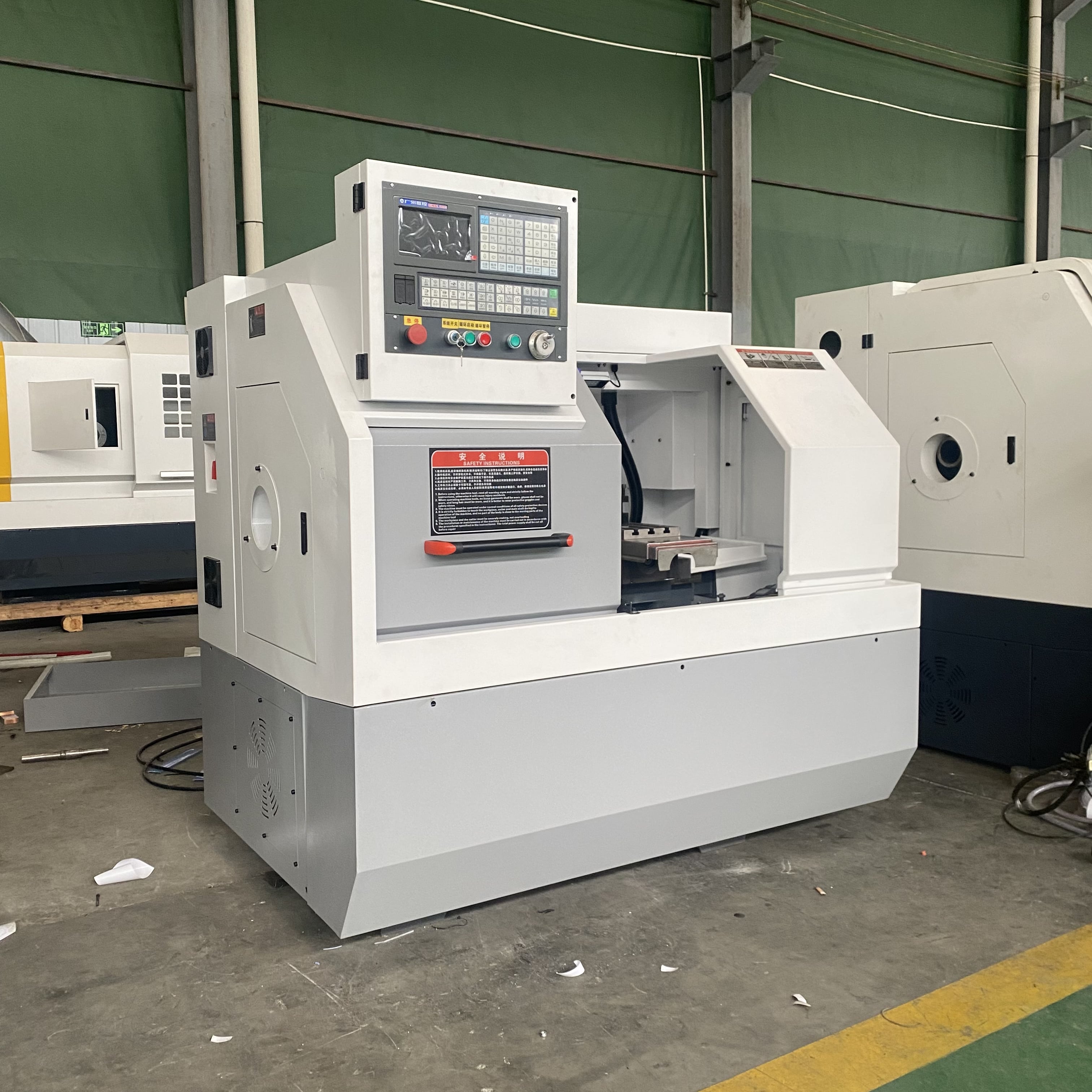

ALCK0640 CNC Lathe
1. Machining the crankshaft: The crankshaft is an important part of the internal combustion engine. Through turning and drilling, a high-precision crankshaft can be obtained to ensure the stable and reliable operation of the engine.
2. Manufacture of camshaft: The camshaft is a key component in the car engine, which can control the opening and closing of the valve in the cylinder, thereby adjusting the power and emission of the engine. The CK0640 CNC lathe is capable of manufacturing high-precision camshafts through processes such as turning, drilling and milling.

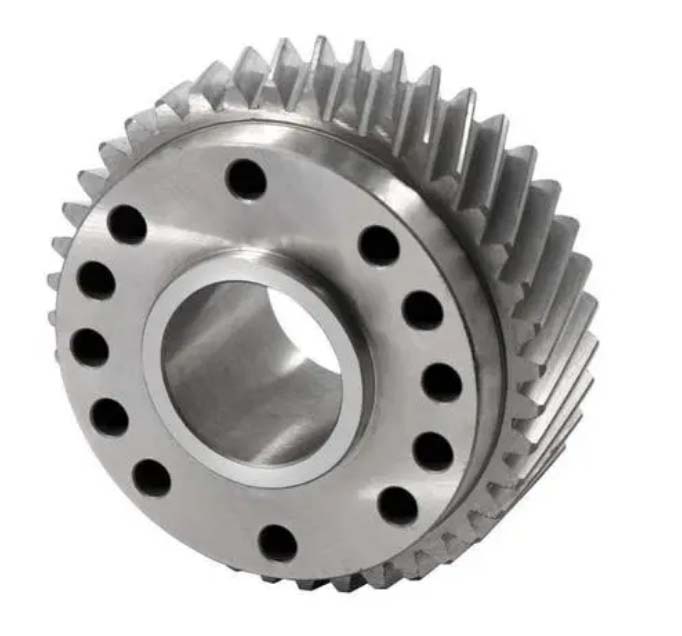

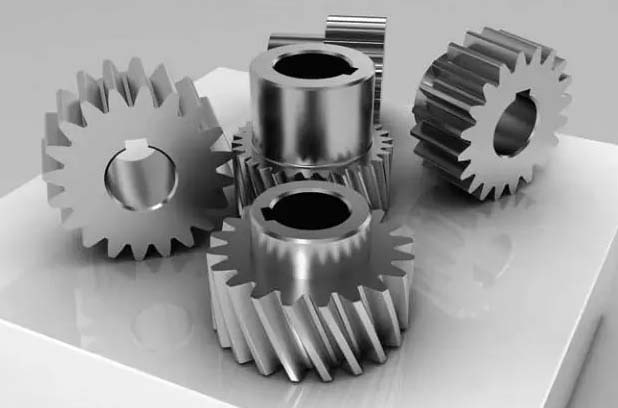

3. Manufacture of gears: Gears are the core components of automobile transmission systems. High-precision gears can be processed by turning and milling processes to ensure the stability and reliability of automobile transmission.
Item | Unit | ALCK0640 |
Max swing over bed | mm | Φ250 |
Maximum swing over slide | mm | Φ120 |
Spindle hole diameter | mm | Φ48 |
With hollow chuck pull rod through hole | mm | Φ40 |
Spindle speed limit | rpm | 3000 |
Z stroke | mm | 220 |
X axis repeat positioning accuracy | mm | 0.01 |
Z axis repeat positioning accuracy | mm | 0.01 |
Dimensions (length × width × height) | mm | 1620×1340×1680mm |
Control system | GSKTB3 |
