ALCK6136 Flat bed CNC lathe
As an advanced processing equipment, ALCK6136 CNC lathe is widely used in the manufacturing industry for its high-efficiency and precise processing capabilities.
STANDARD CONFIGURATION
1.CNC system:GSKTB3, servo motor and drive.
2.Chuck: Pneumatic collets.
3tool： Gang Type Tool.
4.Cooling system.
5.Lighten system.
6.Automatic lubrication system.
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.turret :
(1).4station electric tool post.
(2).6station electric tool post.
(3.)8station electric tool post.
5.Feeder:Automatic bar feeder.
ALCK6136 CNC Lathe Has The Following Characteristics:
1. High-precision machining capability: Adopting advanced numerical control technology and precision spindle system, it can realize high-precision turning and ensure the accuracy of product size and surface quality.
2. Multifunctional processing: It has multiple processing functions such as turning, milling, and drilling, and is suitable for processing various complex workpieces, improving the flexibility and efficiency of processing.
3. Fast cutting speed: Equipped with high-speed spindle and feed system, it can realize fast cutting, greatly shorten the processing cycle and improve production efficiency.
4. Stable and reliable operation: ALCK6136 CNC lathe adopts stable structural design and advanced control system to ensure the stability and reliability of the equipment in long-term operation.
ALCK6136 CNC Lathe Is Widely Used In The Following Industries:
1. Automobile manufacturing industry: In the processing of auto parts, ALCK6136 CNC lathe can accurately process key parts such as engine block, crankshaft, bearing seat, etc., and improve the quality and efficiency of automobile manufacturing.
2. Aerospace industry: ALCK6136 CNC lathe can be used to process complex workpieces such as aircraft engine parts and aerospace structural parts, ensuring its accuracy and reliability, and meeting the strict requirements of the aerospace industry.
3. General machinery manufacturing industry: Whether it is manufacturing precision instruments, molds or industrial machinery, ALCK6136 CNC lathe can provide efficient and precise processing solutions.
4. Iron and steel industry: In the field of iron and steel processing, ALCK6136 CNC lathe can be used to process various parts such as bearings, bushings, journals, etc., to improve production efficiency and product quality.

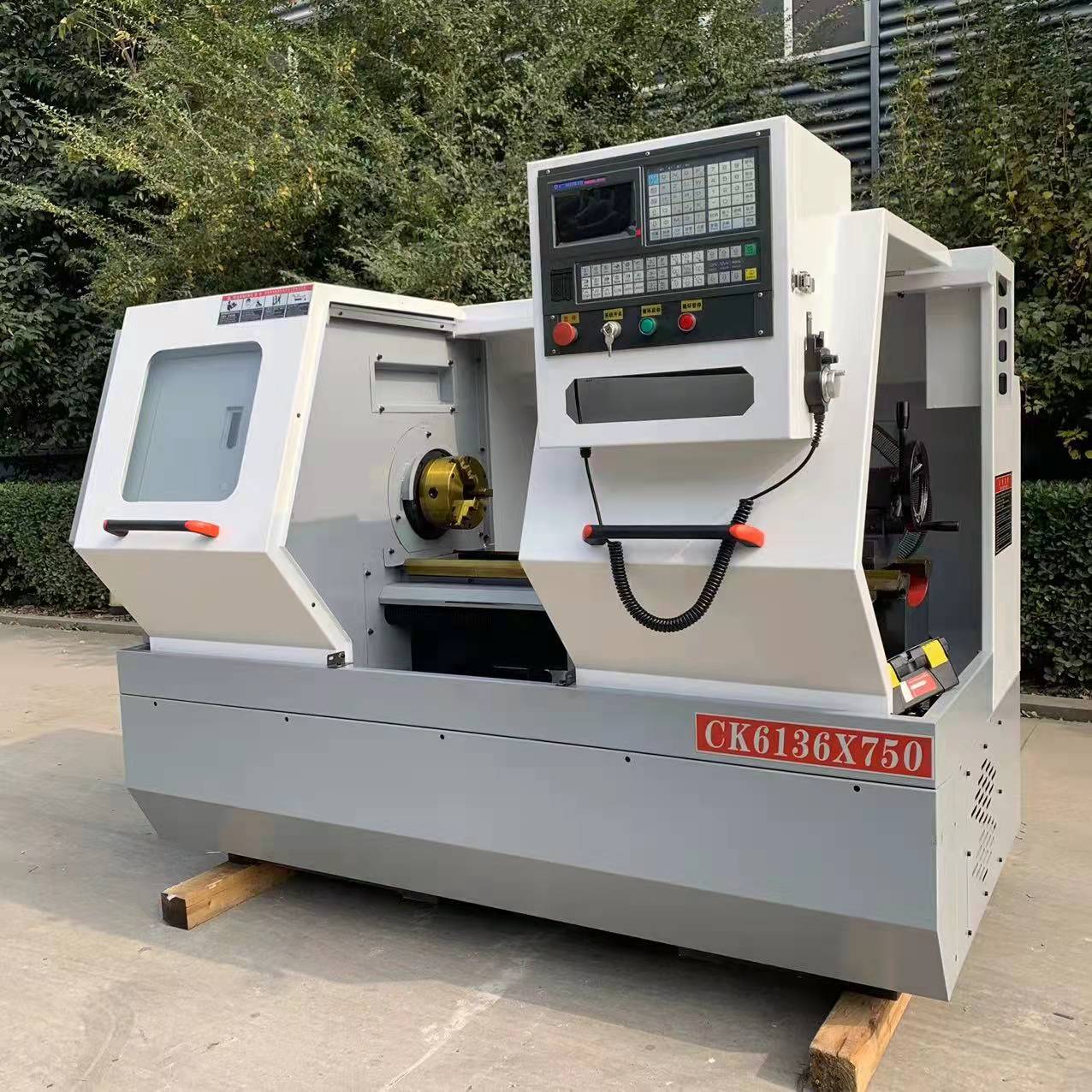

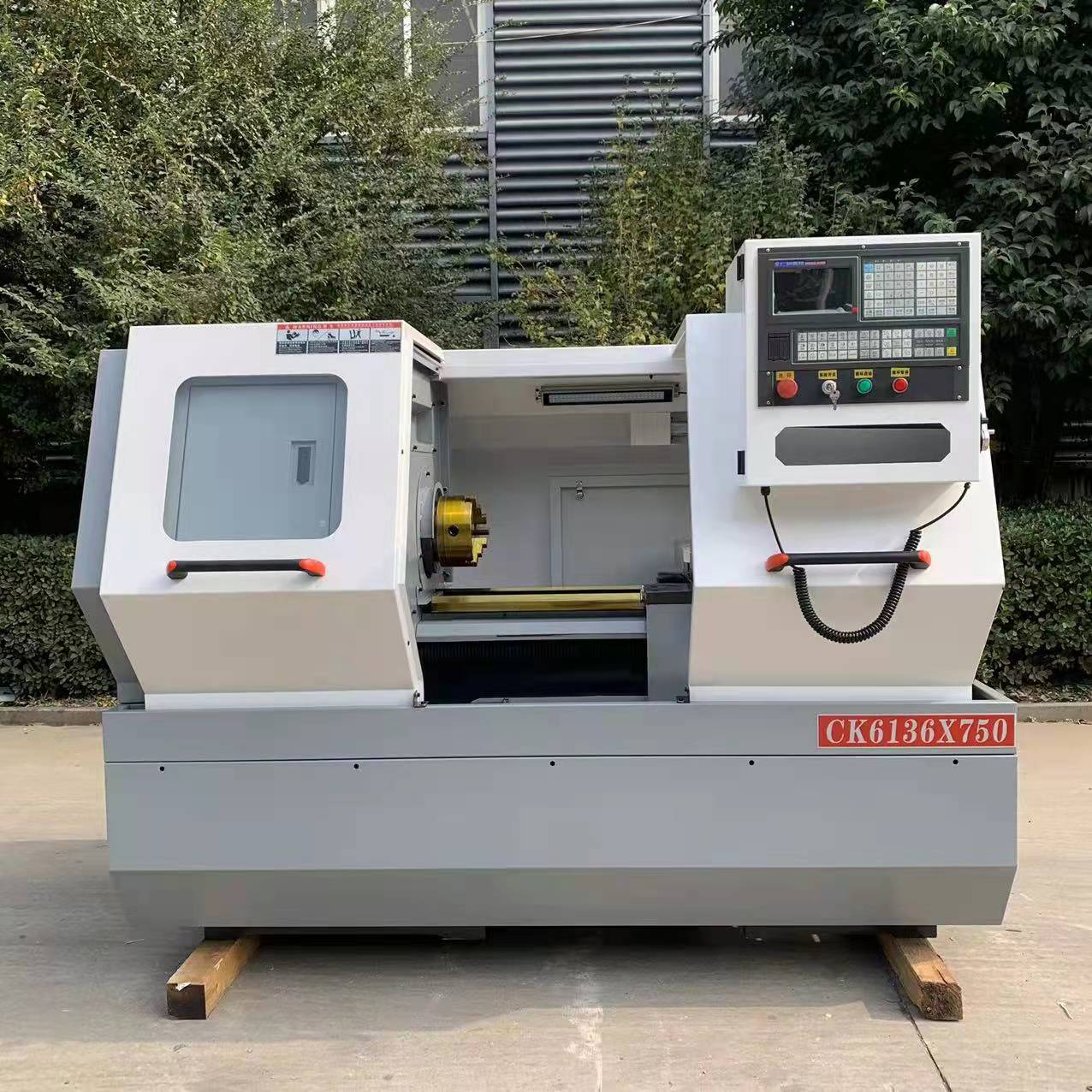

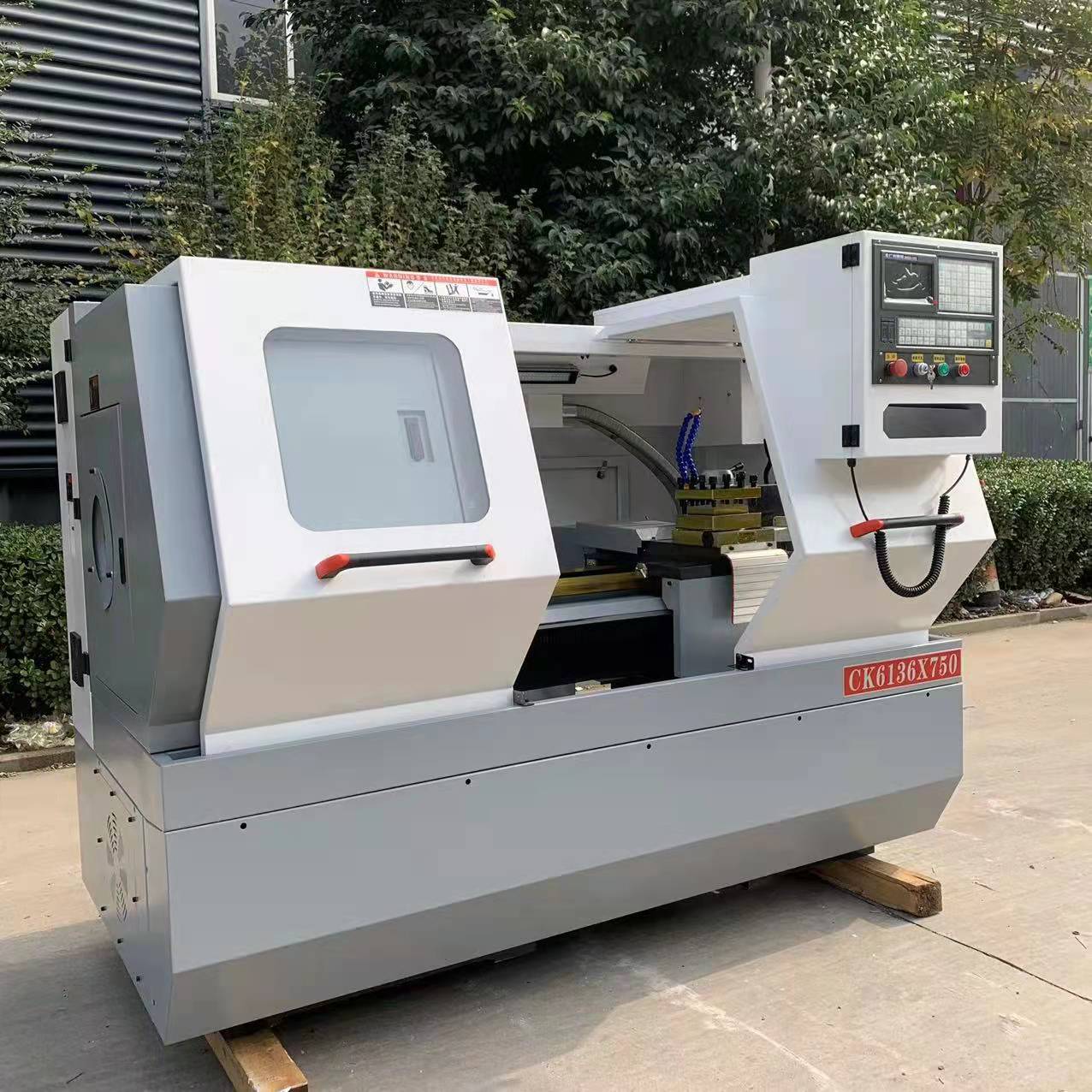

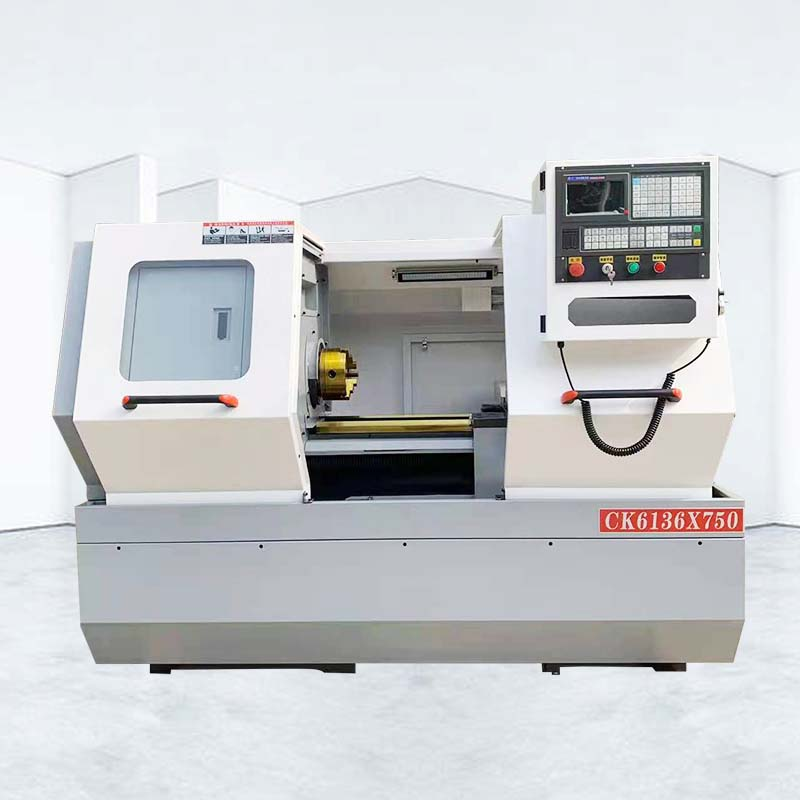

ALCK6136X750 CNC lathe Flat bed CNC lathe
Equipment configuration and parameters
| Item | Unit | ALCK6136x750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle speed range (infinite): | r/min | 150-2000 |
| Spindle end model ISO (GB) | A2-6 | |
| Spindle motor power | kw | 5.5 |
| CNC tool holder | Vertical four-station tool holder | |
| Tool handle size | mm | 20×20 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Minimum setting unit | mm | 0.01 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
| Net weight | kg | 1600 |
