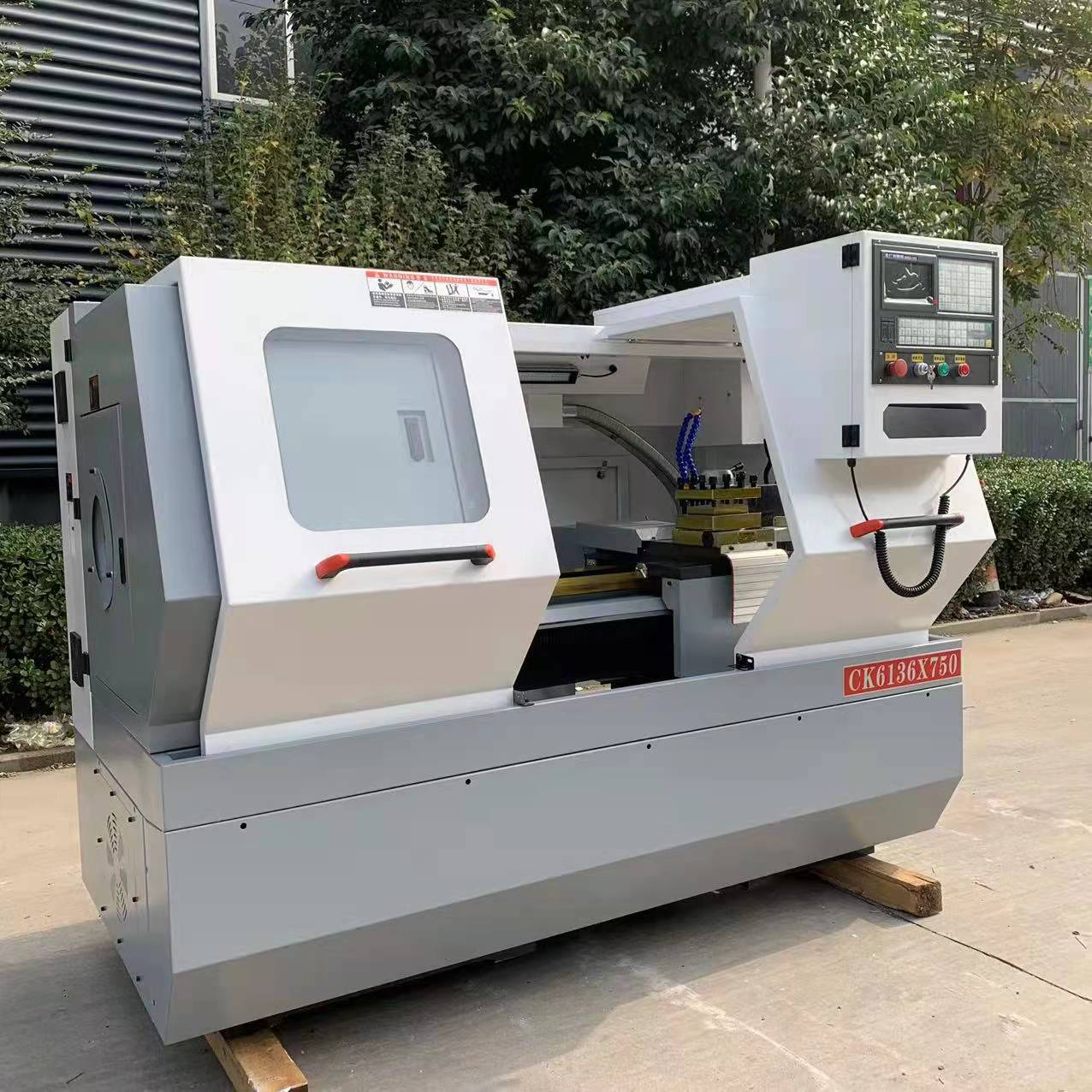

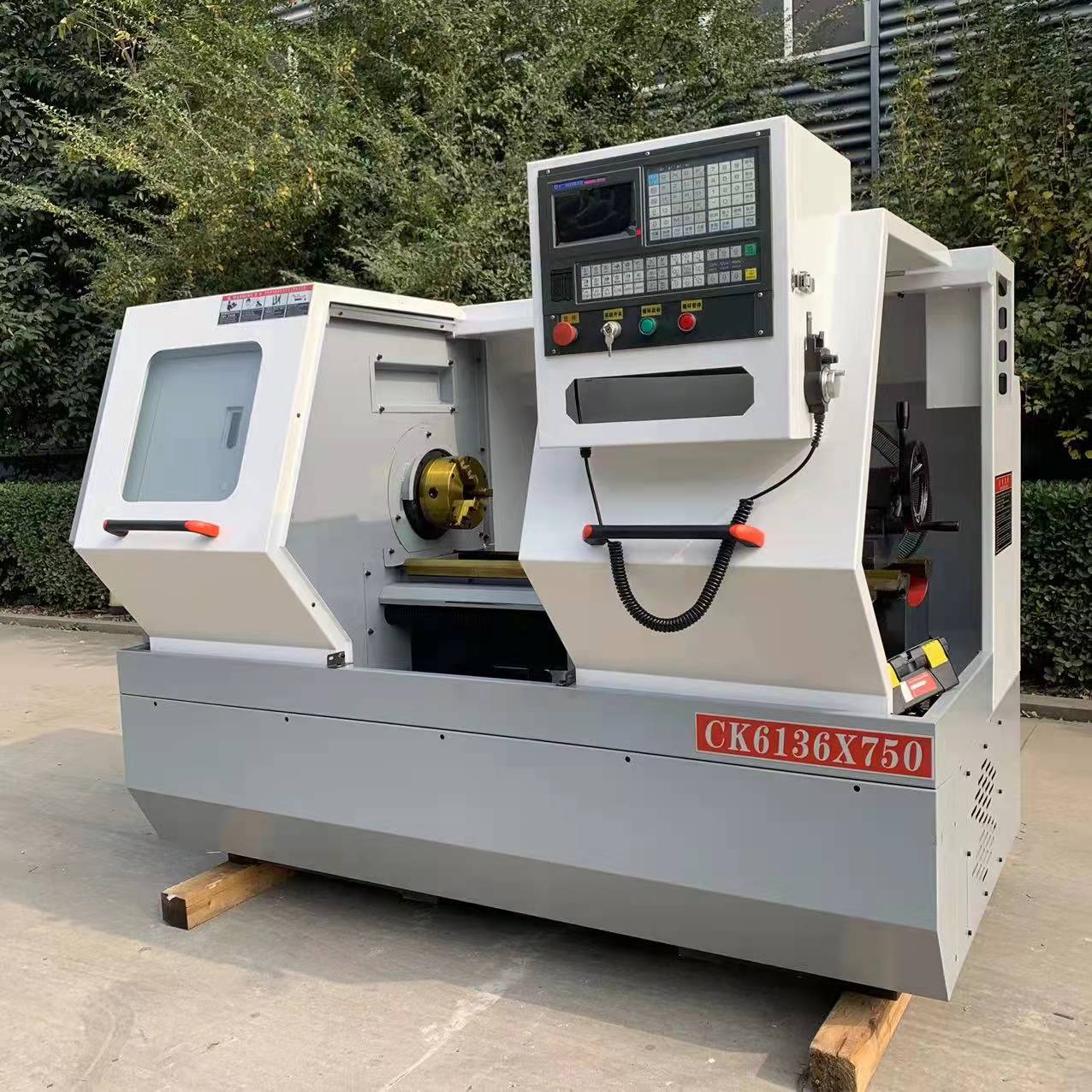

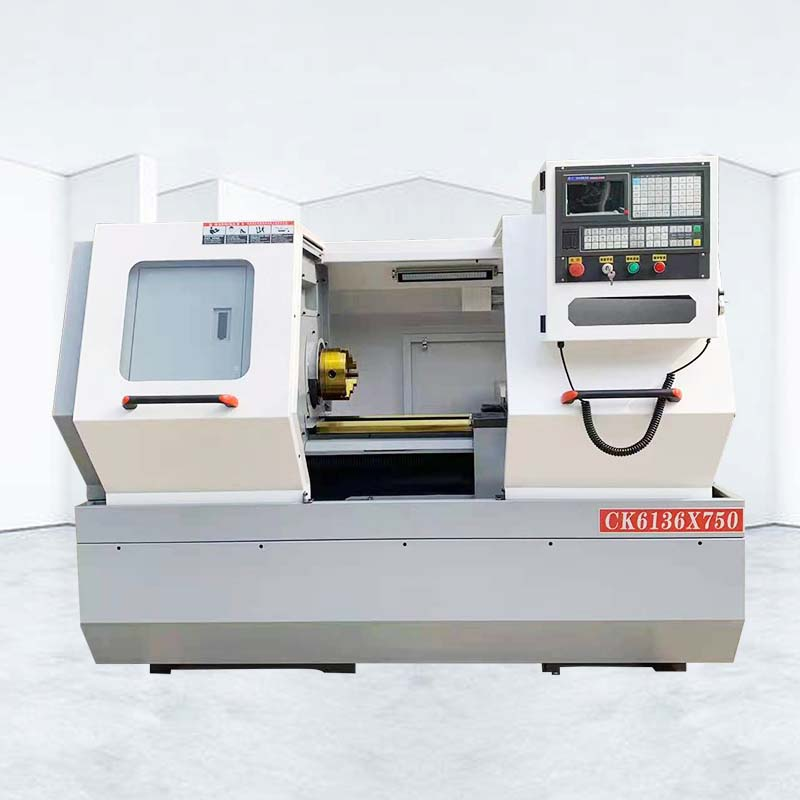

CNC Lathe CK6136x750 Produces Gear Parts
Flat bed CNC lathe is primarily used for turning operations, which involve removing material from a workpiece to create a cylindrical shape or other shapes such as cones or threads. This can be used for producing parts such as shafts, valves, and gears.
Features Of CK6136X750 CNC Lathe:
1.Automatic tool changer: This feature allows for automatic tool changes, which can save time and increase efficiency.
2.Spindle motor: This is the motor that rotates the workpiece. It can be controlled to vary the speed and torque, allowing for precision cutting.
3.Chuck: This holds the workpiece in place while it is being machined.
4.Tailstock: This provides support for the workpiece on the other end of the lathe.
5.Control system: This is the computer system that controls the movement of the cutting tool and other functions of the lathe.
6.Programmable logic controller (PLC): This is the electronic controller that communicates with the control system to execute the machining instructions.
7.Bed: This is the main structural component of the lathe and provides support for the other components.
Application Of CNC Lathe CK6136X750 In Metal Processing Industry:
1.Drilling: The lathe can be used for drilling holes in the workpiece using a drill bit.
2.Tapping: The lathe can also be used for tapping threads into a workpiece using a tapping tool.
3.Facing: The lathe can be used to create flat surfaces on the end of a workpiece, a process known as facing.
4.Boring: The lathe can be used for boring operations, which involve enlarging a hole in the workpiece to a specific size using a boring tool.
5.The CK6136X750 CNC lathe is a high-precision machine tool that can produce complex and accurate parts with consistent quality. Its computer-controlled operation allows for precise and repeatable machining, making it suitable for high-volume production runs. The lathe can work with a variety of materials, including metals such as steel, aluminum, brass, and titanium, as well as plastics and composites.
In summary, the CK6136X750 CNC lathe is a versatile and high-precision machine tool that is widely used in the metal processing industry for various applications such as turning, drilling, tapping, facing, and boring.
Buy CNC Automatic Making Alloy Wheel Metal Lathe Machine Chinese Lathes Price Fanuc Lathe-Machine Machining CK6136 cnc lathe machine metal
Equipment configuration and parameters
| Item | Unit | ALCK6136x750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | F52 |
| Z stroke | mm | 750 |
| Minimum setting unit | mm | 0.01 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
| Net weight | kg | 1600 |
