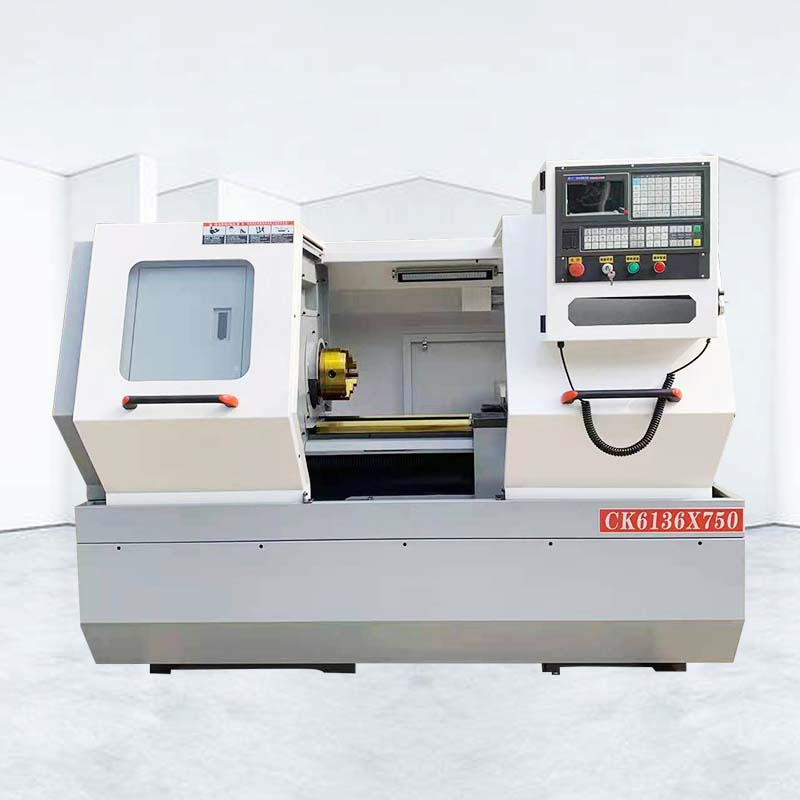

The CK6136X750 CNC Lathe is a computer-controlled machine used for precision machining of various materials.
1.Maximum turning diameter: 360mm
2.Maximum turning length: 750mm
3.Spindle bore diameter: 60mm
4.Spindle speed range: 50-2000 rpm
5.X/Z-axis rapid traverse speed: 4m/min
6.X/Z-axis positioning accuracy: 0.01mm

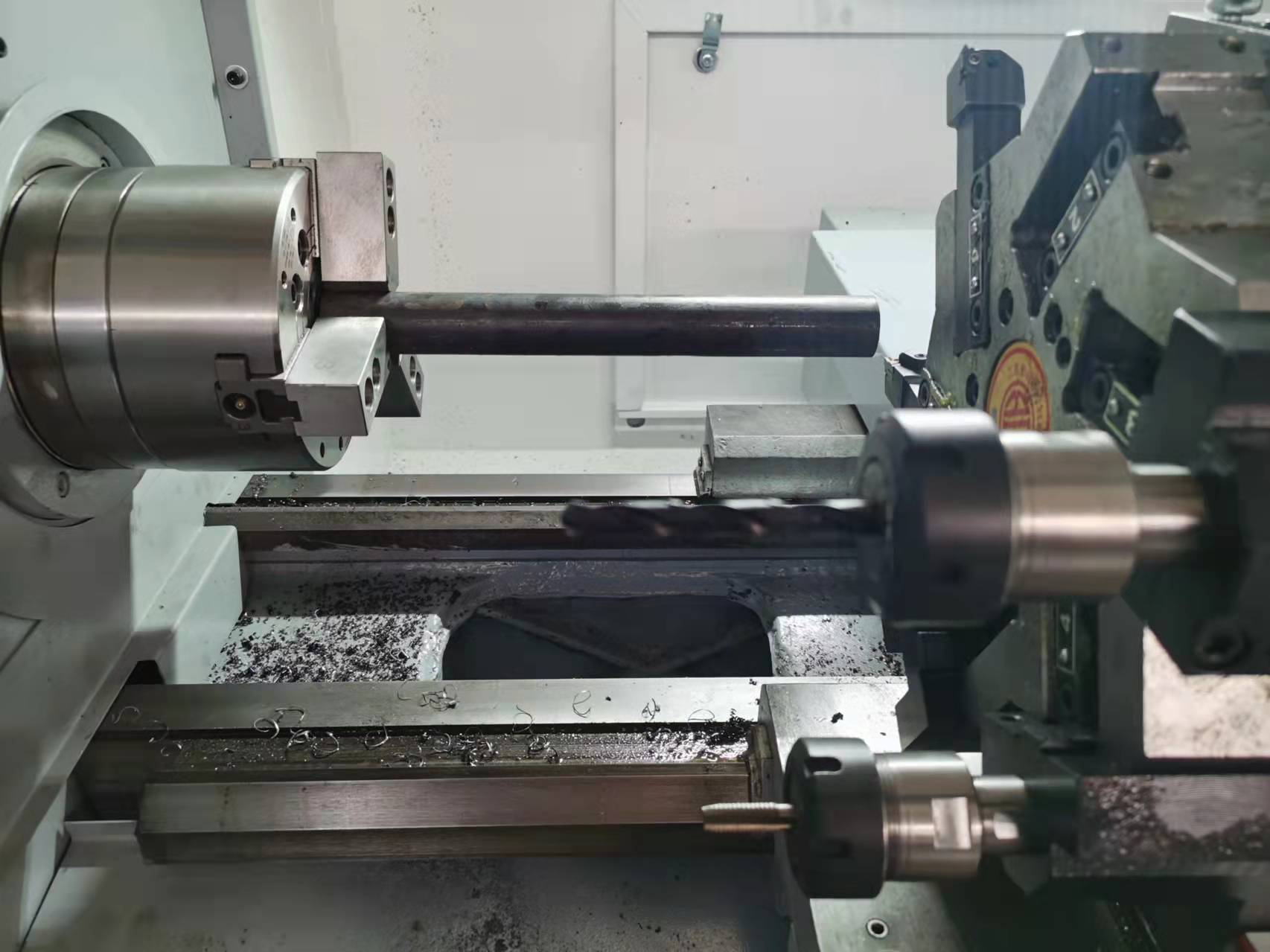

The CK6136X750 CNC Lathe is capable of performing a variety of turning operations, including facing, turning, drilling, tapping, and threading. The machine is also equipped with a 4-station electric tool post, which allows for quick and easy tool changes, increasing efficiency and productivity. Additionally, the machine's high positioning accuracy of 0.01mm ensures precision in every cut, producing high-quality finished parts.
CNC lathes are widely used in the automotive industry to manufacture various components and parts with high precision and accuracy. Some of the workpieces that CNC lathes can process in the automotive industry include:
1.Engine cylinders: CNC lathes can precisely machine engine cylinders to meet tight tolerances and ensure optimal engine performance.
2.Transmission components: CNC lathes can produce various transmission components, such as gears, shafts, and housings, with high precision and accuracy.
3.Suspension parts: CNC lathes can machine various suspension components, such as ball joints, tie rods, and control arms, to ensure safety and stability while driving.
4.Steering system components: CNC lathes can produce steering system components, such as steering knuckles and spindles, with high precision and accuracy to ensure optimal handling and control.
5.Brake system components: CNC lathes can machine brake system components, such as brake drums, rotors, and calipers, to ensure reliable and consistent braking performance.
Overall, CNC lathes play a vital role in the automotive industry, producing critical components and parts that ensure safety, reliability, and optimal performance of vehicles.

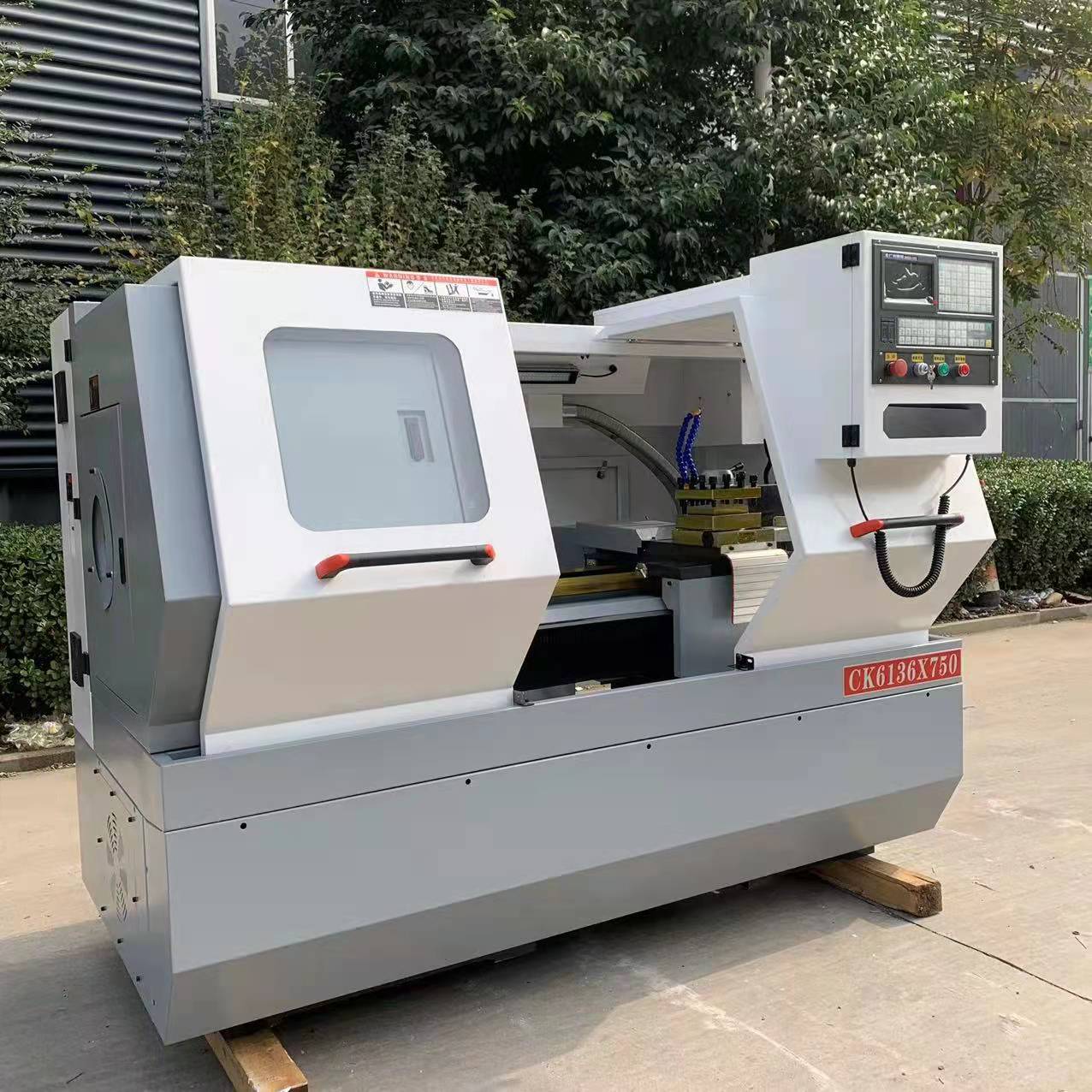

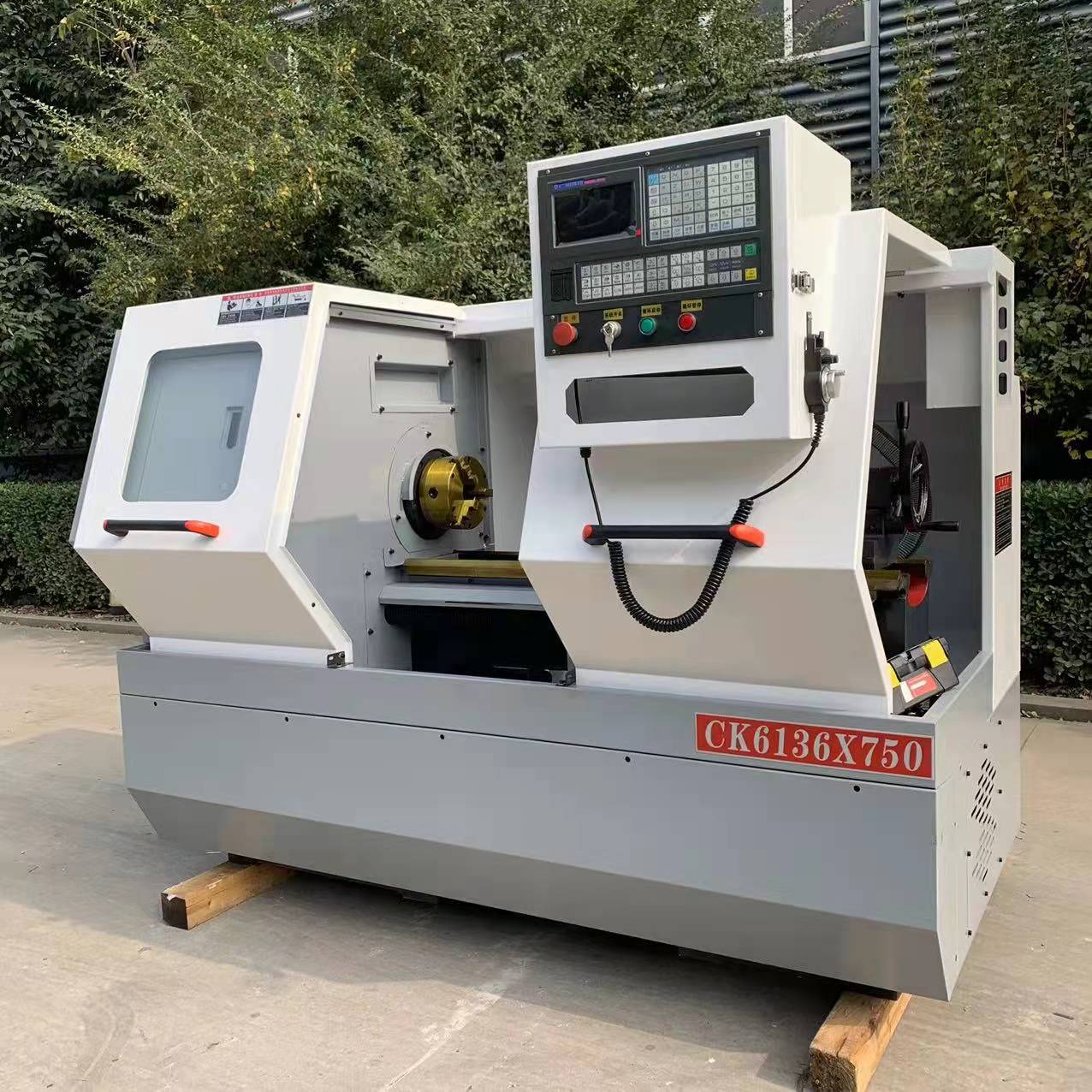

ALCK6136 Flat bed CNC lathe
Item | Unit | ALCK6136x750 |
Max swing over bed | mm | Φ360 |
Maximum turning diameter on the tool post | mm | Φ200 |
Maximum workpiece length between two centers | mm | 750 |
Spindle through hole diameter | mm | Φ52 |
Spindle speed range (infinite): | r/min | 150-2000 |
Spindle motor power | kw | 5.5 |
Tool handle size | mm | 20×20 |
X stroke | mm | 200 |
Z stroke | mm | 750 |
Minimum setting unit | mm | 0.01 |
Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
Net weight | kg | 1600 |
