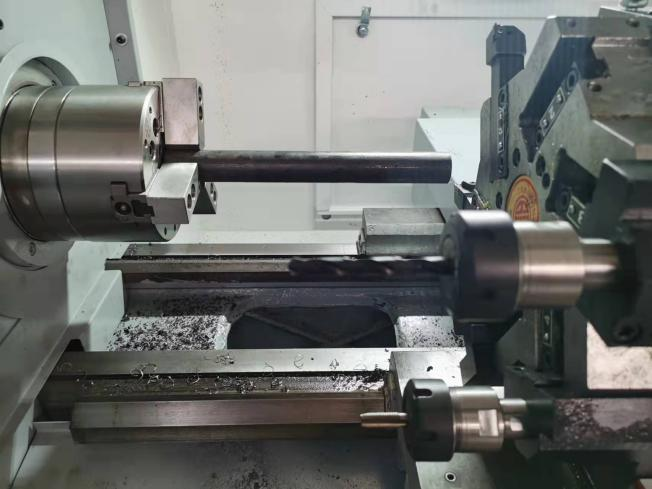

ALCK6136x750 Machining Motor Shaft
ALCK6136X750 CNC lathe can process various types of shaft workpieces. A shaft is a common mechanical part, which usually has the function of rotation and is used to transmit power or bear force. Common shaft workpieces include motor shafts, reducer shafts, axle shafts, drive shafts, etc.
The ALCK6136X750 CNC lathe can process various types of parts, including workpieces in valves. Specifically, the workpieces in the valve usually include valve body, valve cover, valve seat, valve ball, valve stem and other parts. These workpieces usually require high-precision machining to ensure the sealing performance and durability of the valve. CNC lathes can be programmed to achieve precise processing, and can quickly complete a variety of tasks to meet the processing needs of valve parts.
ALCK6136x750 CNC Lathe Has The Following Processing Advantages:
1. High-precision machining: The CNC lathe adopts a computer control system, which can realize high-precision machining and reduce errors and losses.
2. Flexibility: CNC lathes are flexible and can be programmed according to different parts to quickly complete a variety of jobs.
3. High efficiency: CNC lathes have the characteristics of high efficiency, which can reduce the processing cycle, improve production efficiency and reduce costs.
4. Reduce repetition rate: CNC lathes can be produced automatically, and can repeat the same work according to the set program, avoiding errors and differences caused by human factors.

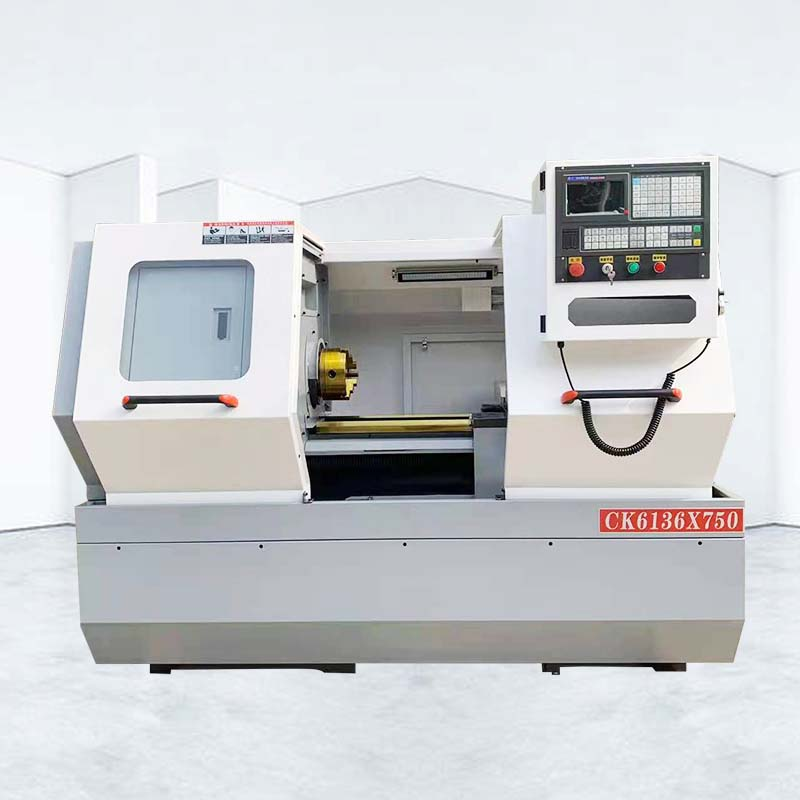

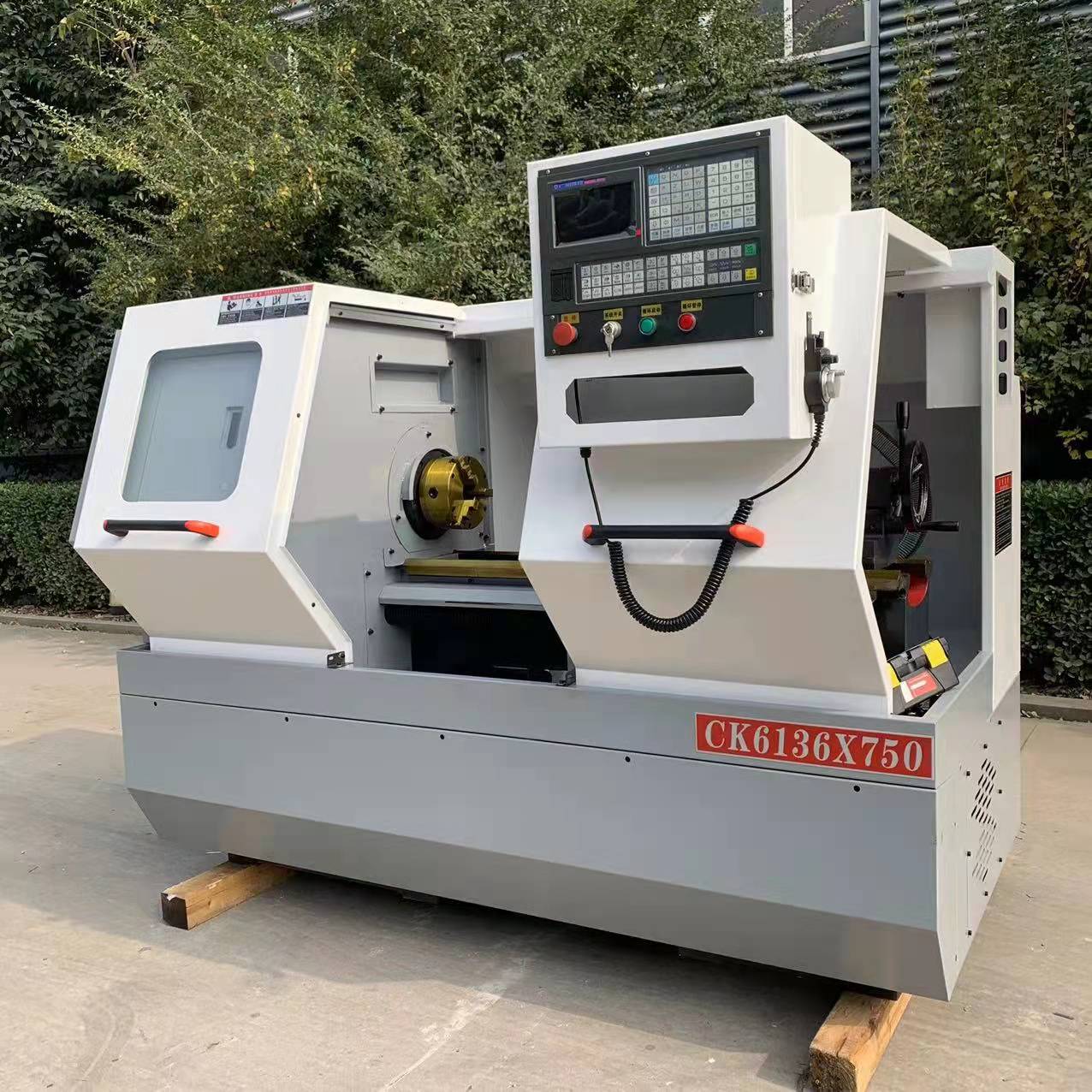

ALCK6136X750 CNC lathe Flat bed CNC lathe
Equipment configuration and parameters
| Item | Unit | ALCK6136x750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle speed range (infinite): | r/min | 150-2000 |
| Spindle end model ISO (GB) | A2-6 | |
| Spindle motor power | kw | 5.5 |
| CNC tool holder | Vertical four-station tool holder | |
| Tool handle size | mm | 20×20 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Minimum setting unit | mm | 0.01 |
| Overall dimensions of machine tool (length×width×height) | mm | 2350mm×1380mm×1640mm |
| Net weight | kg | 1600 |
