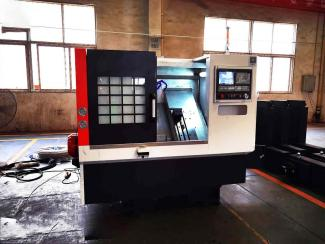

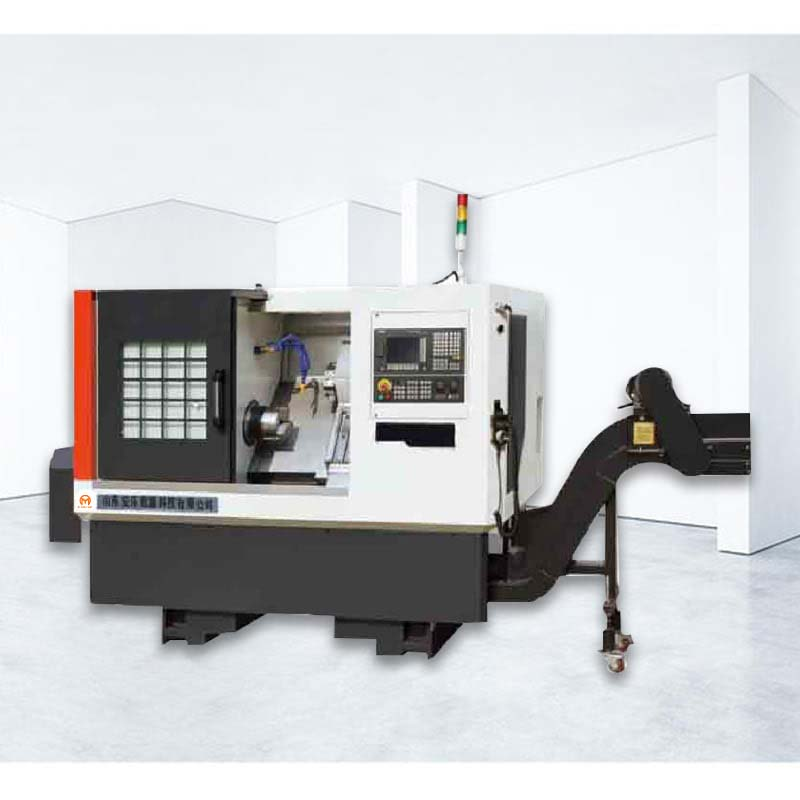

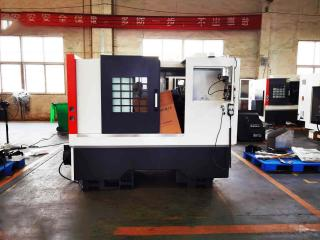

TCK6350 Slant Bed CNC Lathe For Making Pump And Valve Parts
TCK6350 slant bed CNC lathe is a versatile machine that can be used for a wide range of cutting applications in various industries.
The TCK6350 Slant Bed CNC Lathe Has The Following Features:
1.Slant bed design - The slanted bed design provides excellent stability and rigidity, allowing for heavier cutting and higher accuracy.
2.High precision linear guide rails - The use of high precision linear guide rails ensures high accuracy and stability during cutting operations.
3.Powerful spindle motor - The TCK6350 slant bed CNC lathe is equipped with a powerful spindle motor that delivers high torque and high speed, allowing for efficient and precise cutting.
4.Automatic tool changer - The machine is equipped with an automatic tool changer, which can quickly and easily change cutting tools to increase productivity and efficiency.
5.User-friendly control system - The machine is equipped with a user-friendly control system that allows for easy programming and operation.
6.High precision ball screws - The use of high precision ball screws ensures smooth and accurate movement of the cutting tool during operations.
7.Wide range of cutting applications - The TCK6350 slant bed CNC lathe can be used for a wide range of cutting applications, including turning, drilling, boring, and threading.
The TCK6350 slant bed CNC lathe has a wide range of applications in various industries, including:
1.Aerospace - The TCK6350 cnc lathe machine can be used to manufacture aerospace components with high precision and accuracy, such as engine parts and landing gear components.
2.Automotive - The CNC lathe can be used to manufacture automotive components such as shafts, pistons, and valves.
3.Medical - The TCK6350 CNC lathe machinecan be used to manufacture medical components such as surgical instruments and implants with high precision and accuracy.
4.Electronics - The CNC lathe can be used to manufacture electronic components such as connectors and housings.
5.Industrial - The TCK6350 CNC lathe machinecan be used for a wide range of industrial applications, such as manufacturing parts for pumps, valves, and other industrial equipment.
6.Tool and die making - The CNC lathe can be used for tool and die making applications, such as cutting dies, molds, and other precision parts.
Almazakl cnc Slant bed and linear guide way CNC lathe ALTCK6350
The Main Technical Parameters
| Machine Model | Unit | TCK6350 |
| Max swing over bed | mm | Φ520 |
| Max swing over cross slide | mm | Φ220 |
| Maximum processing length | mm | 410 |
| X/Z axis travel | mm | 500/500 |
| Spindle unit | mm | Φ200 |
| Spindle bore | mm | F66 |
| Bar Capacity | mm | F55 |
| Max. spindle speed | rpm | 3000 |
| X/Z axis repeatability | mm | ±0.003 |
| X/Z axis feed motor torque | N.m | 7.5/7.5 |
| Machine dimension(L×W×H) | mm | 2500×1620×1890 |
| Net. weight (about) | kg | 2900 |
