Slant Bed CNC Lathe is suitable for automotive, motorcycle, electronics, aerospace, military, petroleum and other industries. It can turn the conical surface.

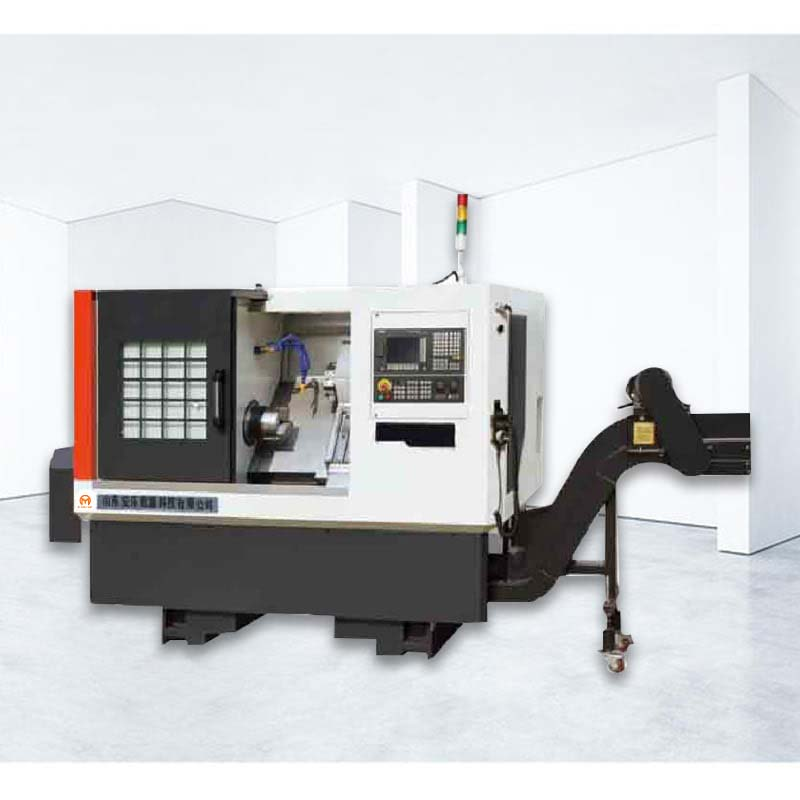

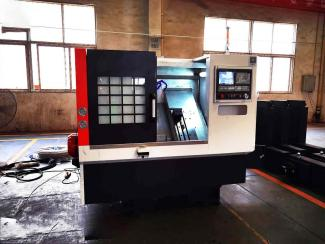

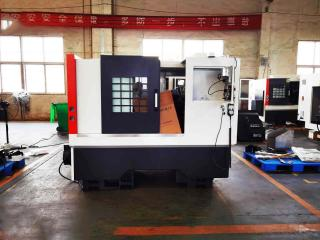

Almazakl cnc Slant bed and linear guide way CNC lathe ALTCK6350
The Main Technical Parameters
Machine Model | Unit | TCK6350 |
Max swing over bed | mm | Φ520 |
Max swing over cross slide | mm | Φ220 |
Maximum processing length | mm | 410 |
X/Z axis travel | mm | 500/500 |
Spindle unit | mm | Φ200 |
Spindle bore | mm | Φ66 |
Bar Capacity | mm | Φ55 |
Max. spindle speed | rpm | 3000 |
X/Z axis repeatability | mm | ±0.003 |
X/Z axis feed motor torque | N.m | 7.5/7.5 |
Machine dimension(L×W×H) | mm | 2500×1620×1890 |
Net. weight (about) | kg | 2900 |
1.45 degrees slant bed CNC lathe;
2.Higher accuracy Taiwan linear guide ways;
3.Chip conveying capacity is large and convenient, customer could choose;
4.Chip conveying in the right or in the back;
5.Spindle unit has two types, the heavy cutting type and the high speed type. The first one is suitable for bearing and gear processing. The second type is suitable for the high speed and high precision processing. Customers could choose any type of them;
6.Screw pre-stretching structure;
7.Gang type tool standard ;
8.Optional turret.
CNC lathe machine is suitable for automobile, motorcycle, electronics, aerospace, military, petroleum and other industries. It can turn conical surfaces, arc surfaces, and end surfaces of rotary parts, and can also turn various metric and inch threads, etc., with higher batch processing efficiency and higher precision.
