Slant Bed CNC Lathe is suitable for automotive, motorcycle, electronics, aerospace, military, petroleum and other industries.

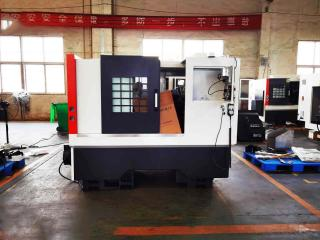

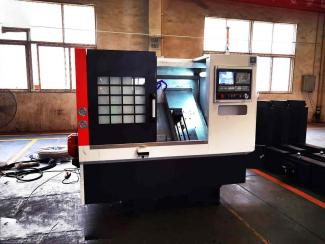

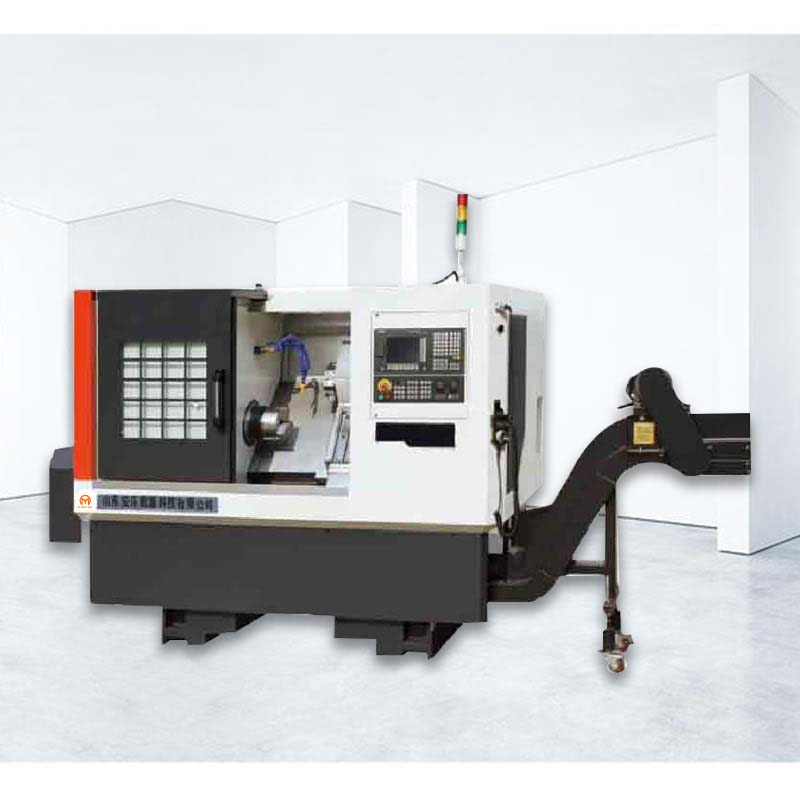

ALMAZAKL CNC Slant bed and linear guide way CNC lathe ALTCK6350
Machine Model | Unit | ALTCK6350 |
Max swing over bed | mm | Φ520 |
Max swing over cross slide | mm | Φ220 |
Maximum processing length | ||
X/Z axis travel | mm | 500/500 |
Spindle unit | mm | Φ200 |
Spindle bore | mm | Φ66 |
Bar Capacity | mm | Φ55 |
Max. spindle speed | rpm | 3000 |
X/Z axis repeatability | mm | ±0.003 |
X/Z axis feed motor torque | N.m | 7.5/7.5 |
Machine dimension(L×W×H) | mm | 2500×1620×1890 |
Net. weight (about) | kg | 2900 |
1. Slant bed CNC lathe 45 degrees slant bed CNC lathe machine.
2. Higher accuracy Taiwan linear guide.
3. Chip conveying capacity is large and convenient, customer could choose.
4. CNC lathe machine Chip conveying in the front or in the back.
5. Metal lathe machine X, Z direction servo motor through high torque low inertia flexible coupling directly connected with the screw, screw supporting the use of pre-stretching structure.
6. Gang type tool post.
7. High-speed high-precision high-rigidity shell-type spindle unit, servo spindle motor, can achieve higher spindle speeds.
8. Use advanced centralized lubrication system uses.
9. Machine with full protection design,waterproof debris reliable, easy maintenance.
This China slant bed and linear guide CNC lathe machine could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various metric and inch threads etc,with higher efficiency and higher precision in bulk.
