The TCK6350 Slanted Bed CNC Lathe is a versatile machine tool that can be used for a variety of machining operations.
The TCK6350 slant bed CNC lathe is a machine tool that is designed for high-precision cutting, drilling, and turning of metal components. Here are some of its processing characteristics:
1.Spindle Speed: The TCK6350 has a spindle speed range of 30-3500 RPM, which allows it to handle a wide range of materials and cutting operations.
2.Control System: The lathe is equipped with a user-friendly CNC control system that allows for easy programming and operation.
3.Cutting Capacity: The TCK6350 has a maximum cutting diameter of 360mm and a maximum cutting length of 750mm, making it suitable for a variety of machining tasks.
4.Tooling: The lathe is equipped with a tool turret that can hold up to 12 tools, allowing for efficient and flexible tool changes during machining operations.
5.Accuracy: The TCK6350 is designed for high-precision machining and can achieve a positioning accuracy of 0.005mm and a repeatability accuracy of 0.003mm.
6.Chip Removal: The machine is equipped with a chip conveyor that helps to remove chips and debris from the work area, ensuring smooth and uninterrupted machining operations.
7.Cooling System: The TCK6350 is equipped with a coolant system that helps to maintain consistent cutting temperatures and improve cutting performance.
Overall, the TCK6350 slant bed CNC lathe is a versatile and reliable machine tool that can handle a variety of machining tasks with high precision and efficiencyApplication of TCK6350 Inclined Bed Numerical
1.Turning: The TCK6350 slant bed CNC lathe is primarily used for turning operations. It can be used to produce a variety of cylindrical shapes, such as shafts, rods, and bushings. The machine's CNC system allows for precise control over the cutting process, ensuring accurate and repeatable results.
2.Facing: The TCK6350 can also be used for facing operations. This involves machining the end of a workpiece to create a flat surface that is perpendicular to the axis of rotation. This is commonly done to prepare a workpiece for other machining operations, such as drilling or milling.
3.Drilling: The TCK6350 can also be used for drilling operations. The machine's spindle can be programmed to move in the X and Z axes, allowing for precise hole placement and depth control.
4.Threading: The TCK6350 can be used to cut threads on a workpiece. This is done by using a threading tool that follows a programmed path along the workpiece's surface. The machine's CNC system ensures precise thread pitch and depth.
5.Grooving: The TCK6350 can be used to cut grooves on a workpiece. This is done by using a grooving tool that follows a programmed path along the workpiece's surface. The machine's CNC system ensures precise groove width and depth.
6.Overall, the TCK6350 slant bed CNC lathe is a versatile machine tool that can be used for a wide range of machining operations. Its advanced CNC system allows for precise control over the cutting process, ensuring accurate and repeatable results.

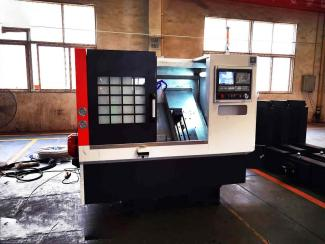

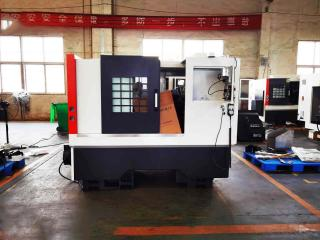

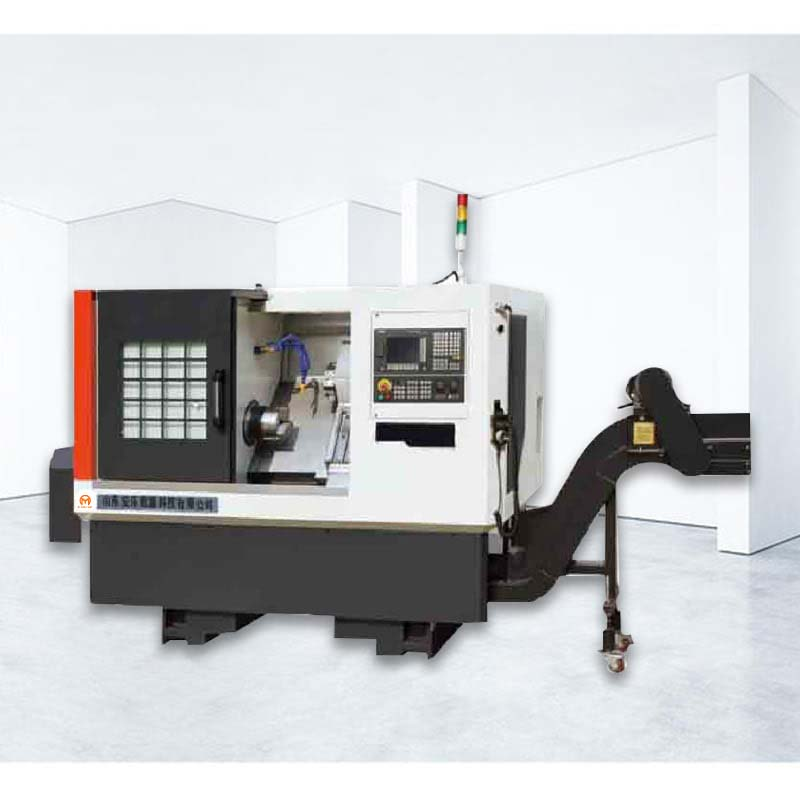

Almazakl cnc Slant bed and linear guide way CNC lathe ALTCK6350
Machine Model | Unit | TCK6350 |
Max swing over bed | mm | Φ520 |
Max swing over cross slide | mm | Φ220 |
Maximum processing length | mm | 410 |
X/Z axis travel | mm | 500/500 |
Spindle unit | mm | Φ200 |
Spindle bore | mm | F66 |
Bar Capacity | mm | F55 |
Max. spindle speed | rpm | 3000 |
X/Z axis repeatability | mm | ±0.003 |
X/Z axis feed motor torque | N.m | 7.5/7.5 |
Machine dimension(L×W×H) | mm | 2500×1620×1890 |
Net. weight (about) | kg | 2900 |
