CK6180 CNC Lathe Application And Auto Parts
ALMAZAKL CNC Lathes are among the largest and most diverse pieces of equipment used for metalworking and cutting.
Application of CNC lathe:
The CK6180X2000 large CNC lathe processes parts by rotating and removing chips during turning. Lathes perform the following operations: edge trimming; conical, profiled and cylindrical turned surfaces; drilling; reaming; thread cutting and cutting; corrugation and other boring and knurling. Using a special device on the lathe, the product can be processed by milling, grinding, gear cutting, etc. Special purpose lathes allow you to machine couplings, wheelsets, pipes and other products.
Horizontal CNC lathe machine It is used in mechanical processing of various industries such as automobiles, petroleum, and military industries.
CK6180 CNC Lathe Standard Configuration :
CNC system：GSK
Chuck：3 jaws manual chuck
Turret：4 station electric turret
Tailstock：Manual tailstock
You Can Choose The CNC System And Optional Accessories According To Your Requirements.

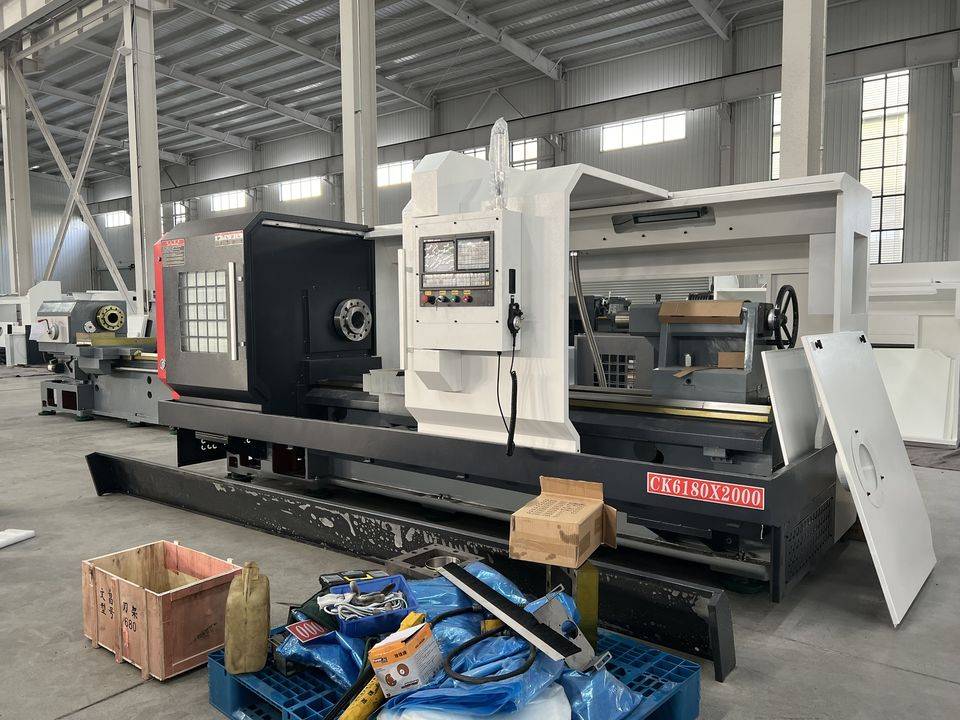

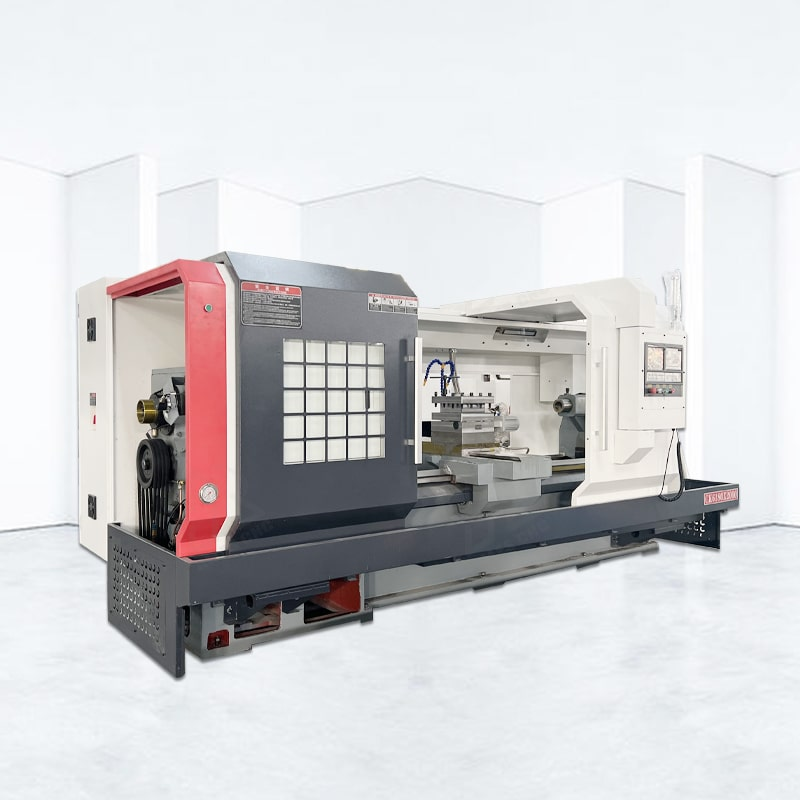

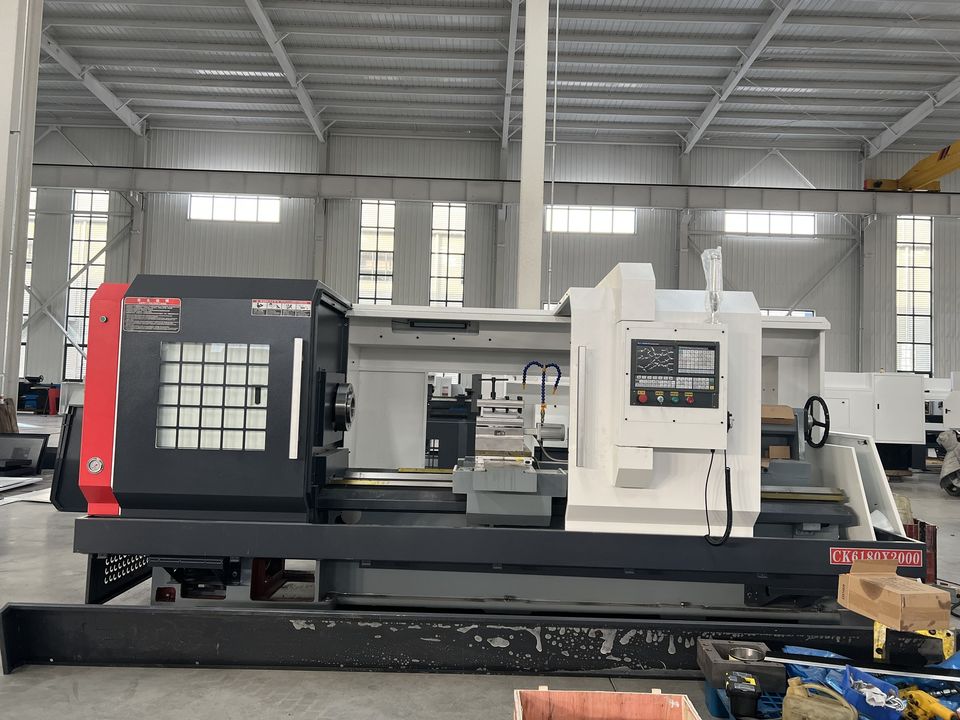

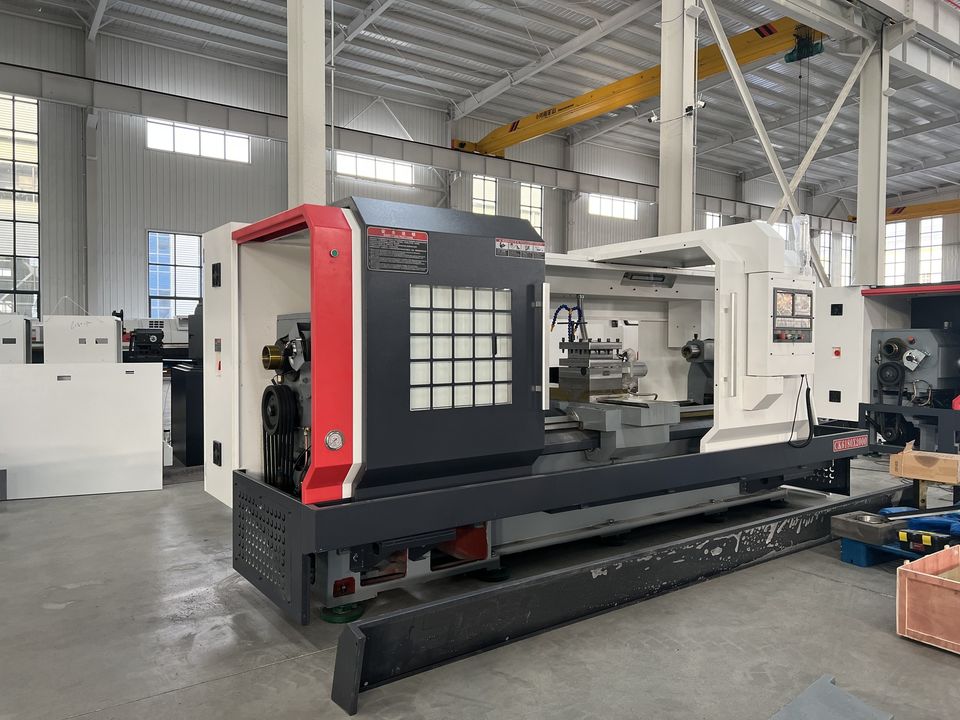

CNC lathe machine ALCK6180X2000
Equipment configuration and parameters
| Project | Content | Unit | ALCK6180X2000 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ440 | |
| Maximum processing length | mm | 2000 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ440 | |
| Spindle hole diameter | mm | Φ105 | |
| Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | battery capacity | KVA | 15 |
| Machine weight | kg | 5200 | |
| Machine size: length×width×height | mm | 4400/1900/2000 |
