FANUC Controller Dual-Spindle CNC Lathe
ALMAZAKL CNC CNC lathe machine has the characteristics of high power and high rigidity. It is suitable for heavy cutting of inner circle, outer circle, end face and thread of metric and imperial system, and it can also drill and bore holes.
CNC Lathe Processing Characteristics：
1. Automatic CNC lathe machine One-piece bed with higher stability
2. Three-speed spindle stepless speed change
3. Higher rigid base
4. Wider laminates
5. Integrated automatic lubrication system
Equipment configuration and parameters
| Project | Content | Unit | ALCK6180X2000 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ440 | |
| Maximum processing length | mm | 2000 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ440 | |
| Spindle hole diameter | mm | Φ105 | |
| Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | battery capacity | KVA | 15 |
| Machine weight | kg | 5200 | |
| Machine size: length×width×height | mm | 4400/1900/2000 |

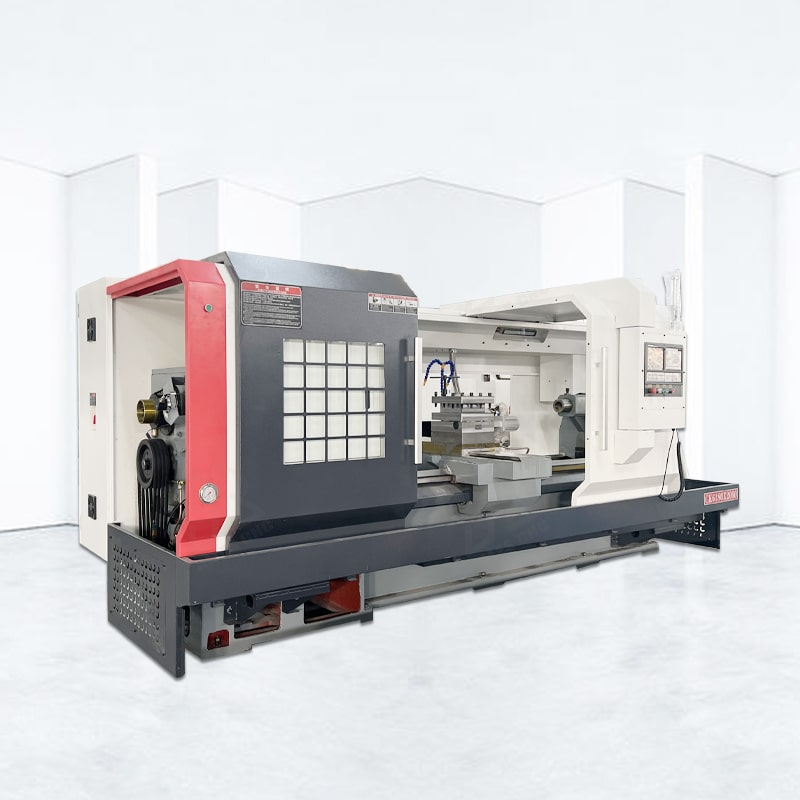

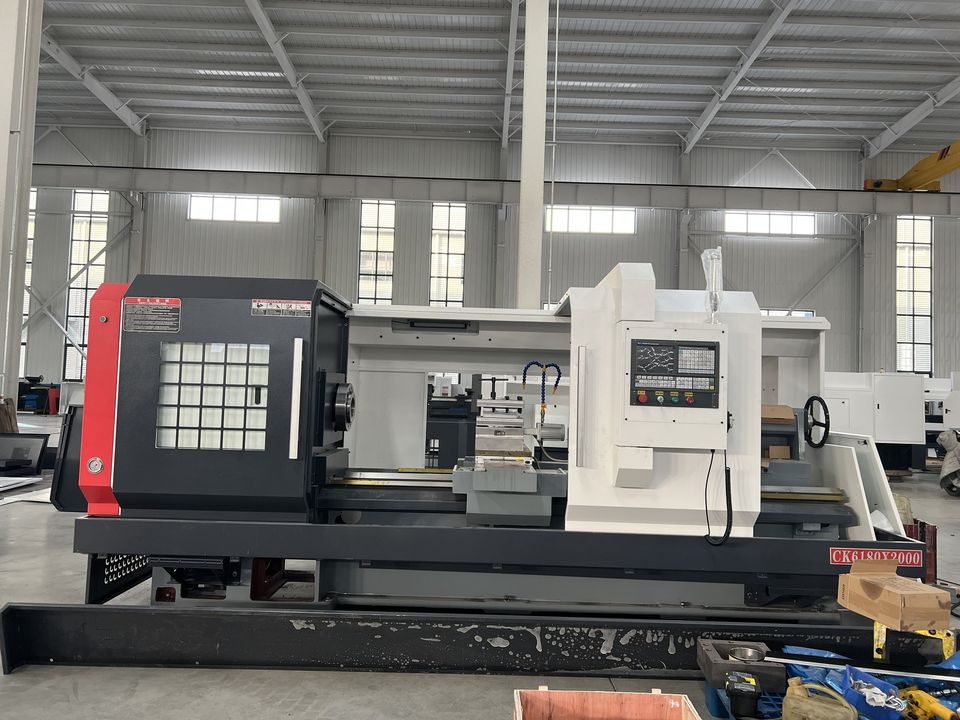

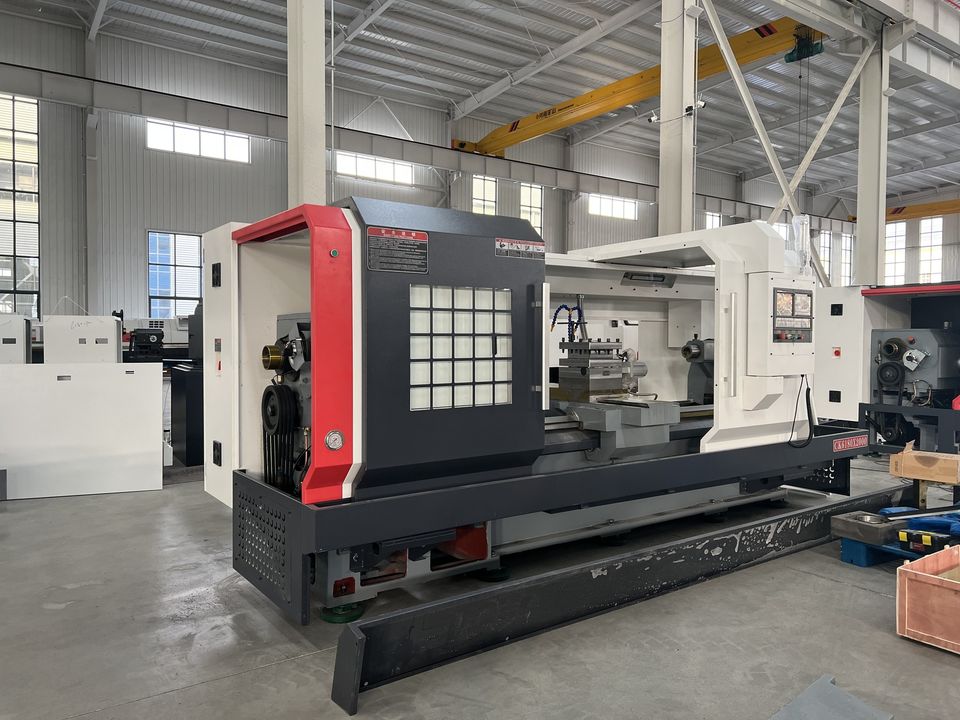

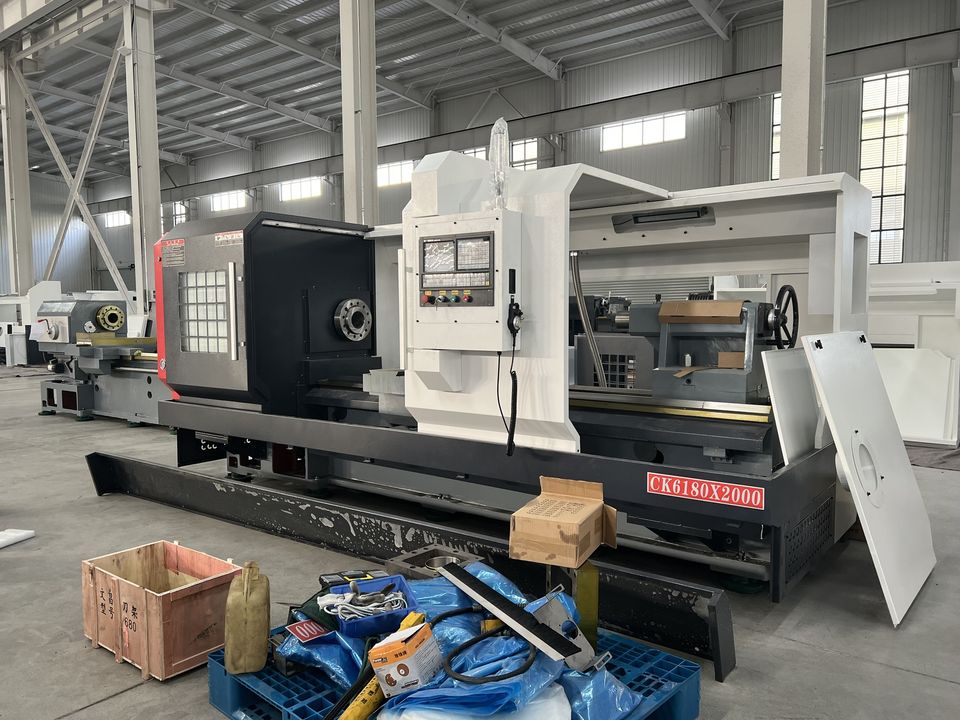

CNC lathe machine ALCK6180X2000

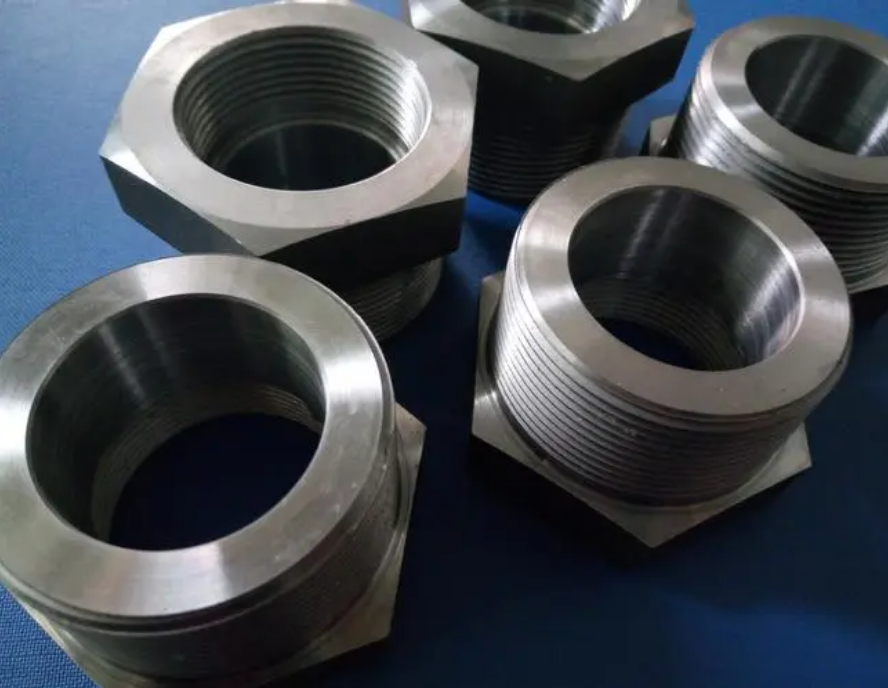

CNC Lathe Applied To Oil Pipe Thread
1. CNC lathe processing oil pipe thread:
Oil pipe thread is an important part of the connection between oil pipes.
2. The processing principle of CNC lathe machine forming comb turning oil pipe thread:
The basic principle of CNC lathe processing is the interpolation principle. Regardless of whether the machine tool is performing linear interpolation, circular interpolation or thread interpolation, the actual trajectory of the tool is a broken line.
3 .CNC lathe analyzes and calculates the processing of tubing buckles:
CNC Lathe Machine Application:

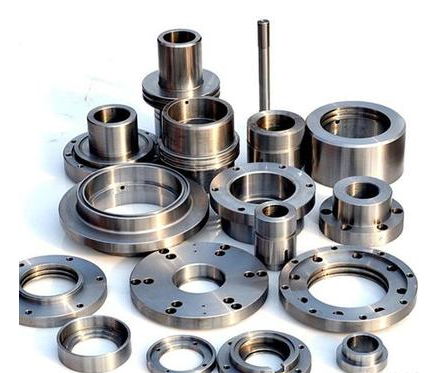

The horizontal CNC lathe machine is suitable for machining medium and large work pieces of steel, cast iron, and non-ferrous metal materials.
