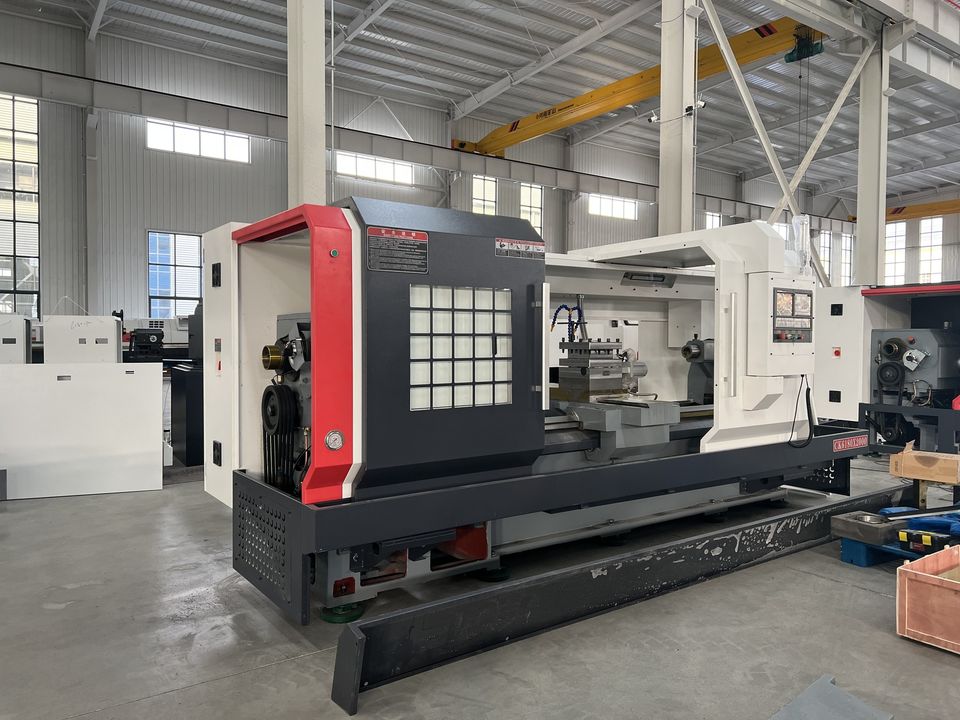

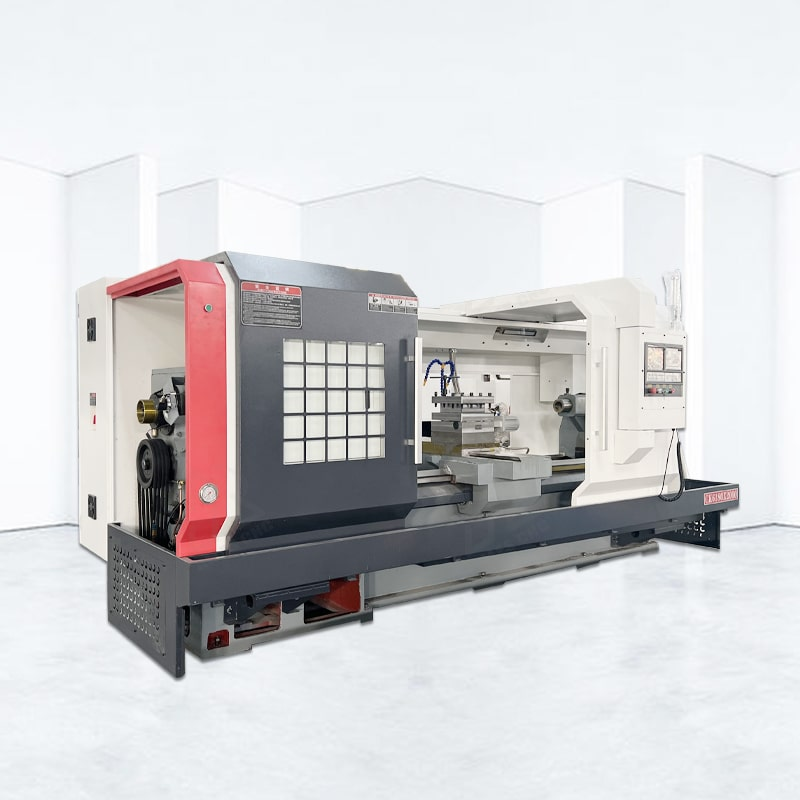

CK6180 CNC lathe machine is a full-featured high-precision CNC lathe designed and manufactured with foreign advanced technology. The design and control unit conform to ergonomic requirements: easy to operate and easy to maintain.
1. Execute motor-driven vertical and horizontal feed, precision ball screw drive.
2. The spindle housing adopts internal circulation forced lubrication, which has low calorific value.
3.The bed of the guide rail adopts HDTV quenching and fine grinding, which has a long service life and high precision.
1. ALMAZAKL CNC multifunctional processing: CK6180 large CNC lathe can realize various processing methods such as turning, hole, tapping, gear processing, etc., and can be applied to a variety of different processing requirements.
2. Simple and convenient operation: the numerical control system makes the operation more simple and convenient, and the processing technology can be realized through programming, which greatly improves the work efficiency
Wide range of application: CK6180 large CNC lathe is suitable for aviation, aerospace, military industry, automobile, machinery and other industries, and can meet the processing needs of different industries.
CK6180 large-scale CNC lathe has the advantages of large processing capacity, high-precision processing, multi-functional processing, simple and convenient operation, and wide application range.

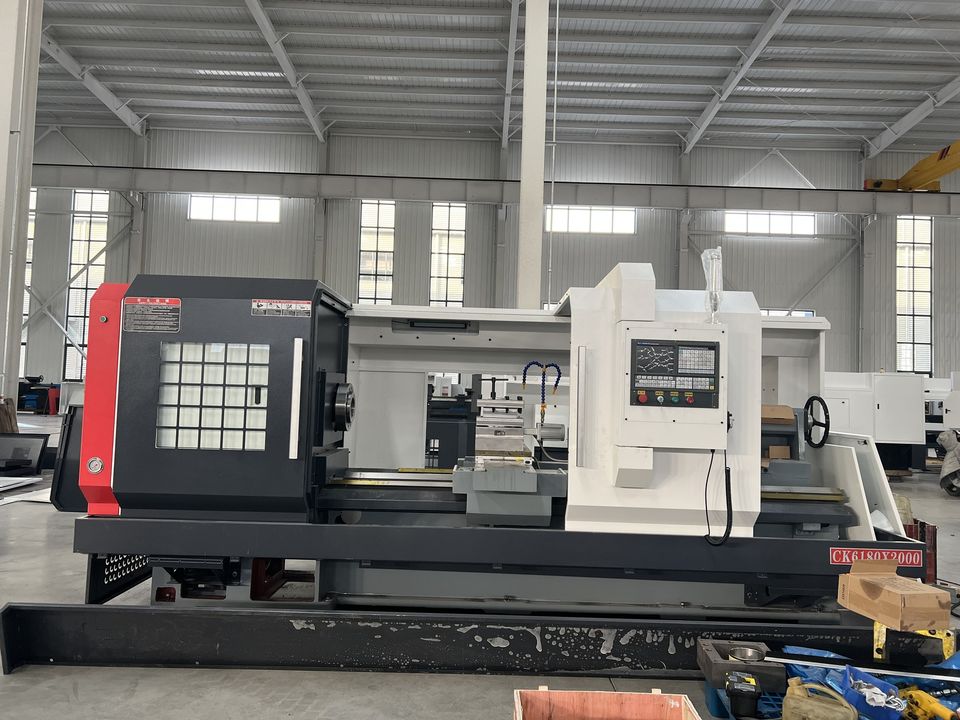

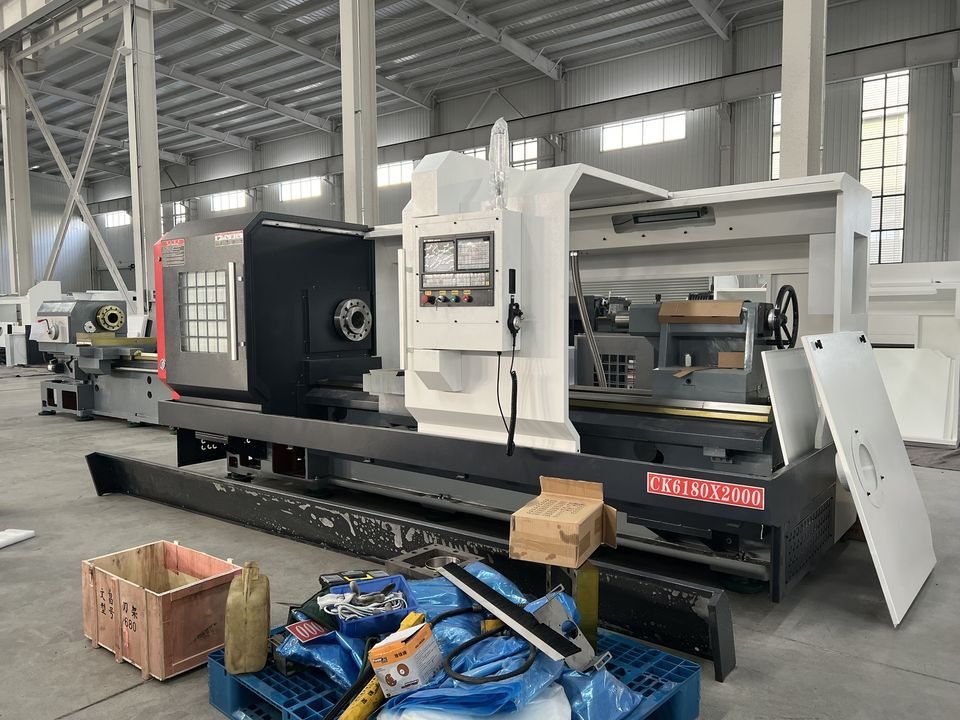

CNC lathe machine ALCK6180X2000
Project | Content | Unit | ALCK6180X2000 |
Processing range | Maximum turning diameter of bed | mm | Φ800 |
Maximum turning diameter on skateboard | mm | Φ440 | |
Maximum processing length | mm | 2000 | |
Maximum machining diameter | mm | Φ800 | |
Maximum bar diameter | mm | Φ440 | |
Spindle hole diameter | mm | Φ105 | |
Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
Spindle motor torque | NM | 48 | |
X/Z motor power | Kw | 1.5/2.3 | |
X/Z motor torque | NM | 10/15 | |
Cooling pump motor power | W | 125 | |
Other | battery capacity | KVA | 15 |
Machine weight | kg | 5200 | |
Machine size: length×width×height | mm | 4400/1900/2000 |
