CNC Lathe Applied To Oil Pipe Thread
ALMAZAKL CNC CNC lathe can undertake various turning work pieces, and can turn various parts such as outer circle, inner hole, end face and metric thread, Whit worth thread, modular thread and pitch diameter of the thread forming surface;
| Project | Content | Unit | ALCK6180 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | Φ440 | ||
| Maximum processing length | 2000 | ||
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ440 | |
| Spindle hole diameter | mm | Φ105 | |
| Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | battery capacity | KVA | 15 |
| Machine weight | kg | 5200 | |
| Machine size: length×width×height | mm | 4400/1900/2000 |

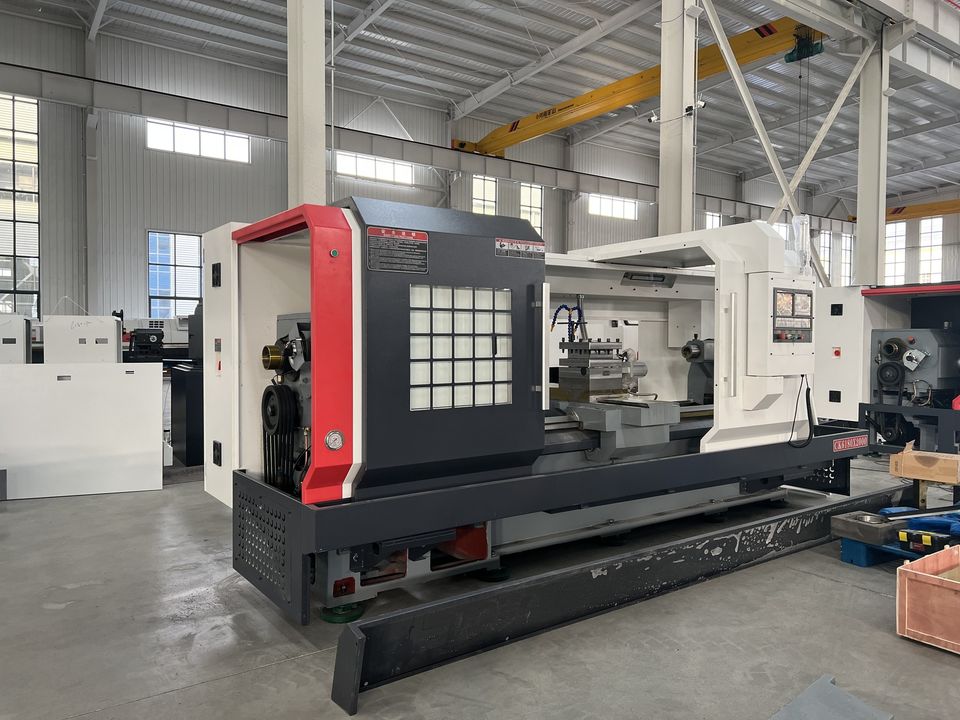

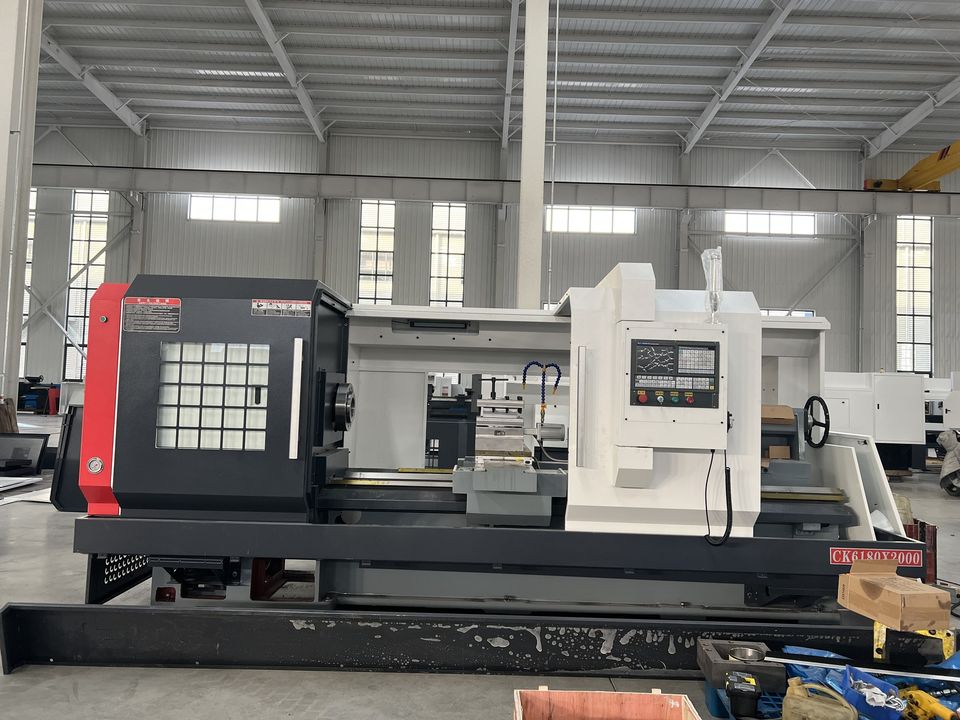

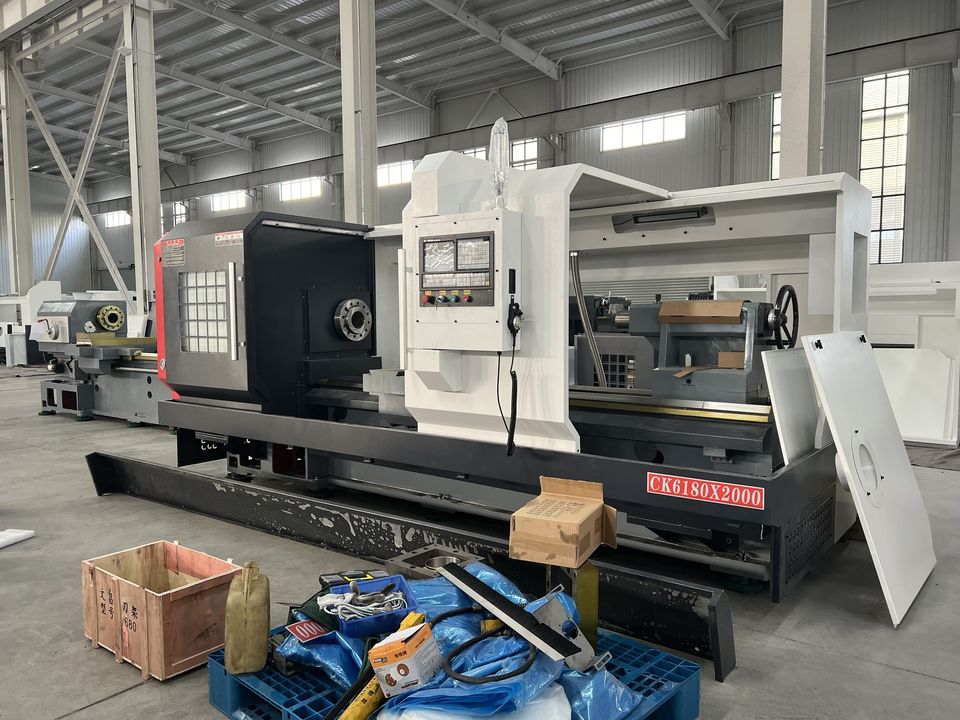

CNC lathe machine ALCK6180X2000
ALMAZAKL CNC Flat Bed CNC Lathe Application
ALMAZAKL CNC Automatic CNC lathe machine Metal mold, injection mold, precision machinery, electronic machinery, electric motor, automobile and motorcycle industry, bicycle industry, medical equipment and electronic equipment and other industrial fields
ALMAZAKL CNC lathes are used in petroleum industry for petroleum work pieces, pipelines, bringing effective value to customers.
CNC Lathe Applied To Oil Pipe Thread
1. CNC lathe processing oil pipe thread:
Oil pipe thread is an important part of the connection between oil pipes.
2. The processing principle of CNC lathe machine forming comb turning oil pipe thread:
The basic principle of CNC lathe processing is the interpolation principle. Regardless of whether the machine tool is performing linear interpolation, circular interpolation or thread interpolation, the actual trajectory of the tool is a broken line.
3 .CNC lathe analyzes and calculates the processing of tubing buckles:
4. Flat bed CNC lathe compiles the processing program
5. Metal lathe machine is difficult to process oil pipe threads with ordinary pipe thread lathes to meet the technical requirements of oil pipe threads. Even if the machining accuracy can be guaranteed, it is time-consuming and laborious to adjust the machine tool. Using a CNC lathe to process oil pipe threads can meet the technical requirements by the program, and at the same time can ensure the consistency of the processed parts, reduce the labor intensity of workers, and improve productivity and economic benefits.
