ALMAZAKL CNC ALCK6150 horizontal CNC lathe machine High-efficiency lathe for a wide range of applications in series and small batch production. CNC lathe machine bar fedeer has the function of turning outer surface, inner surface, spherical surface and thread.
ALMAZAKL CNC costs are always low. ALCK6150 CNC lathe can be equipped with three speed gearbox and servo. In the basic configuration, in order to achieve the lowest cost, CNC lathe machine is equipped with GSK CNC system, four-station tool holder and mechanical workpiece clamping system. As an option, the machine can be equipped with a hydraulic clamping system, an eight-position turret and a Siemens CNC system.
ALCK6150 automatic CNC lathe machine for canned cycle control of conventional and cross turning, tapered turning and threading. The CNC system greatly simplifies the programming of the machine and reduces machining time. CNC systems Siemens and FANUC can be installed on the machine.

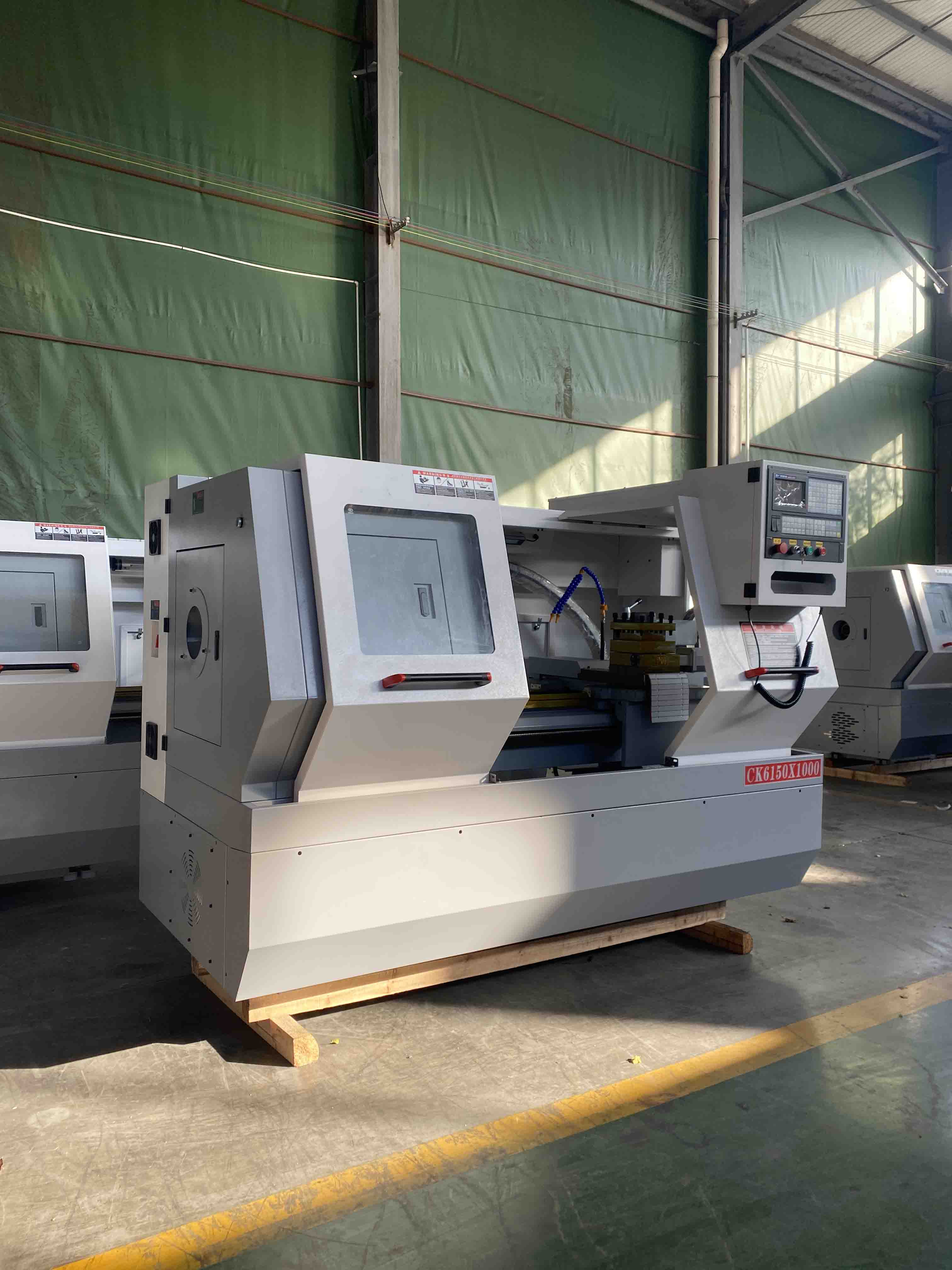

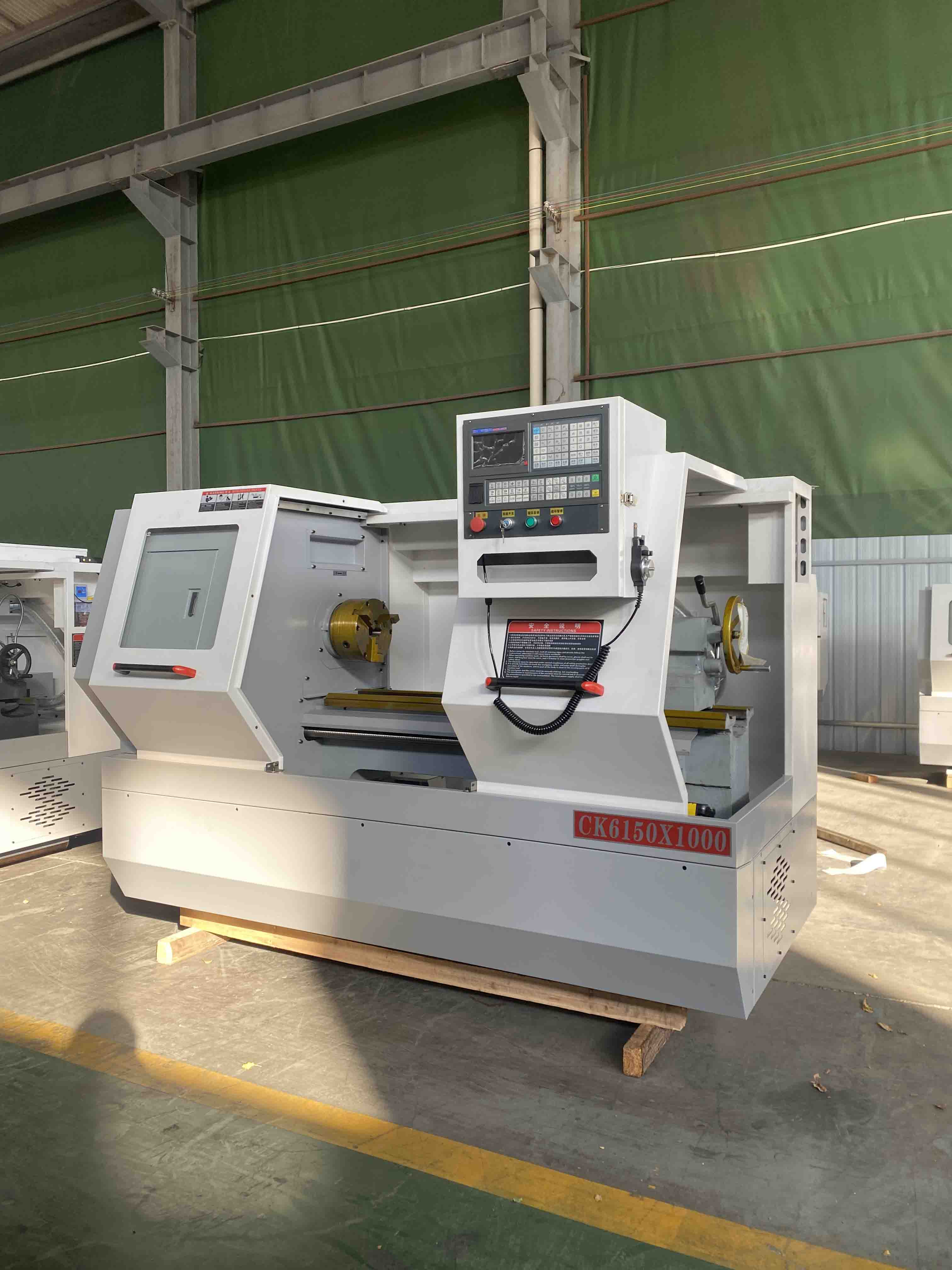

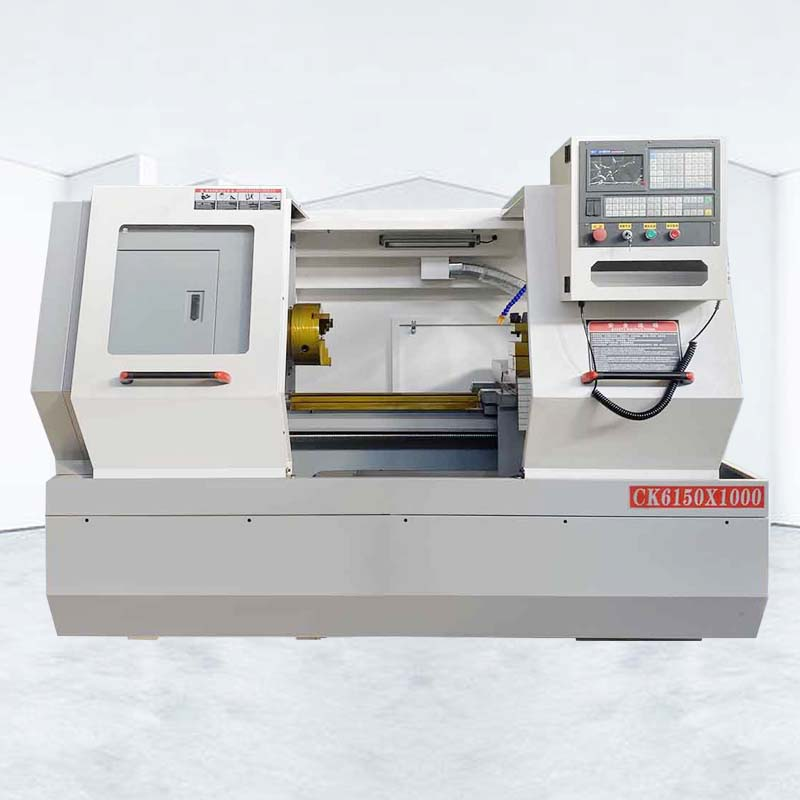

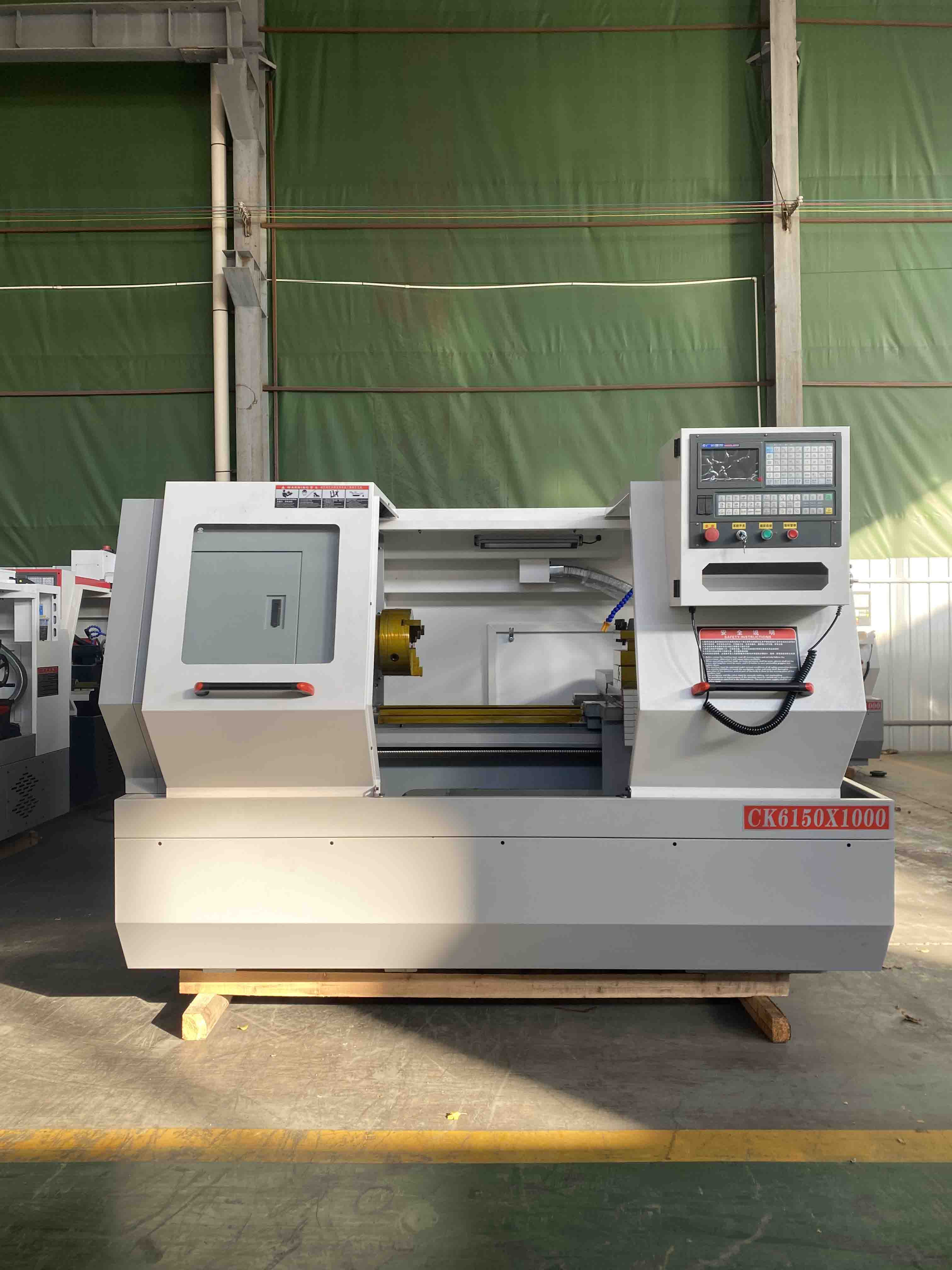

ALCK6150X1000 CNC Flat bed CNC lathe
The selection of CNC lathe chuck needs to be carried out according to the requirements of specific processing tasks and the characteristics of the shape, size and material of the workpiece.
Door
OK. Here are some key factors in choosing a CNC lathe chuck:

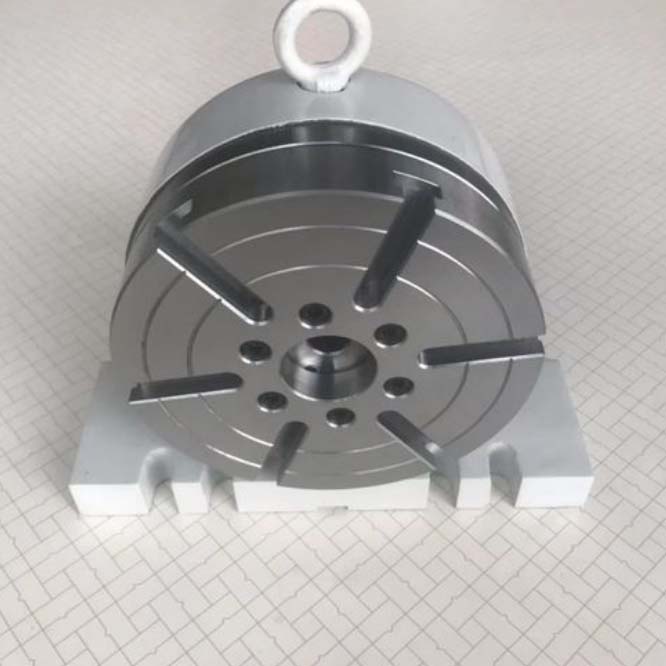

1. Processing task: According to the different requirements of the processing task, select the appropriate chuck type, such as three-jaw chuck, four-jaw chuck, million
Can chuck, indexing plate, etc.
2. Part shape: different shapes of parts require different types of chucks, for example, round workpieces are suitable for using three-jaw chucks or four-jaw chucks
disc, non-round workpieces are suitable for indexing discs or universal chucks,
3. Workpiece size: Select the appropriate chuck according to the size of the workpiece. Usually, large-sized workpieces need to use large-diameter chucks
Chuck, and small-sized workpieces require the use of small-diameter chucks.
4. Piece material: Select the appropriate chuck according to the material characteristics of the workpiece. For pieces with higher hardness, you can choose to use
Hard jaw chuck, for brittle workpieces, you can choose to use soft jaw chuck,
5. Machining accuracy: Select the chuck according to the requirements of machining accuracy. For example, for high-precision machining requirements, you can choose a chuck with a higher
precision chuck.
In short, the choice of CNC lathe chuck needs to be considered according to the processing task, workpiece shape, size, material and other factors to ensure
Machining precision and efficiency. At the same time, it is also necessary to consider the brand and quality of the chuck, choose a reliable brand and high-quality chuck,
To ensure production efficiency and product quality,
Item | Unit | ALCK6150x1000 |
Max swing over bed | mm | Φ500 |
Maximum swing over slide | mm | Φ290 |
Maximum cutting diameter | mm | Φ500 |
Maximum processing length | mm | 1000 |
X/Z axis maximum stroke | mm | 300/1000 |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | F82 |
X/Z axis rapid traverse speed | m/min | 6/8 |
Diameter of tailstock sleeve | mm | F65 |
Tailstock sleeve stroke | mm | 130 |
Weight | Kg | 2500 |
Machine size | mm | 3030*1600*2050 |
