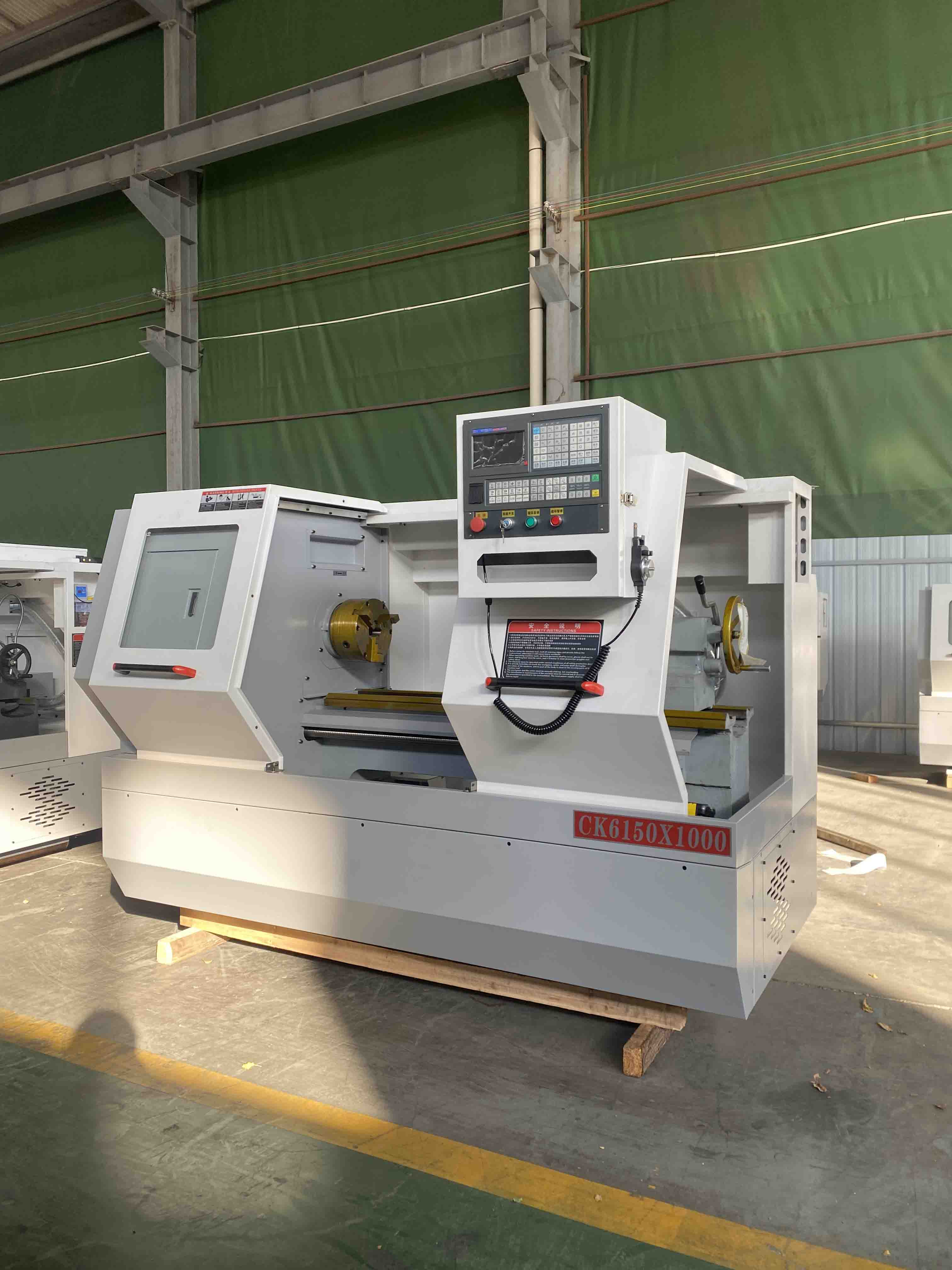

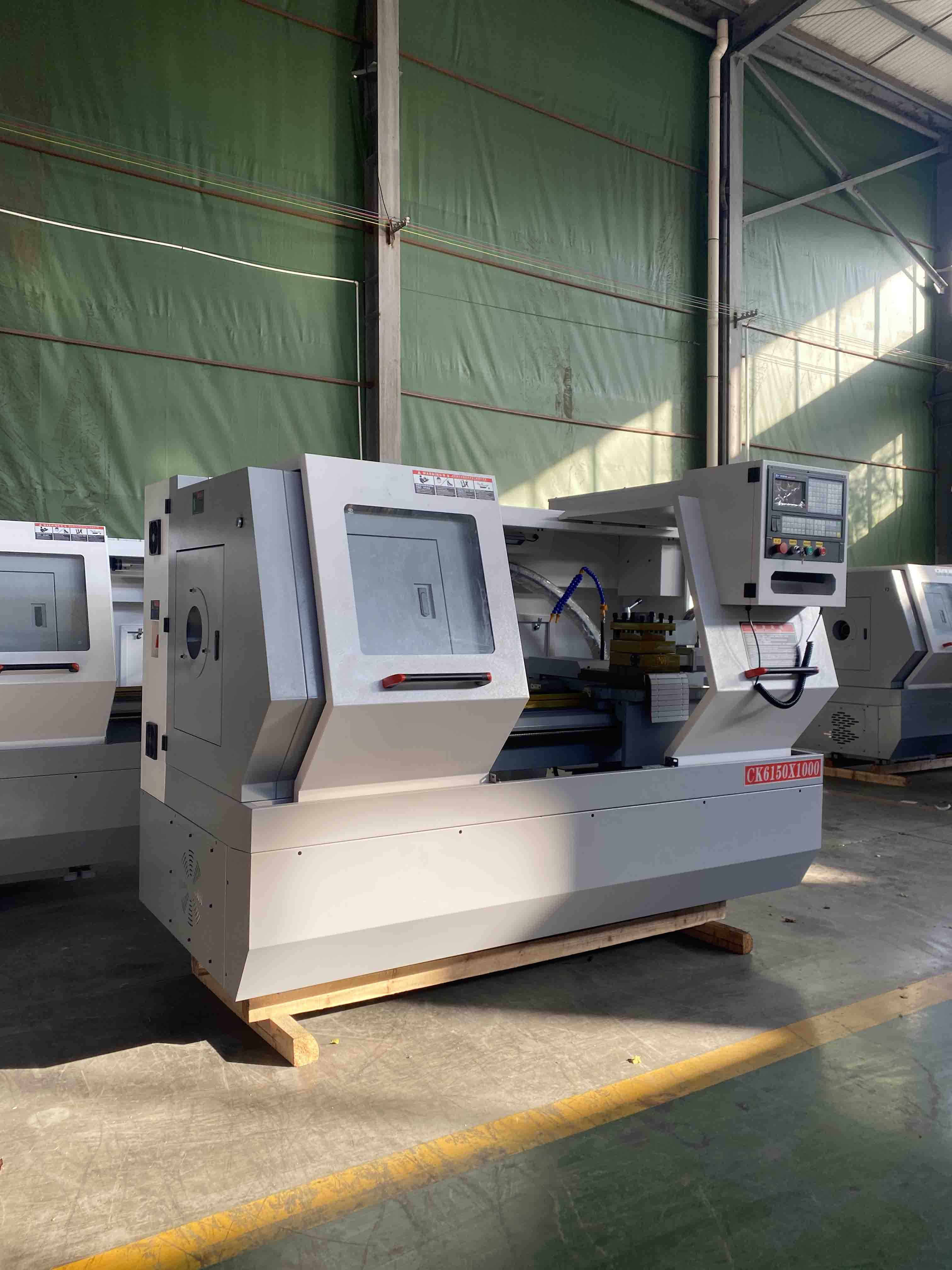

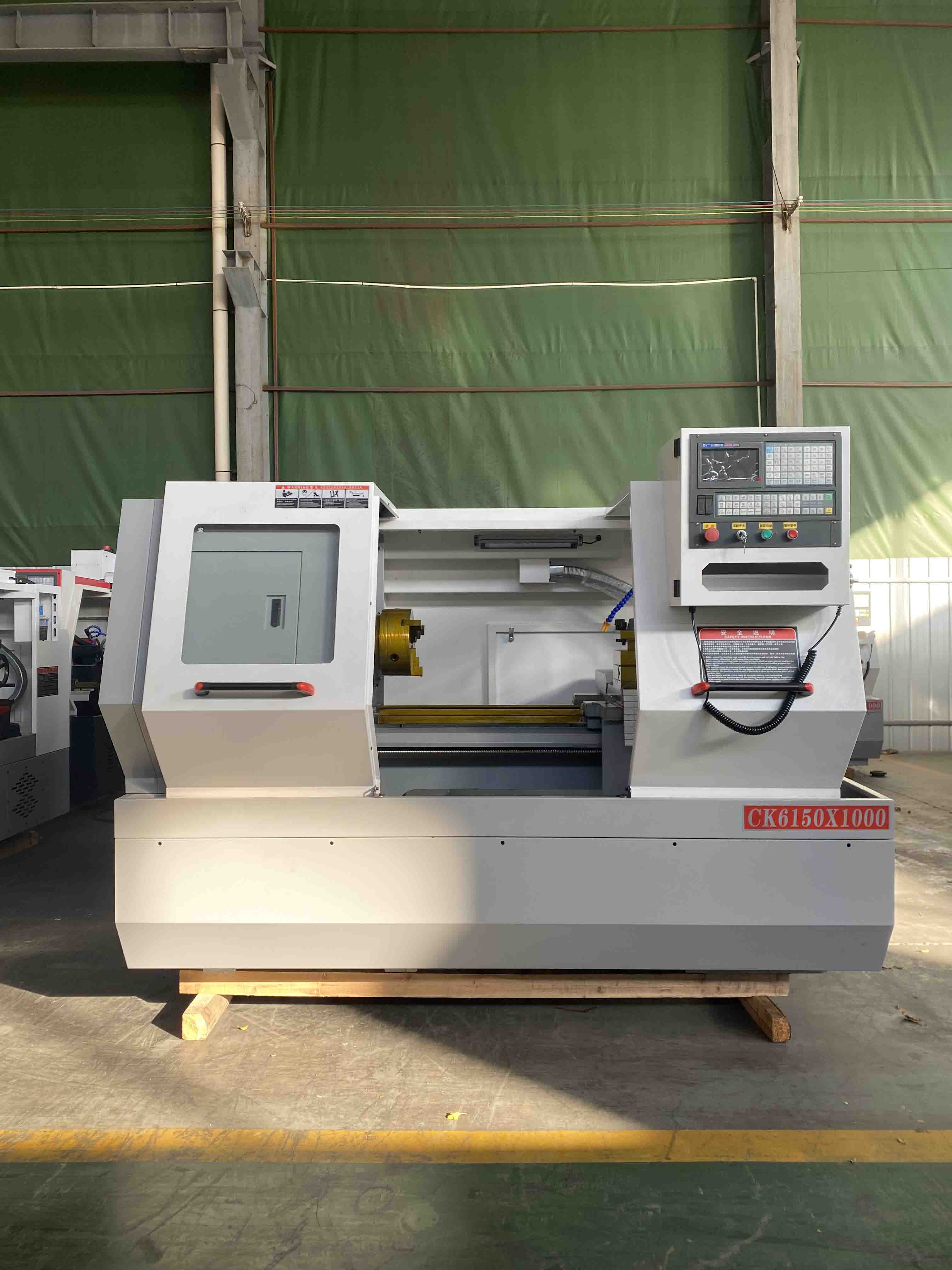

CK6150 Horizontal Lathe CNC Lathe Turning Center
SHANDONG ALLES ENERGY TECHNOLOGY CO LTD is a full-function CNC ordinary precision lathe designed and manufactured by introducing foreign advanced technology.
CNC Lathe 3 Axis Machining Features
CNC lathe CNC turning center with high precision and high rigidity adopts an integral horizontal high-low type bed structure, horizontal and high-rigidity box-type mechanical spindle, optional 12-station servo turret and 12-station power turret and power with Y-axis function Turret, integral outer protection and independent full inner protection system,
High stability, through deep finite element analysis to optimize the internal rib structure of the base, the rigidity of the base is better, the deformation is more stable, and the vibration wave is lower. The main castings are free of internal stress. After artificial aging and natural aging, the precision and quality standards are improved. CNC lathe processing combines rigidity, precision, stability and environmental protection. It is a reliable choice for high-end manufacturing.

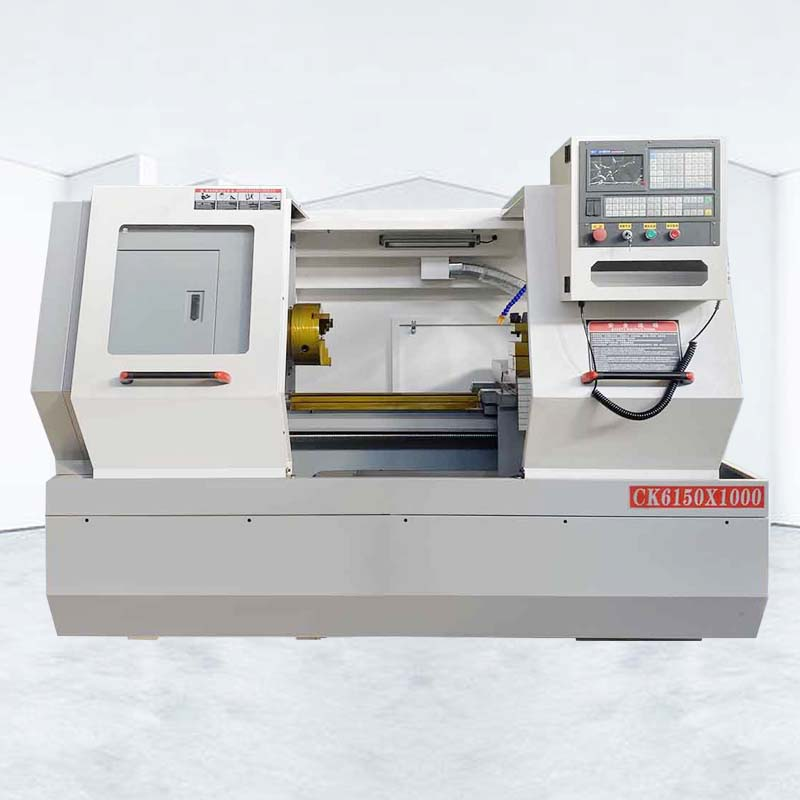

ALCK6150X1500 horizontal cnc lathe machine
Configuration&Technical Parameters
| Item | Unit | ALCK6150*1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis maximum stroke | mm | 300/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | F82 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Diameter of tailstock sleeve | mm | F65 |
| Tailstock sleeve stroke | mm | 130 |
| Weight | Kg | 2500 |
| Machine size | mm | 3030*1600*2050 |
Flat Bed CNC Lathe Advantages
1.CNC lathe bigger spindle hole
2.Flat bed CNC lathe bed and base are made of high quality solid castings
3. High torque and speed
4. Suitable for processing long workpieces
5. Strengthen the guide rail
Horizontal CNC Lathe Machine Application
Flat bed CNC lathe High-efficiency lathe for a wide range of applications in series and small batch production. CNC lathe has the function of turning outer surface, inner surface, spherical surface and thread. Canned cycle control for conventional and cross turning, tapered turning and threading.
