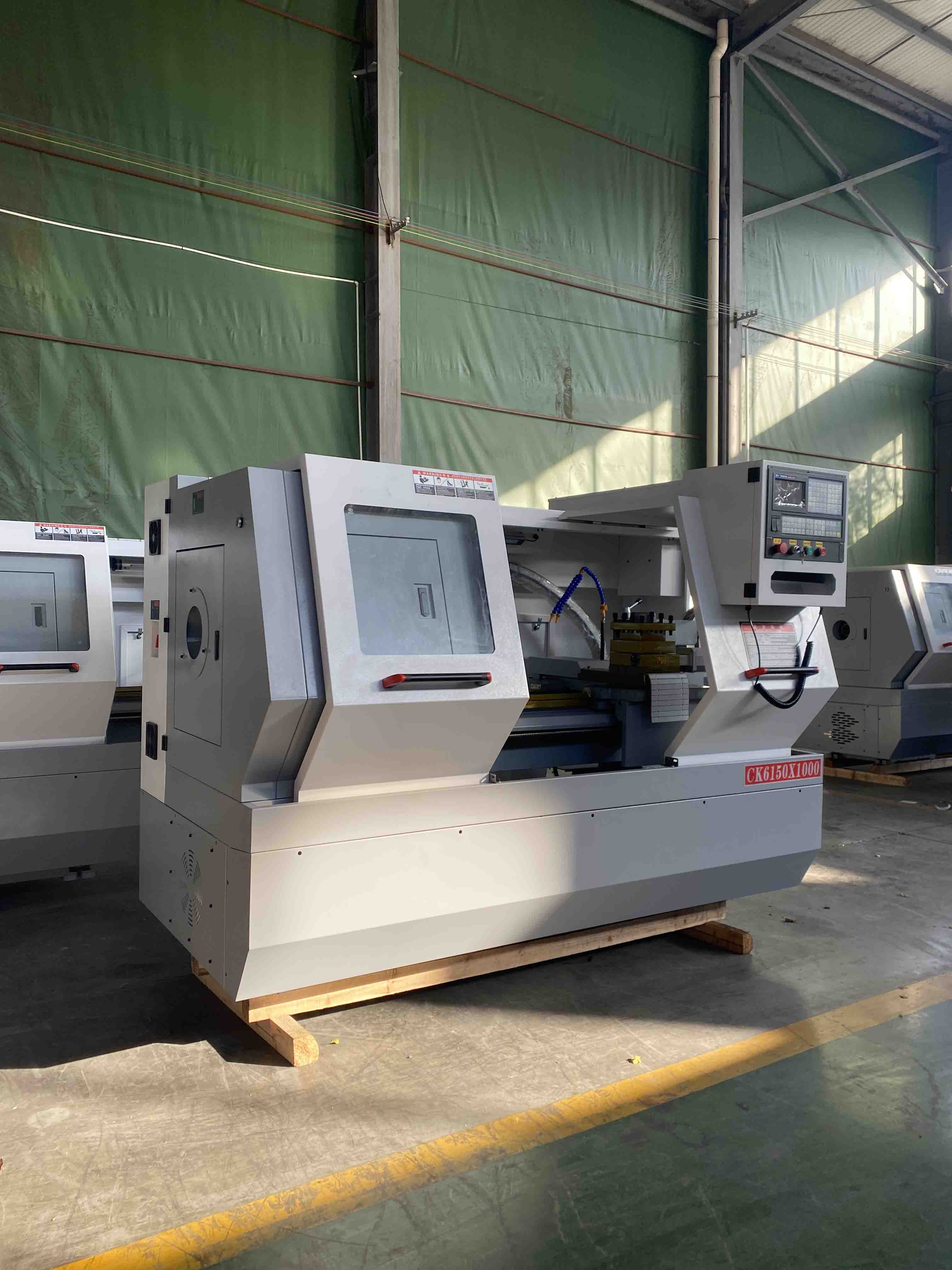

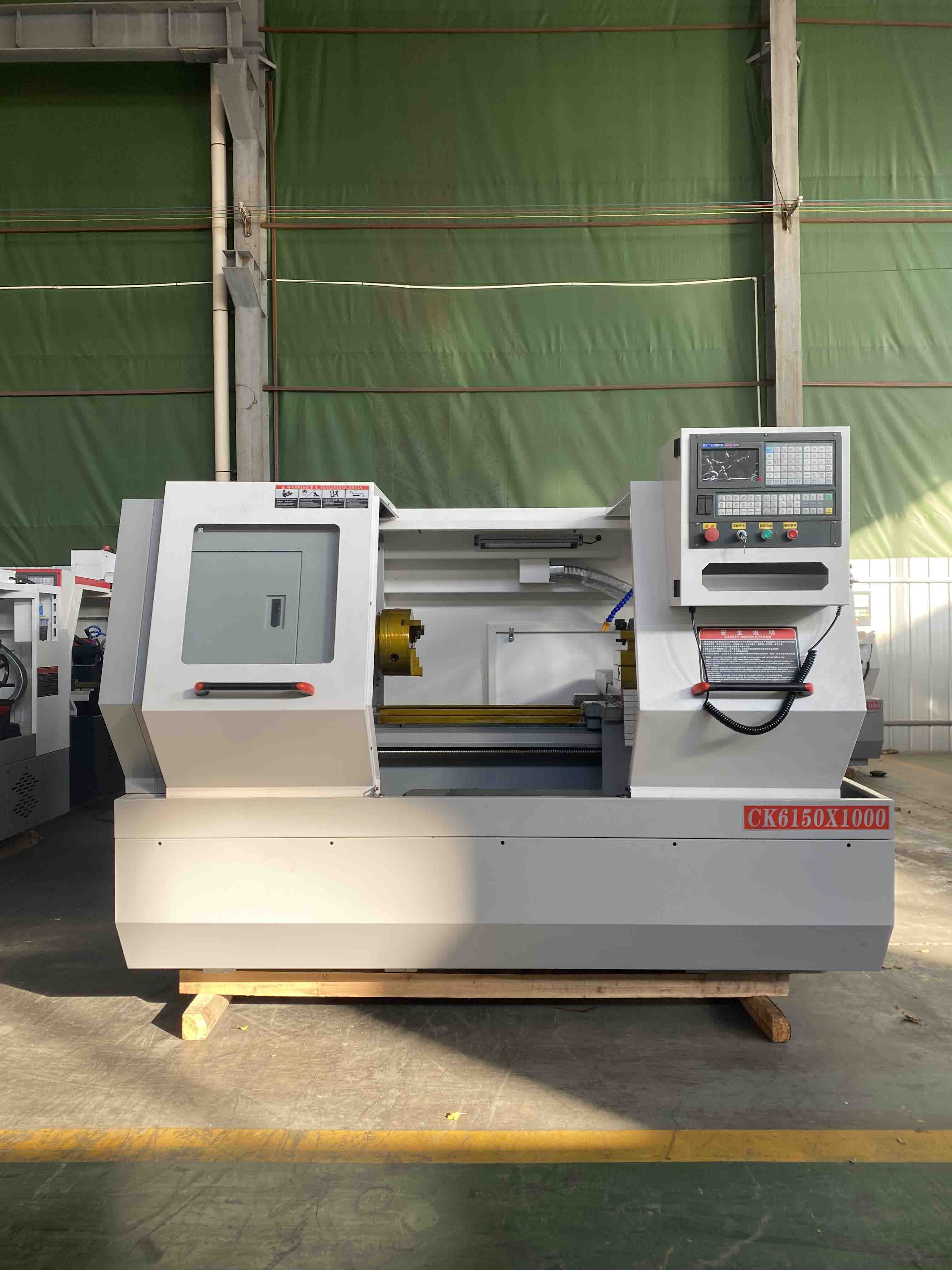

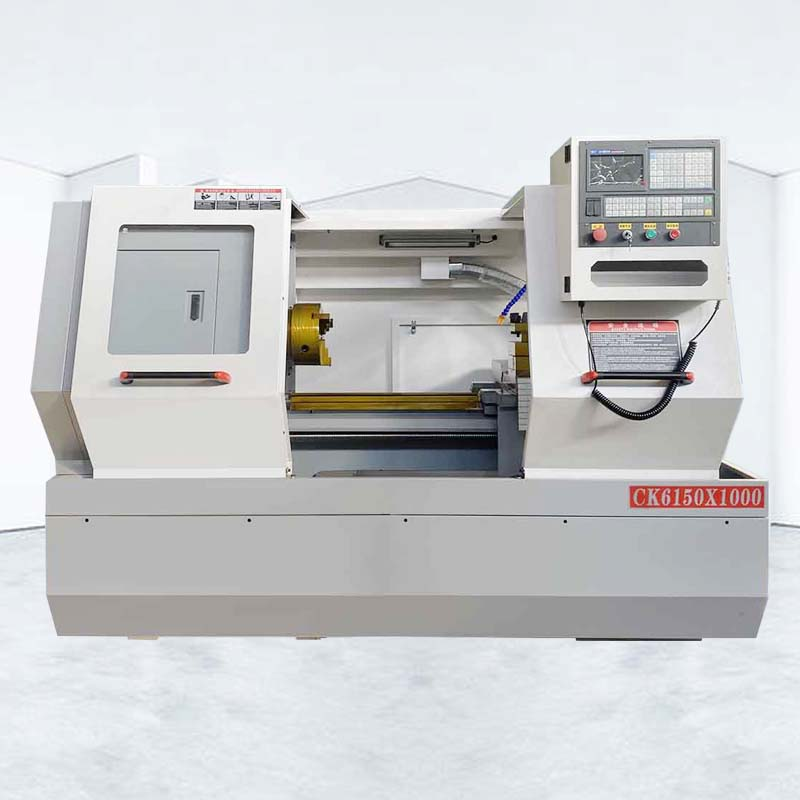

CNC lathe ALCK6150x1000 has the characteristics of high-precision processing capability, large workpiece processing capability, multi-functionality, high rigidity and stability, user-friendly operation interface and high-efficiency production capacity. It is widely used in the field of workpiece processing and can meet the processing requirements of complex workpieces.
Features Of CNC Lathe ALCK6150x1000:
1. High-precision processing capability: ALCK6150x1000 CNC lathe adopts CNC system for precise control, which can realize high-precision processing. Through precise tool position control and feed rate control, the dimensional accuracy and surface quality of the machined workpiece are ensured.
2. Large workpiece processing capacity: ALCK6150x1000 CNC lathe has a large processing range and is suitable for processing large-sized workpieces. It has a large table stroke and maximum workpiece length, which can handle long-sized workpieces.
3. Versatility: ALCK6150x1000 CNC lathe can perform various processing operations, including turning, boring, 4. tapping, drilling, etc. It is suitable for workpiece processing needs of different shapes and sizes.
5. High rigidity and stability: The bed and spindle of ALCK6150x1000 CNC lathe are designed with high rigidity structure, which has strong stability and vibration resistance. This enables it to maintain stable machining performance under high load and high speed cutting conditions.
6. User-friendly operation interface: ALCK6150x1000 CNC lathe is equipped with an intuitive and simple operation interface, so that operators can easily master the operation and programming of the machine tool. Operators can set processing parameters and paths through programming to realize automatic processing.
7. Efficient production capacity: ALCK6150x1000 CNC lathe has fast cutting speed and feed speed, which can realize efficient production and processing. It can automate processing through pre-written programs, reducing manual intervention and increasing production efficiency.
STANDARD CONFIGURATION
1.Turret :4station electric tool post.
2.CNC system:GSKTB3, servo motor and drive.
3.Chuck: Pneumatic collets.
4.Tool: Gang Type Tool.
5.Cooling system.
6.Lighten system.
7.Automatic lubrication system.
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.Turret :
(1).6station electric tool post.
(2)8station electric tool post.
5.Feeder:Automatic bar feeder.
ALMAZAKL CNC ALCK6150 spindle hole
Configuration&Technical Parameters
Item | Unit | ALCK6150x1000 |
Max swing over bed | mm | Φ500 |
Maximum swing over slide | mm | Φ290 |
Maximum cutting diameter | mm | Φ500 |
Maximum processing length | mm | 1000 |
X/Z axis maximum stroke | mm | 300/1000 |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | F82 |
X/Z axis rapid traverse speed | m/min | 6/8 |
Diameter of tailstock sleeve | mm | F65 |
Tailstock sleeve stroke | mm | 130 |
Weight | Kg | 2500 |
Machine size | mm | 3030*1600*2050 |
