ALMAZAKL CNC can automatically complete the turning of internal and external circular surfaces, tapered cotton, circular surfaces, end faces, various threads, drilling, hinges, boring, etc.

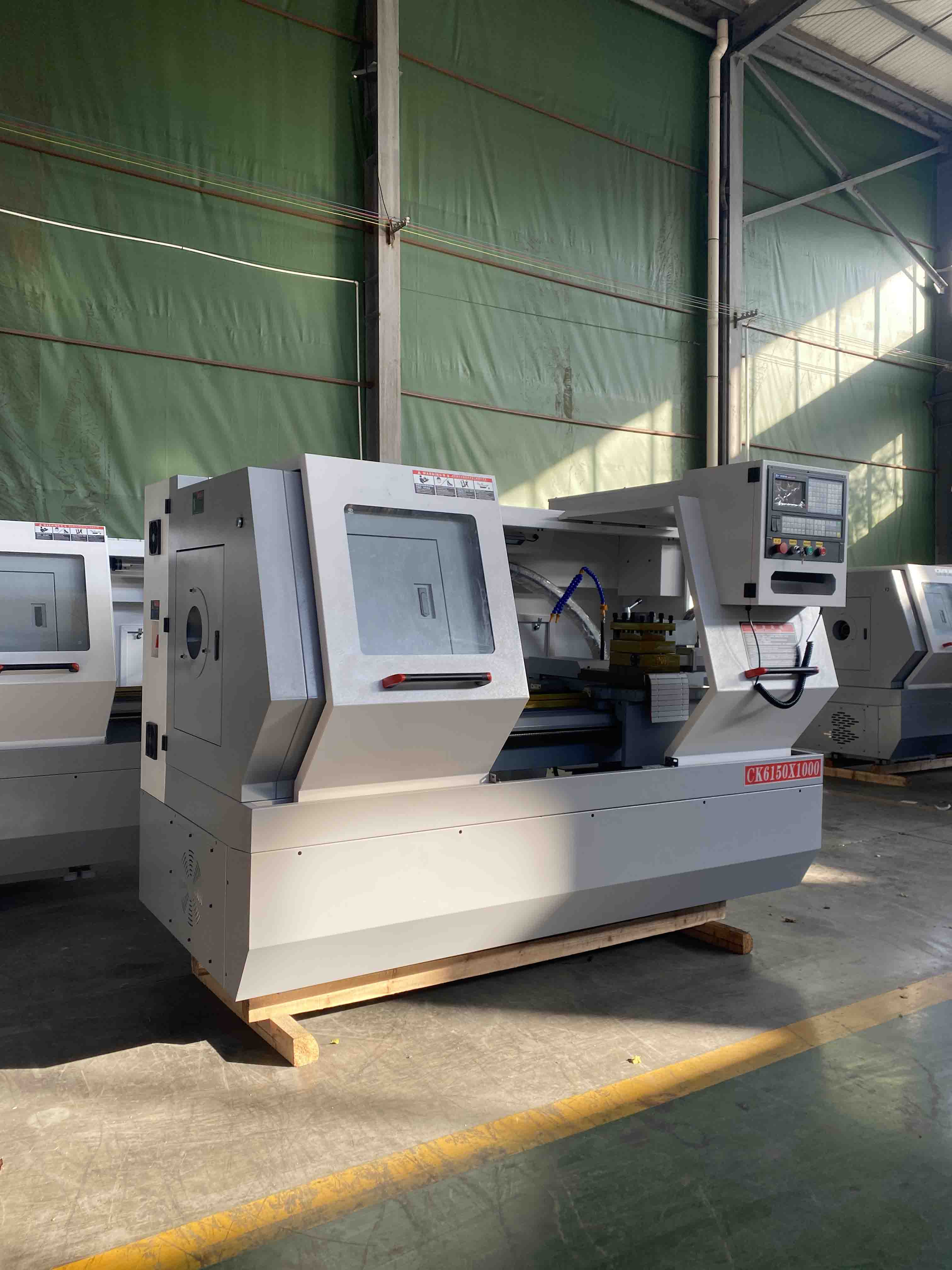

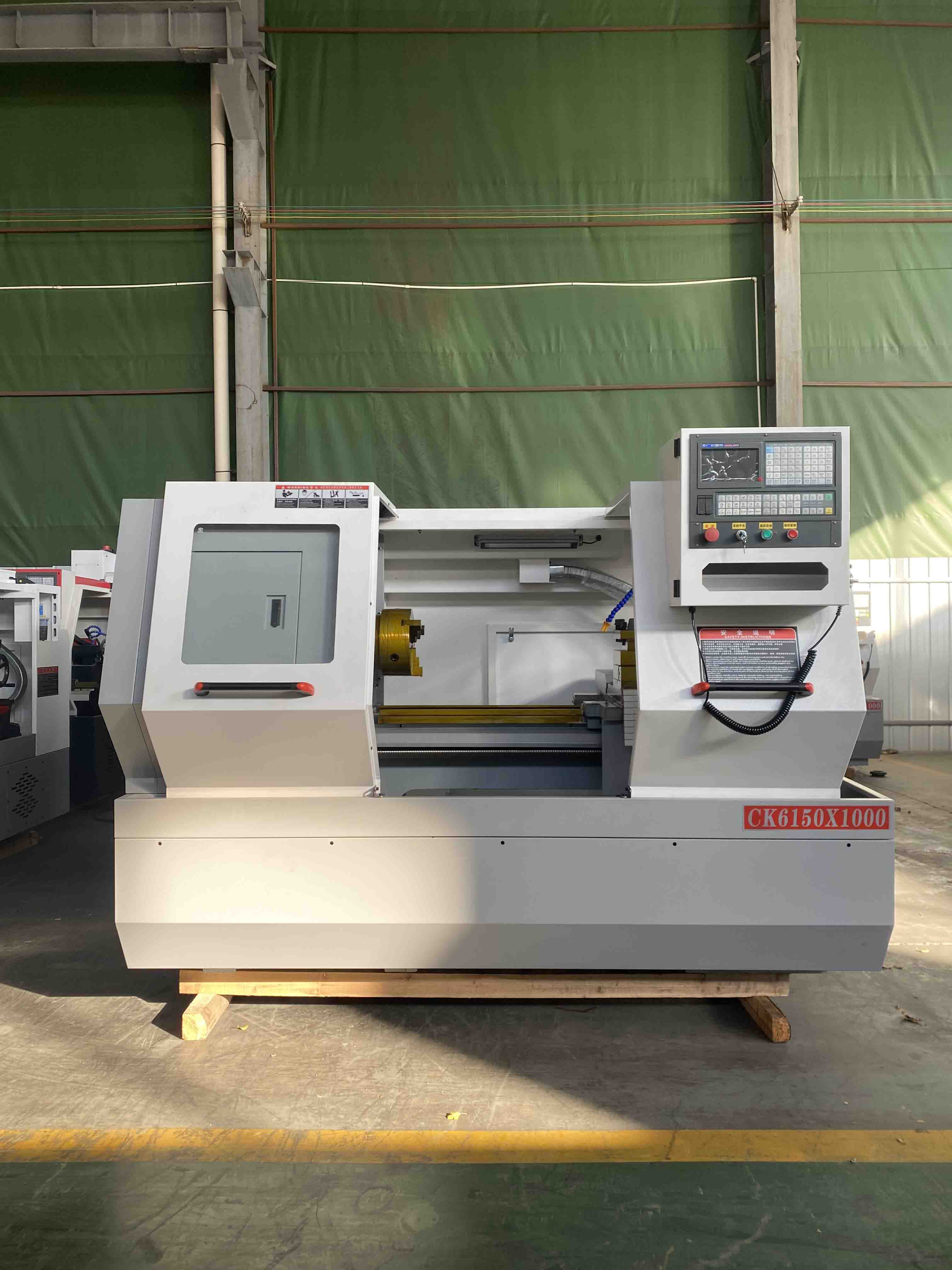

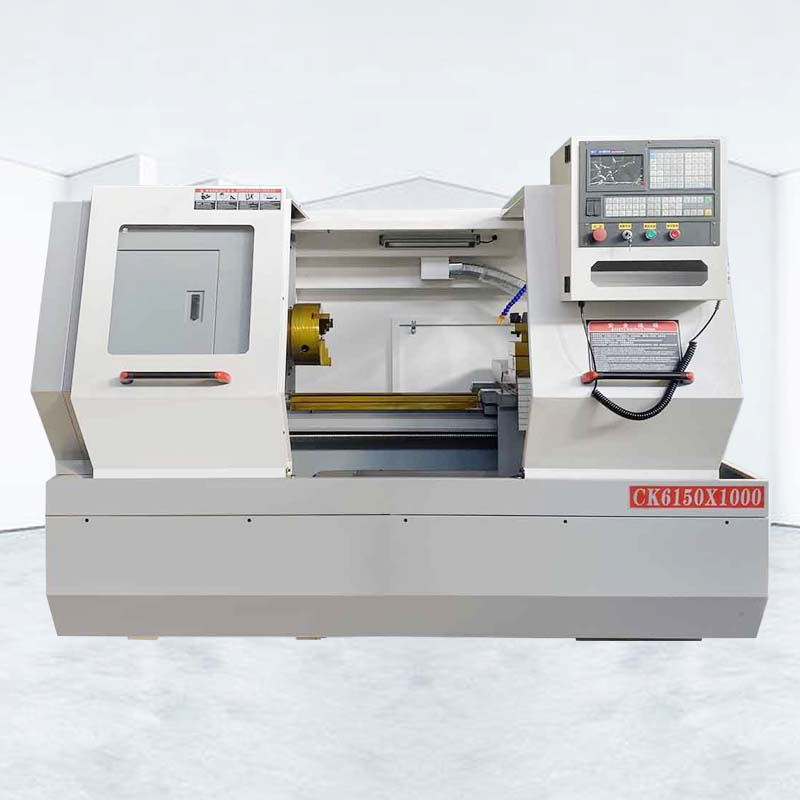

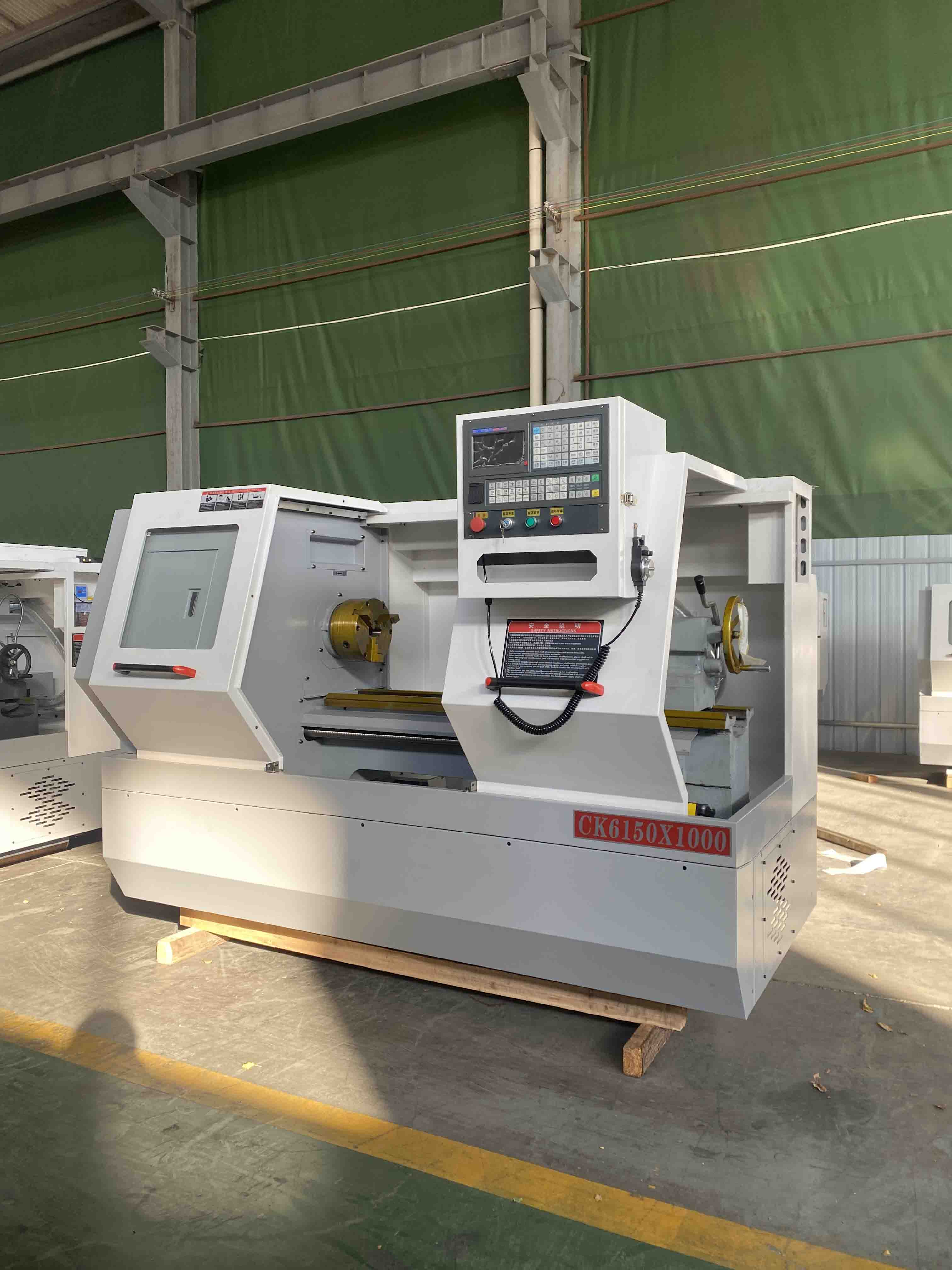

ALMAZAKL CNC CK6150 horizontal CNC lathe machine
Configuration&Technical Parameters
Item | Unit | ALCK6150*1000 |
Max swing over bed | mm | Φ500 |
Maximum swing over slide | mm | Φ290 |
Maximum cutting diameter | mm | Φ500 |
Maximum processing length | mm | 1000 |
X/Z axis maximum stroke | mm | 300/1000 |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | Φ82 |
X/Z axis rapid traverse speed | m/min | 6/8 |
Diameter of tailstock sleeve | mm | Φ65 |
Tailstock sleeve stroke | mm | 130 |
Weight | Kg | 2500 |
Weight | mm | 3030*1600*2050 |
Both the CNC lathe 3 axis guide rail and the saddle guide rail are made of special hard guide rails, which are super hard and wear-resistant, durable, and have good machining accuracy after high-frequency quenching.
1. The CNC lathe spindle adopts a high-precision spindle bearing group, which is precisely assembled and dynamically balanced to ensure high precision, low noise and strong rigidity of the spindle.
2. Each lubrication point of the mini CNC lathe adopts a forced automatic lubrication device to perform fixed-point and quantitative lubrication on the screw rod and guide rail. When there is an abnormal state or insufficient oil, a warning signal will be generated automatically.
3. The flat bed CNC lathe guide rail is equipped with a scraper device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of iron filings.
Horizontal CNC lathe machine is a high-precision, high-efficiency automatic machine tool. The whole machine adopts an integrated protective structure and has a beautiful appearance. Detect the positioning accuracy and repetitive positioning accuracy of X and Z axes to ensure the accuracy and reliability of the machine.
