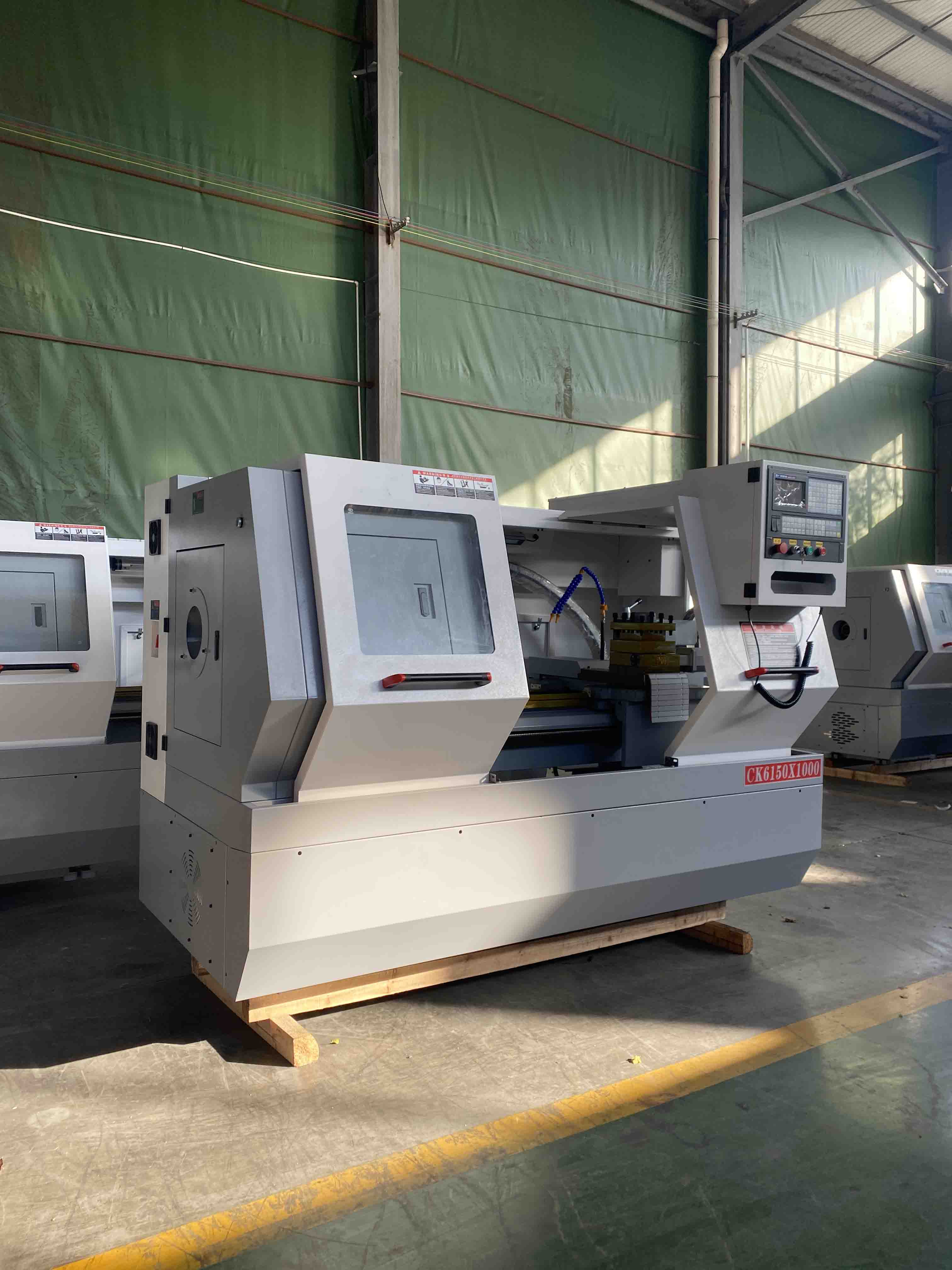

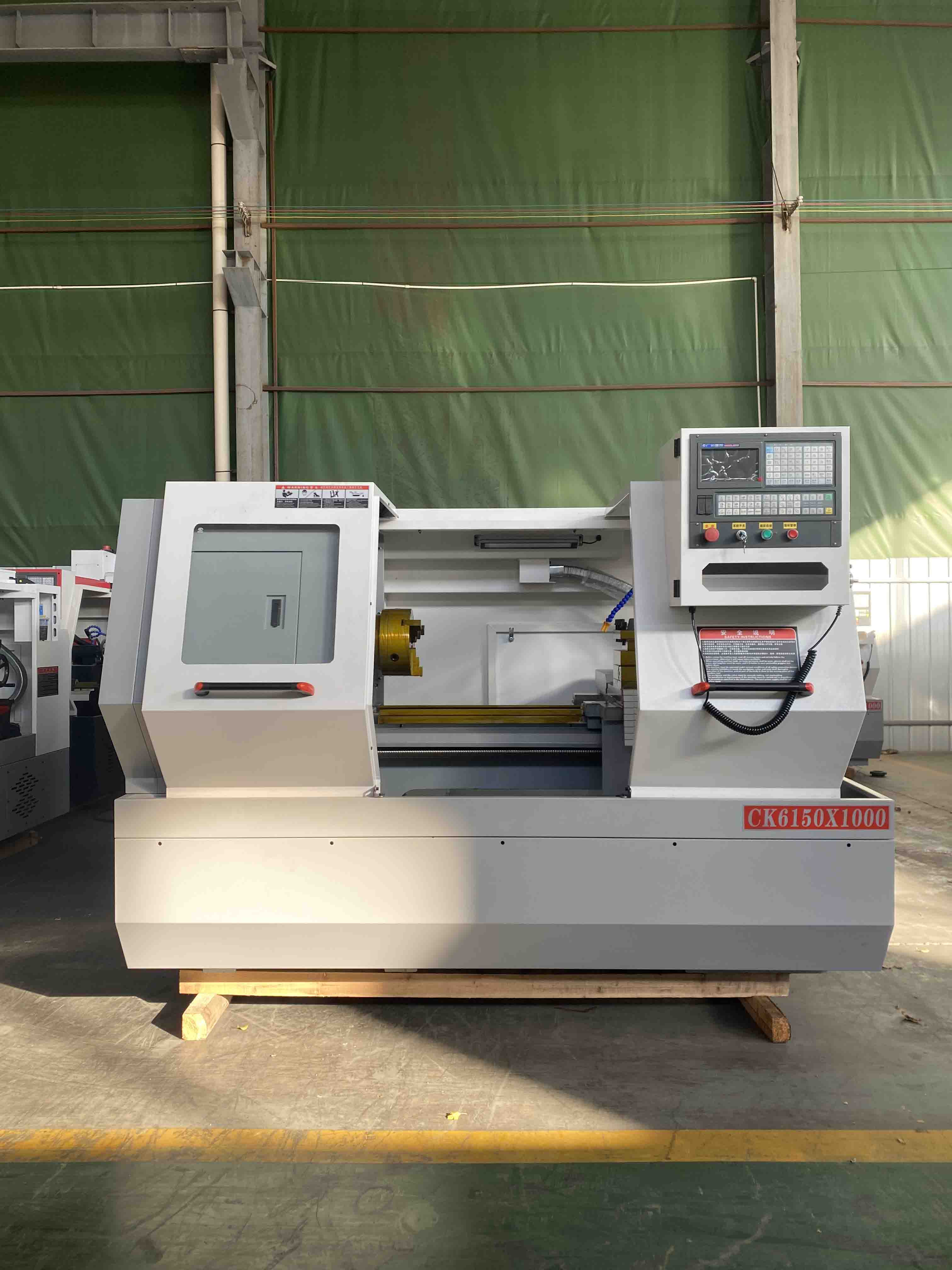

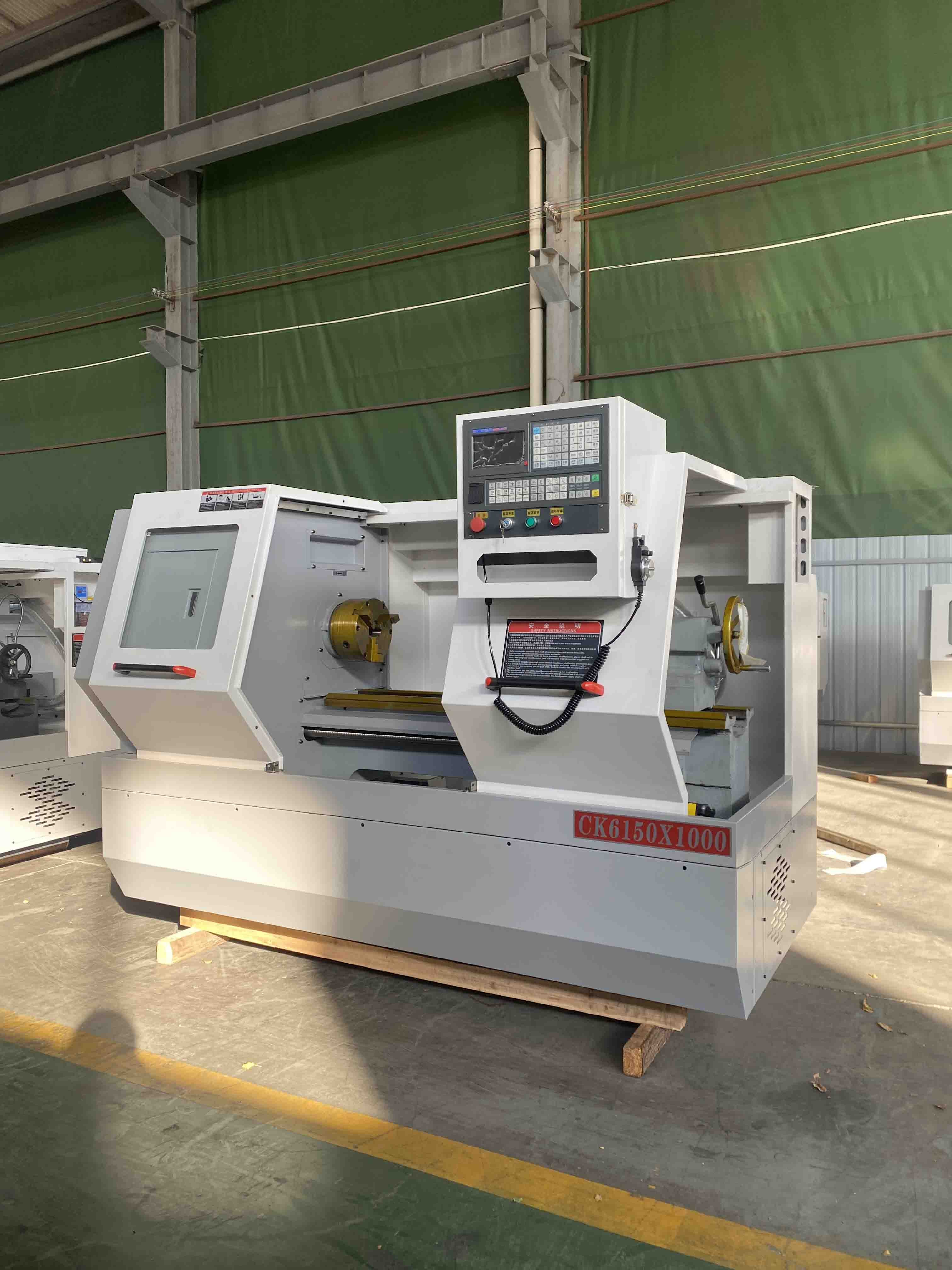

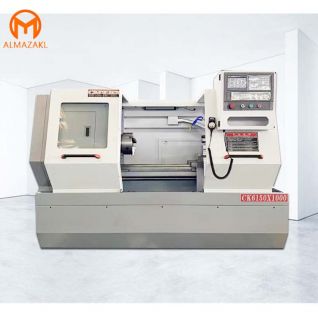

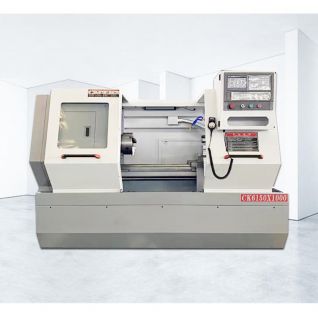

CNC lathe is an automatic CNC lathe with high precision and high efficiency. Equipped with a multi-station turret or a power turret, the CNC turn-mill machine has a wide range of processing performance, and can process linear cylinders, oblique cylinders, arcs and various threads, grooves, worms and other complex work pieces. Compensation, arc interpolation and various compensation functions, and have played a good economic effect in the mass production of complex parts.
Configuration&Technical Parameters
Item | Unit | ALCK6150*1000 |
Max swing over bed | mm | Φ500 |
Maximum swing over slide | mm | Φ290 |
Maximum cutting diameter | mm | Φ500 |
Maximum processing length | mm | 1000 |
X/Z axis maximum stroke | mm | 300/1000 |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | F82 |
X/Z axis rapid traverse speed | m/min | 6/8 |
Diameter of tailstock sleeve | mm | F65 |
Tailstock sleeve stroke | mm | 130 |
Weight | Kg | 2500 |
Machine size | mm | 3030*1600*2050 |
1.CNC lathe CNC turning center with high precision and high rigidity adopts an integral horizontal high-low type bed structure, horizontal and high-rigidity box-type mechanical spindle, optional 12-station servo turret and 12-station power turret and power with Y-axis function Turret, integral outer protection and independent full inner protection system.
2.High stability, through deep finite element analysis to optimize the internal rib structure of the base, the rigidity of the base is better, the deformation is more stable, and the vibration wave is lower. The main castings are free of internal stress. After artificial aging and natural aging, the precision and quality standards are improved. CNC lathe processing combines rigidity, precision, stability and environmental protection. It is a reliable choice for high-end manufacturing.
High speed and precision are the eternal goals of CNC lathe 3 axis development. With the rapid development of science and technology, the speed of replacement of Electromechanical products is accelerated, and the requirements for the precision and surface quality of parts processing are also higher and higher.
In order to meet the needs of this complex and changeable market, the current automatic CNC lathe is developing in the direction of high-speed cutting, dry cutting and quasi-dry cutting, and the machining accuracy is constantly improving.
On the other hand, the successful application of electric spindles and linear motors, ceramic ball bearings, low-temperature high-speed ball screw pairs with high-precision large-lead hollow internal cooling and strong ball nut cooling, and linear guide pairs with ball cages and other machine tool functional components The market launch also creates conditions for the development of flat bed CNC lathe to high speed and precision.
Horizontal CNC Lathe is used for turning of long axial dimensions or small disc parts.
