STANDARD CONFIGURATION
1.Turret :station electric tool post.
2.CNC system:GSKTB3, servo motor and drive.
3.Chuck: Pneumatic collets.
4.Tool: Gang Type Tool.
5.Cooling system.
6.Lighten system.
7.Automatic lubrication system.
OPTIONAL CONFIGURATION
1.CNC system: Siemens, Fanuc, KND.
2.Chuck:Hydraulic chuck, pneumatic chuck ..
4.Turret :
(1).6station electric tool post.
(2)8station electric tool post.
5.Feeder:Automatic bar feeder.

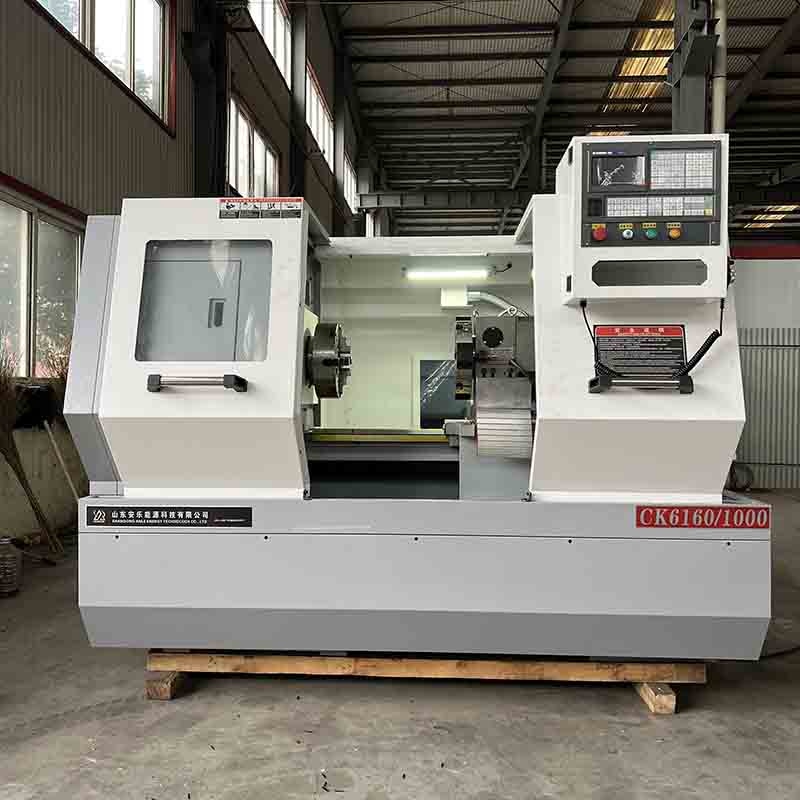

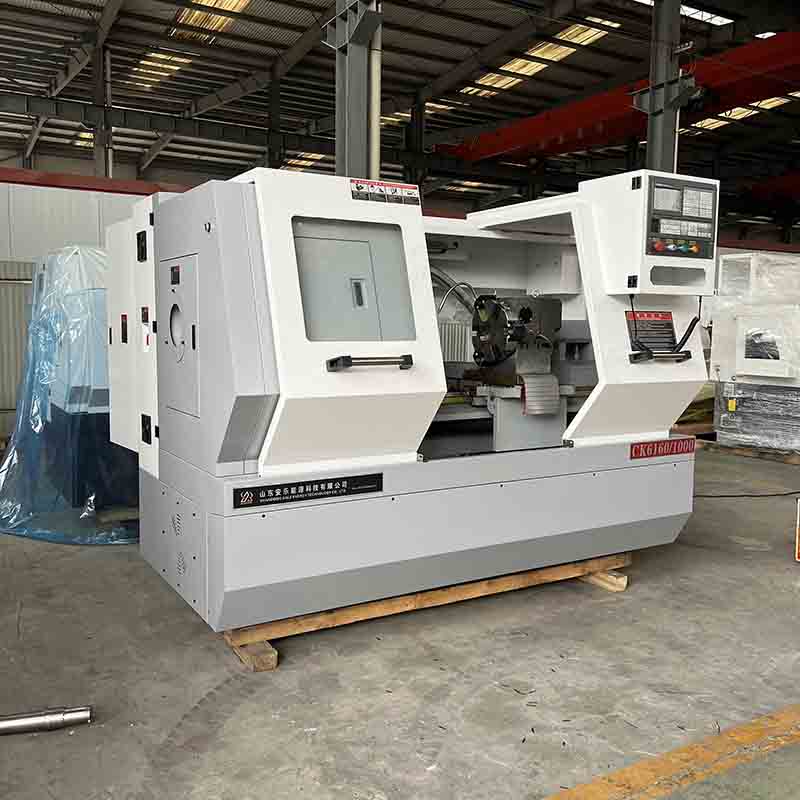

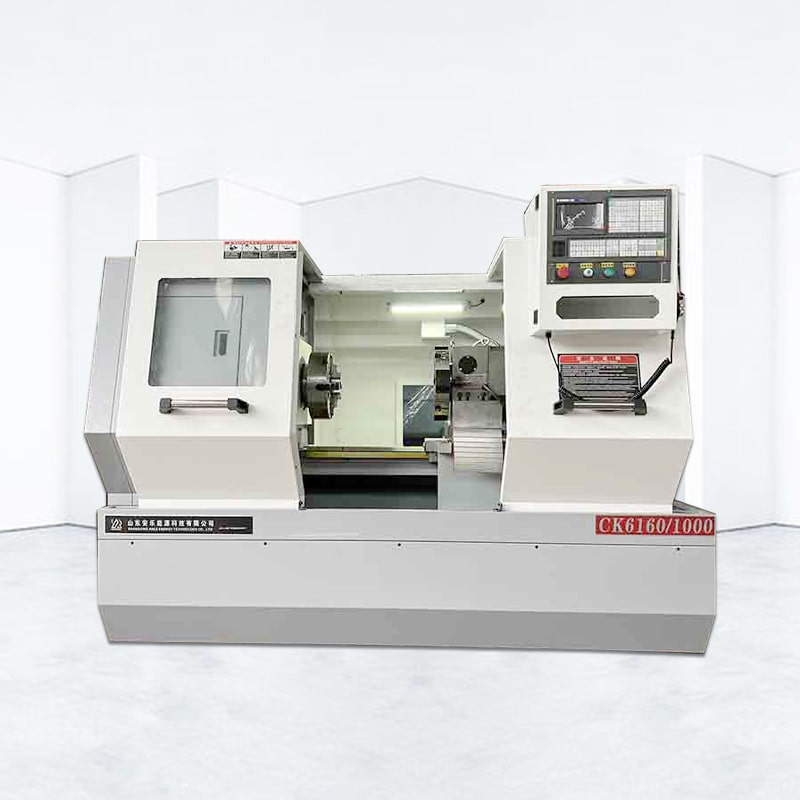

ALCK6160X1000 CNC Lathe
1. Machine tool type: ALCK6160X1000 CNC lathe is a large CNC lathe with cross-section layout. It adopts an integral cast iron machine bed, which has high rigidity and stability, and is suitable for processing medium and large workpieces.
2. Processing capacity: The CNC lathe has a large processing size and carrying capacity. Usually, the maximum processing diameter of ALCK6160X1000 CNC lathe is 1600 mm, and the maximum processing length is 1000 mm.
3. Numerical control system: Adopt advanced numerical control system, such as Siemens, Fanuc or Mitsubishi, etc., with programming function and operation interface, which can realize high-precision processing control. The numerical control system can realize the precise positioning of the workpiece, the adjustment of cutting parameters and the monitoring of the machining process.
4. Spindle system: Equipped with a high-power spindle, which can realize high-speed rotation and cutting operations. The spindle usually adopts frequency conversion speed regulation function to adapt to different processing needs.
5. Tool holder system: including tool holder and turret, used for tool installation and cutting operations. The tool holder system usually has the functions of multi-station, automatic tool change and quick positioning to improve production efficiency.
6. Tool system: Equipped with a special tool system to meet the processing requirements of different workpieces. The cutting tool system is designed reasonably and can meet the needs of complex processing technology.
7. Transmission system: It adopts precise transmission structure and servo motor drive to ensure high precision and stable processing movement.
8. Automatic lubrication system: provide automatic lubrication for each part of the machine tool, reduce friction and wear, and prolong the life of the machine tool.
9. Cooling system: Equipped with a coolant circulation system for cooling the cutting area, reducing the processing temperature and improving cutting efficiency.
10. Safety protection device: Equipped with safety devices such as safety door, protective cover and emergency stop button to ensure the safety of operators.
ALCK6150X1000 Flat bed CNC lathe
Equipment configuration and parameters

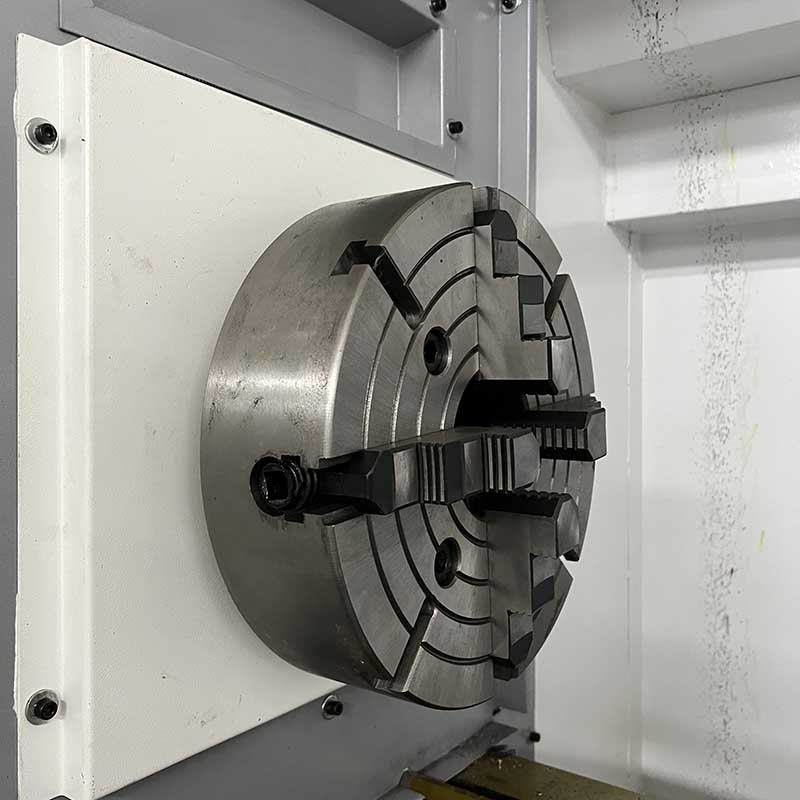

Model | Unit | ALCK6160X1000 |
Maximum turning diameter of bed | mm | Φ600 |
Maximum turning diameter of carriage | mm | Ф310 |
Maximum cutting diameter | mm | Φ500 |
Maximum processing length | mm | 1000 |
X/Z axis maximum stroke | mm | 300/(1000/1500) |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | Ф82 (105/130) |
X/Z axis | N.m | 5/7.5 |
X/Z axis rapid traverse speed | m/min | 6/8 |
Repeated positioning accuracy of tool post | mm | ≤0.004 |
Diameter of tailstock sleeve | mm | Φ75 |
Tailstock sleeve stroke | mm | 200 |
Machine size (length×width×height) | mm | 2940*1400*1700 |
Electricity demand (power/current) | kW/A | 15kW/20A |
Chuck | 320mm manual three-jaw chuck |
