The automatic numerical control lathe has a compact overall design, small size of independent spindle, low temperature rise, stable accuracy, fast response and high accuracy, and is suitable for high-speed and rigid processing of copper, aluminum, stainless steel and other non-ferrous metals

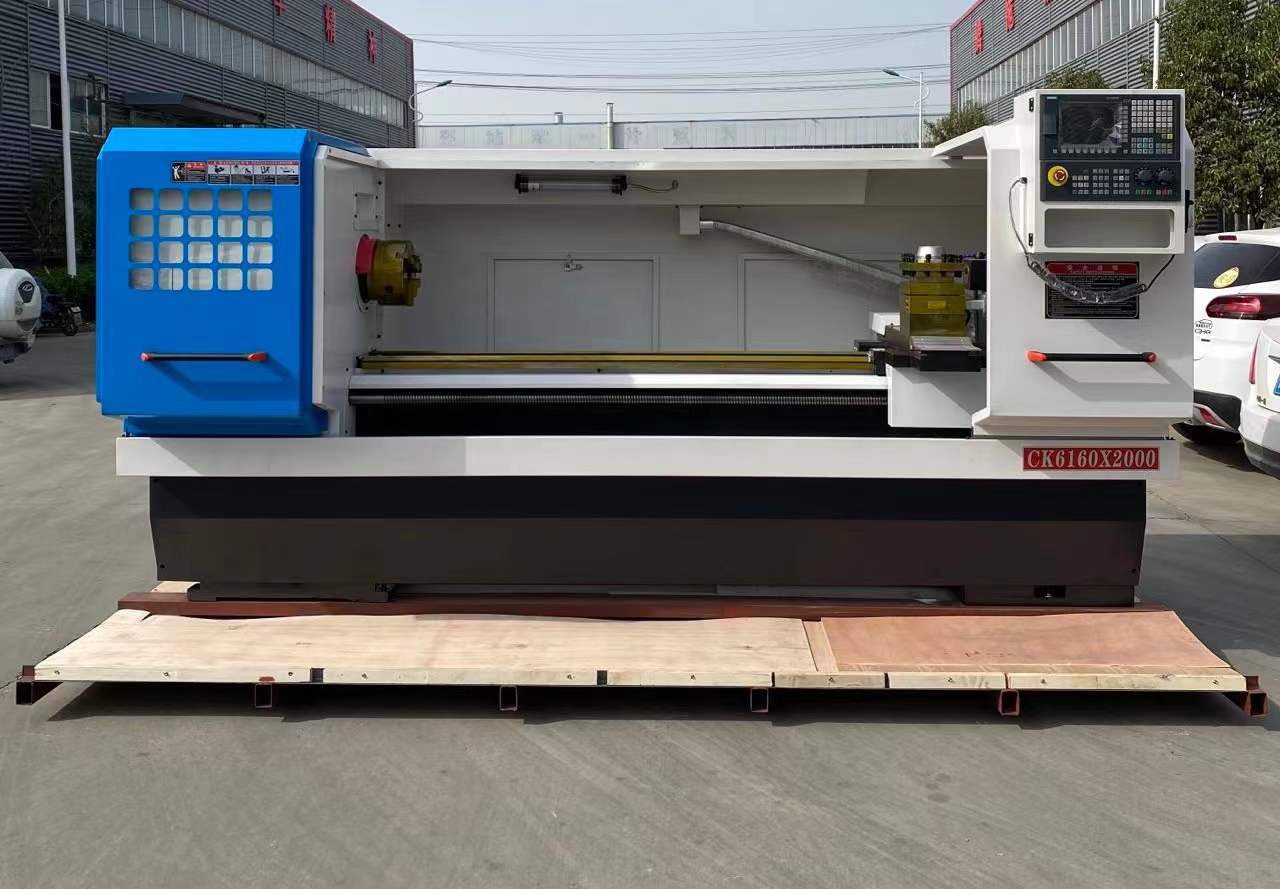

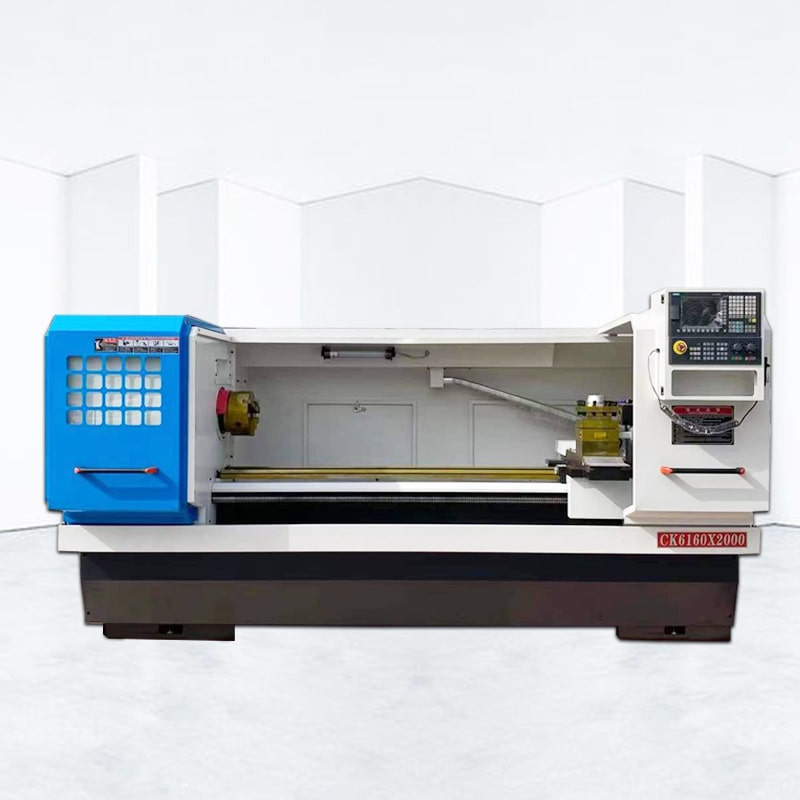

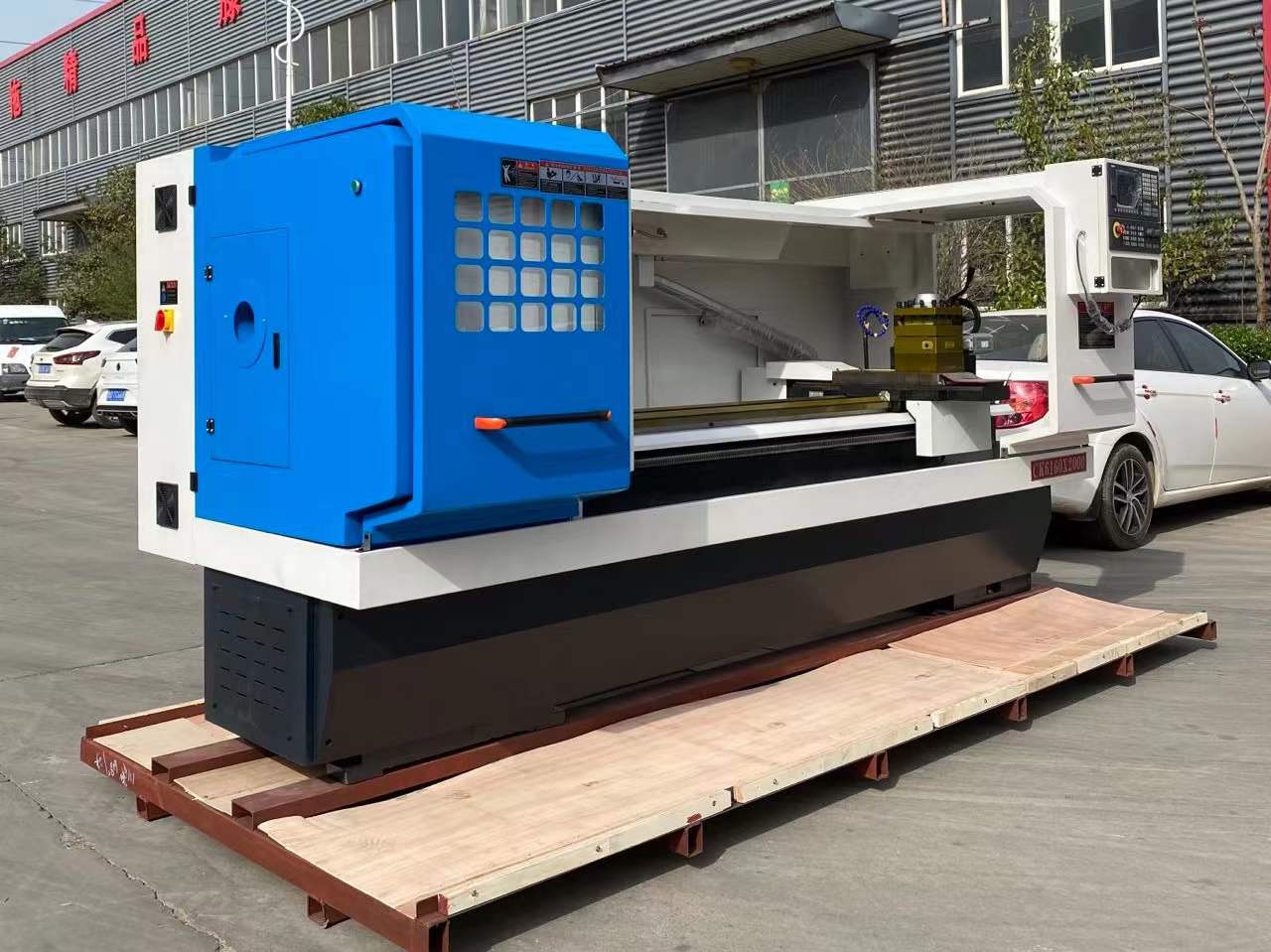

Ultra low price ALCK6160
Equipment configuration and parameters
Item | Unit | ALCK6160*2000 |
Max swing over bed | mm | Φ600 |
Maximum turning diameter of carriage | mm | Φ310 |
Maximum turning diameter | mm | Φ600 |
Maximum turning length | mm | 2000 |
X/Z axis maximum stroke | mm | 300/2000 |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | F82 |
X/Z axis rapid traverse speed | m / min | 6/8 |
Diameter of tailstock sleeve | mm | Φ75 |
Tailstock sleeve stroke | mm | 200 |
Machine size (length×width×height) | mm | 4400*1700*1800 |
Electricity demand (power/current) | kW/A | 15kW/20A |
1. The CNC lathe is capable of turning, boring, end milling, precision milling, drilling, tapping and other multi-function composite processing capabilities, which can quickly complete the processing of high-quality complex workpieces. Its flexibility is particularly suitable for processing complex, multi variety and small batch parts, This machine tool has powerful functions and can provide production turning and milling capabilities.
2. The combination of B axis, milling axis, positive and negative axis, stable rest and other functions will enable the horizontal CNC lathe to have a strong composite processing capacity. The production capacity of multiple ordinary equipment can only be achieved by clamping once, which not only greatly saves time and manpower, but also greatly reduces labor costs and improves the utilization rate of equipment.
3. Three axis high-precision transmission system of CNC lathe. CNC turning adopts precision ball screw and linear rolling guide rail, with high transmission efficiency, good accuracy, rapid and stable static movement of the machine tool, and high positioning accuracy.
4. In order to prevent part deformation, CNC turning will be equipped with cooling device to minimize the generation of thermal displacement.
It is suitable for turning the outer circle, end face, thread, countersunk head and inner hole of various metal shaft parts, and milling the plane and keyway. High efficiency rough machining and high quality finish machining. It is especially suitable for parts with complex shape and high machining accuracy requirements.
