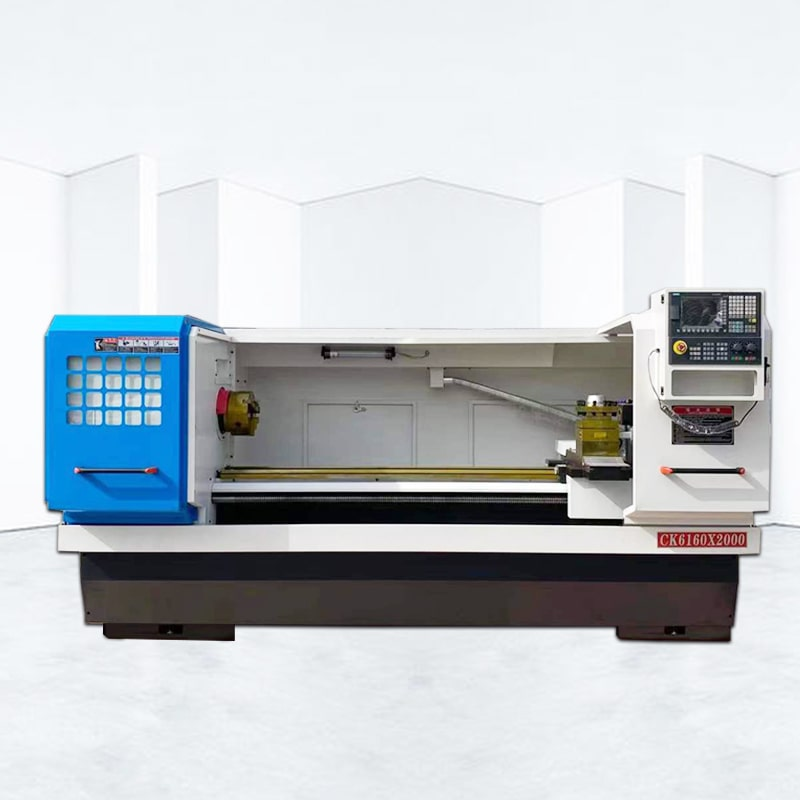

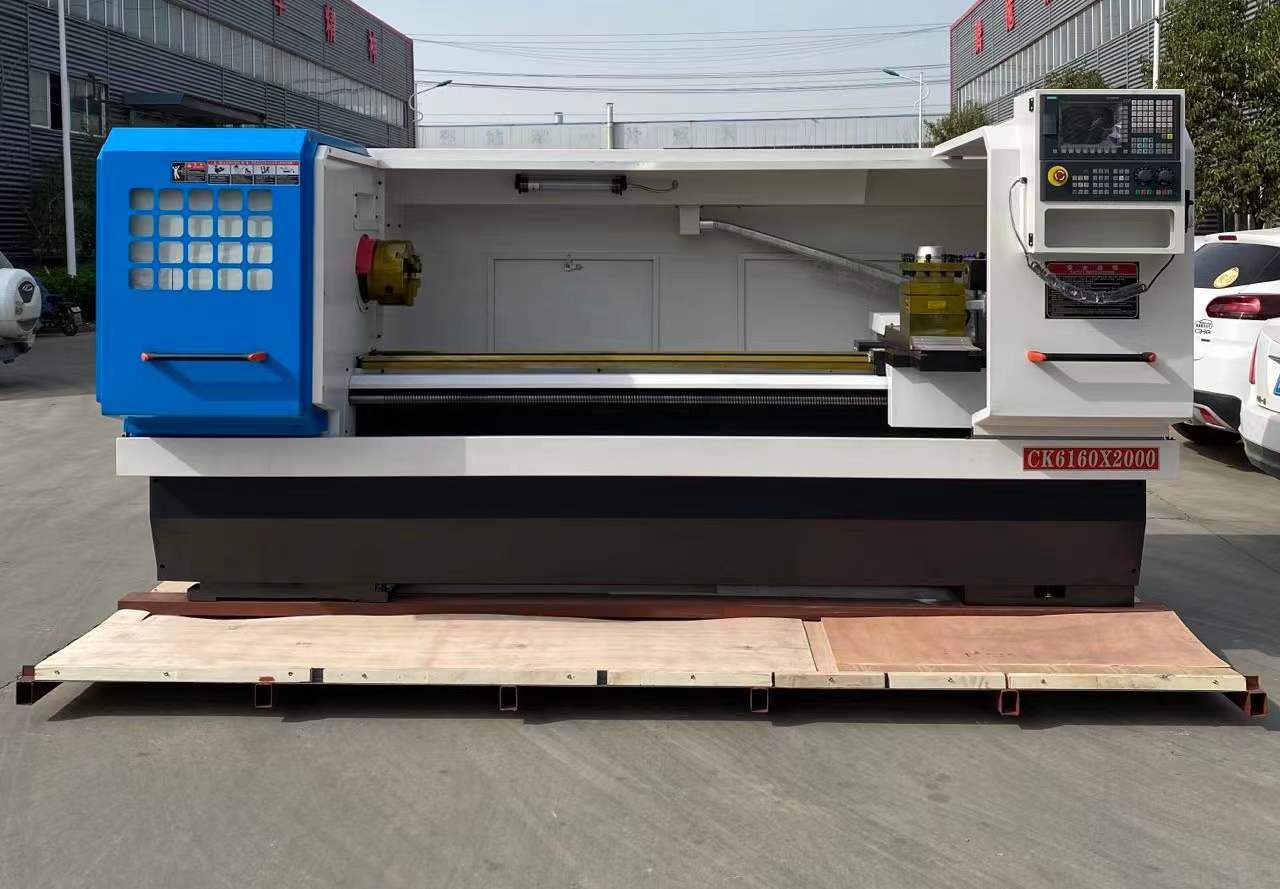

CNC Metal Turning Lathe Machine
ALMAZAL CNC Automatic CNC lathe is suitable for mass processing and single-piece processing of various precision parts such as instruments, meters, electronic connectors, optics, automobile and motorcycle parts, and hardware.
Equipment configuration and parameters
| Item | Unit | ALCK6160*2000 |
| Max swing over bed | mm | Φ600 |
| Maximum turning diameter of carriage | mm | Φ310 |
| Maximum turning diameter | mm | Φ600 |
| Maximum turning length | mm | 2000 |
| X/Z axis maximum stroke | mm | 300/2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| X/Z axis rapid traverse speed | m / min | 6/8 |
| Diameter of tailstock sleeve | mm | Φ75 |
| Tailstock sleeve stroke | mm | 200 |
| Machine size (length×width×height) | mm | 4400*1700*1800 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
Characteristics Of CNC Lathe For Metal
1.ALMAZAL CNC High processing precision and stable processing quality;
2.Multi-coordinate linkage can be carried out, and parts with complex shapes can be processed;
3.ALMAZAL CNC When the machining parts are changed, generally only the NC program needs to be changed, which can save production preparation time;
Horizontal CNC Lathe Application:
1.CNC lathe Machine body are made of resin sand casting with timing treatment, which guarantees stability of the machine.
Horizontal and cross travels are driven by servo motor.
2.Lathe machine mechanical High precision ball screws and rigid precision bearings.
3.Mini metal lathe With unique auto gear changing mechanism, match with inverter control spindle motor, step less speed.
4.Full enclosed cover or semi enlocsed cover.
5.GSK, Siemens, FANUC system.
