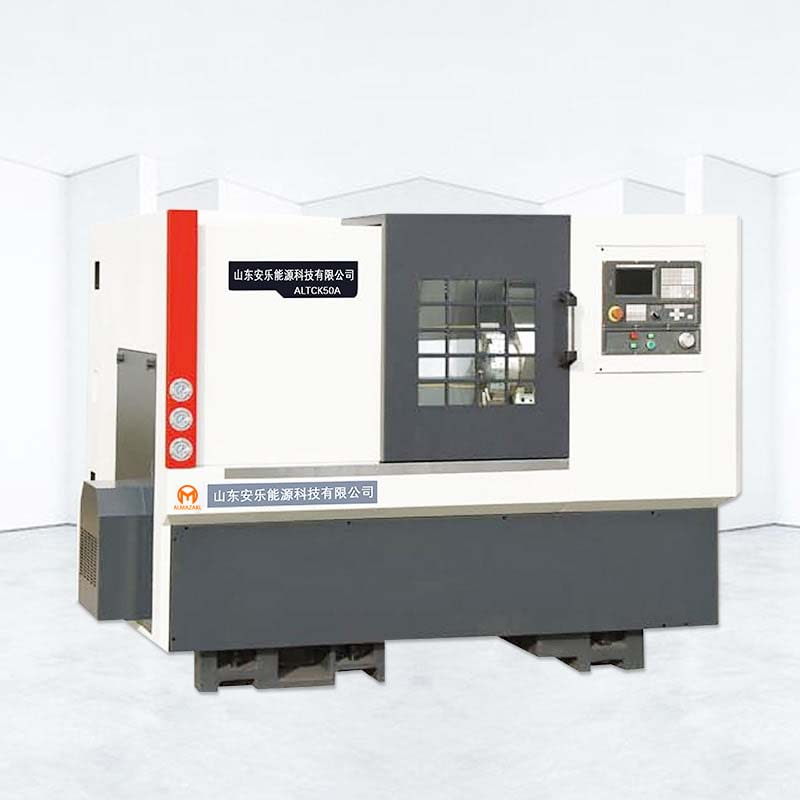

ALTCK50A Slant Bed CNC Lathe

Processing Features Of ALTCK50A Slant Bed CNC Lathe:

1. Rigid structure: ALTCK50A slant bed CNC lathe adopts solid cast iron machine bed and large size guide rail, which has excellent rigidity and stability, can resist cutting force and vibration, and guarantee machining accuracy and surface quality.

2. Multi-axis control: ALTCK50Aslant bed CNC lathe usually has multi-axis control capability, including X, Z axis and optional C axis. This kind of multi-axis control can realize complex processing paths and multi-angle processing, which improves the flexibility and efficiency of processing.

High-speed machining: ALTCK50Aslant bed CNC lathe has high-speed feed and fast movement capabilities, which can realize fast positioning and cutting operations, and improve production efficiency.

Automatic tool change system: ALTCK50Aslant bed CNC lathe is usually equipped with an automatic tool change system, which can accommodate multiple tools and is able to automatically select and change tools. In this way, multiple processes can be completed in one processing process, which improves production efficiency.

Advanced CNC system: ALTCK50Aslant bed CNC lathe adopts advanced CNC system with powerful functions and friendly man-machine interface, capable of receiving and explaining processing programs, controlling the movement and cutting parameters of each axis, and monitoring various states during processing .

ALTCK50A is mainly used in the following industries:

1. Automobile manufacturing: used for processing auto parts, such as engine crankshaft, gearbox, chassis structure, etc.

2. Aerospace: used to process aerospace components, such as engine rotors, aircraft cockpits, missile structures, etc.

3. General machinery manufacturing: used for processing various mechanical parts, such as bearing housings, gears, connecting rods, etc.

4. Energy equipment: used to process key components of energy equipment, such as gas turbine blades, nuclear power equipment components, etc.

5. Mold manufacturing: used for processing mold parts, such as injection molds, die-casting molds, stamping molds, etc.

6. In the machine manufacturing industry, ALTCK50Aslant bed CNC lathe is commonly used in the following processing techniques:

Turning: Cut the workpiece by rotating the tool to realize the machining of outer diameter, inner diameter and other shapes.

Boring: Machining the inner hole of a workpiece by rotating or moving a tool to achieve precise hole diameter and surface finish.

STANDARD CONFIGURATION

1.Turret :station electric tool post.

2.CNC system:GSKTB3, servo motor and drive.

3.Chuck: Pneumatic collets.

4.Tool： Gang Type Tool.

5.Cooling system.

6.Servo drive system.

7.Automatic lubrication system.

8.bed frame

OPTIONAL CONFIGURATION

1.CNC system: Siemens, Fanuc, KND.

2.Chuck:Hydraulic chuck, pneumatic chuck ..

4.Turret :

(1).8 station electric tool post.

(2)12 station electric tool post.

5.Feeder:Automatic bar feeder.

Slant bed CNC lathe ALTCK50A with Y axis

The Main Technical Parameters
