ALMAZAKL CNC ALTCK50A slant bed CNC lathe is a versatile machine tool that can be used for a wide range of applications in various industries. Its high precision, accuracy, and efficiency make it an ideal choice for producing complex components with tight tolerances.
1.Slant Bed Design: The slant bed design of the TCK50A provides excellent rigidity and stability during cutting operations. This helps to reduce vibration and improve accuracy and surface finish.
2.Precision Spindle: The spindle of the TCK50A CNC lathe is made of high-quality materials and is precision-ground for maximum accuracy and durability. It is also equipped with high-speed bearings that provide smooth and stable rotation at high speeds.
3.High-Speed Cutting: The TCK50A CNC lathe machine is capable of high-speed cutting with a maximum spindle speed of up to 4,000 RPM. This allows for fast and efficient machining of parts, resulting in shorter cycle times and increased productivity.
4.Automatic Tool Changer: The TCK50A CNC lathe machine features an automatic tool changer that allows for quick and easy tool changes. This helps to reduce setup times and increase machining efficiency.
5.User-Friendly Control System: The TCK50A CNC lathe machine is equipped with a user-friendly control system that allows operators to easily program and control the machine. It also features a range of advanced functions and features, such as real-time monitoring and automatic fault diagnosis.
1.High Precision: The slant bed design of the ALTCK50A ensures maximum stability and rigidity during the machining process, resulting in high precision and accuracy. The CNC control system allows for precise control of cutting parameters, resulting in consistent and repeatable machining results.
2.High Efficiency: The ALTCK50A slant bed CNC lathe features a powerful spindle motor and fast servo-driven axes that allow for high-speed machining and fast tool changes, resulting in increased productivity and shorter cycle times.
3.Versatility: The ALTCK50A CNC lathe machine is capable of processing a wide range of workpieces, from small to large and from simple to complex. It can be used for turning, drilling, threading, and other machining operations, making it a versatile machine for various applications.
4.Easy Operation: The CNC control system of the ALTCK50A CNC lathe machine is user-friendly and easy to operate, even for operators with limited experience. The machine can be programmed using CAD/CAM software or by directly inputting G-code, making it easy to set up and run.
5.Reduced Labor Costs: The automation provided by the CNC control system of the ALTCK50A CNC lathe machine reduces the need for skilled operators, resulting in reduced labor costs and increased efficiency.
Overall, the ALTCK50A slant bed CNC lathe is a reliable and efficient machine that offers several advantages for processing workpieces with high precision and efficiency.

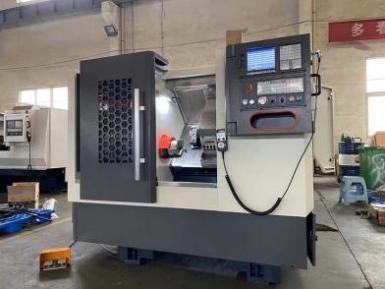

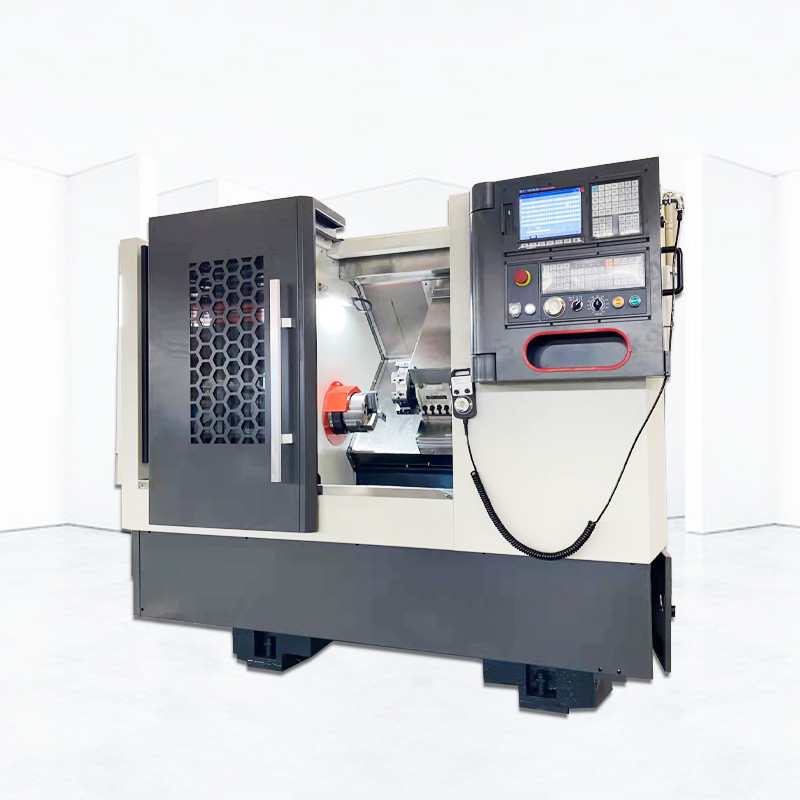

AL MAZAK CNC Slant bed CNC lathe ALTCK50A with Y axis
Machine model | Unit | ALTCK50A |
Maximum turning diameter of bed | mm | Φ560 |
Maximum machining diameter (disk type) | mm | Φ400 |
X axis maximum stroke | mm | 240 |
Z axis maximum stroke | mm | 400 |
Spindle speed | rpm | 3000rpm |
Spindle through hole | mm | Φ66 |
Horizontal turret station | 8 | |
Maximum stroke of tailstock | mm | 200 |
Total power capacity | KVA | 18 |
Dimensions (l×w×h) | mm | 2500*1700*1890 |
Total Weight | KG | 2600 |
