Turning CNC Machining Fanuc Inclined Bed CNC Lathe With Power Tools
The slant bed lathe features an integrated Y-axis for performance and productivity. The Y and C axes provide greater flexibility and variety of operations when machining complex work pieces. The tilt-bed lathe line is ideal for a variety of industrial applications.

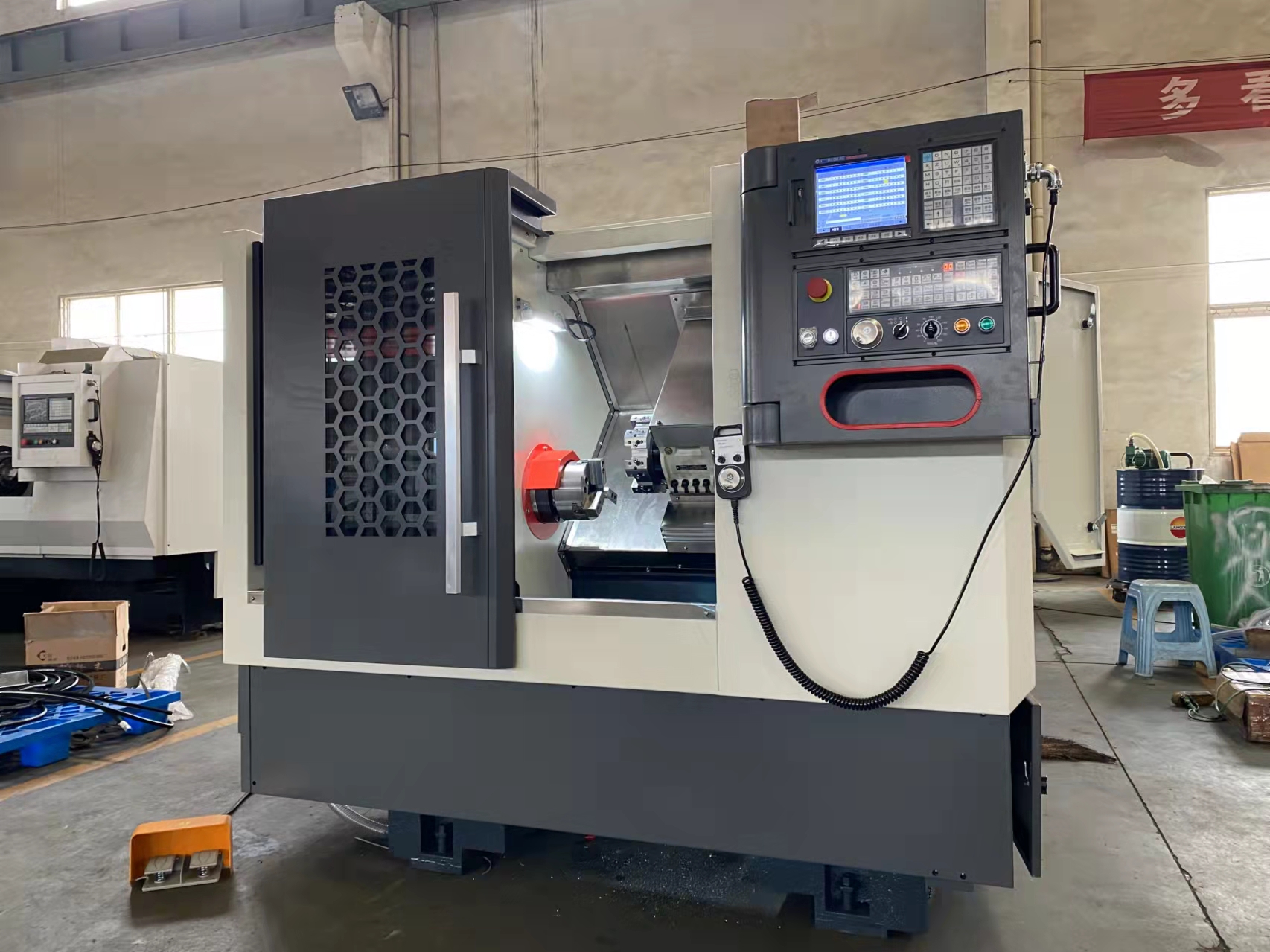

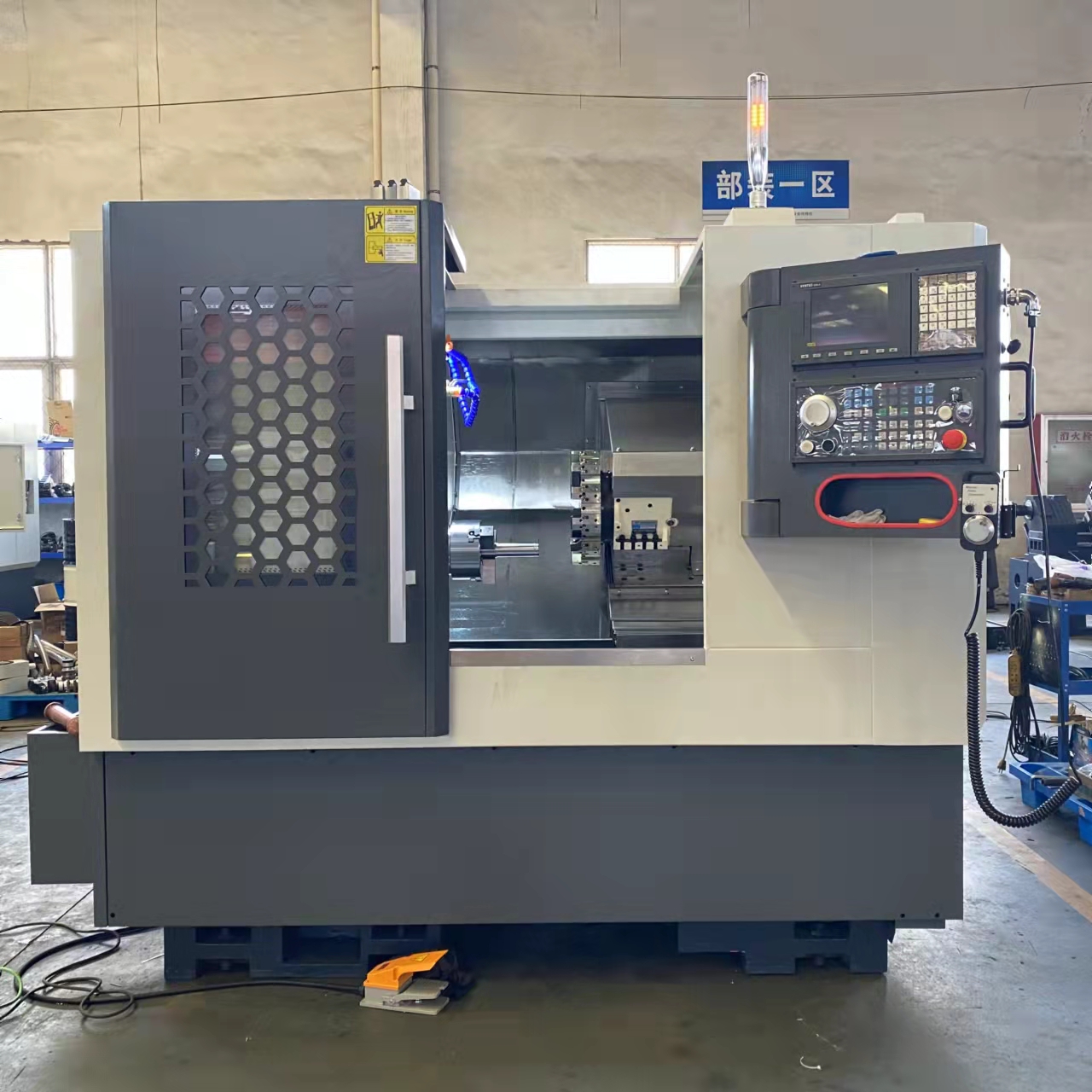

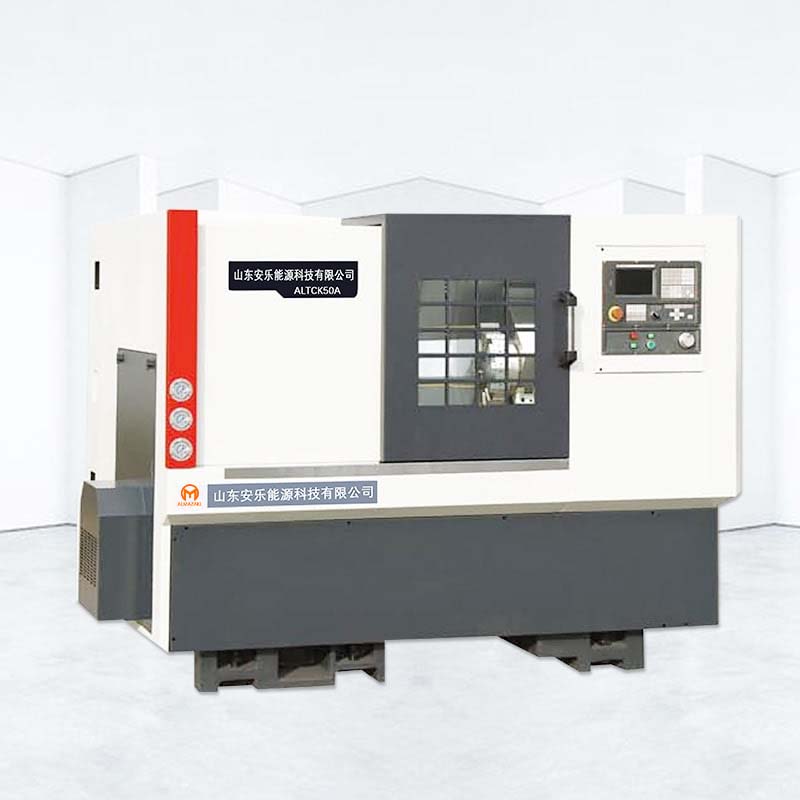

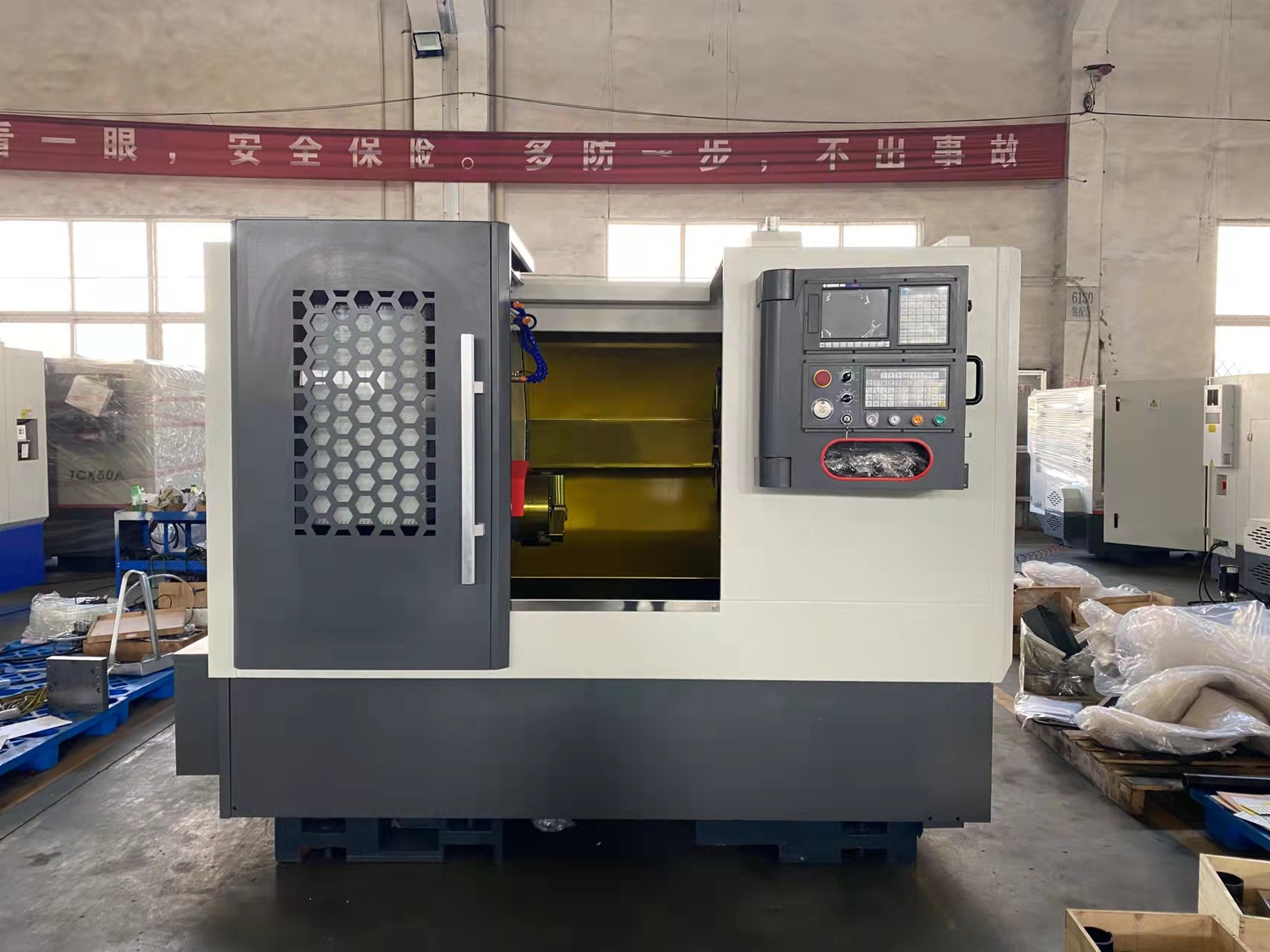

ALMAZAKLCNC Slant bed CNC lathe ALTCK50A with Y axis
The Main Technical Parameters
| Machine model | Unit | ALTCK50A |
| Maximum turning diameter of bed | mm | Φ560 |
| Maximum machining diameter (disk type) | mm | Φ400 |
| X axis maximum stroke | mm | 240 |
| Z axis maximum stroke | mm | 400 |
| Spindle speed | rpm | 3000rpm |
| Spindle through hole | mm | Φ66 |
| Horizontal turret station | 8 | |
| Maximum stroke of tailstock | mm | 200 |
| Total power capacity | KVA | 18 |
| Dimensions (l×w×h) | mm | 2500*1700*1890 |
| Total Weight | KG | 2600 |
Slant Bed CNC Lathe Machining Features
1. CNC lathe 45-degree inclined bed structure with low center of gravity for easy maintenance and work piece replacement.
Torsion tube design structure, can withstand greater stress without deformation, and provide maximum vibration damping.
2. The slant bed CNC lathe is equipped with a high spindle motor, which can meet most cutting conditions.
3.Mini CNC lathe MC model with dynamic tool function provides additional flexible machining capability to manufacture more complex work pieces with one machine.
4.L type is a long bed design which provides higher cutting length.
CNC Lathe Machine Processing Advantages
The horizontal CNC lathe machine will provide unique rigidity, 1.CNC lathe programmable tail stock Rugged construction, programmable tail stock and quill movement can be controlled on the control panel for easy setup and accurate positioning. The tail stock movement is driven by the turret slider.
2.Automatic CNC lathe machine tool Preconditioner The tool presetter effectively reduces cutting tests while saving machining time.
For measuring tool diameter and length. The tool adjustment arm is powered and programmed.
CNC Lathe Turning Application
CNC lathe is suitable for processing various small and medium shaft and disc parts, and can turn various threads, arcs, cones and inner and outer surfaces of rotary bodies. It is widely used in plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, Bearings and other industries.
