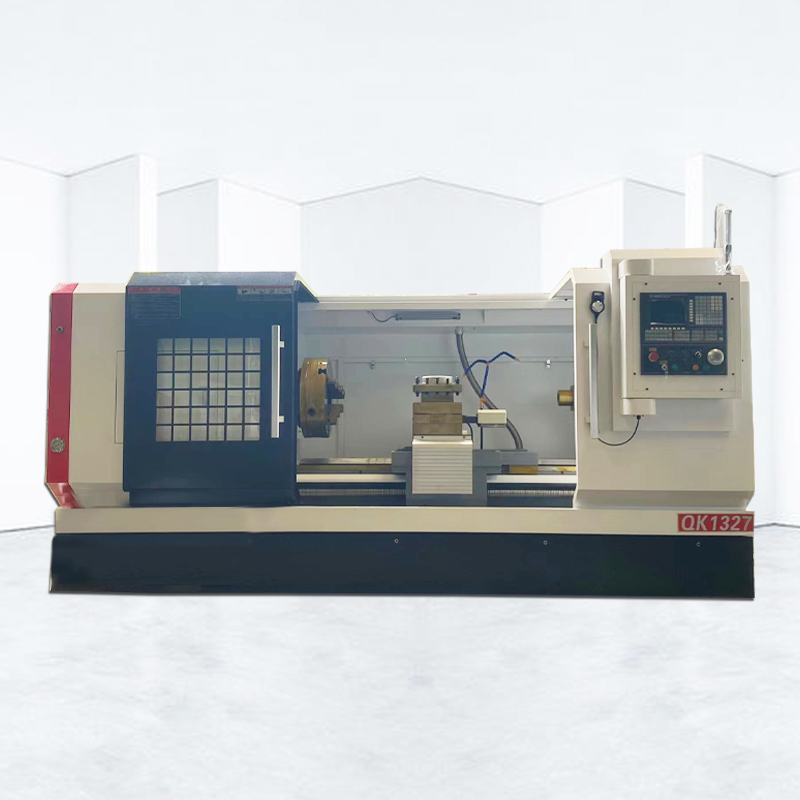

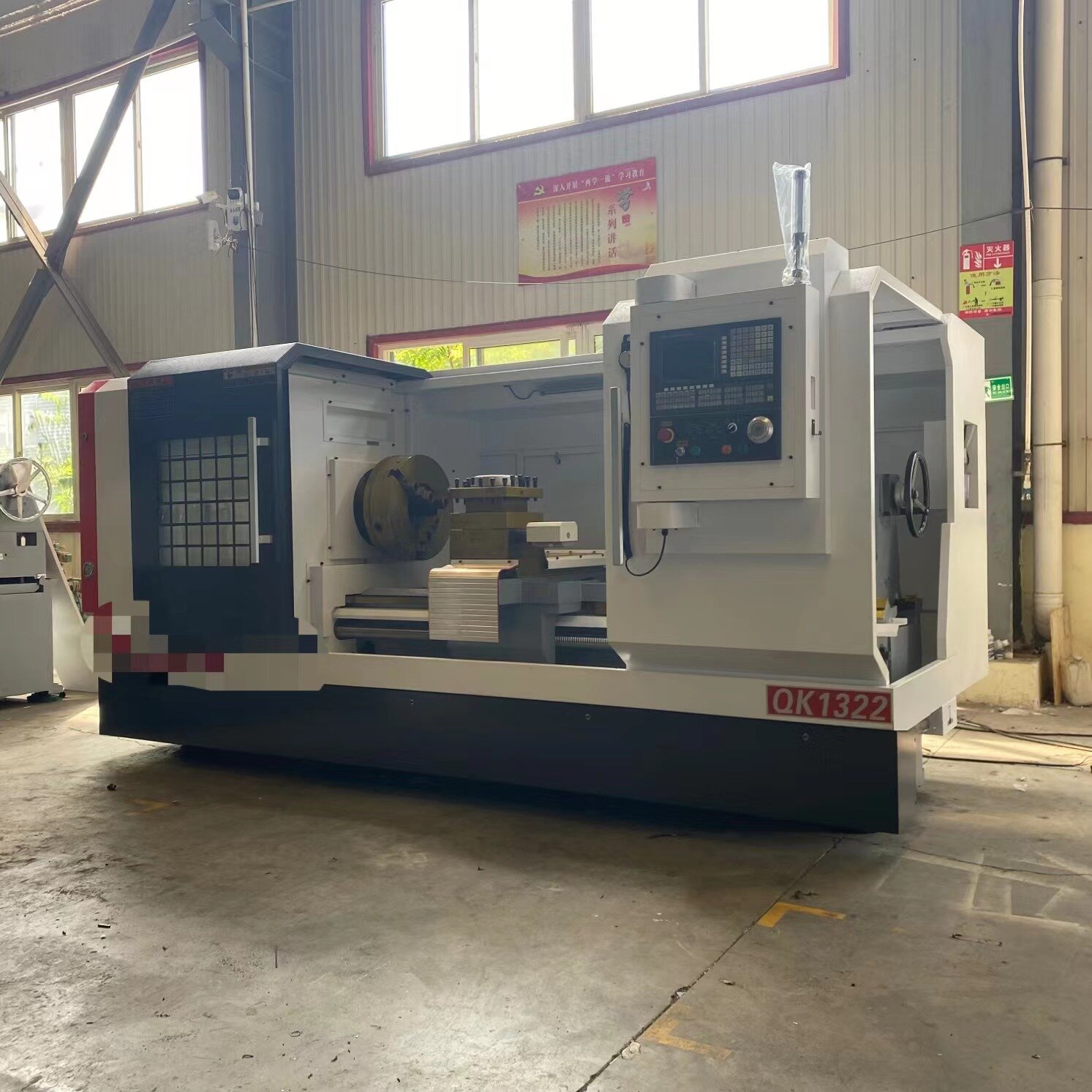

ALQK1327X2000 pipe thread lathe is a CNC lathe specially used for processing pipe thread and outer circle. Its spindle is reversible, suitable for processing various internal and external threads, and has the characteristics of high precision, high efficiency and high degree of automation.
ALQK1327X2000 Pipe Thread Lathe Can Be Used To Process Drill Pipe, But The Following Points Need To Be Paid Attention To:
1. First of all, choose the appropriate drill pipe material and specification to ensure that it can adapt to the processing capacity and requirements of the lathe.
2. Check the drill pipe before processing to ensure that there are no obvious defects and damages on the surface, and carry out necessary cleaning and lubrication treatment.
3. Pay attention to maintain the appropriate cutting speed and feed rate during the processing to avoid poor cutting quality or equipment damage caused by too fast or too slow.
4. Check after processing to ensure that the processing size, surface roughness and thread quality meet the requirements.
5. Finally, necessary cleaning and lubrication must be carried out to ensure the normal operation and service life of the equipment.
In short, for the processing of drill pipe, it is necessary to carefully select materials, master appropriate processing methods and skills, and pay attention to maintenance and maintenance of equipment in order to ensure processing quality and efficiency.
ALQK1327X2000 pipe thread lathe is a kind of lathe used for processing pipe thread and outer circle, mainly used in petroleum, natural gas, chemical industry, machinery manufacturing, aerospace and other industries.
1. Petroleum and natural gas industry: used for processing the thread and outer circle of various tubing, drill pipe, casing, oil well sucker rod and other pipes.
2. Chemical industry: used to process threads and outer circles of various pipelines, valves, pump bodies and other industrial equipment.
3. Machinery manufacturing industry: used to process threads and outer circles of various mechanical parts, such as nuts, bolts, bearings, shafts, etc.
4. Aerospace industry: used to process the threads and outer circles of various aircraft, rockets, missiles and other aircraft and spacecraft.
In conclusion, the ALQK1327X2000 pipe thread lathe is an important equipment widely used in industrial production, providing efficient and accurate pipe thread processing services for various industries.
CNC CNC pipe thread lathe adopts the double chuck clamping mode
Project | Content | Unit | ALQK1327X2000 |
Processing range | Maximum turning diameter of bed | mm | Φ630 |
Maximum turning diameter on the skateboard | mm | Φ380 | |
Maximum processing length | mm | 2000 | |
Maximum machining diameter | mm | Φ630 | |
Maximum bar diameter | mm | Φ350 | |
Spindle through hole diameter | mm | Φ270 | |
tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
X/Z motor torque | NM | 10/15 | |
Cooling pump motor power | W | 125 | |
battery capacity | KVA | 15 |
Please note that the bed length can be customized according to the actual needs of customers
