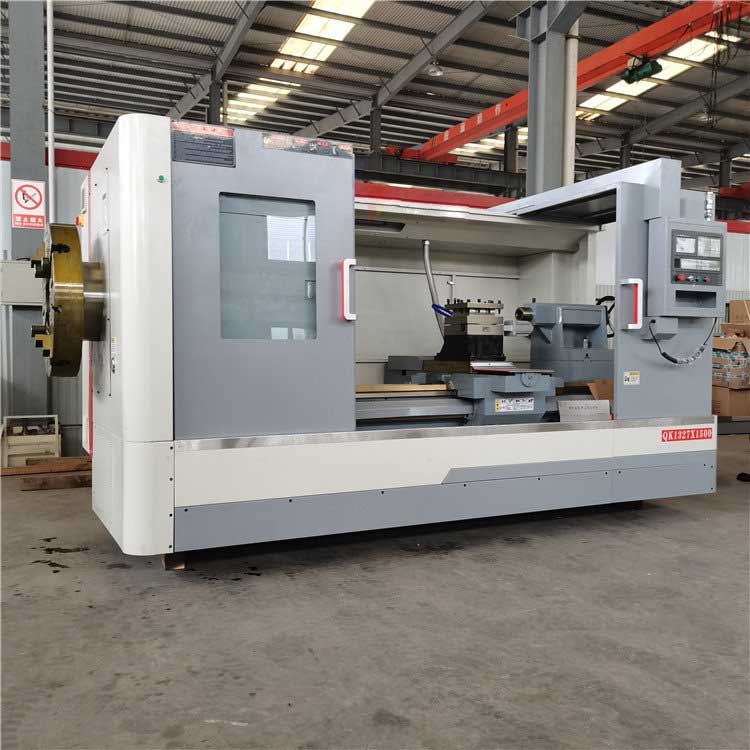

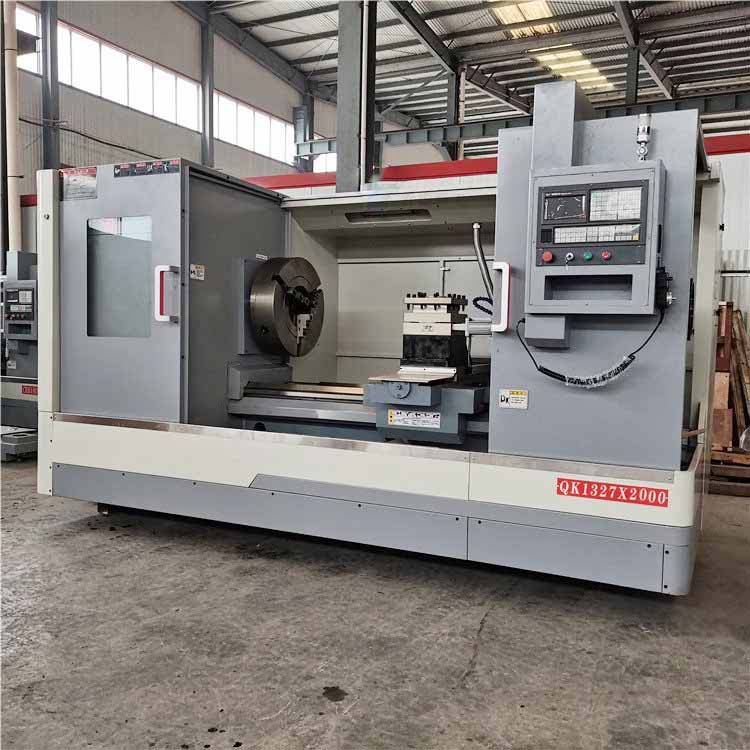

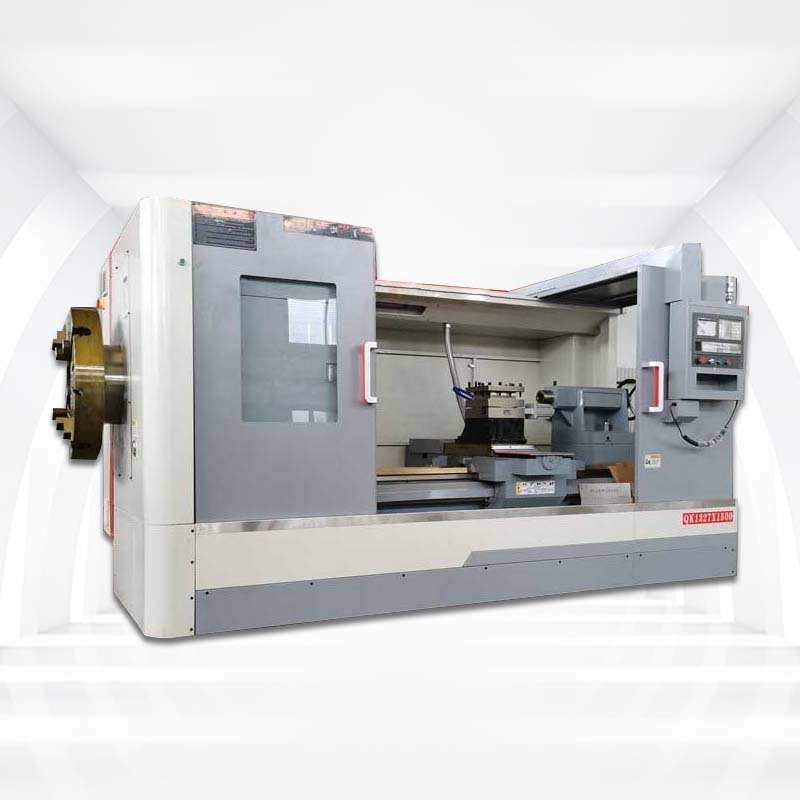

CNC Large Hole Rod/cutting Pipe Machine Tool/pipe Machine Tool Dual -Cartridge Car Lathes
CNC pipe threading machine has a large spindle through hole and a front and rear double chuck clamping structure, which is suitable for turning of various long pipe cylindrical threads, tapered threads and special threads. At the same time, it also has all the functions of ordinary CNC lathes.
CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters
| Project | Content | Unit | ALQK1327 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on the skateboard | Φ380 | ||
| Maximum processing length | mm | 2000 | |
| Maximum machining diameter | mm | Φ630 | |
| Maximum bar diameter | mm | Φ350 | |
| Tool Specifications: Turning/Boring | mm | 32/40 | |
| tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3c | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Rail form | Hard rail (greater than HRC50) |
Please note that the bed length can be customized according to the actual needs of customers
CNC Pipe Threading Machine Features:
1.CNC pipe threading machine uses high -standard cast iron secondary molding. After the second time processing, strong stability, good rigidity, and strong seismic resistance.
2. The surface of the CNC pipe threading machine rail is treated at high frequency quenching. The precision grinding of the imported guide grinding machine is used to ensure the long life, high accuracy and good maintenance of the guide rail surface.
3.ALMAZAKL CNC The main shaft box of the main shaft of the main shaft of the main shaft of the imported horizontal scalp milling processing center is completed. The main axis is high, and the structure is strong, which can adapt to heavy cutting. Stability, re -cutting and fine processing.
4. CNC Lathe for Sale automatically enrich the cycle lubrication, which makes the transmission system running flexibly and can effectively cool it. Each sliding rail has a TSF soft belt, which greatly reduces the friction coefficient and improves the life of the slide rail.
5. Almazakl CNC is equipped with four -site electric blade frames, which are fast and convenient to change the knife.
Horizontal CNC Lathe Machine Advantage
The automatic CNC lathe machine can replace ordinary CNC lathes to process complex-shaped shafts, sleeves, discs and other parts, such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, chamfering, threads, etc., with strong process adaptability , High processing efficiency and uniform product.
Application
ALMAZAKL CNC The CNC pipe thread lathe mainly designs and processes various internal and external threads of pipes, including metric, inch, modulus, DP, taper threads, and has all the common functions of ordinary CNC lathes for processing inner holes and machining. End faces of shafts and discs.
