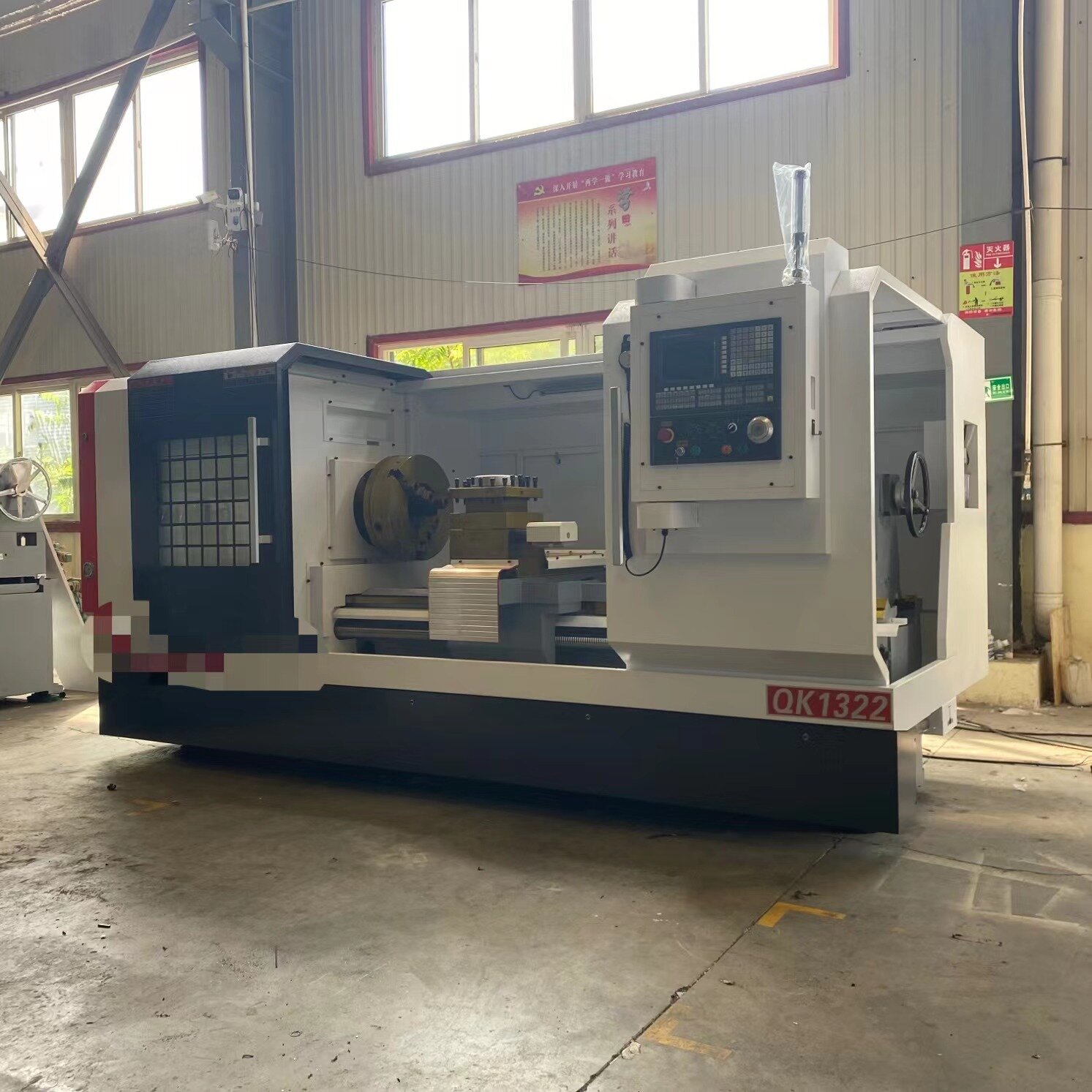

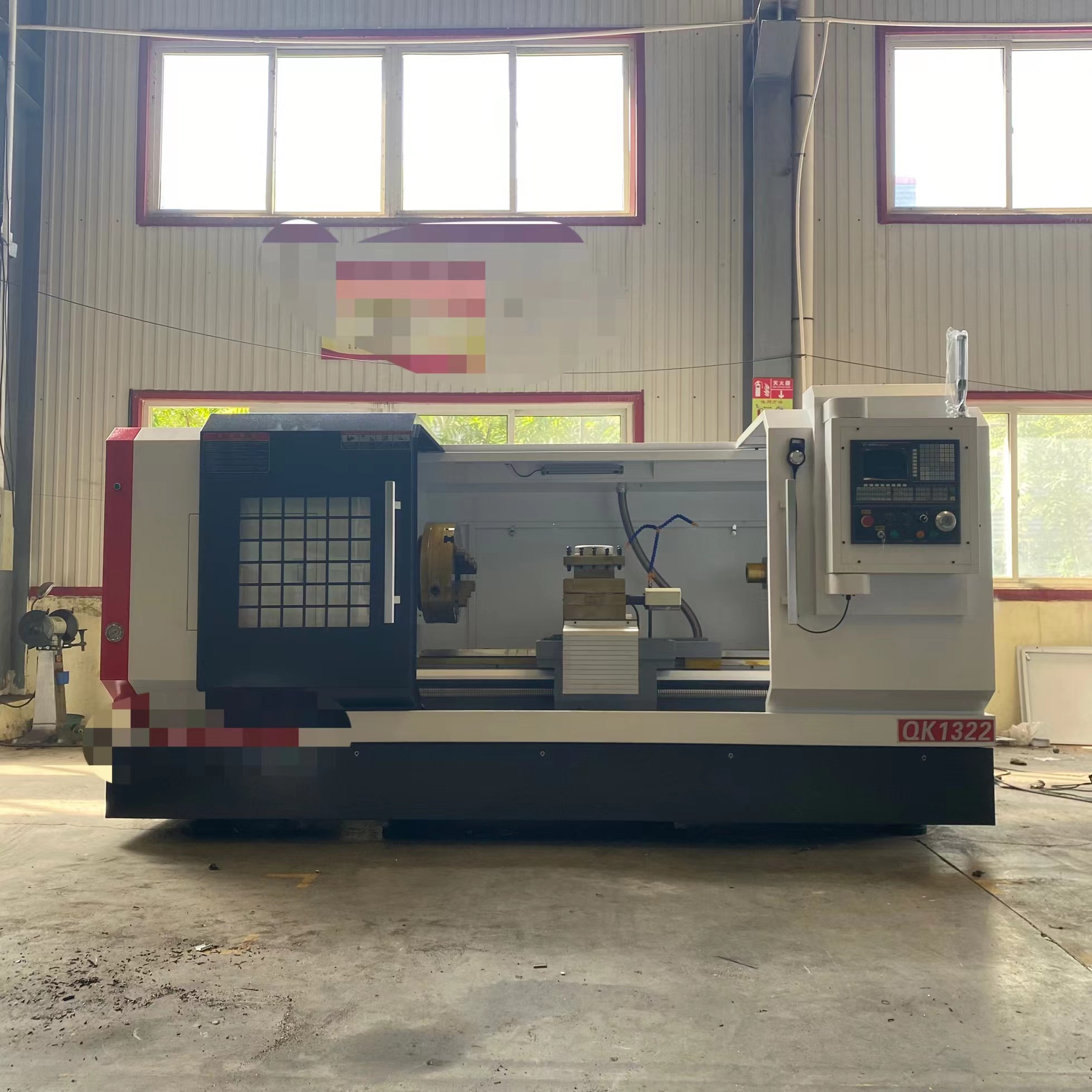

Horizontal Metal Automatic CNC Lathe Tool
ALMAZAKL CNC CNC pipe thread lathe is a lathe that can process both internal and external pipe threads, metric and inch threads, and can also be used for CNC. Lathes are used to make round holes and end shafts, sheet parts.
Features Of CNC Pipe Threading Lathe
1.CNC lathe Big spindle bore and double chuck to ensure process big diameter pipe
2.CNC lathe machine One-piece bed adopts high strength iron to ensure rigidity and precision
3.Ultrasonic frequency quenched guide-ways ensure good wear-resistance
4.CNC metal lathe Carriage and guide way contact surface use to maintain accuracy
CNC CNC pipe thread lathe adopts the double chuck clamping mode
The Main Technical Parameters

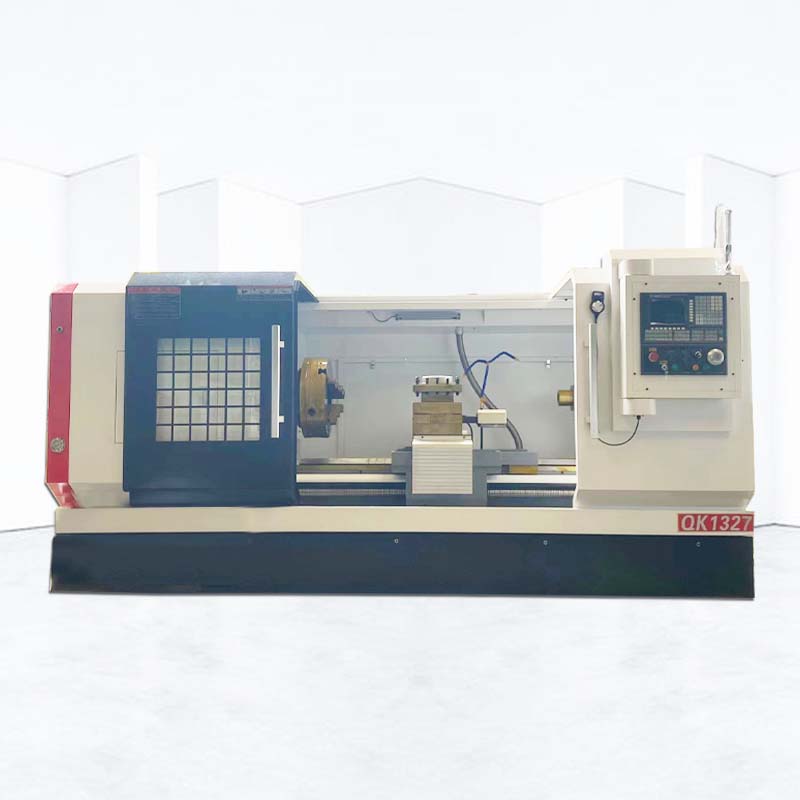

| Project | Content | Unit | ALQK1327 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on the skateboard | mm | Φ380 | |
| Maximum processing length | mm | 2000 | |
| Maximum machining diameter | mm | Φ630 | |
| Maximum bar diameter | mm | Φ350 | |
| Spindle through hole diameter | mm | Φ270 | |
| tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Others | battery capacity | KVA | 15 |
Please note that the bed length can be customized according to the actual needs of customers
Application

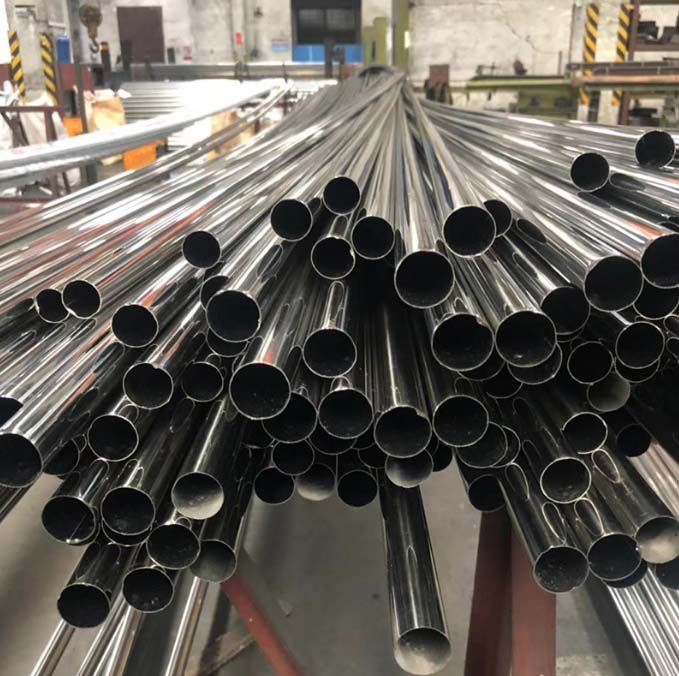

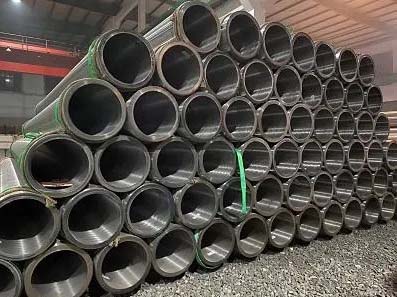

Horizontal CNC lathe machine is widely used in industry, including bottom utilization of petroleum, coal and mineral resources, chemical edging and geological exploration, and it is a high-performance equipment for processing and repairing pipe boreholes, drill pipes, threaded connections and connectors.
