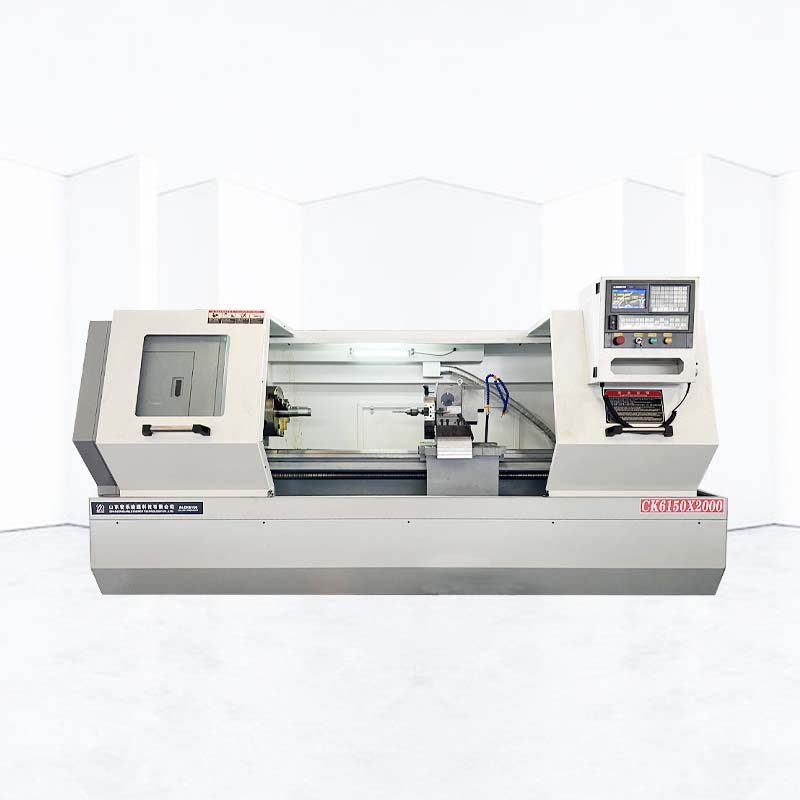

ALCK6150X2000 CNC Lathe for Manufacturing

The CK6150X2000 CNC Lathe is a versatile machine tool that is commonly used in the manufacturing industry for machining cylindrical components.

The CK6150X2000 CNC Lathe is a type of computer numerical control (CNC) lathe used for machining metal workpieces. Here are some of the key machining features of the CK6150X2000 CNC Lathe:

1.Maximum Turning Diameter: The maximum turning diameter of this CNC lathe is 500mm, which means that it can handle workpieces with a diameter up to 500mm.

2.Maximum Turning Length: The maximum turning length of this CNC lathe is 2000mm, which means that it can handle workpieces with a length up to 2000mm.

3.Spindle Speed: The spindle speed of the CK6150X2000 CNC Lathe is variable and can be adjusted between 20 and 1600 RPM. This allows for greater control over the machining process and enables the lathe to work with a wider range of materials.

4.Tool Turret: The CNC lathe is equipped with a tool turret that can hold up to 8 tools. This allows for quick and easy tool changes, which can save time and increase productivity.

5.Control System: The CK6150X2000 CNC Lathe is equipped with a Siemens 808D control system, which provides precise control over the machining process. The control system also allows for the creation and storage of multiple machining programs, which can be recalled and executed as needed.

6.Tailstock: The CNC lathe is equipped with a tailstock that can be manually adjusted to support the workpiece during machining. The tailstock can also be used to hold additional tooling, such as drills or reamers.

7.Chip Conveyor: The CNC lathe is equipped with a chip conveyor that automatically removes chips and other debris from the machining area. This helps to keep the work area clean and safe, and can also improve machining accuracy.

ALMAZAKL CNC Super low price CNC lathe ALCK6150

Equipment Configuration And Parameters
