ALMAZAKL CNC CNC lathe Application industry: plumbing equipment, valves, electrical appliances, instruments, automobiles, motorcycles, bearings and other industries.

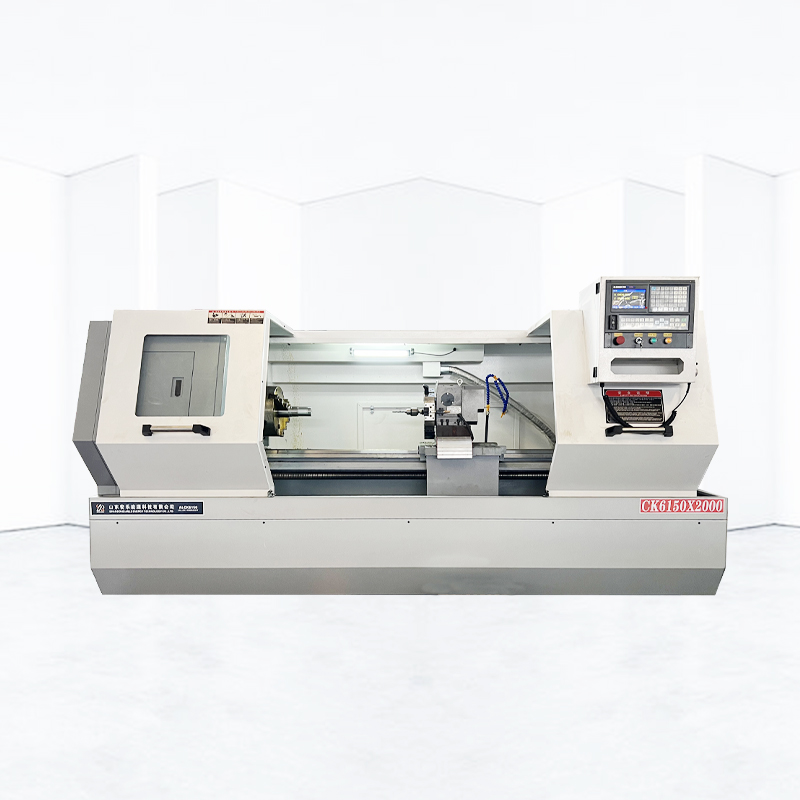

ALMAZAKL CNC Super low price CNC lathe ALCK6150
1.ALMAZAKL CNC Metal CNC lathes are easy to operate, safe to protect, novel and beautiful in appearance, easy to maintain and easy to maintain.
2.ALMAZAKL CNC CNC lathe processing has strong adaptability to processing objects, adapts to the characteristics of single-piece production of molds and other products, and provides suitable processing methods for mold manufacturing;
Item | Unit | ALCK6150*2000 |
Max swing over bed | mm | Φ500 |
Maximum swing over slide | mm | Φ290 |
Maximum cutting diameter | mm | Φ500 |
Maximum processing length | mm | 2000 |
X/Z axis maximum stroke | mm | 2000 |
X/Z axis minimum displacement unit | mm | 0.001 |
Spindle hole diameter | mm | Φ82 |
Main motor power (frequency conversion) | kW | 7.5 |
Frequency converter | kW | 7.5 |
X/Z axis | N.m | 5/7.5 |
X/Z axis rapid traverse speed | m/min | 6/8 |
Diameter of tailstock sleeve | mm | Φ65 |
Tailstock sleeve stroke | mm | 130 |
Electricity demand (power/current) | kW/A | 15kW/20A |
1. The CNC lathe spindle adopts a high-precision spindle bearing group, which is precisely assembled and dynamically balanced to ensure high precision, low noise and strong rigidity of the spindle.
2. Each lubrication point of the mini CNC lathe adopts a forced automatic lubrication device to perform fixed-point and quantitative lubrication on the screw rod and guide rail. When there is an abnormal state or insufficient oil, a warning signal will be generated automatically.
3. The flat bed CNC lathe guide rail is equipped with a scraper device to prevent the guide rail from being corroded by iron filings and coolant, and to facilitate the cleaning of iron filings.
Horizontal CNC lathe machine is a high-precision, high-efficiency automatic machine tool. The whole machine adopts an integrated protective structure and has a beautiful appearance. Detect the positioning accuracy and repetitive positioning accuracy of X and Z axes to ensure the accuracy and reliability of the machine.
