CNC Lathe Processing Stainless Steel Spare Parts
ALMAZAKL CNC Flat bed CNC lathe is a CNC machine tool for machining cylindrical or conical workpieces. Its main features are a bed parallel to the spindle and a tool holder with lateral movement. Flat body CNC lathes are usually used to process workpieces with large diameters and long strips, such as shafts, bearing housings, flanges, gears, etc.
CNC Lathe For Metal Function:
1.ALMAZAKL CNC Metal CNC lathes are easy to operate, safe to protect, novel and beautiful in appearance, easy to maintain and easy to maintain.
2.ALMAZAKL CNC CNC lathe processing has strong adaptability to processing objects, adapts to the characteristics of single-piece production of molds and other products, and provides suitable processing methods for mold manufacturing;

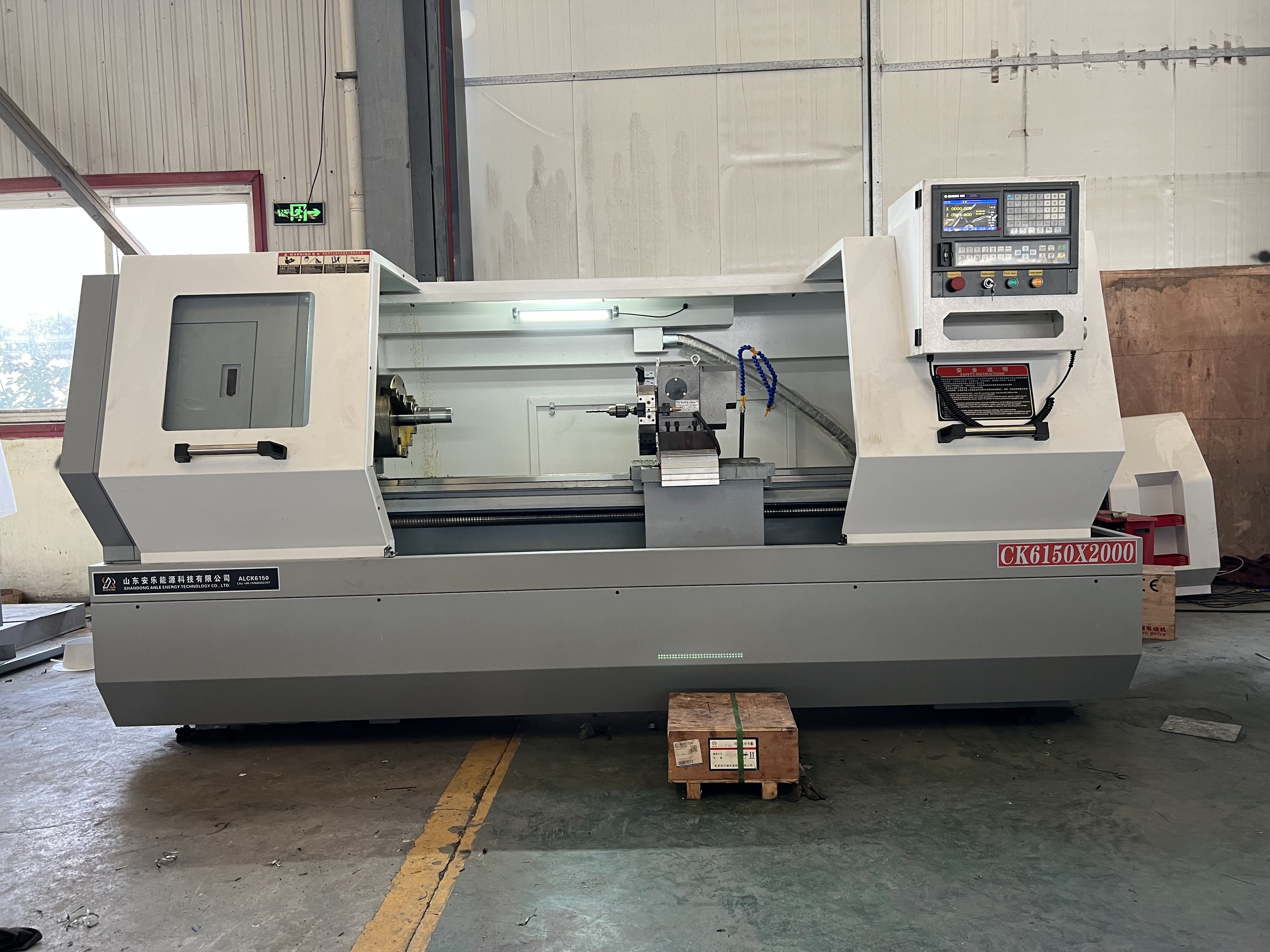

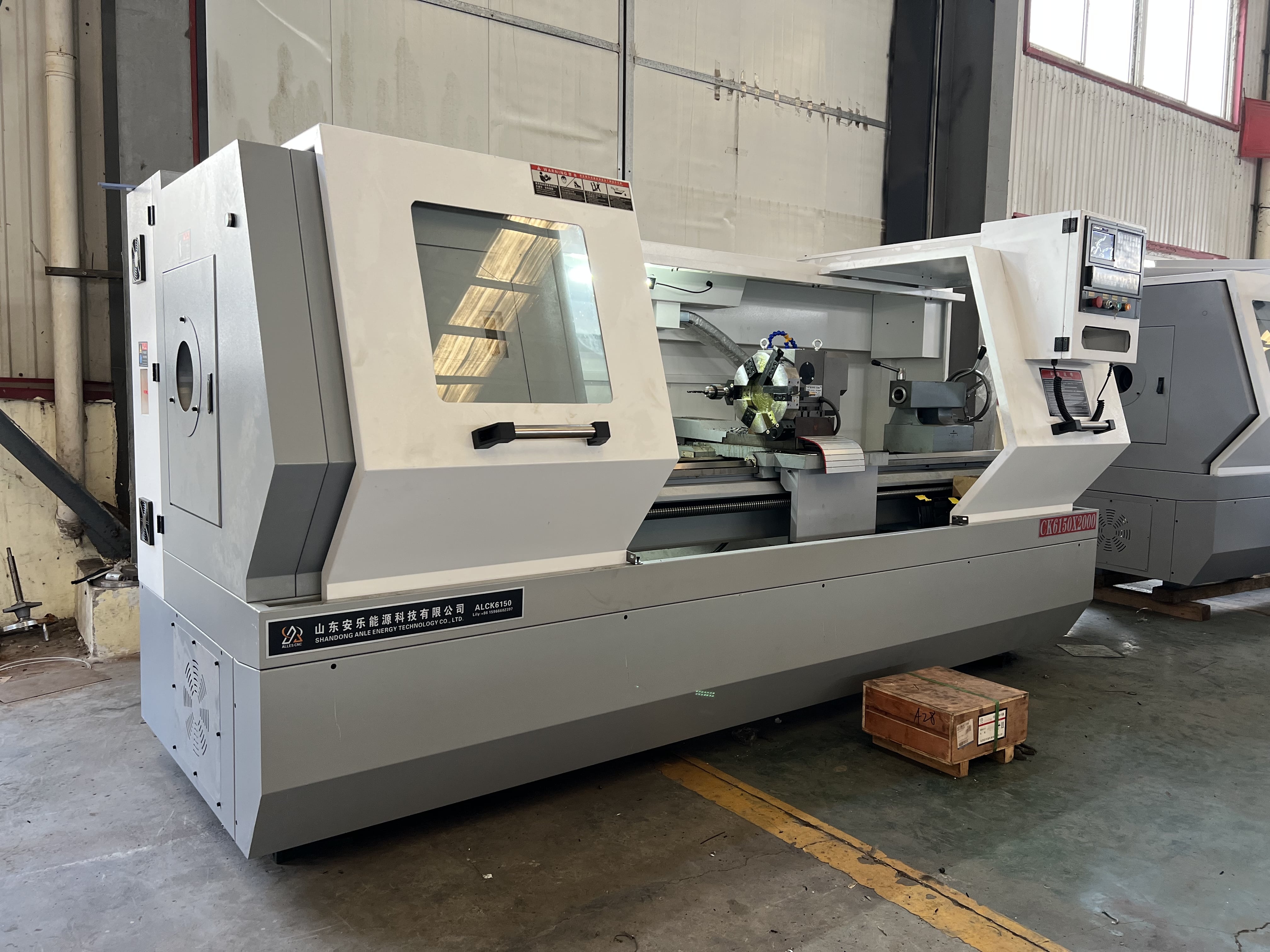

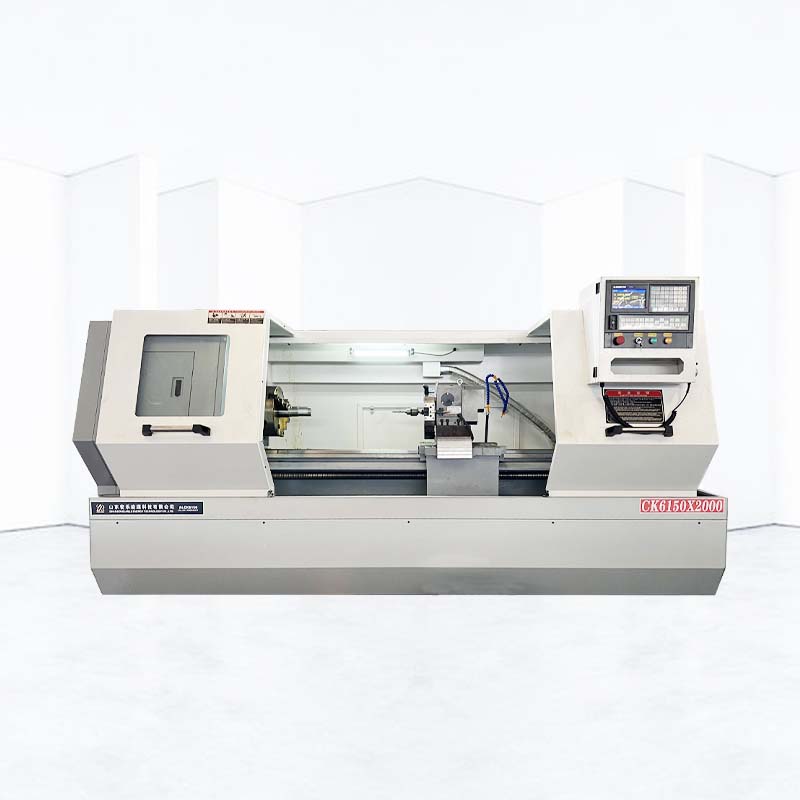

ALMAZAKL CNC Super low price CNC lathe ALCK6150
CNC Lathe For Metal Function:
1.ALMAZAKL CNC Metal CNC lathes are easy to operate, safe to protect, novel and beautiful in appearance, easy to maintain and easy to maintain.
2.ALMAZAKL CNC CNC lathe processing has strong adaptability to processing objects, adapts to the characteristics of single-piece production of molds and other products, and provides suitable processing methods for mold manufacturing;
Flat Bed CNC Lathe Advantages
1.ALMAZAKL CNC lathe can realize automatic machining process by controlling the movement of spindle and tool post. The operator only needs to control the processing technology and processing parameters by inputting the program, and the CNC lathe machine can automatically complete the processing process. Compared with traditional manual operation, automatic CNC lathe machine has the advantages of high precision, high efficiency and good stability. At the same time, the programmability of horizontal CNC lathe machine also makes it flexible and adaptable.
2.CNC lathe machine bar fedeer has been widely used in machining, especially in heavy machinery manufacturing and aerospace.
Equipment Configuration And Parameters
| Item | Unit | ALCK6150X2000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 2000 |
| X/Z axis maximum stroke | mm | 2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | F82 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Diameter of tailstock sleeve | mm | Φ65 |
| Tailstock sleeve stroke | mm | 130 |
| Electricity demand (power/current) | kW/A | 15kW/20A |
