The CK6163x1000 CNC lathe is a versatile machine tool that can process a variety of materials, including metal, plastic, and other materials. The lathe can be used to process complex and precision parts, and is widely used in various industries such as aerospace, automotive, petrochemical, medical, and machinery manufacturing
1.The lathe adopts a high-precision CNC system, which can realize automatic control and improve processing efficiency.
2.The machine tool has a high rigidity and stability structure, which ensures the stability and accuracy of processing.
3.The lathe is equipped with a hydraulic chuck and tailstock, which makes it easy to clamp and process large and heavy workpieces.
4.The lathe has a wide range of processing functions, including turning, milling, drilling, and tapping, which can complete the processing of complex parts in one clamping.
5.The lathe is equipped with an automatic lubrication system, which can ensure the lubrication of each part and extend the service life of the machine tool.
6.The lathe is suitable for processing various materials, including metal, plastic, and other materials.
7.The lathe has a user-friendly interface and easy-to-operate control system, which can realize automatic programming and processing.
1.Aerospace industry: The lathe is suitable for processing various parts of aircraft, such as engine components, landing gear components, and structural components.
2.Automotive industry: The lathe can process various automotive parts, such as crankshafts, camshafts, gears, and brake components.
3.Petrochemical industry: The lathe is used to process parts for petrochemical equipment, such as valves, flanges, and pipe fittings.
4Medical industry: The lathe can process various medical equipment parts, such as implant components and surgical instruments.
5.Electronic industry: The lathe can process various electronic components, such as connectors and housings.
6.Machinery manufacturing industry: The lathe is widely used in the manufacture of various mechanical parts, such as bearings, shafts, and gears.

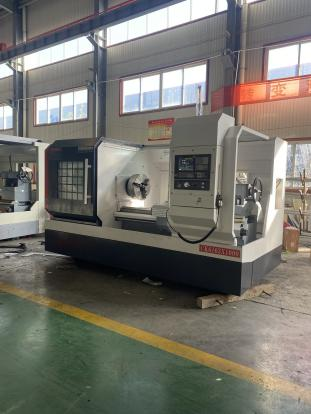

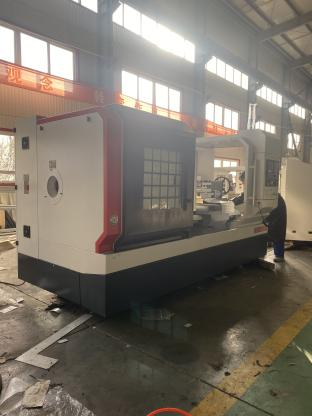

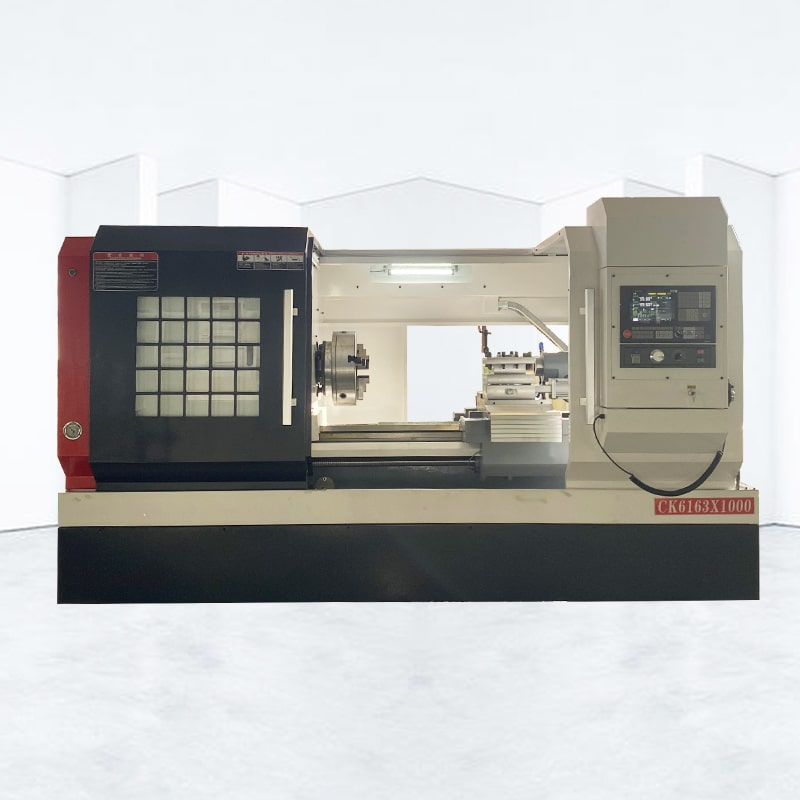

ALMAZAL CNC ALCK6163X1000 Flat bed CNC lathe performs part machining by rotating and removing chips during turning
Project | Content | Unit | CK6163x1000 |
Processing range | Maximum turning diameter of bed | mm | Φ630 |
Maximum turning diameter on skateboard | mm | F400 | |
Maximum processing length | mm | 1000 | |
Maximum machining diameter | mm | Φ630 | |
Spindle | X/Z axis maximum travel | mm | 330/1000 |
X/Z axis minimum displacement unit | mm | 0.001 | |
Tailstock | Spindle through hole diameter | mm | F82 |
Spindle limit speed | rpm | 50-1500 | |
Repeated positioning accuracy of tool post | mm | ≤0.004 | |
Tailstock sleeve diameter | mm | Φ85 | |
Whole weight | kg | 3000 | |
Electricity demand (power/current) | kW/A | 15kW/20A |
