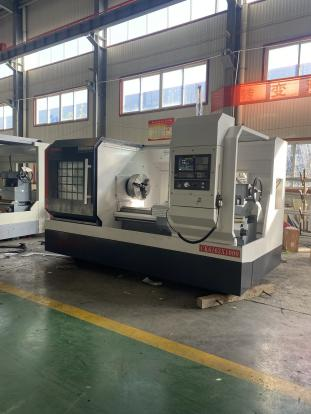

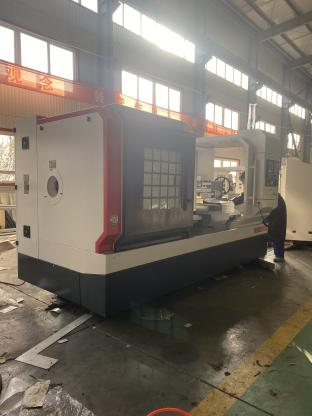

Automatic Row Mini CNC Lathe With Bar Feeder
ALMAZAKL CNC Flat bed CNC lathe is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, and turning internal and external pipe threads including metric, inch, module, DP thread etc.
Characteristics of CNC lathe for metal
CNC lathe is universal standard automatic processing equipment for metal processing, capable of semi-finished product machining and punish machining of machinery Element and parts, with the main characters such as reliable structure and easy operating.
Super low price ALCK6163X1000
GSK980TB3 system
With third-party driver
Rail width 400
320 three-jaw manual self-centering chuck
Four-station electric tool holder
7.5kw ordinary motor
Horizontal CNC Lathe Application:
1.ALMAZAKL CNC CNC lathe converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment;
2.CNC lathe machine process feeding motion by directly connecting shaft coupling & ball screws. With high power, pleasant rigidity；
high precision & storage, high price-quality ratio and long cycle life, automatic CNC lathe machine is widely applied to instruments,meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc.industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals metals & stainless steel) as well as an ideal equipment’s for large automation production
Flat Bed CNC Lathe Application

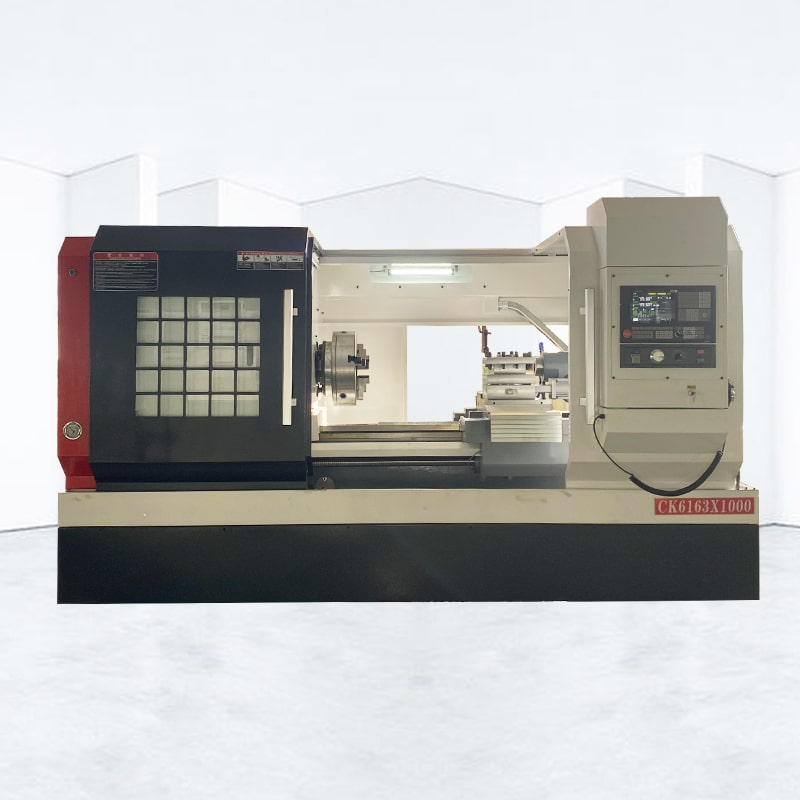

CK6163X1000 series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc. Its main components and structure have been optimized design, and it is the first choice for machining shafts, discs, sleeves, special-shaped surfaces and screw work pieces.
CNC Lathe configuration and parameters
| Project | Content | Unit | ALCK6163X1000 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on skateboard | mm | F400 | |
| Maximum processing length | mm | 1000 | |
| Maximum machining diameter | mm | Φ630 | |
| Travel | X/Z axis maximum travel | mm | 330/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 | |
| Spindle | Spindle through hole diameter | mm | F82 |
| Other | Machine weight | kg | 2300 |
| Whole weight | kg | 3000 | |
| Electricity demand (power/current) | kW/A | 15kW/20A |
