CNC Lathes Lathes GSK Seimens Fanuc System
ALMAZAL CNC Automatic CNC lathe machine trimming; conical, profiled and cylindrical turning faces; drilling; reaming; thread cutting and cutting; boring and knurling of corrugations, etc. When a special device is used on the lathe, the product can be milled, ground, and toothed.

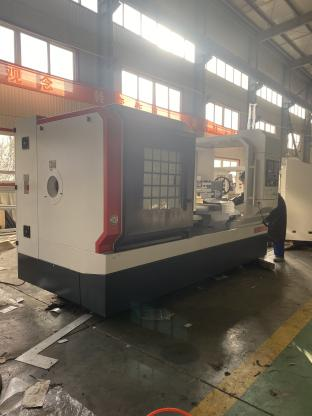

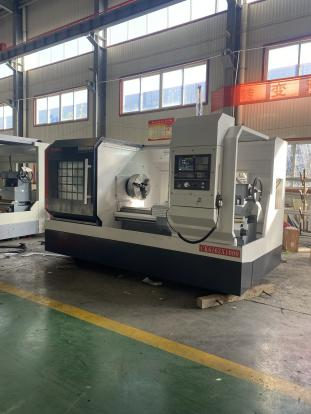

ALMAZAL CNC Flat bed CNC lathe performs part machining by rotating and removing chips during turning.
ALMAZAL CNC Flat bed CNC lathe performs part machining by rotating and removing chips during turning.

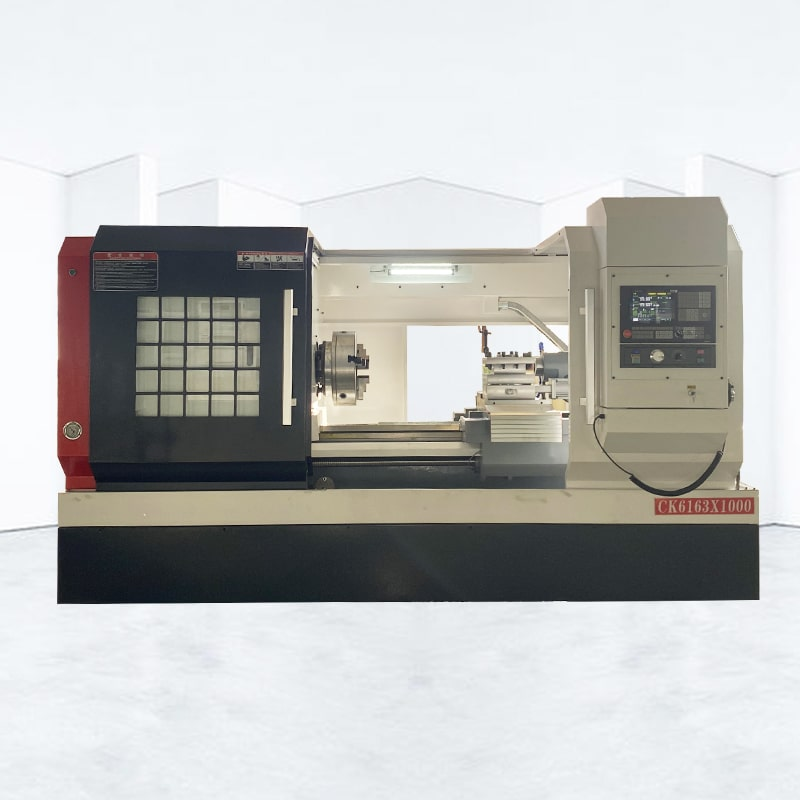

| Project | Content | Unit | ALCK6163*1000 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on skateboard | mm | Ф400 | |
| Maximum processing length | mm | 1000 | |
| Maximum machining diameter | mm | Φ630 | |
| Travel | X/Z axis maximum travel | mm | 330/1000 |
| X/Z axis minimum displacement unit | mm | 0.001 | |
| Spindle | Spindle through hole diameter | mm | Ф82 |
| Spindle limit speed | rpm | 50-1500 | |
| Repeated positioning accuracy of tool post | mm | ≤0.004 | |
| Tailstock | Tailstock sleeve diameter | mm | Φ85 |
| Whole weight | kg | 3000 | |
| Electricity demand (power/current) | kW/A | 15kW/20A |
Horizontal CNC Lathe Application:
1.CNC lathe converters, which could fulfill variable speed control & constant linear speed cutting functions; machining body adopts ultrasonic frequency hardening treatment;
2.CNC lathe machine process feeding motion by directly connecting shaft coupling & ball screws. With high power, pleasant rigidity；
high precision & storage, high price-quality ratio and long cycle life, automatic CNC lathe machine is widely applied to instruments,meters, light industries, electronics, home appliances, medical instruments, aeronautics & astronautics and etc.industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals metals & stainless steel) as well as an ideal equipment’s for large automation production
Flat Bed CNC Lathe Application
ALMAZAL CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc. Its main components and structure have been optimized design, and it is the first choice for machining shafts, discs, sleeves, special-shaped surfaces and screw work pieces.
