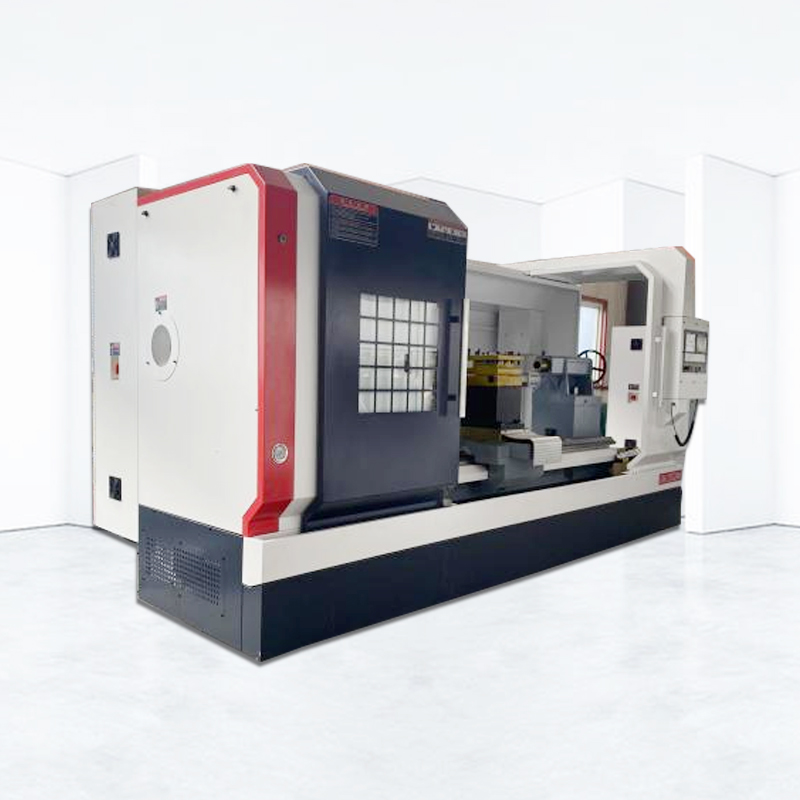

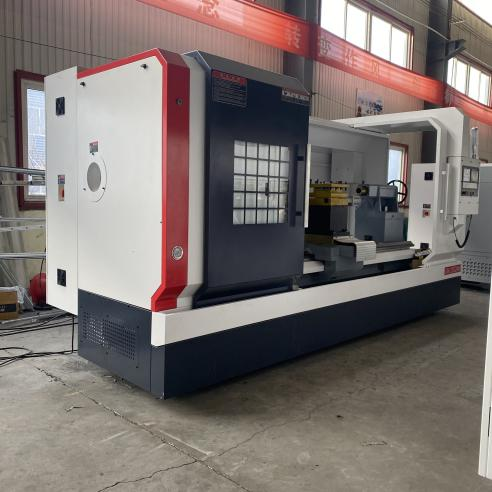

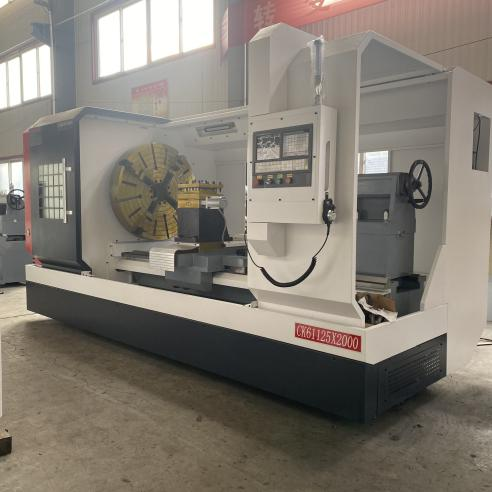

CK61125 is a high-precision and high-performance CNC lathe developed by ALMAZAKL CNC. The horizontal CNC lathe machine has good dynamic performance, accurate motion precision control, stable machining precision and good consistency.
1. The CNC lathe machine has high precision, and the main shaft adopts high-precision double ball bearings, which has low noise, high precision and good stability.
2. It can process various rotary surfaces such as cylindrical surfaces, conical surfaces, and special-shaped surfaces. It can be used for grooving, threading, boring, and reaming. It has high efficiency and a wide range of applications.
3. The flat bed CNC lathe guide rail is ultrasonic quenched and finely ground, with high hardness and good rigidity.
ALCK61125 large CNC lathe is widely used in motors, instruments and meters, automobile and motorcycle industry, fasteners, bearings, photographic equipment, video equipment, hardware tools, clocks, glasses, stationery, motors, valves, air pipes and other industries. The processing and production of other high-precision and complex parts is an ideal high-efficiency equipment for the hardware equipment manufacturing industry.
The ALCK61125 large CNC lathe is capable of handling a variety of workpieces used in valve processing. Some examples of workpieces that can be machined using this lathe include:
1、Valve bodies: The ALCK61125 can handle large valve bodies made of various materials such as cast iron, stainless steel, and bronze.
2、Valve stems: The lathe can also machine valve stems, which are typically made of hardened steel or other tough materials.
ALMAZAKL CNC ALCK61100X2000 CNC lathe machine
Project | Content | Unit | ALCK61125X2000 |
Processing range | Maximum turning diameter on the bed slide | mm | Φ1250 |
Maximum turning diameter on the skateboard | mm | Φ900 | |
Maximum processing length | mm | 2000 | |
Effective processing length | mm | 1850 | |
Maximum machining diameter | mm | Φ1250 | |
Feed | Maximum bar diameter | mm | Φ630 |
X/Z axis travel | mm | 530/2000 | |
Machine net weight | kg | 5500 | |
Machine tool dimensions (length × width × height) | mm | 4200*1820*1780 | |
Electricity demand (power/current) | kW/A | 20kW/30A |
